Product Description

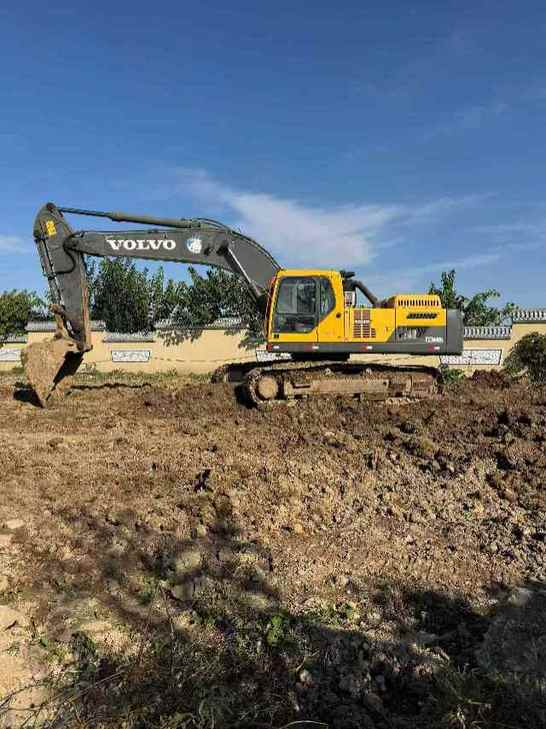

Discover the 2020 Volvo 360BLC, a premium excavator located in Peking, China. This machine is a top-tier choice for construction professionals, having been exclusively used for earthmoving tasks without any hammer attachments. The bucket teeth are in excellent condition, with an estimated 90% of their original life remaining. Key components are in robust health, with no signs of oil leaks, ensuring reliable and efficient operation. Ideal for those who demand high performance and durability, this Volvo 360BLC is ready to meet your project needs. Secure this well-maintained unit today and elevate your fleet's capabilities.
- Year: 2020
- Brand: Volvo
- Model: 360BLC
- Location: Peking, China
- Condition: Excellent, primarily used for earthmoving
| Specifications | Value |
|---|---|
| No. | 1131857 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.35-3.0 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D12D |
| Rated power (kw/rpm) | 198/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 150 |
| Maximum torque (N.m) | 1475/1275 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.1 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 65.9 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 215.0 (Standard mode) /236.0 (Extra mode) |
| Rod digging force (kN) | 161.0 (Standard mode) /176.0 (Plus mode) |
| Travel speed (km/h) | 3.3/4.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 280 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ variable pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 500 |
| Total transport length (mm) | 11070 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4340 |
| Back end turning radius (mm) | 3390 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4240 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10970 |
| Maximum effective digging depth (mm) | 7320 |
