2021 Volvo EC120D

1/9

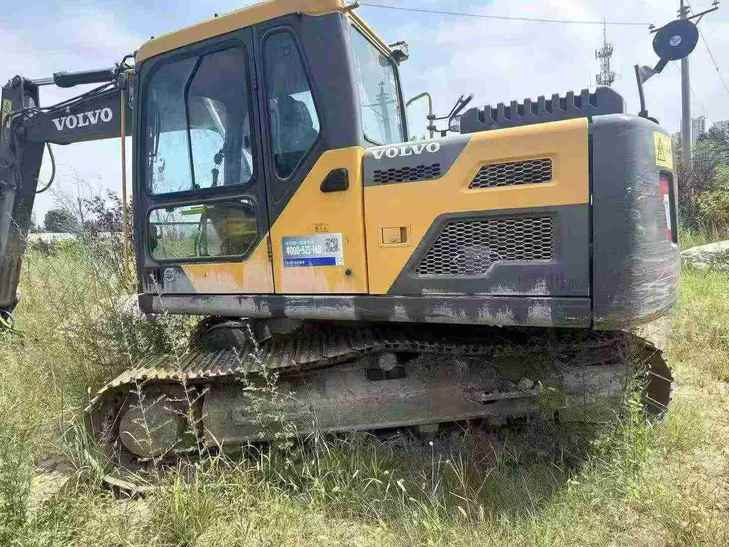

Buy Volvo EC120D Used Excavator / 1
Buy Volvo EC120D Used Excavator / 2
Buy Volvo EC120D Used Excavator / 3
Buy Volvo EC120D Used Excavator / 4
Buy Volvo EC120D Used Excavator / 5
Buy Volvo EC120D Used Excavator / 6
Buy Volvo EC120D Used Excavator / 7
Buy Volvo EC120D Used Excavator / 8
Buy Volvo EC120D Used Excavator / 9

Product Description

2021 Volvo EC120D excavator available in Zhejiang, China. This single-owner machine shows approximately 3,000 hours on the original meter and comes with complete documentation from the first buyer. The unit has been maintained consistently and operates without performance concerns.

  • Year: 2021
  • Model: Volvo EC120D
  • Hours: ~3,000 (original meter)
  • Ownership: Single owner, full records
  • Location: Zhejiang Province, China
  • Condition: Operational, no mechanical issues noted

The EC120D is a 12-ton class hydraulic excavator suited for general earthmoving, utility work, and site development. This unit is ready for inspection and immediate deployment. Detailed photos available upon request for serious buyers.

SpecificationsValue
No.1137844
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
see more

Overview

No.1137844

Brand Name:

Volvo

Model Number:

EC120D

Year:

2021

Location:

Zhejiang China

Pub Date
