Product Description

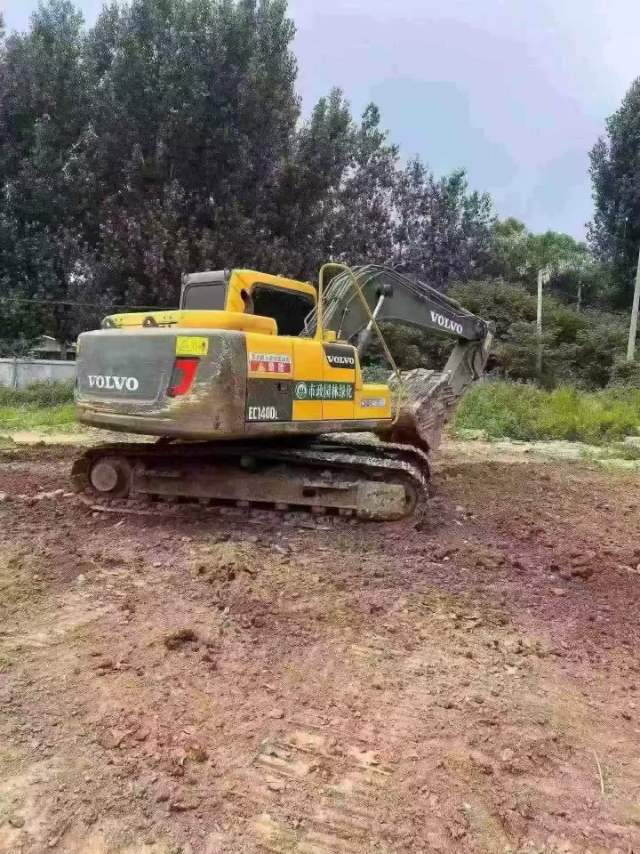

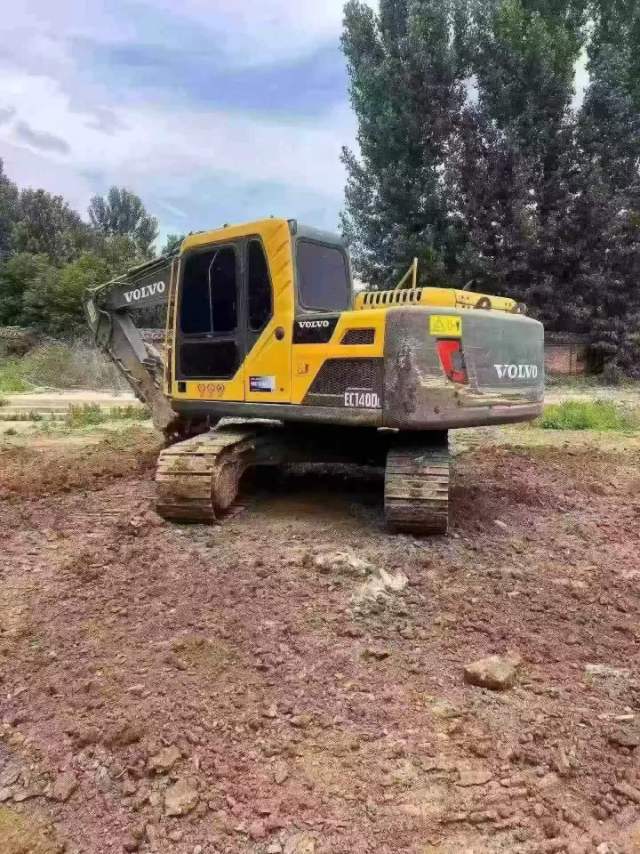

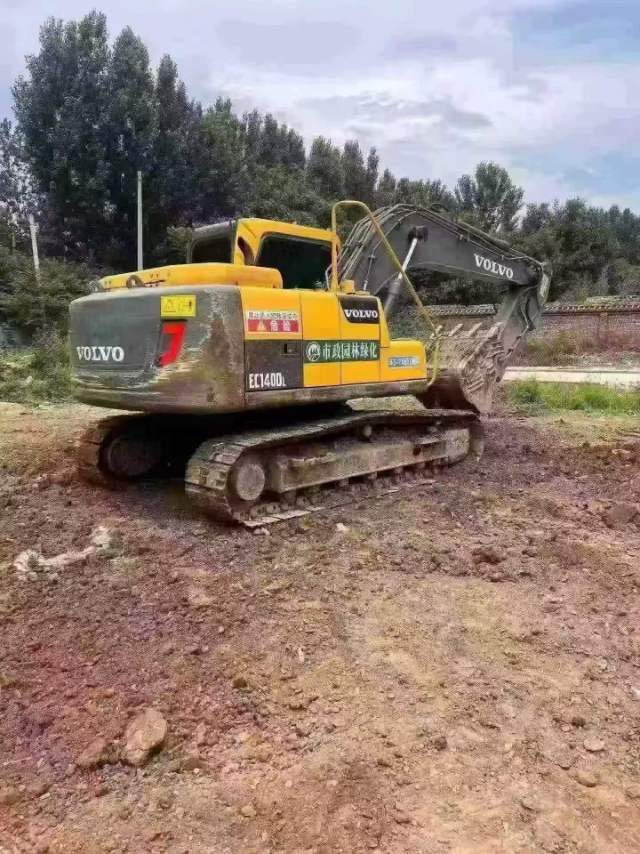

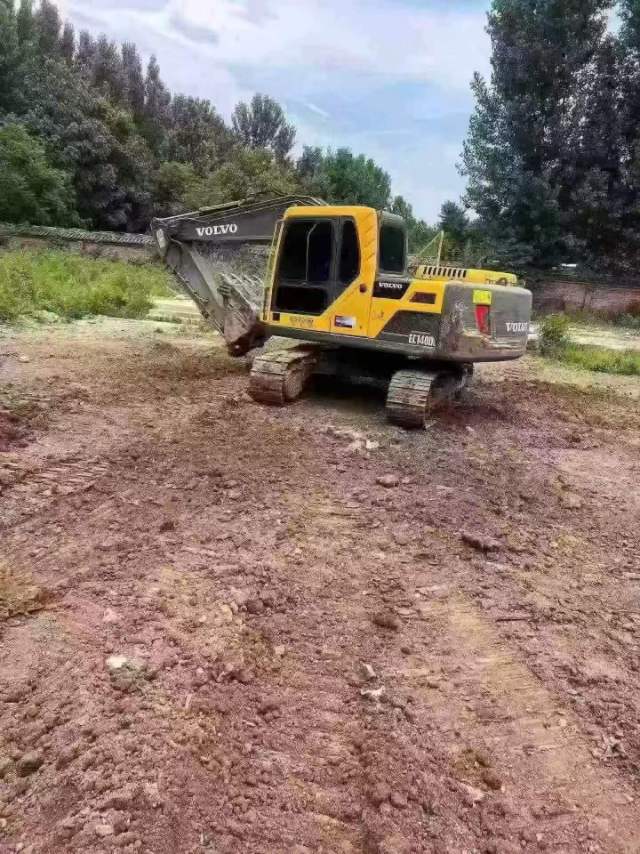

Discover the 2019 Volvo EC140B, a robust and reliable excavator currently available in Peking, China. This machine boasts an impressive overall condition, with its original components ensuring a high level of performance and durability. Known for its powerful and efficient operation, the EC140B is designed to handle demanding tasks with ease. The excavator maintains its original features, which not only enhance its operational efficiency but also guarantee its quality. Ideal for construction, mining, and infrastructure projects, this Volvo model delivers strong, coordinated, and effective performance, making it a valuable addition to any fleet.
- Year: 2019
- Brand: Volvo
- Model: EC140B
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1132819 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.55-0.93 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

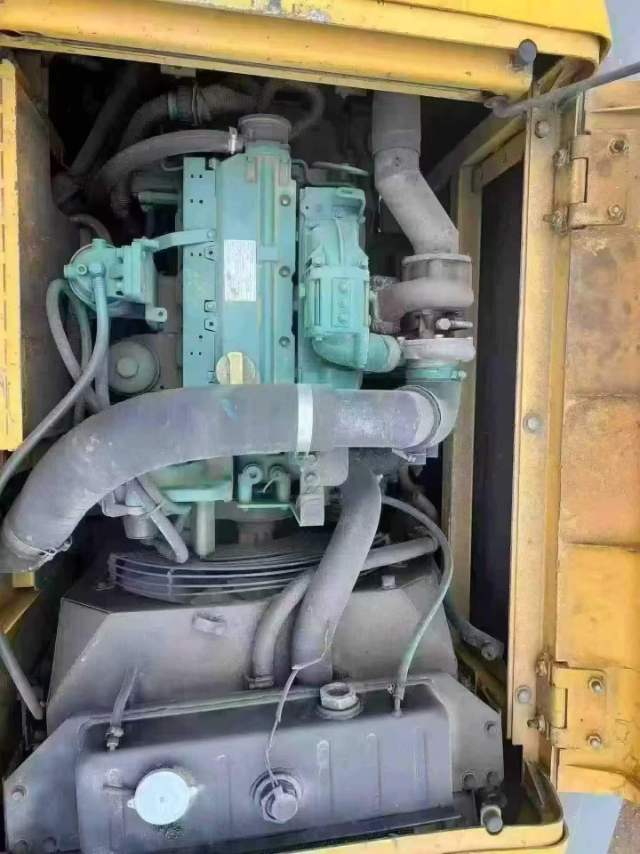

| Engine type | Volvo D4D |
| Rated power (kw/rpm) | 73/2100 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4 |
| Ground specific pressure (Kpa) | 34.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 93.2/98.1 |
| Rod digging force (kN) | 63.7/67.7 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 118*2+21 |

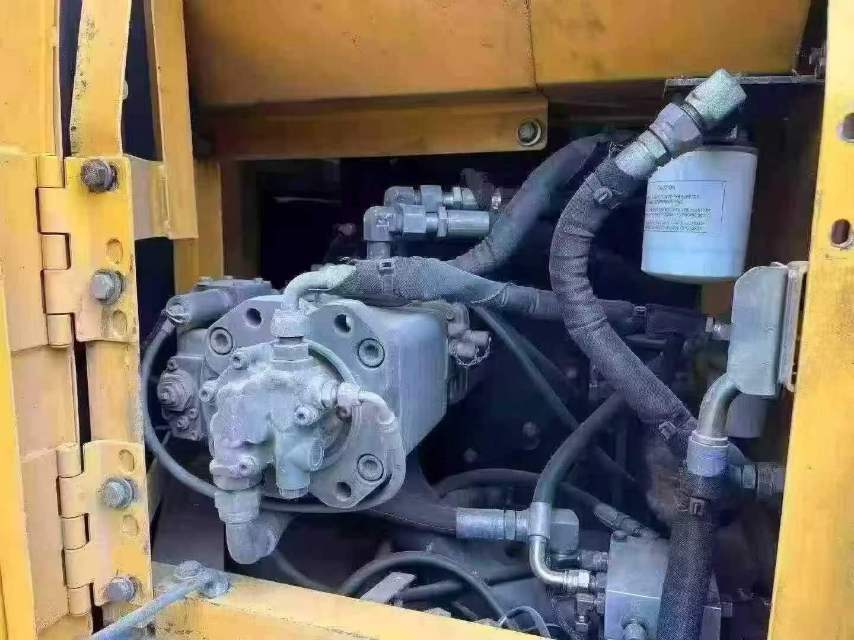

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1045 |
| Boom cylinders - Number × diameter × stroke (mm) | 105 x 980 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 15.5 |
| Coolant (L) | 20.3 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2830 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2200 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3000 |
