2019 Volvo EC140DL

1/3

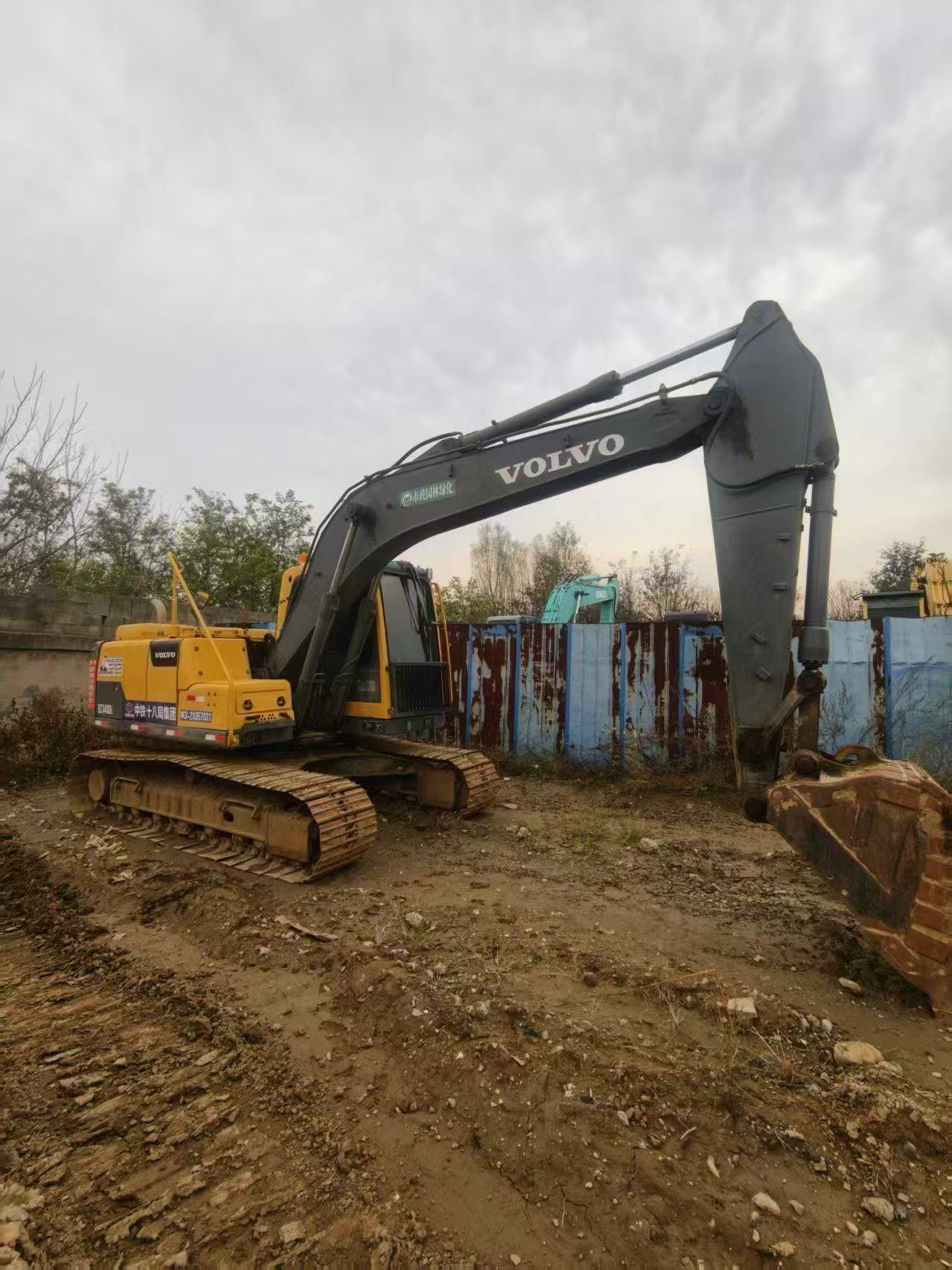

Buy Volvo EC140DL Used Excavator / 1

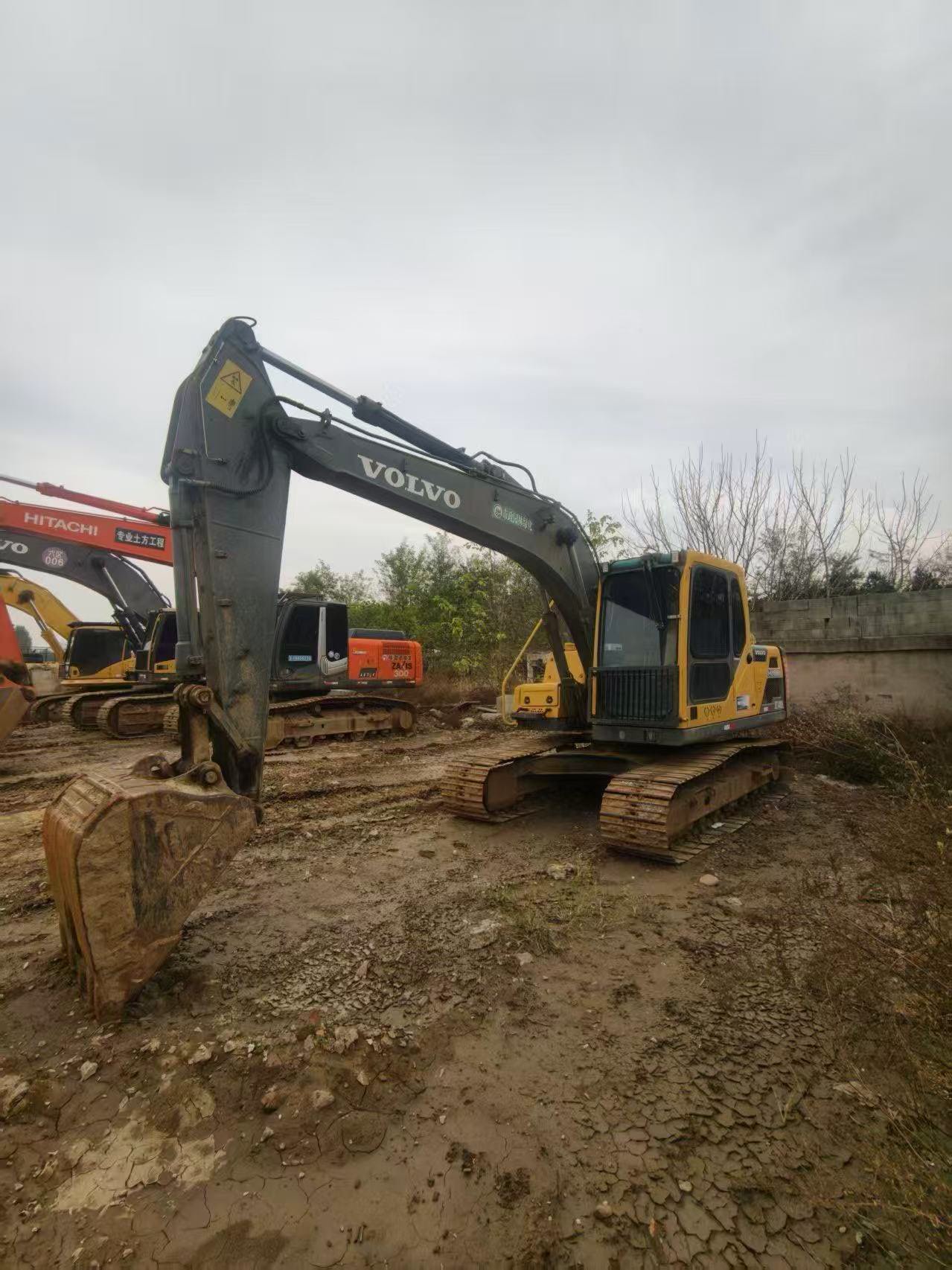

Buy Volvo EC140DL Used Excavator / 2

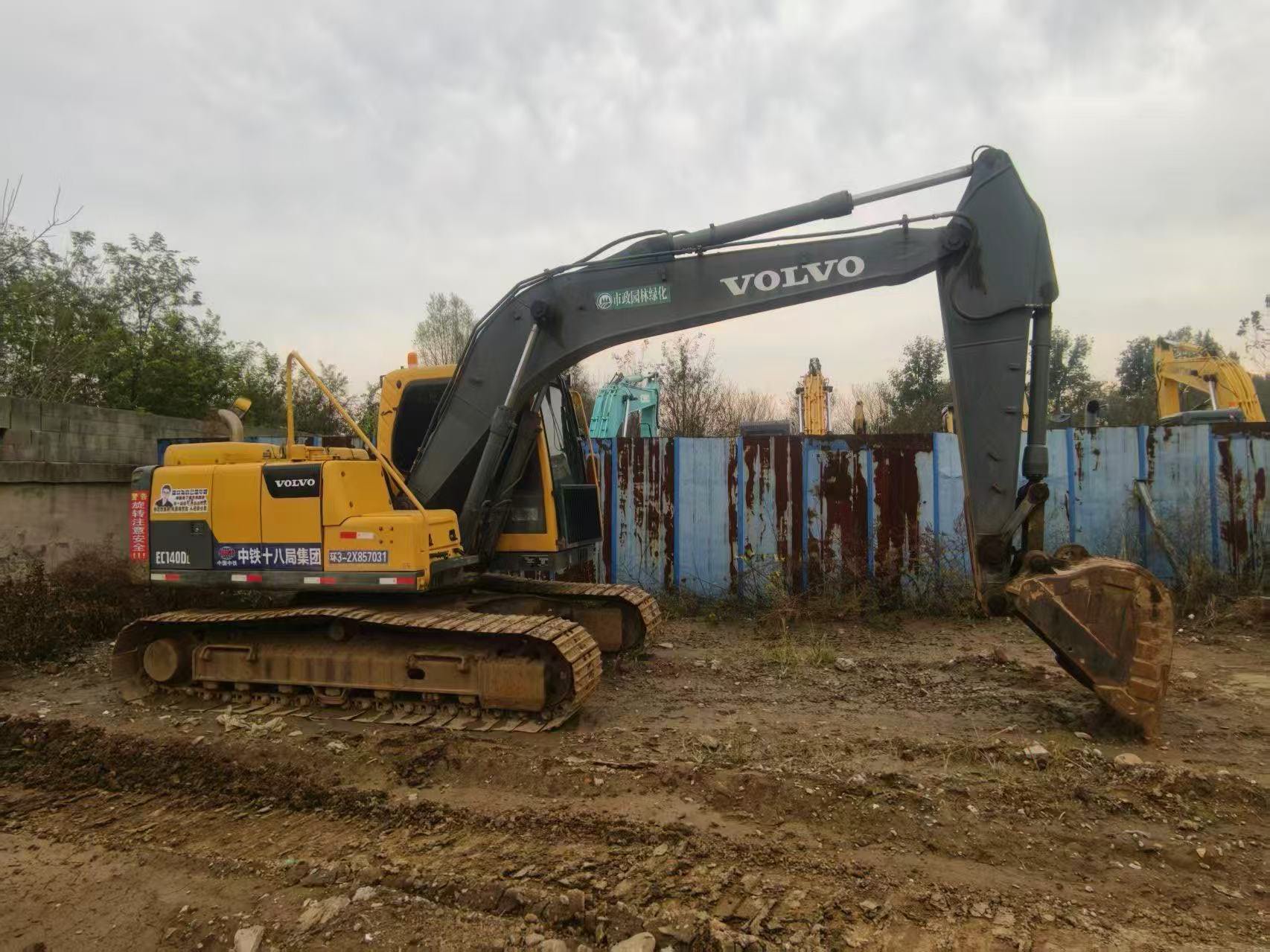

Buy Volvo EC140DL Used Excavator / 3

Product Description

This 2019 Volvo EC140DL excavator from China delivers reliable performance for mid-sized earthmoving operations. The machine features smooth hydraulic operation and maintains its original factory configuration throughout. Cosmetic condition shows minimal touch-up paint in isolated areas, indicating careful use and proper maintenance practices.

Key highlights include:

  • Earthwork-ready undercarriage with excellent track and roller condition
  • Original equipment components with no major replacements
  • Complete chassis bottom plates in perfect condition
  • Competitive pricing for immediate deployment

Currently located in Beijing, this EC140DL represents solid value for contractors seeking a proven Volvo excavator with documented service history and authentic components. The 14-ton operating weight and Volvo's fuel-efficient engine make this unit suitable for utility work, site development, and general excavation projects.

SpecificationsValue
No.1173860
Tonnage (tons)14
Working weight (kg)12920 - 15870
Bucket capacity (m³)0.25 - 0.66
Boom length (mm)4600
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)77.4/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)100 x 120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Rotation speed (rpm)11.2
Bucket digging force (kN)82.2
Rod digging force (kN)61.8
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump type2* variable axial piston pump
Working Hydraulic Circuit (Mpa)32.4/34.3
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2590
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Minimum turning radius of front working device (mm)2570
Back end turning radius (mm)2200
Onboard width (mm)2490
Total track length (mm)3760
Track gauge (mm)1990
Track plate width (mm)500
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)8330
Maximum digging depth (mm)5530
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
see more

Overview

No.1173860

Brand Name:

Volvo

Model Number:

EC140DL

Year:

2019

Location:

Peking China
