Product Description

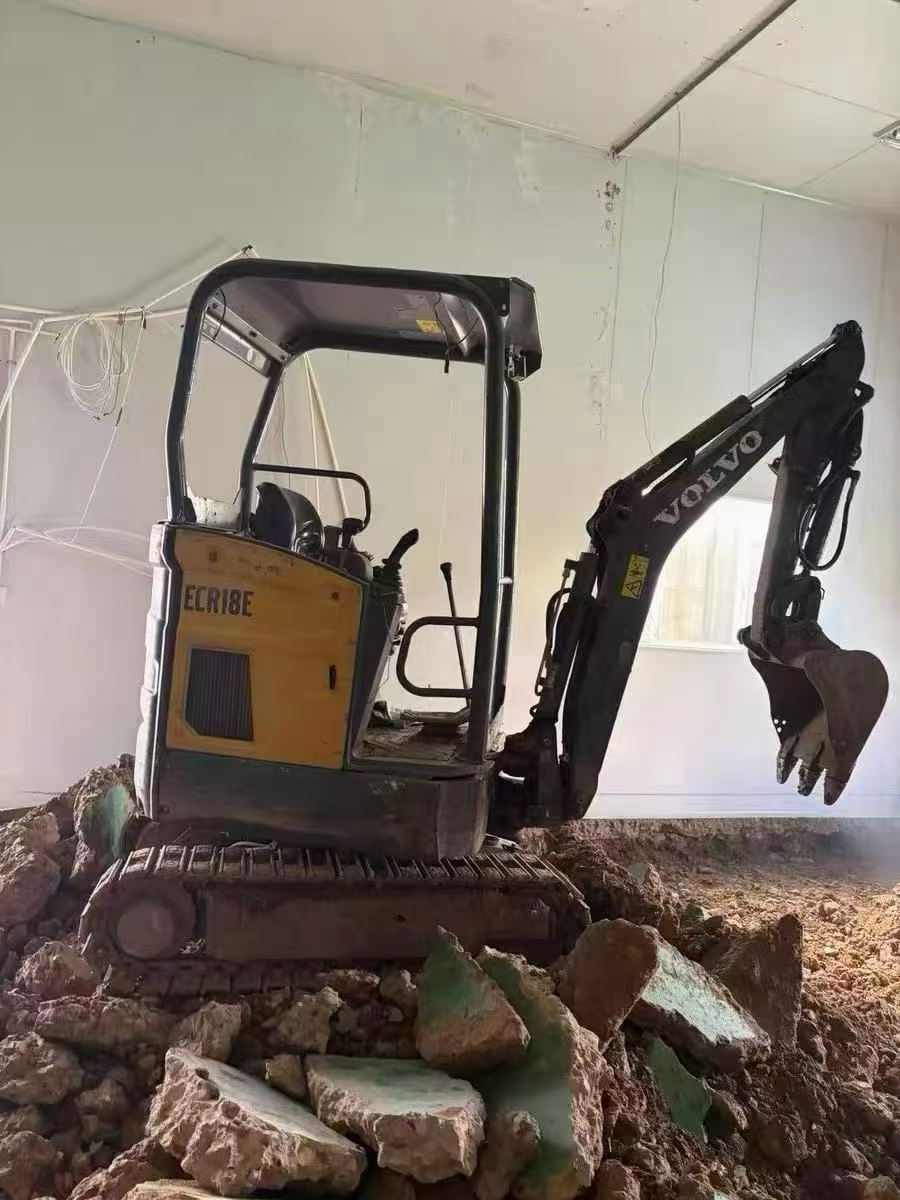

Discover the 2020 Volvo EC18D, a compact and versatile excavator available in Yunnan, China. This used machine is equipped with a hammer and a small bucket, making it ideal for a variety of construction and excavation tasks. Priced at 39,000 RMB, this Volvo EC18D offers an excellent balance of performance and affordability. Built to withstand tough conditions, it delivers reliable operation and efficiency, ensuring productivity on any job site.
- Year: 2020
- Brand: Volvo
- Model: EC18D
- Location: Yunnan, China
- Attachments: Hammer and small bucket
- Price: 39,000 RMB
| Specifications | Value |
|---|---|
| No. | 1165307 |
| Tonnage (tons) | 1.8 |
| Working weight (kg) | 1770 |
| Bucket capacity (m³) | 0.01 - 0.05 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

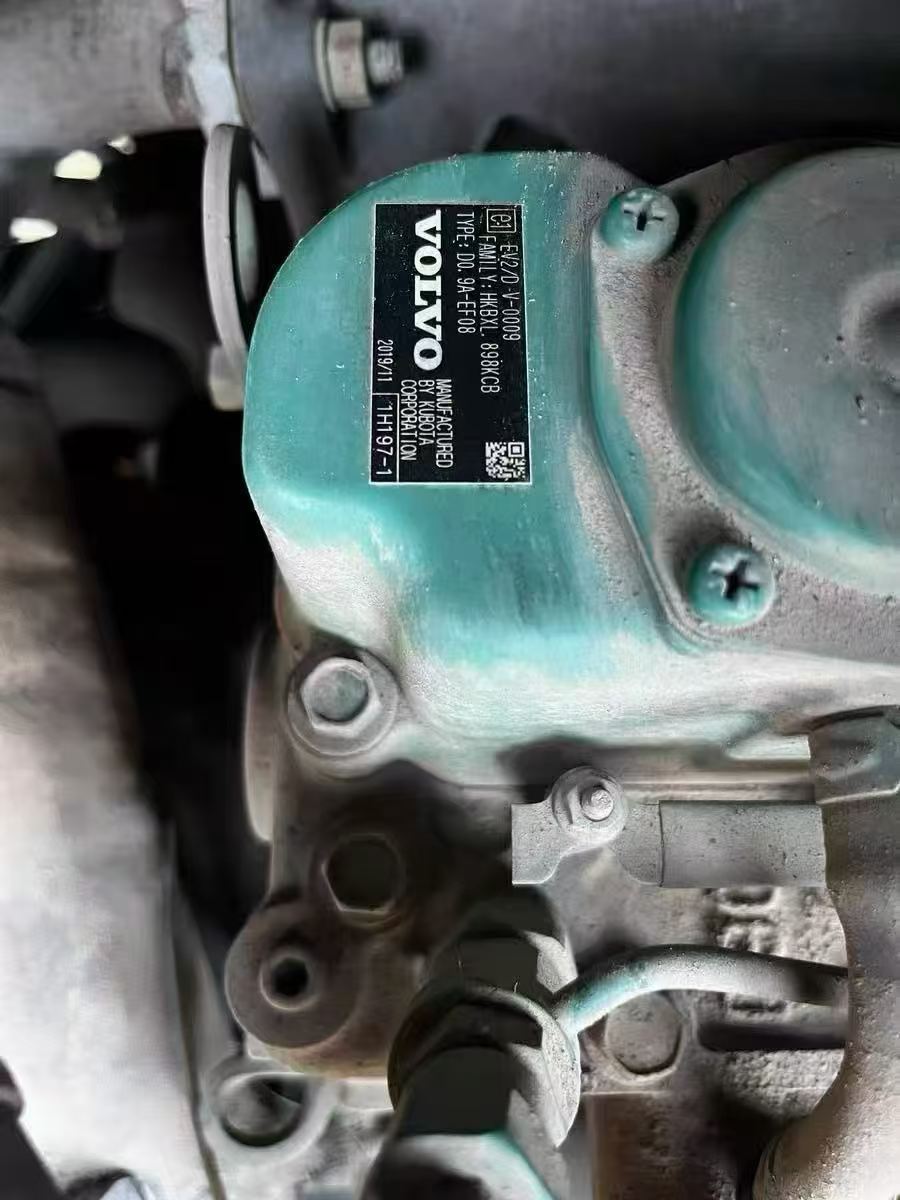

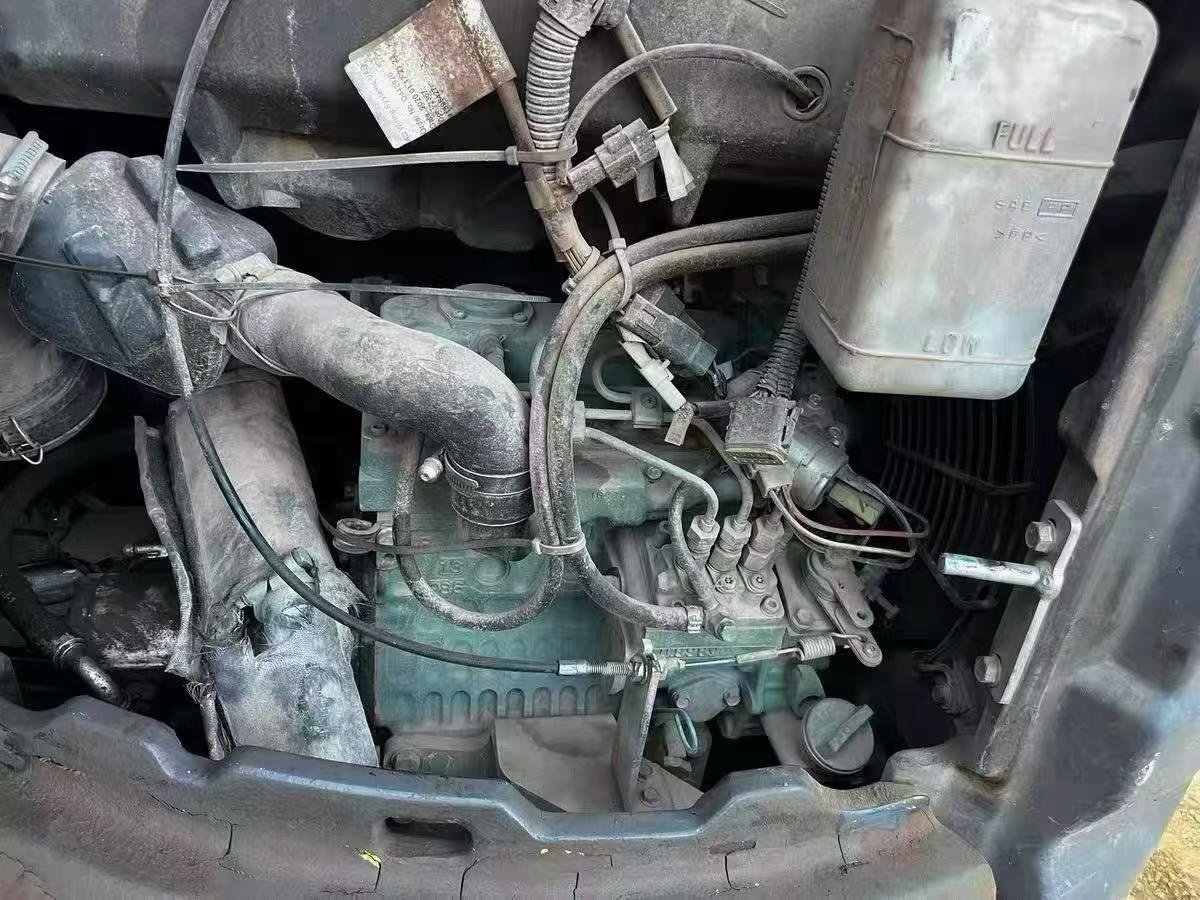

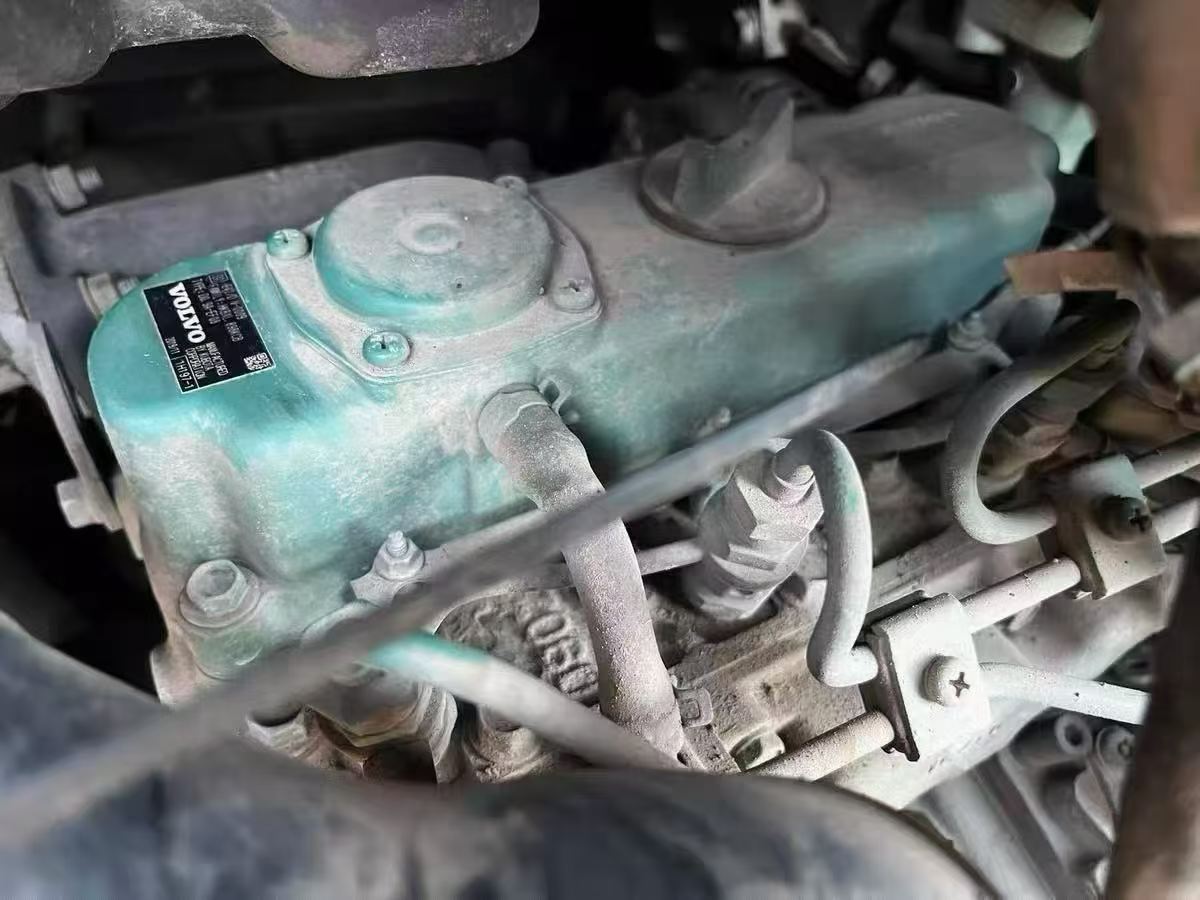

| Engine type | D0.9A |
| Rated power (kw/rpm) | 12/2420 |
| Cylinder diameter × stroke (mm) | 72 x 73.6 |
| Maximum torque (N.m) | 51 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 898 |
| Ground specific pressure (Kpa) | 30.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 1510 |
| Travel speed (km/h) | 3.7 |
| Turning torque (Nm) | 243 |
| Main overflow set pressure (Mpa) | 17 |
| Maximum flow of main pump (l/min) | 34 |
| Main pump type | Gear pump |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 15 |
| Engine Oil changes (L) | 3.7 |
| Coolant (L) | 4 |
| Hydraulic System (L) | 21 |
| Total transport length (mm) | 3770 |
| Total transport height (mm) | 2318 |
| Minimum ground clearance (mm) | 159 |
| Minimum turning radius of front working device (mm) | 1452 |
| Back end turning radius (mm) | 1052 |
| Onboard width (mm) | 993 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1336 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 3856 |
| Maximum digging depth (mm) | 2387 |
| Maximum excavation height (mm) | 3460 |
| Maximum unloading height (mm) | 2462 |
| Maximum vertical digging depth (mm) | 1772 |
| Dodging plate width × height (mm) | 238*230 |
| Maximum excavation radius of stop surface (mm) | 3799 |
