Product Description

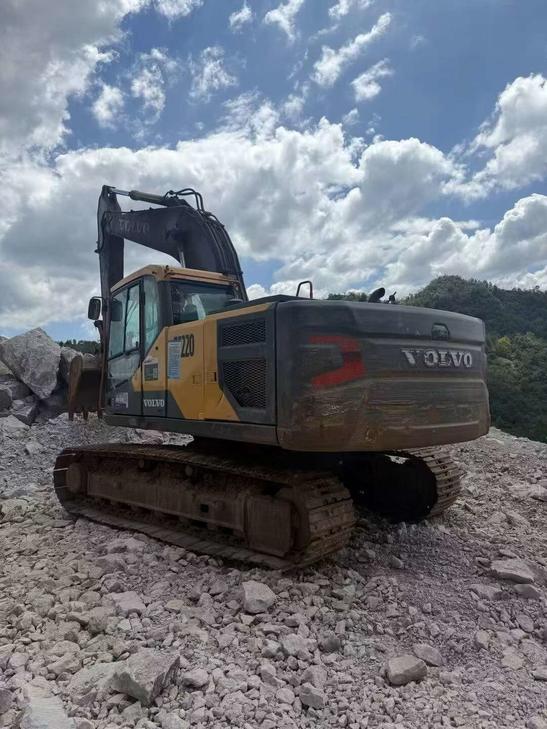

Discover the 2021 Volvo EC200, a robust and reliable excavator available for immediate purchase. Located in Zhejiang, China, this machine is ready to be dispatched with all necessary documentation in place, ensuring a seamless transaction. The EC200 model is known for its efficiency and durability, making it an excellent choice for various construction and excavation projects. With a solid reputation for performance and ease of operation, this Volvo excavator is equipped to handle your toughest jobs.
- Year: 2021
- Brand: Volvo
- Model: EC200
- Location: Zhejiang, China
- Ready for immediate delivery
- All documents and paperwork are complete
| Specifications | Value |
|---|---|
| No. | 1133536 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.95 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Maximum torque (N.m) | 670/1600 |
| Rotation speed (rpm) | 13 |
| Bucket digging force (kN) | 136 |
| Rod digging force (kN) | 92 |
| Maximum tractive force (kN) | 172 |
| Travel speed (km/h) | 5.6/3.5 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2*200 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 300 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 14 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2926 |
| Full cab height (mm) | 2915 |
| Counterweight ground clearance (mm) | 1011 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 4163 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6744 |
