Product Description

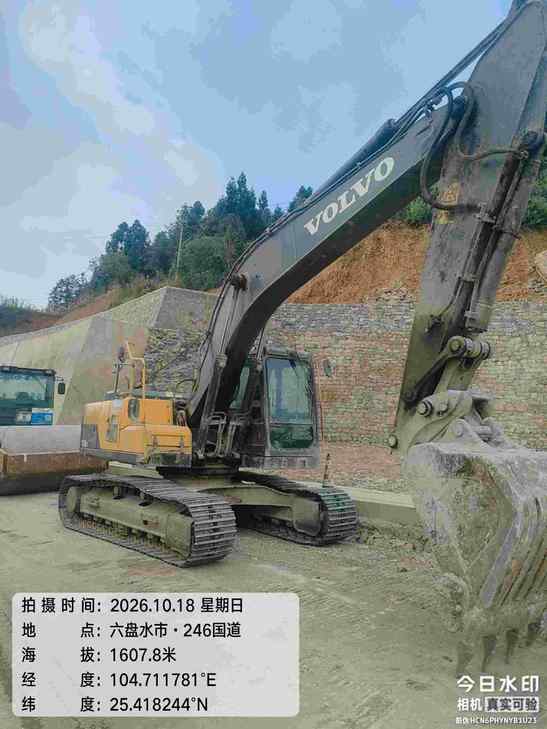

Discover the reliability and performance of the 2018 Volvo EC200D excavator, available for purchase in Guangxi, China. This used machine has been maintained for personal use, ensuring it remains in excellent working condition. The EC200D is designed to offer high efficiency and durability, making it a valuable asset for any construction or excavation project. With its robust build and advanced features, this excavator delivers outstanding productivity and ease of operation, ideal for a variety of tasks including digging, lifting, and grading.
- Year: 2018
- Brand: Volvo
- Model: EC200D
- Location: Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1165993 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20,090 - 20,810 |
| Bucket capacity (m³) | 0.85 - 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123 /2 000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.6/5.8 |
| Turning torque (Nm) | 76.7 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Rotary system flow (L/min) | 34.3 |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9460 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9770 |
