2020 Volvo EC200D

1/9
Buy Volvo EC200D Used Excavator / 1

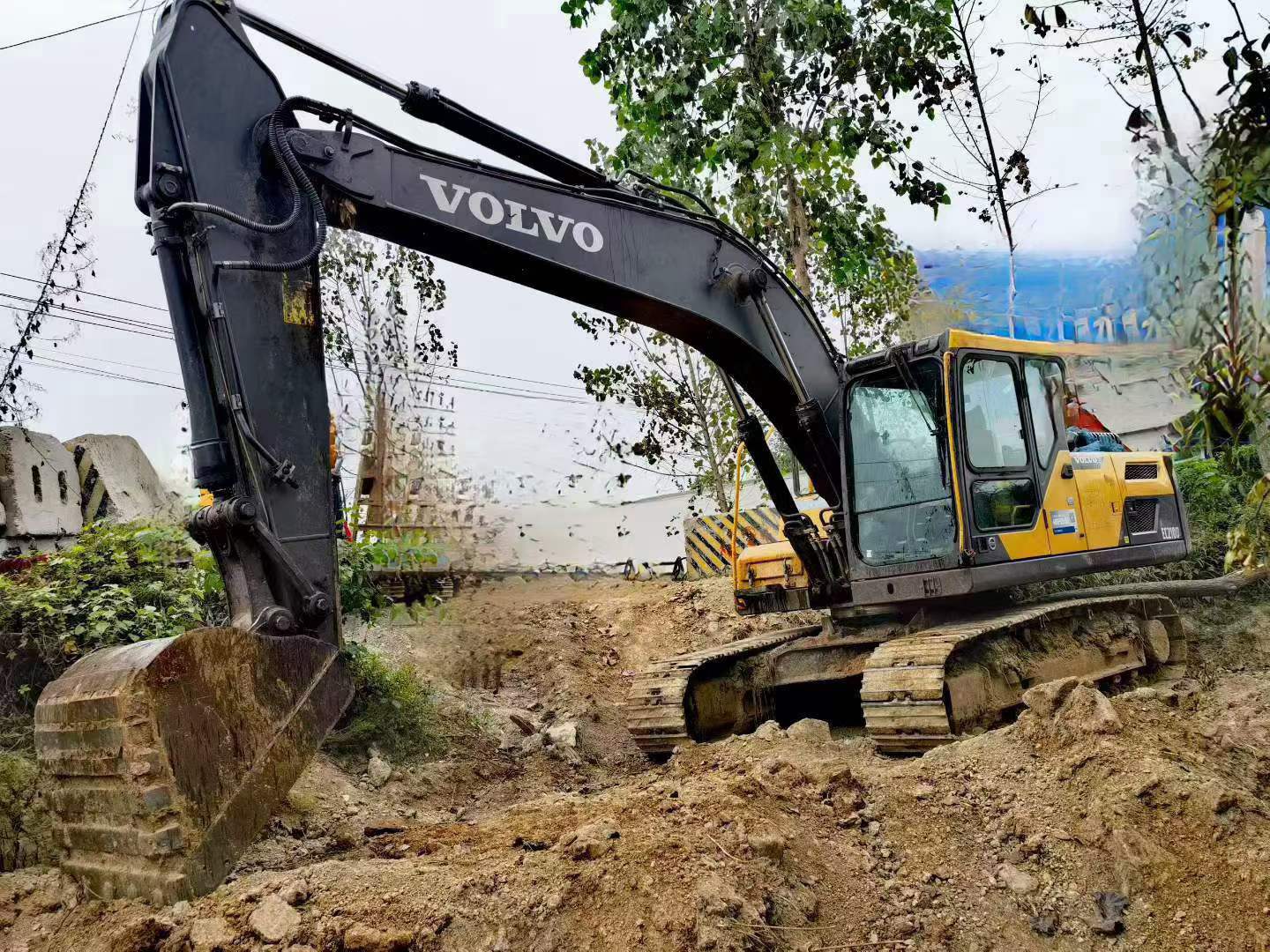

Buy Volvo EC200D Used Excavator / 2

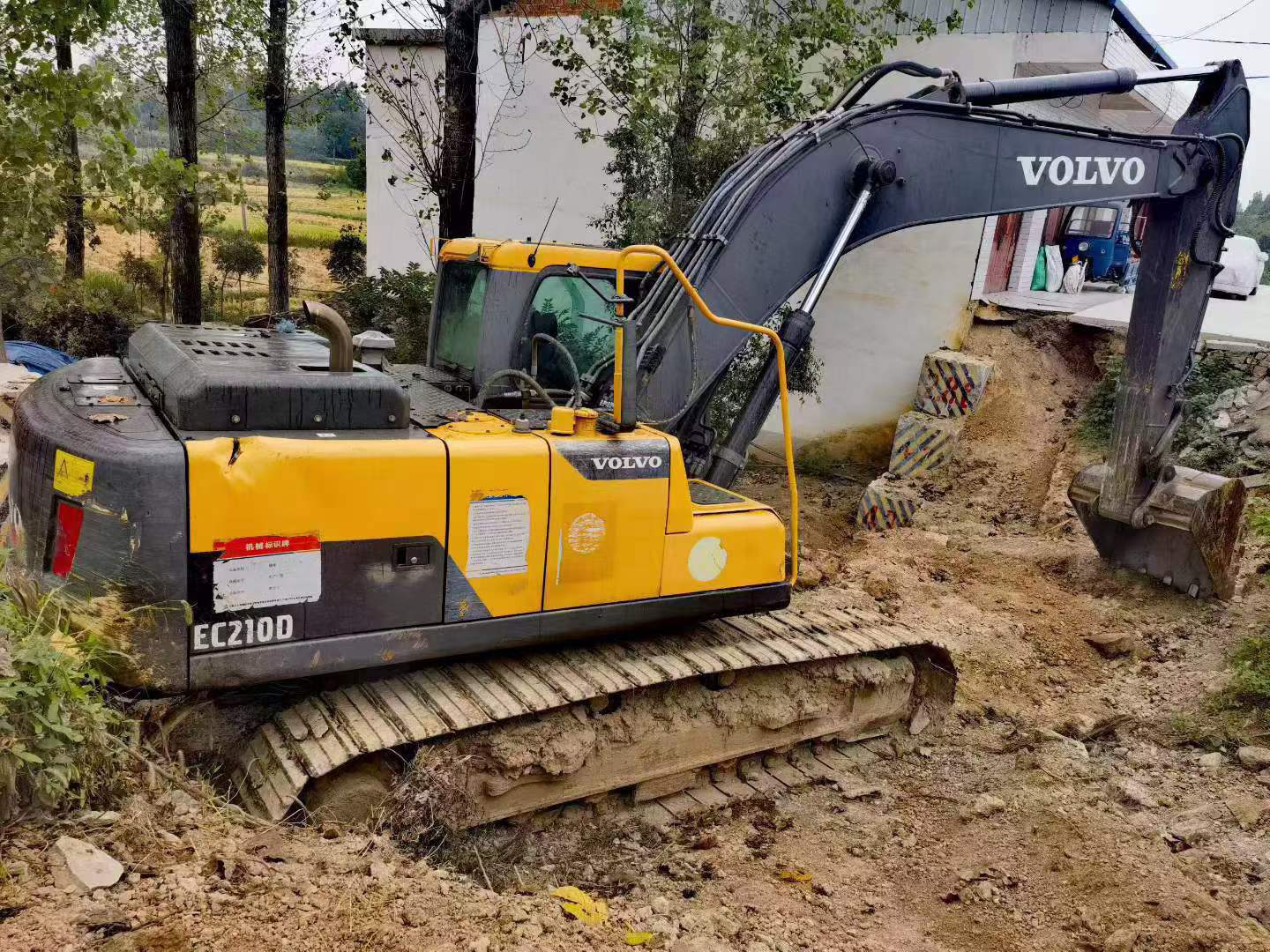

Buy Volvo EC200D Used Excavator / 3

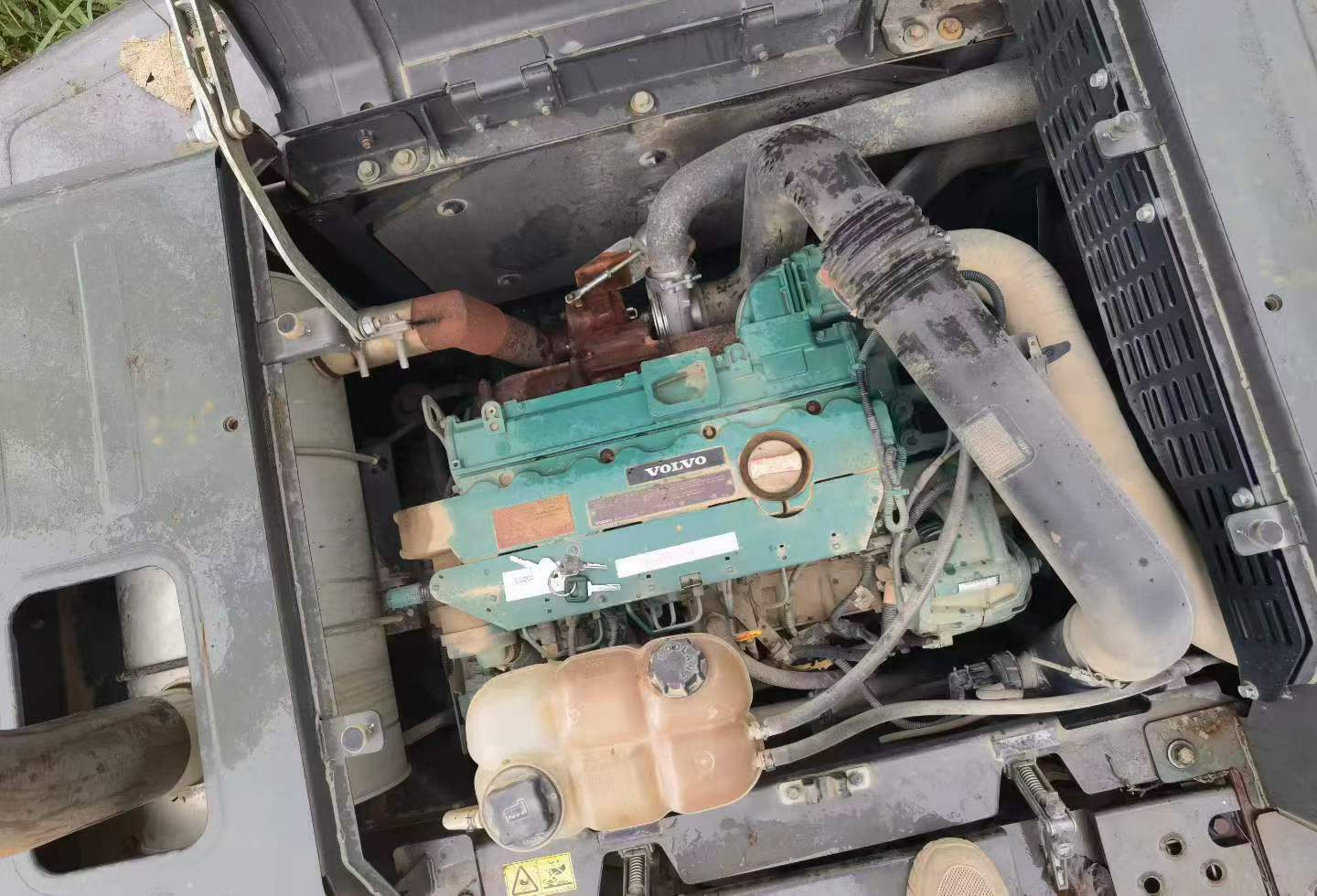

Buy Volvo EC200D Used Excavator / 4

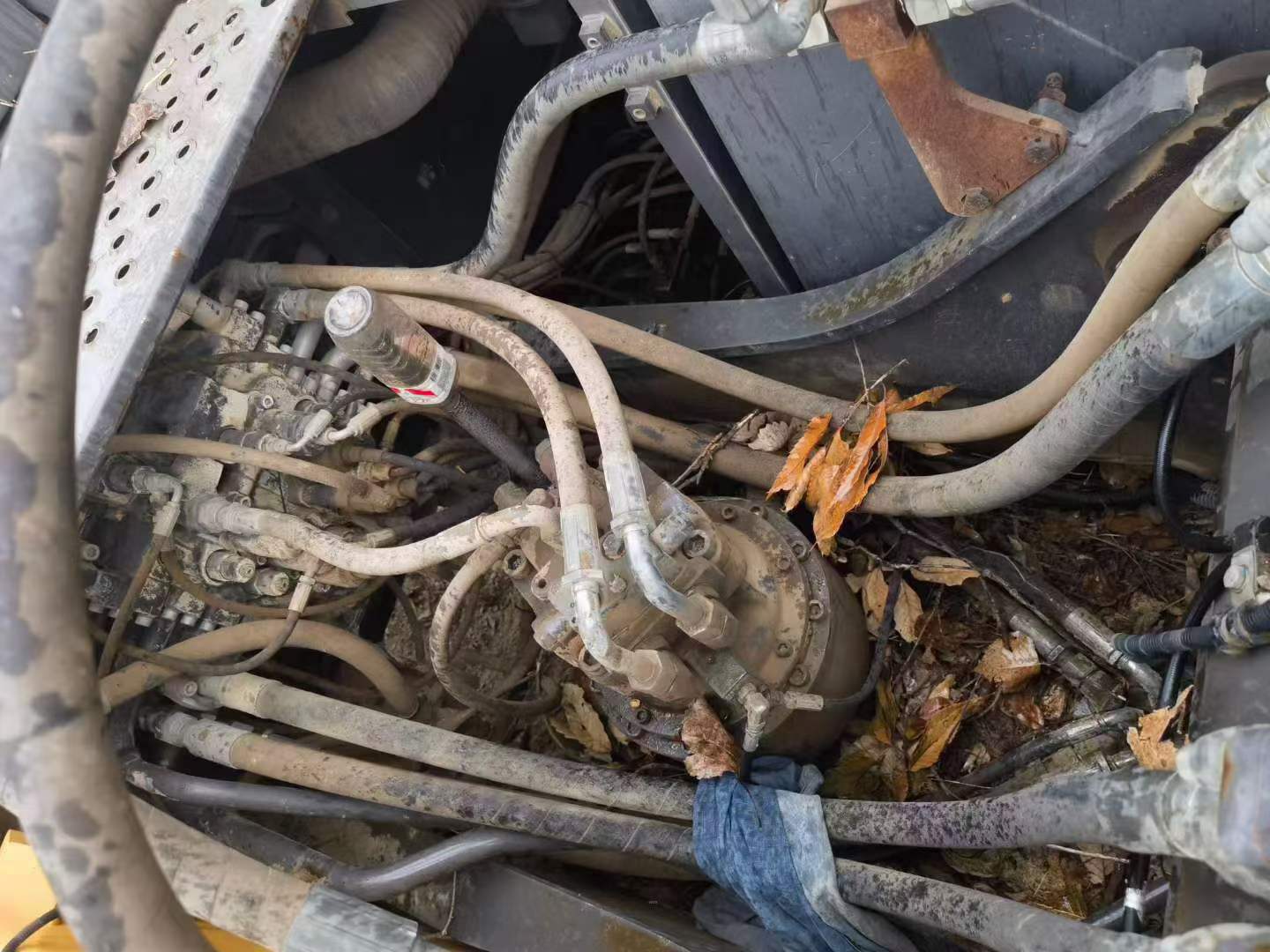

Buy Volvo EC200D Used Excavator / 5

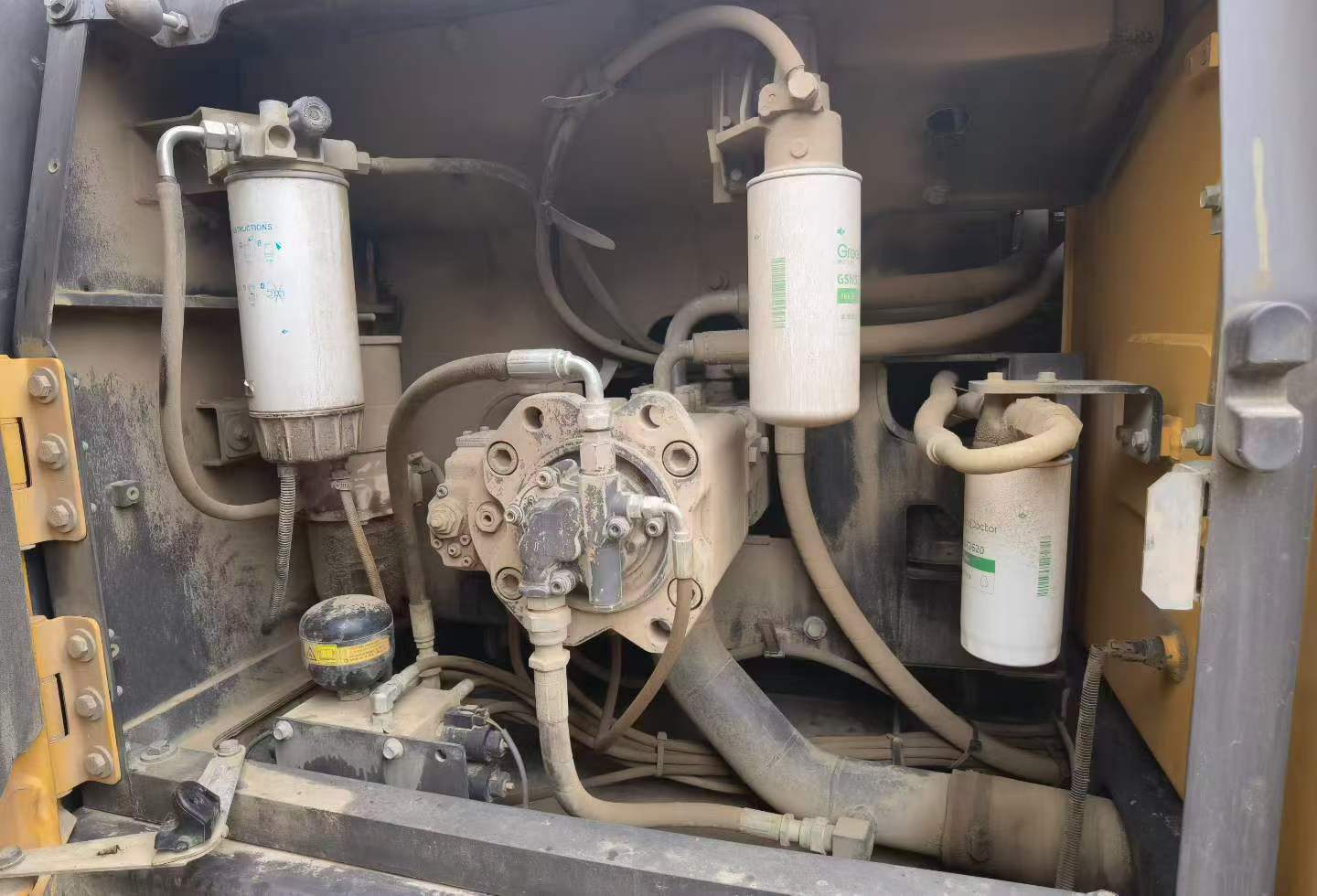

Buy Volvo EC200D Used Excavator / 6

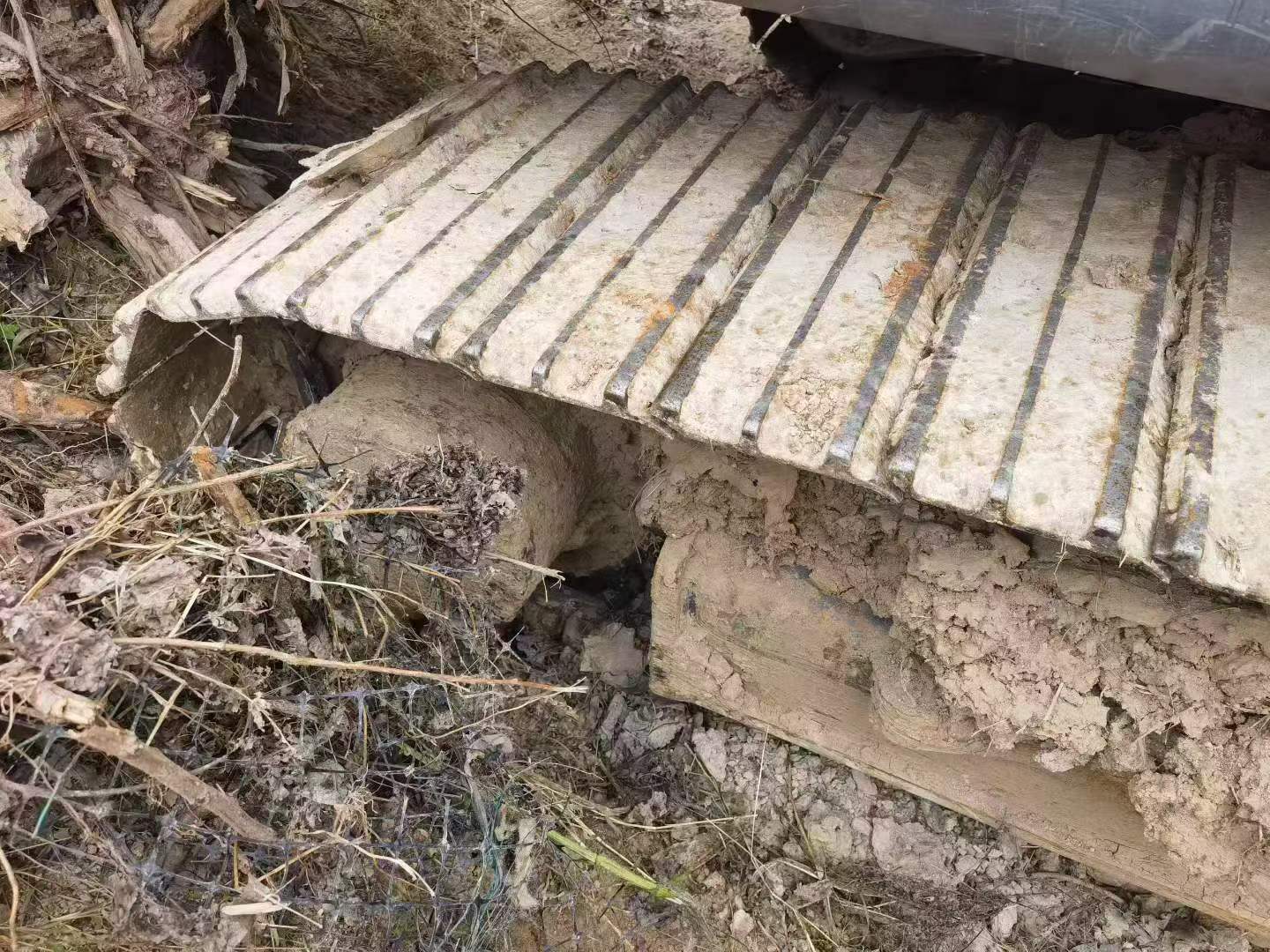

Buy Volvo EC200D Used Excavator / 7

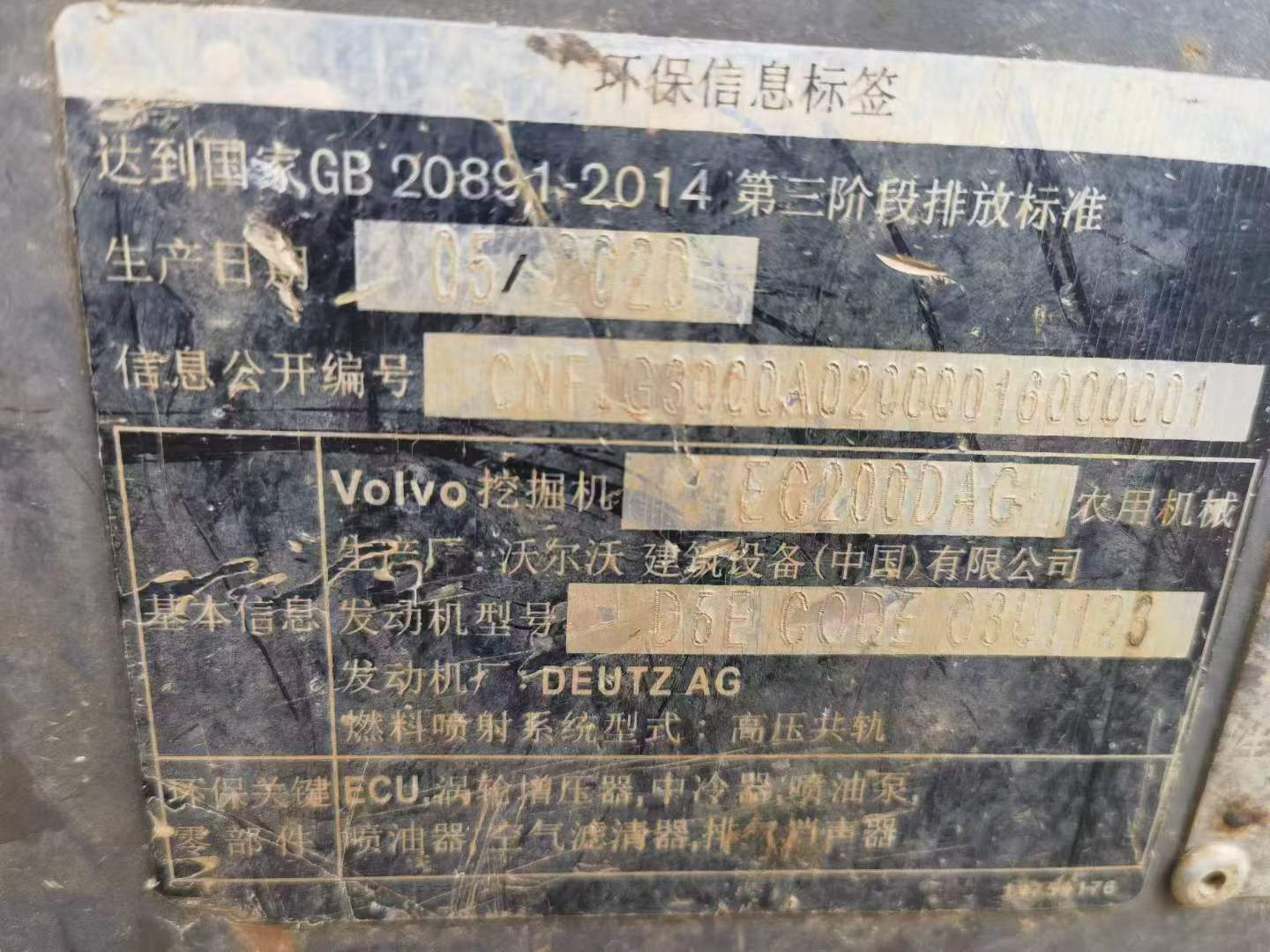

Buy Volvo EC200D Used Excavator / 8

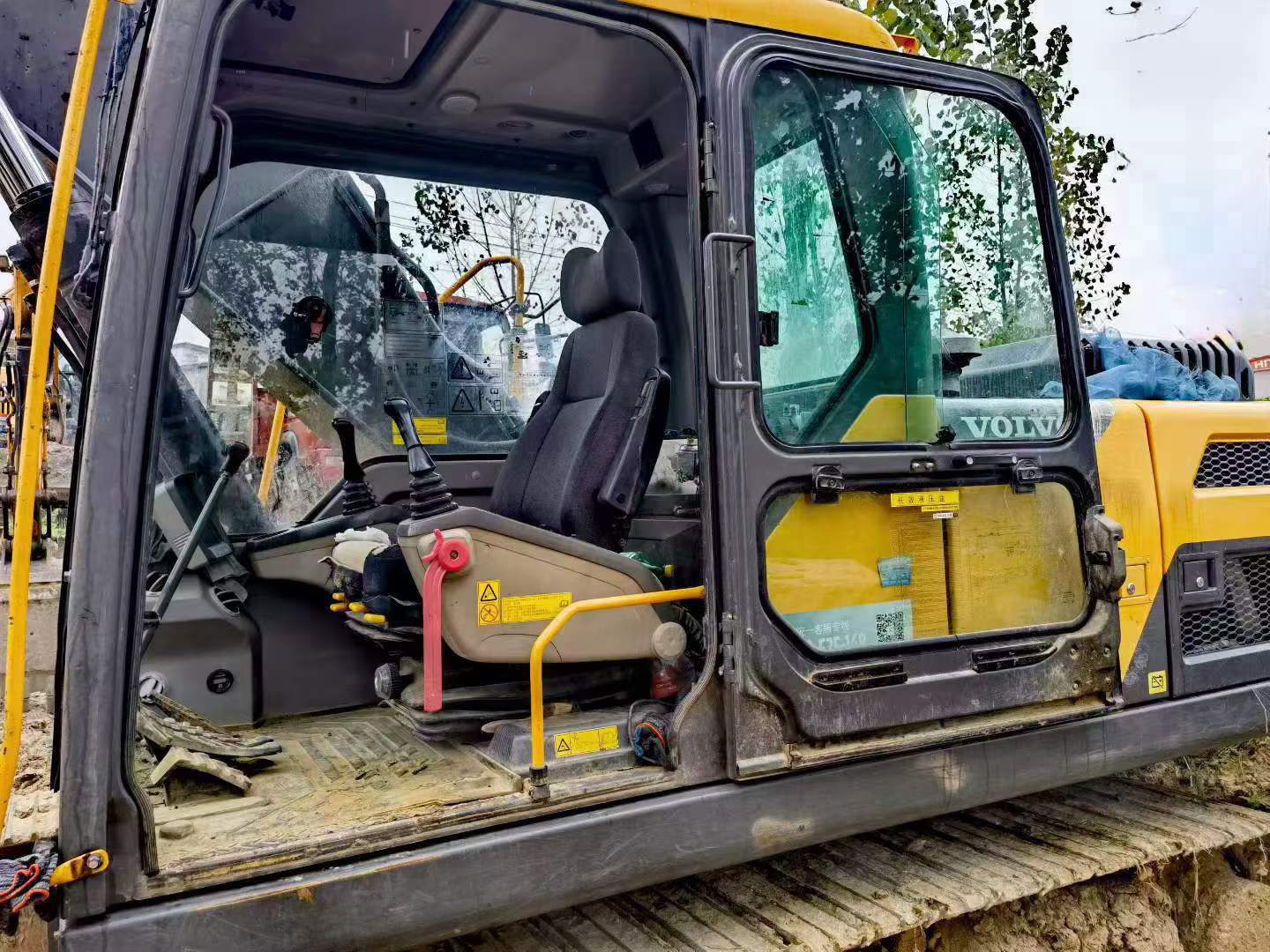

Buy Volvo EC200D Used Excavator / 9

Product Description

2020 Volvo EC200D hydraulic excavator available from Zhejiang, China. This mid-size crawler excavator was manufactured in May 2020 and comes from the original owner with complete documentation. The machine has been maintained in operational condition and is sold as-inspected.

Key details:

  • Year: 2020 (May production)
  • Make/Model: Volvo EC200D
  • Ownership: Single owner, full service records
  • Location: Zhejiang Province, China
  • Condition: Ready for operation, detailed photos and video available

The EC200D is a reliable 20-ton class excavator suitable for general construction, earthmoving, and utility work. Inspection reports, additional photographs, and operational video can be provided to qualified buyers upon request.

SpecificationsValue
No.1155945
Tonnage (tons)20
Working weight (kg)20,090 - 20,810
Bucket capacity (m³)0.85 - 0.9
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D5E
Rated power (kw/rpm)123 /2 000
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)670/1600
Number of cylinders (PCS)4
Displacement (L)4.7
Rotation speed (rpm)12.3
Bucket digging force (kN)123
Rod digging force (kN)96
Maximum tractive force (kN)183
Travel speed (km/h)3.6/5.8
Turning torque (Nm)76.7
Maximum flow of main pump (l/min)2 x 212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9
Main pump type2* variable axial piston pump
Working Hydraulic Circuit (Mpa)32.4/34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)1 x 18
Bucket cylinders - Number × diameter × stroke (mm)1*120 x 1 065
Bucket rod cylinders - Number × diameter × stroke (mm)1*135 x 1 540
Boom cylinders - Number × diameter × stroke (mm)2*125 x 1 235
Rotary system flow (L/min)34.3
Fuel Tank (L)375
Hydraulic Tank (L)160
Engine Oil changes (L)17
Coolant (L)15
Hydraulic System (L)300
Total transport length (mm)9690
Total transport width (mm)2800
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Back end turning radius (mm)2850
Onboard width (mm)2700
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6730
Maximum excavation height (mm)9460
Maximum unloading height (mm)6650
Maximum vertical digging depth (mm)6090
Maximum excavation radius of stop surface (mm)9770
see more

Overview

No.1155945

Brand Name:

Volvo

Model Number:

EC200D

Year:

2020

Location:

Zhejiang China

Pub Date:
