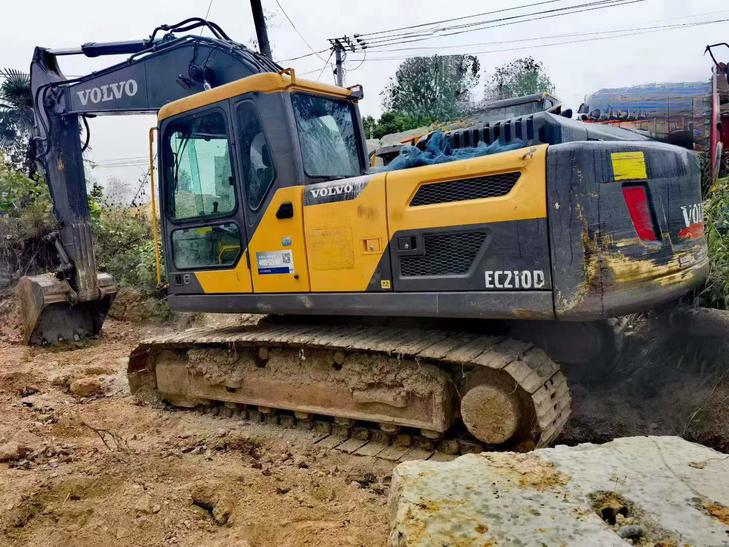

Buy Volvo EC200D Used Excavator / 1
Buy Volvo EC200D Used Excavator / 2
Buy Volvo EC200D Used Excavator / 3
Buy Volvo EC200D Used Excavator / 4
Buy Volvo EC200D Used Excavator / 5
Buy Volvo EC200D Used Excavator / 6
Buy Volvo EC200D Used Excavator / 7
Buy Volvo EC200D Used Excavator / 8
Buy Volvo EC200D Used Excavator / 9

Product Description

This 2020 Volvo EC200D excavator represents a well-maintained first-owner machine with complete documentation and verified operational status. Sourced from Zhejiang, China, this mid-size crawler excavator delivers the reliability and fuel efficiency Volvo's D-Series is known for in demanding construction and earthmoving applications.

Key features include:

  • Single previous owner with full service records
  • Complete legal documentation for international transfer
  • Verified mechanical condition requiring no pre-purchase inspection
  • Comprehensive photo documentation and operational video available
  • Live site inspection can be arranged upon request

The EC200D combines a proven hydraulic system with operator comfort features, making it suitable for general excavation, trenching, and material handling. This unit is ready for immediate deployment in your fleet.

SpecificationsValue
No.1171158
Tonnage (tons)20
Working weight (kg)20,090 - 20,810
Bucket capacity (m³)0.85 - 0.9
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D5E
Rated power (kw/rpm)123 /2 000
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)670/1600
Number of cylinders (PCS)4
Displacement (L)4.7
Rotation speed (rpm)12.3
Bucket digging force (kN)123
Rod digging force (kN)96
Maximum tractive force (kN)183
Travel speed (km/h)3.6/5.8
Turning torque (Nm)76.7
Maximum flow of main pump (l/min)2 x 212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9
Main pump type2* variable axial piston pump
Working Hydraulic Circuit (Mpa)32.4/34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)1 x 18
Bucket cylinders - Number × diameter × stroke (mm)1*120 x 1 065
Bucket rod cylinders - Number × diameter × stroke (mm)1*135 x 1 540
Boom cylinders - Number × diameter × stroke (mm)2*125 x 1 235
Rotary system flow (L/min)34.3
Fuel Tank (L)375
Hydraulic Tank (L)160
Engine Oil changes (L)17
Coolant (L)15
Hydraulic System (L)300
Total transport length (mm)9690
Total transport width (mm)2800
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Back end turning radius (mm)2850
Onboard width (mm)2700
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6730
Maximum excavation height (mm)9460
Maximum unloading height (mm)6650
Maximum vertical digging depth (mm)6090
Maximum excavation radius of stop surface (mm)9770
see more

Overview

No.1171158

Brand Name:

Volvo

Model Number:

EC200D

Year:

2020

Location:

Zhejiang China

Pub Date:
