Product Description

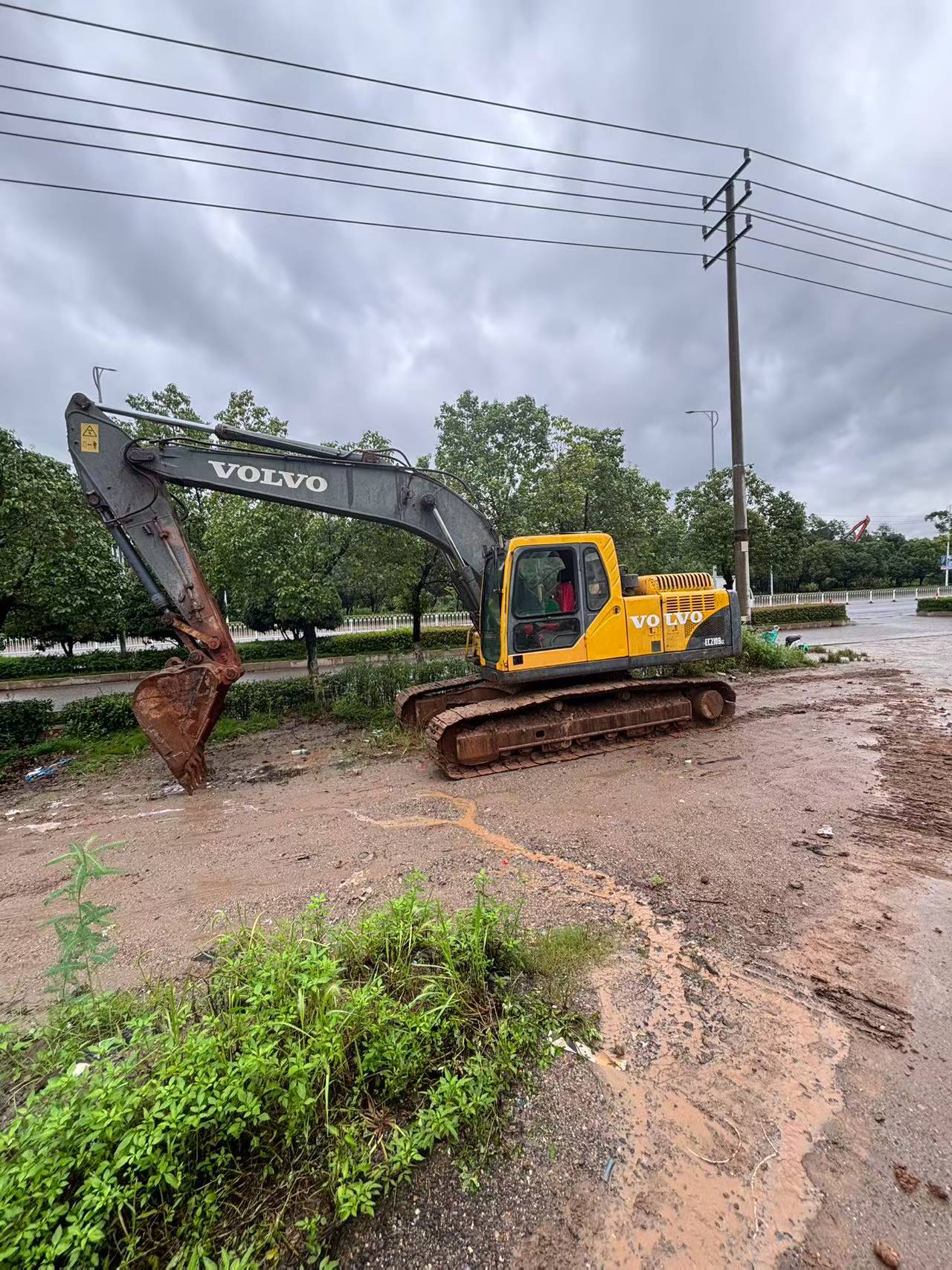

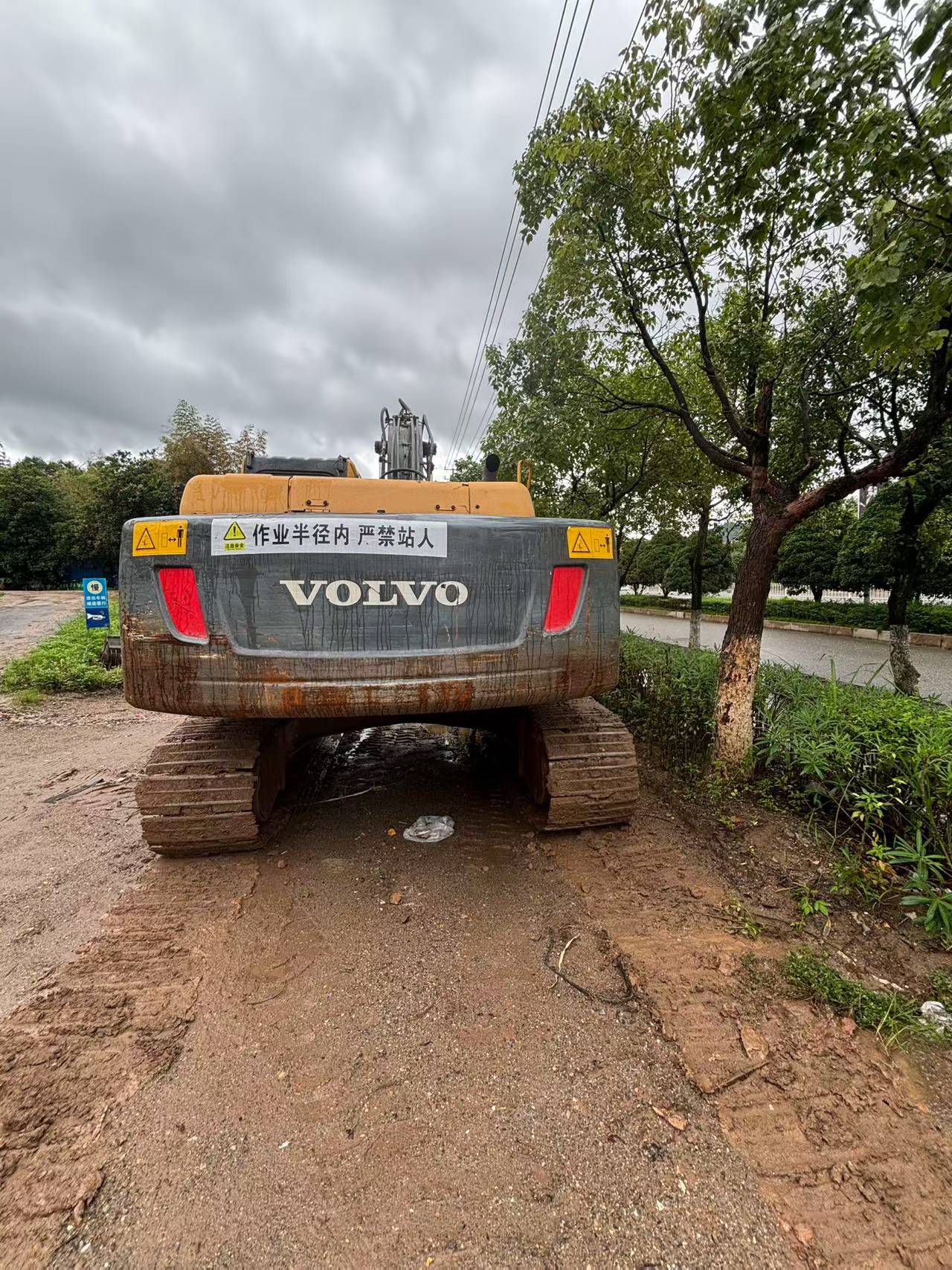

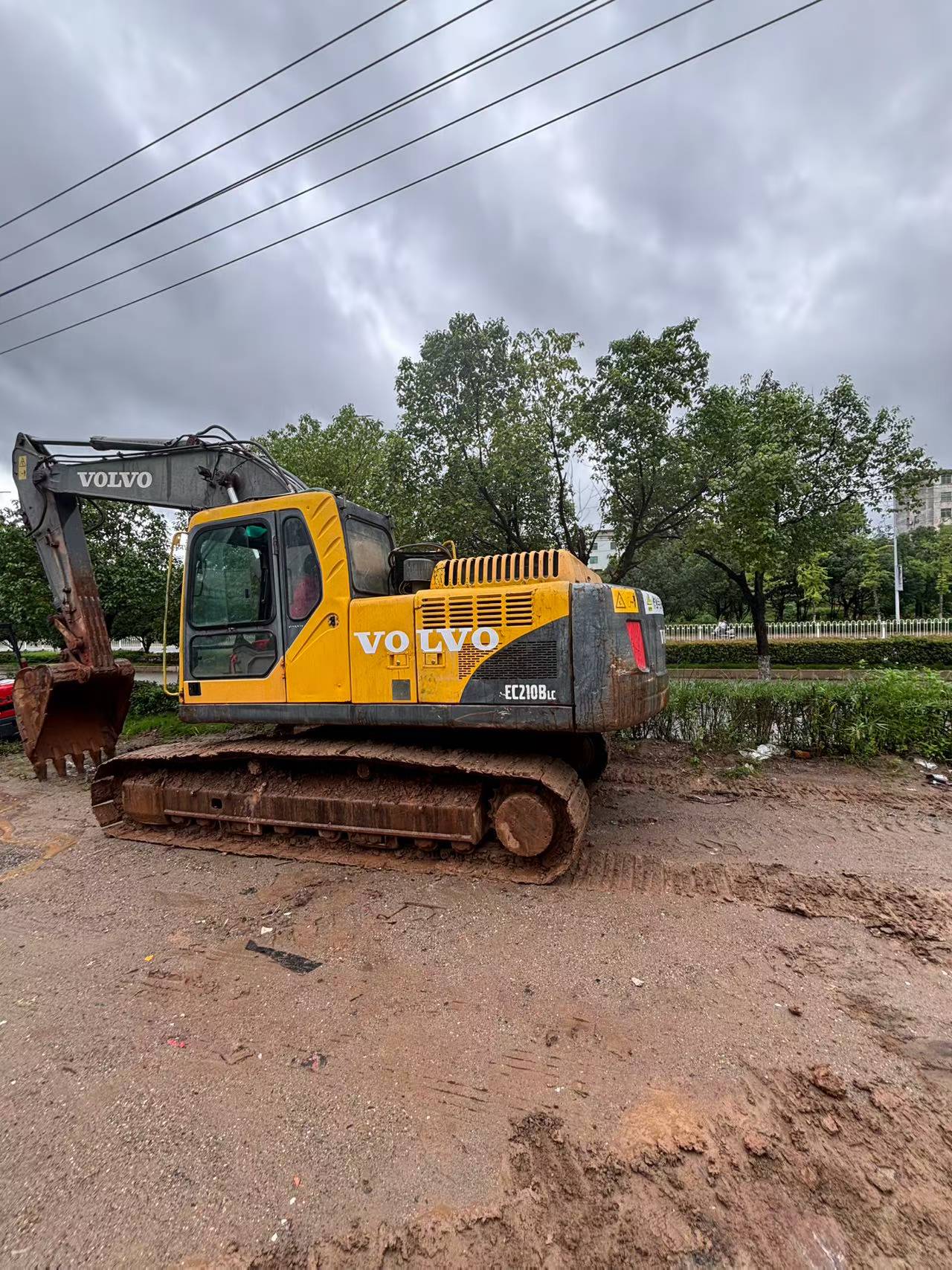

This 2014 Volvo EC210B excavator offers reliable performance for demanding earthmoving operations. Sourced from Zhejiang, China, this machine has been maintained in working condition and is ready for deployment on your next project.
The EC210B is known for its robust hydraulic system and fuel-efficient engine, making it a proven choice for contractors focused on productivity and operational costs. This unit has been inspected and confirmed to be in operational condition.
- Year: 2014
- Model: Volvo EC210B
- Operating Weight Class: 21 tons
- Location: Zhejiang, China
- Condition: Used, operational
Ideal for excavation, grading, and material handling applications. Available for inspection. Contact us for shipping arrangements and additional documentation.
| Specifications | Value |
|---|---|
| No. | 1137678 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.9-0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

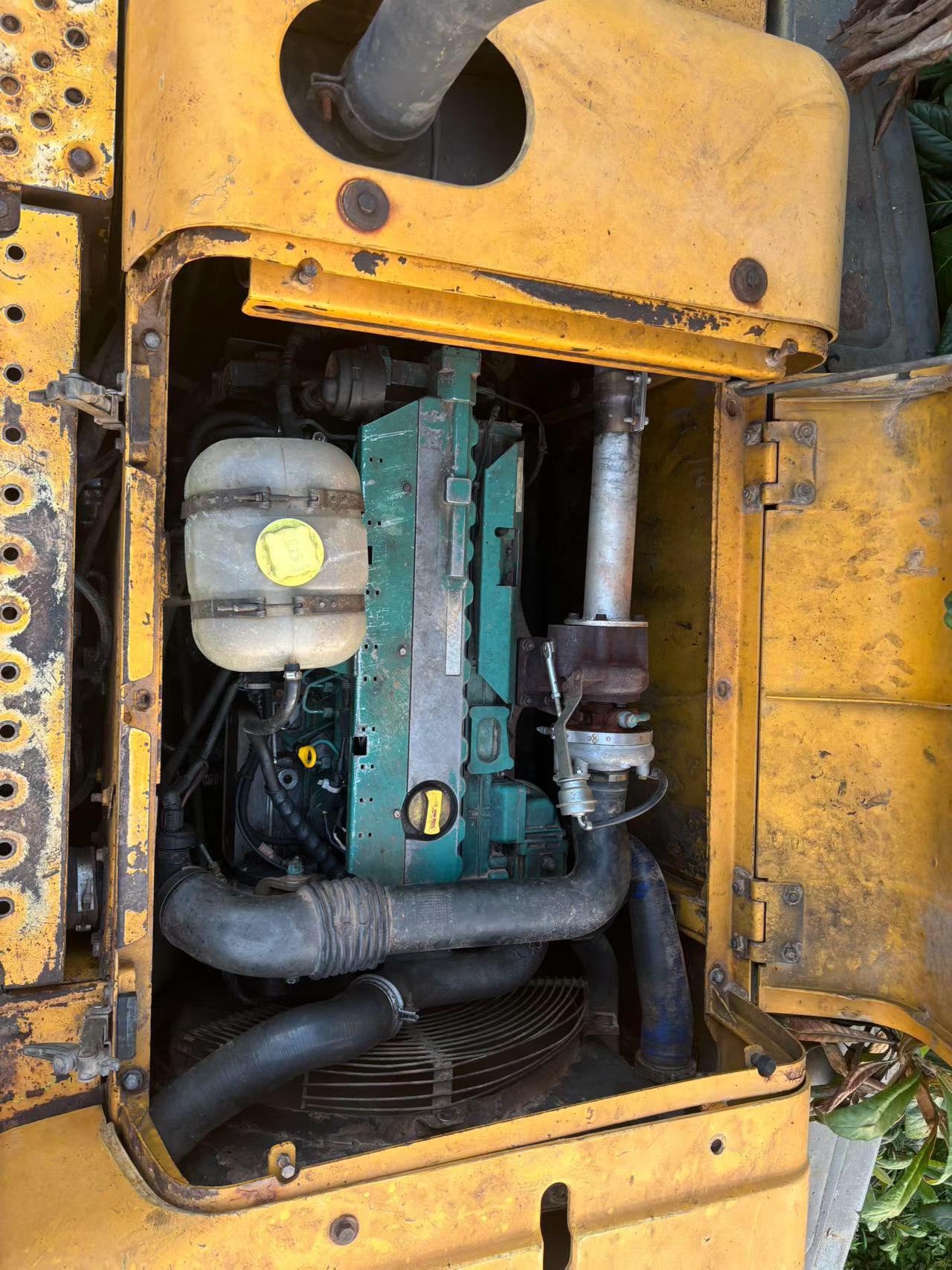

| Engine type | Volvo D6D |
| Rated power (kw/rpm) | 107/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharging; Electronically controlled direct injection |
| Ground specific pressure (Kpa) | 45.6 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 200 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 27.5 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3000 (total height of big arm) |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2850 |

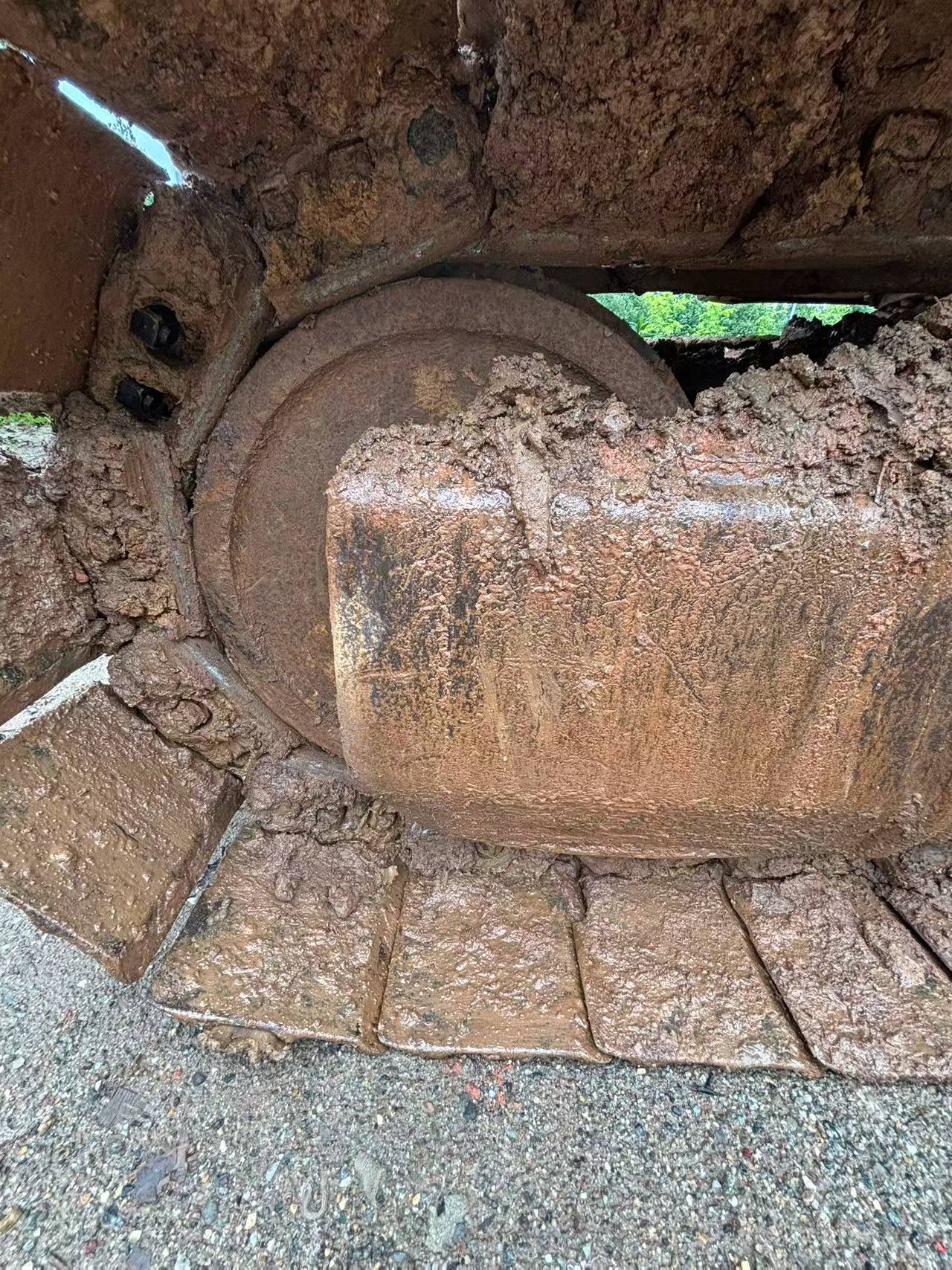

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | Two teeth 700; Three teeth 600/700/800/900 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Maximum effective digging depth (mm) | 6510 |
