Product Description

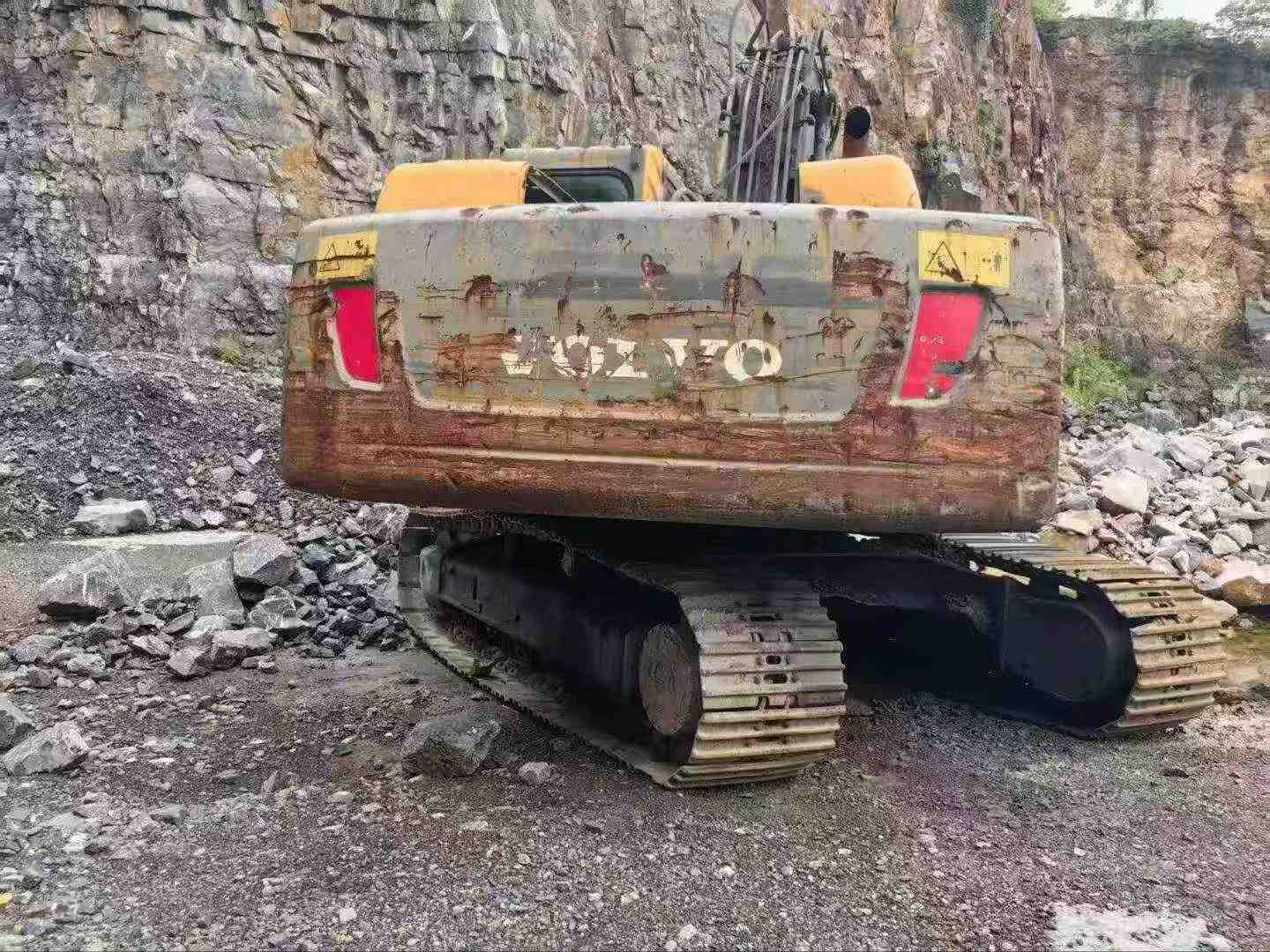

This 2014 Volvo EC210B crawler excavator offers reliable performance for mid-sized excavation projects. Manufactured by Volvo Construction Equipment, this model features a robust hydraulic system and operator-focused cab design that delivers productivity in demanding conditions. Currently located in Sichuan, China, this unit is available without bucket attachment.
- Year of Manufacture: 2014
- Model: EC210B
- Type: Hydraulic Crawler Excavator
- Operating Weight Class: Approximately 21 tonnes
- Configuration: Excavator without bucket
- Current Location: Sichuan Province, China
The EC210B is known for its fuel efficiency and serviceability, making it suitable for construction, earthmoving, and infrastructure projects. This used machine represents an economical entry point for contractors seeking proven Volvo engineering at competitive pricing.
| Specifications | Value |
|---|---|
| No. | 1168717 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.9-0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

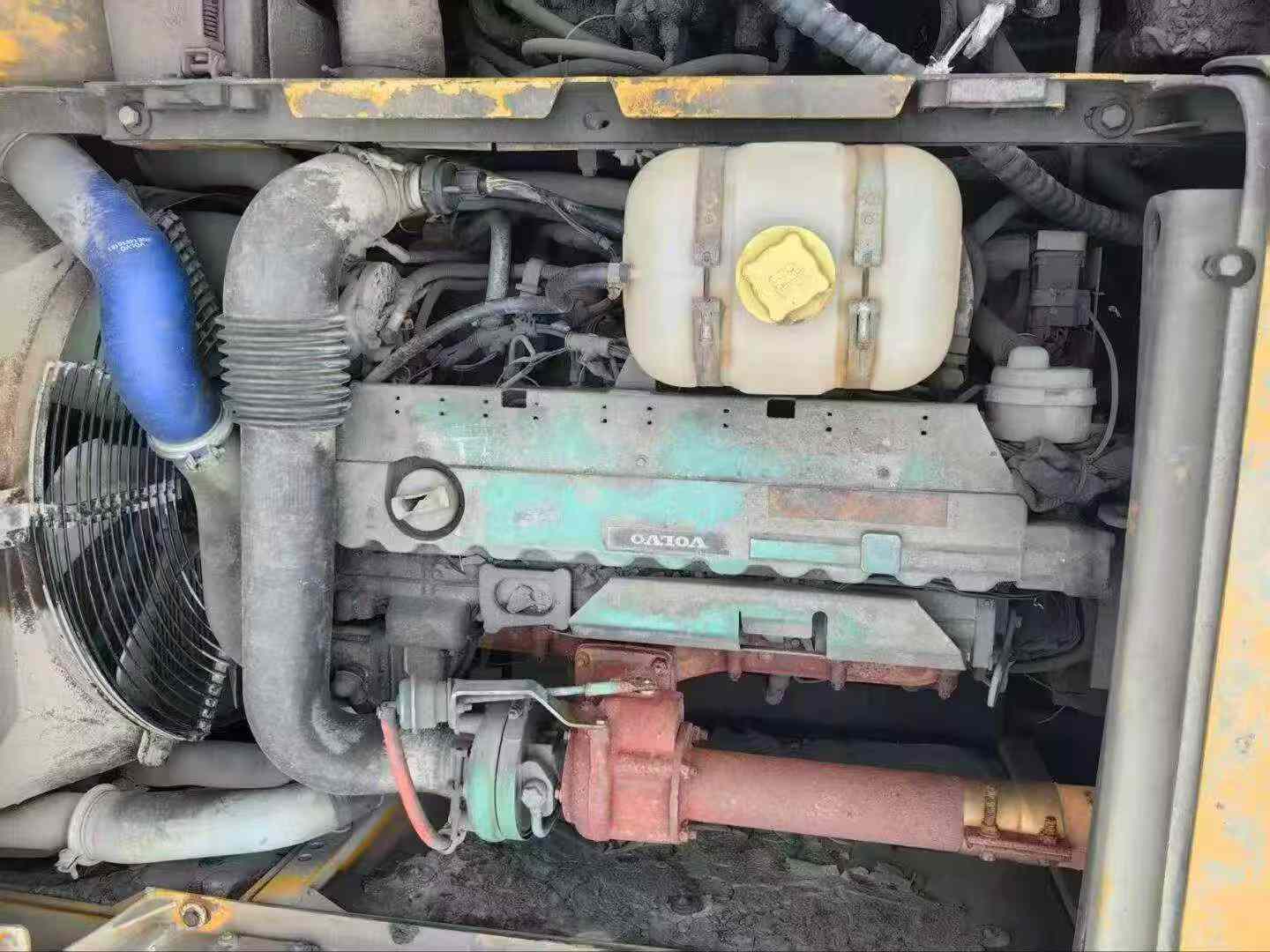

| Engine type | Volvo D6D |
| Rated power (kw/rpm) | 107/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Turbocharging; Electronically controlled direct injection |
| Ground specific pressure (Kpa) | 45.6 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 136.3 (Standard mode) /147.1 (Extra mode) |
| Rod digging force (kN) | 98.2 (Standard Mode) /104.9 (Extra mode) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 200 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 27.5 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3000 (total height of big arm) |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2850 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | Two teeth 700; Three teeth 600/700/800/900 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Maximum effective digging depth (mm) | 6510 |
