Product Description

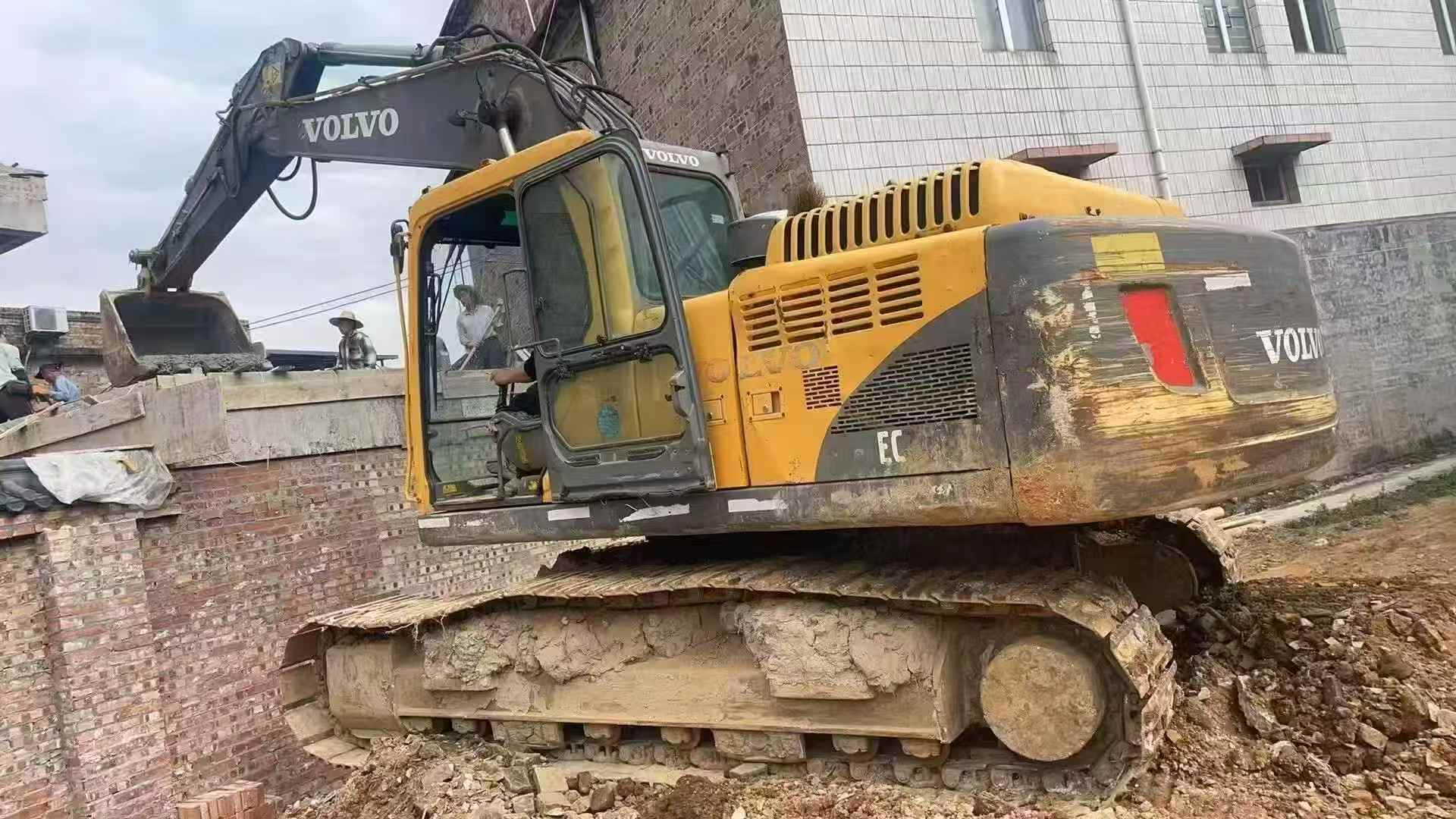

Built for high-volume earthmoving and precision excavation, this 2010 Volvo EC210BLC delivers 21-ton performance with a Cummins B5.9-C engine producing 107kW of rated power. Equipped with a 5700mm boom and 2900mm arm, this crawler excavator achieves a maximum digging depth of 6730mm and a reach of 9940mm—ideal for foundation work, trenching, and large-scale grading operations. The 0.5-1.25m³ bucket capacity handles material loading efficiently across construction and demolition sites.
Key specifications include:
- Working weight: 20,500-21,000kg for stable operation on varied terrain
- Maximum digging height: 9450mm for loading trucks and material handling
- Ground pressure: 42.2-43.2kPa with 600mm track plates for solid traction
- Rotation speed: 11.6rpm for productive cycle times
- Maximum torque: 618N.m at 1500rpm for consistent hydraulic power
Currently located in Guizhou, this joint venture/import model arrives site-ready with proven backhoe configuration. Compact transport dimensions (9690mm length) simplify logistics while maintaining full-size digging capabilities for contractors requiring reliable performance on demanding projects.
| Specifications | Value |
|---|---|
| No. | 1032758 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20500 / 21000 |
| Bucket capacity (m³) | 0.5-1.25 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 107 |
| Maximum torque (N.m) | 618 / 1500 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 42.2 / 43.2 |
| Rotation speed (rpm) | 11.6 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Full cab height (mm) | 2900 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9450 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
