2018 Volvo EC210D

1/9
Buy Volvo EC210D Used Excavator / 1
Buy Volvo EC210D Used Excavator / 2
Buy Volvo EC210D Used Excavator / 3
Buy Volvo EC210D Used Excavator / 4

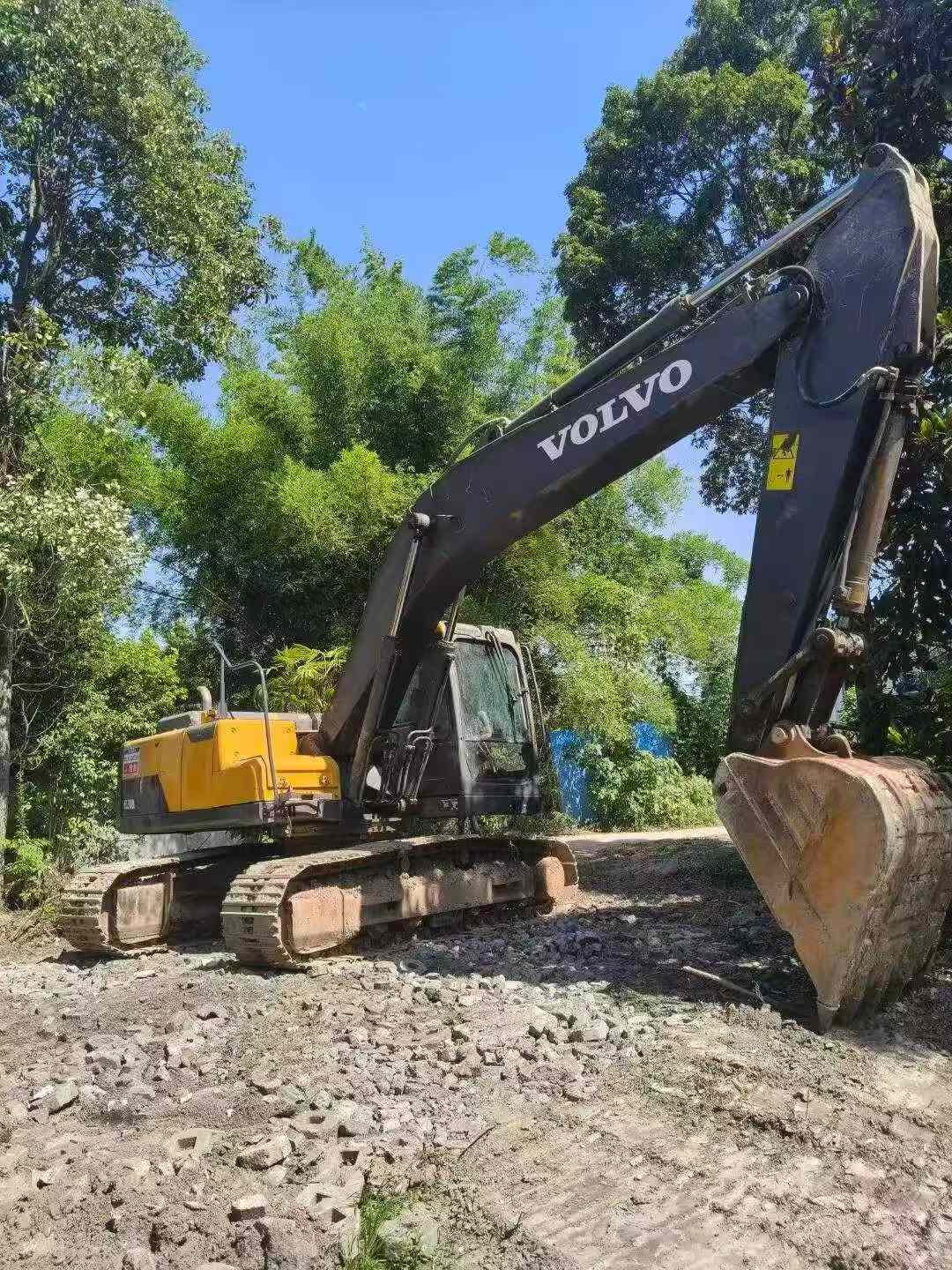

Buy Volvo EC210D Used Excavator / 5
Buy Volvo EC210D Used Excavator / 6
Buy Volvo EC210D Used Excavator / 7
Buy Volvo EC210D Used Excavator / 8
Buy Volvo EC210D Used Excavator / 9

Product Description

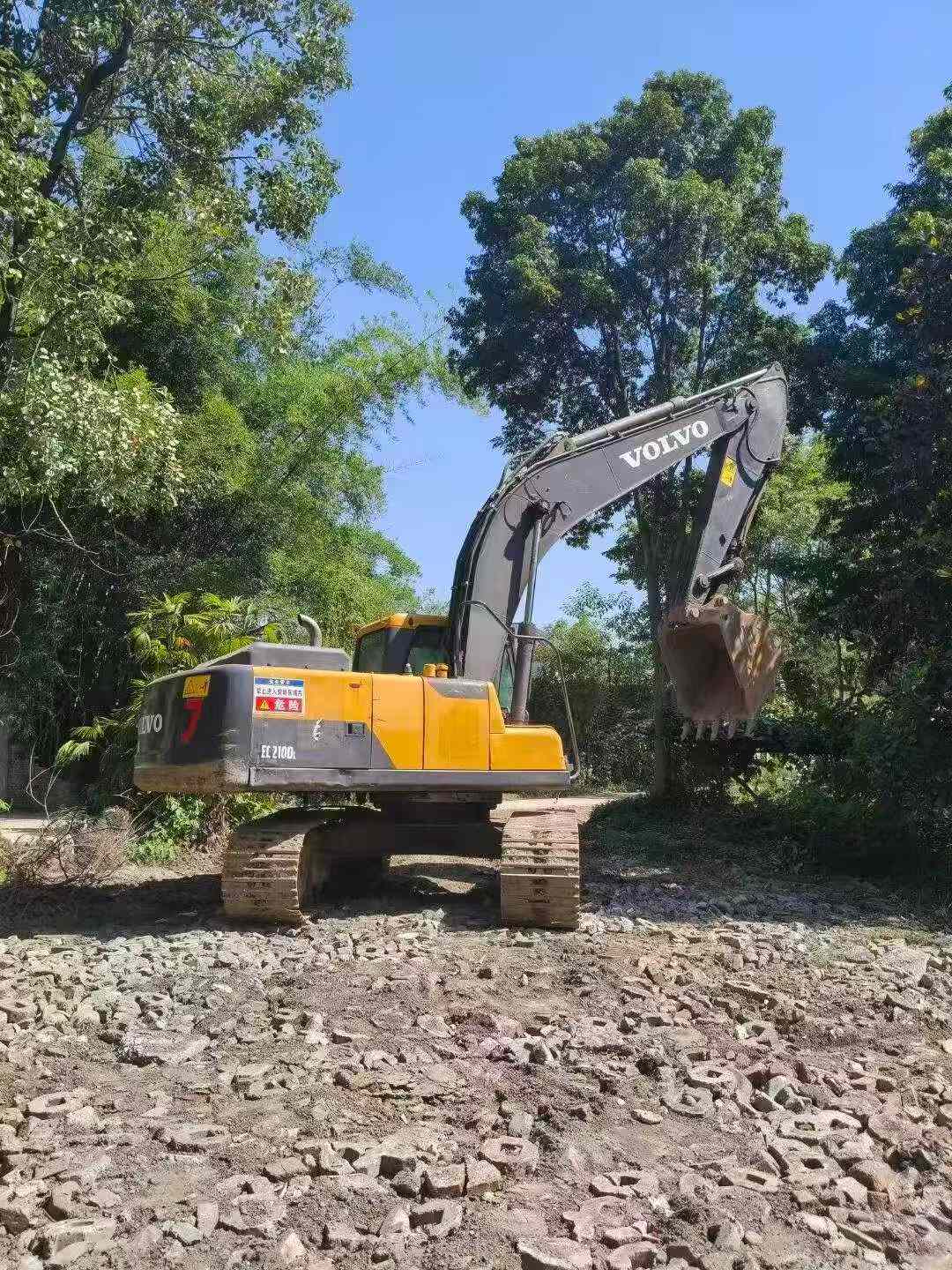

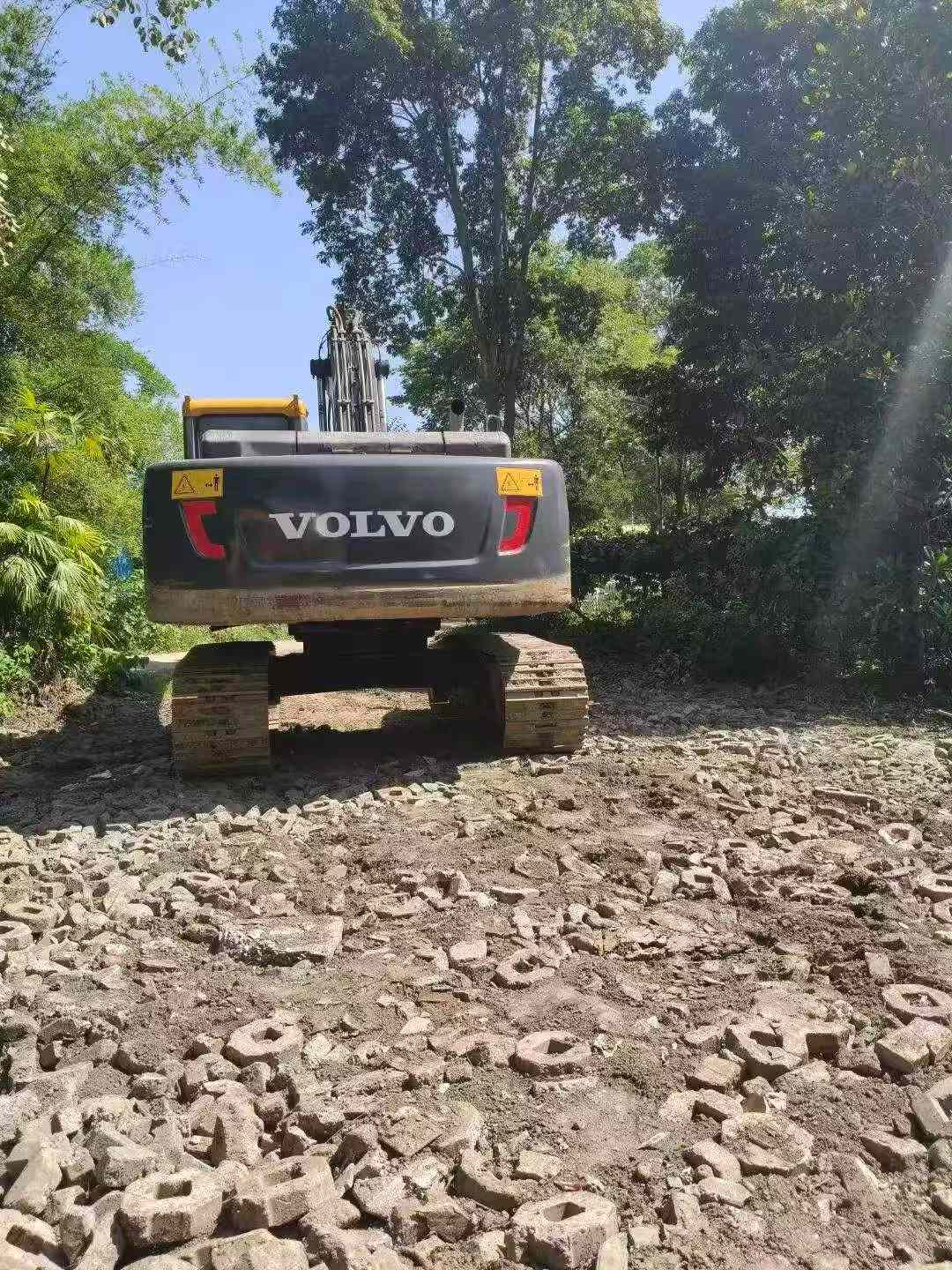

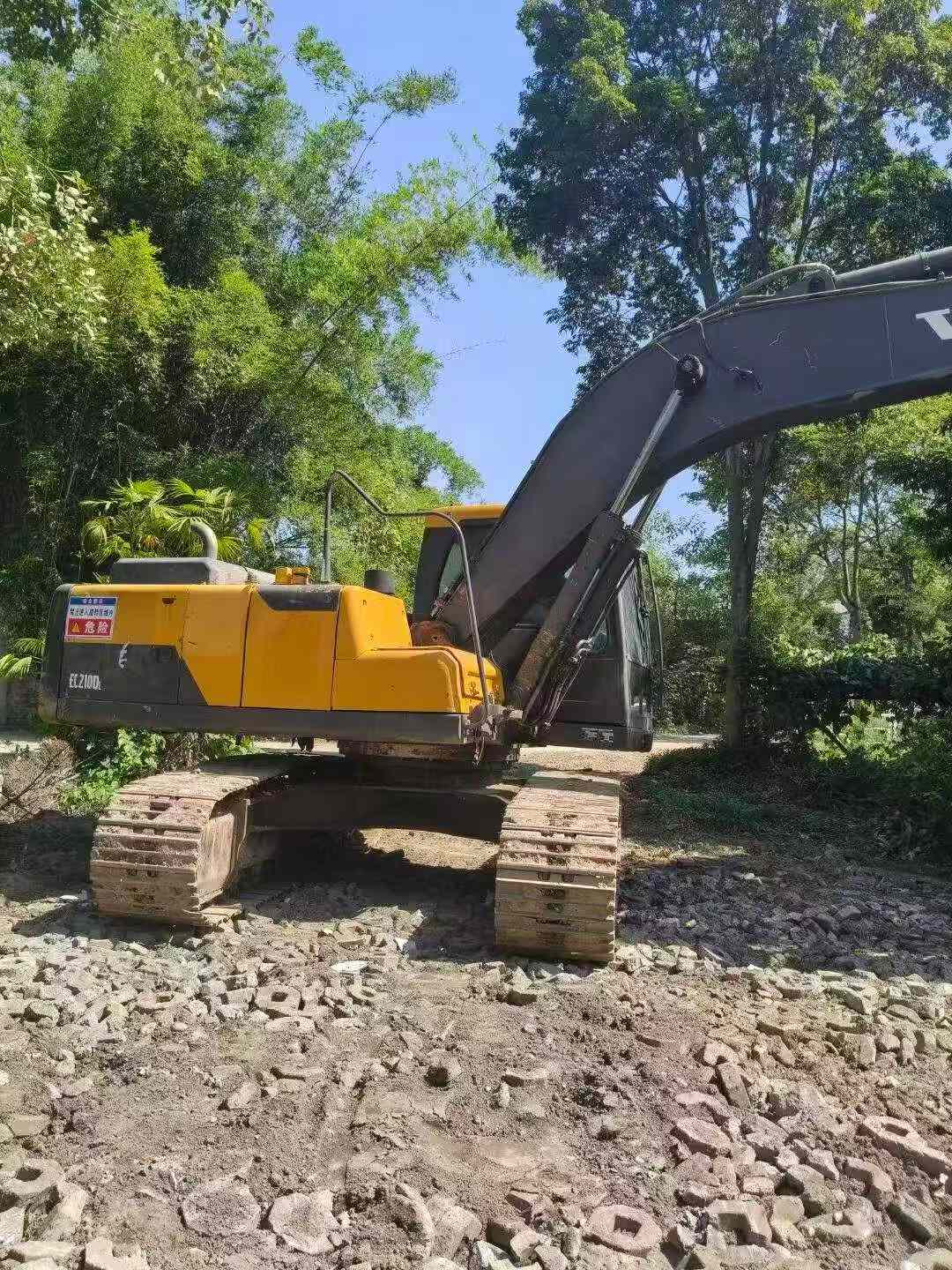

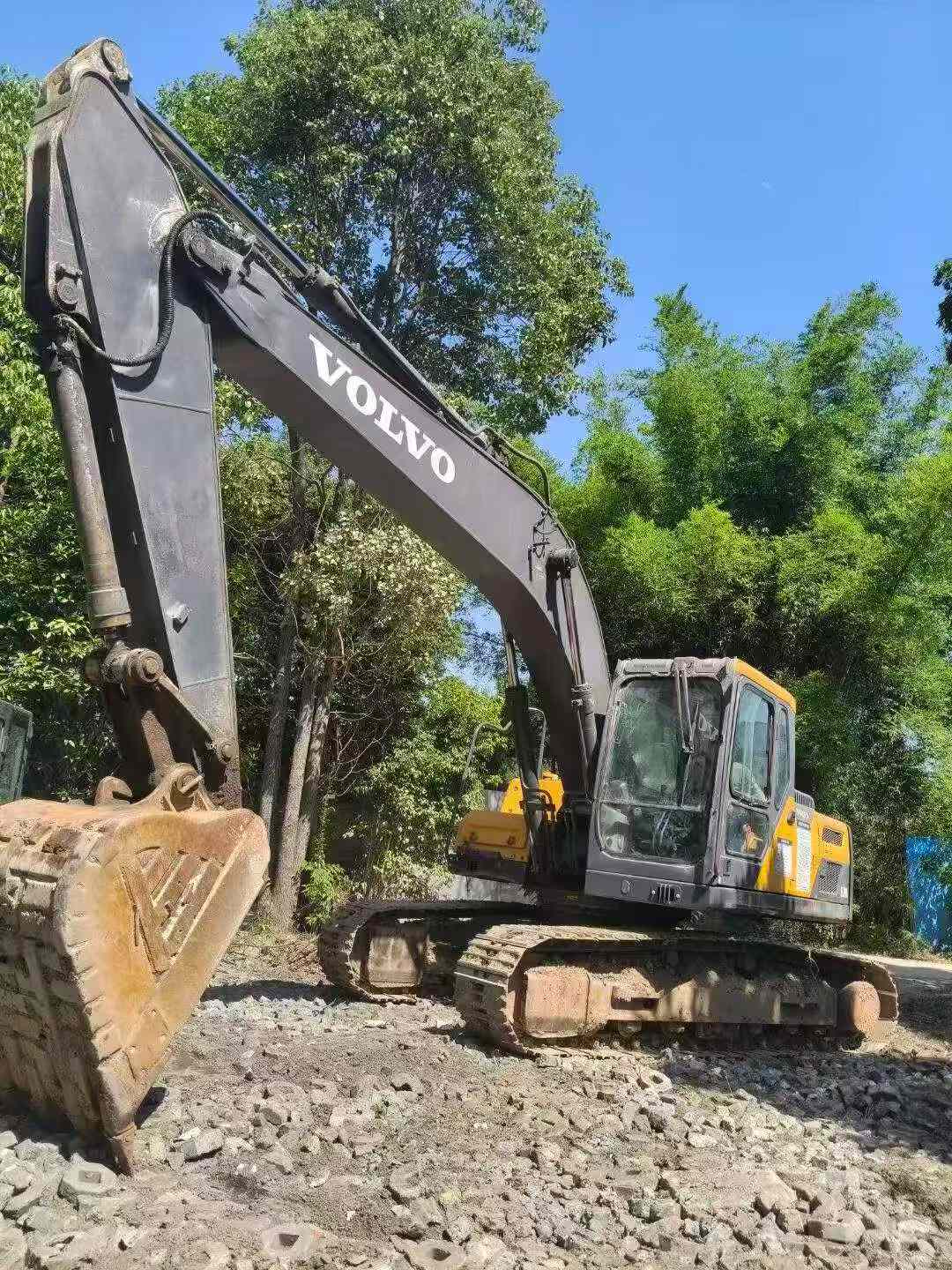

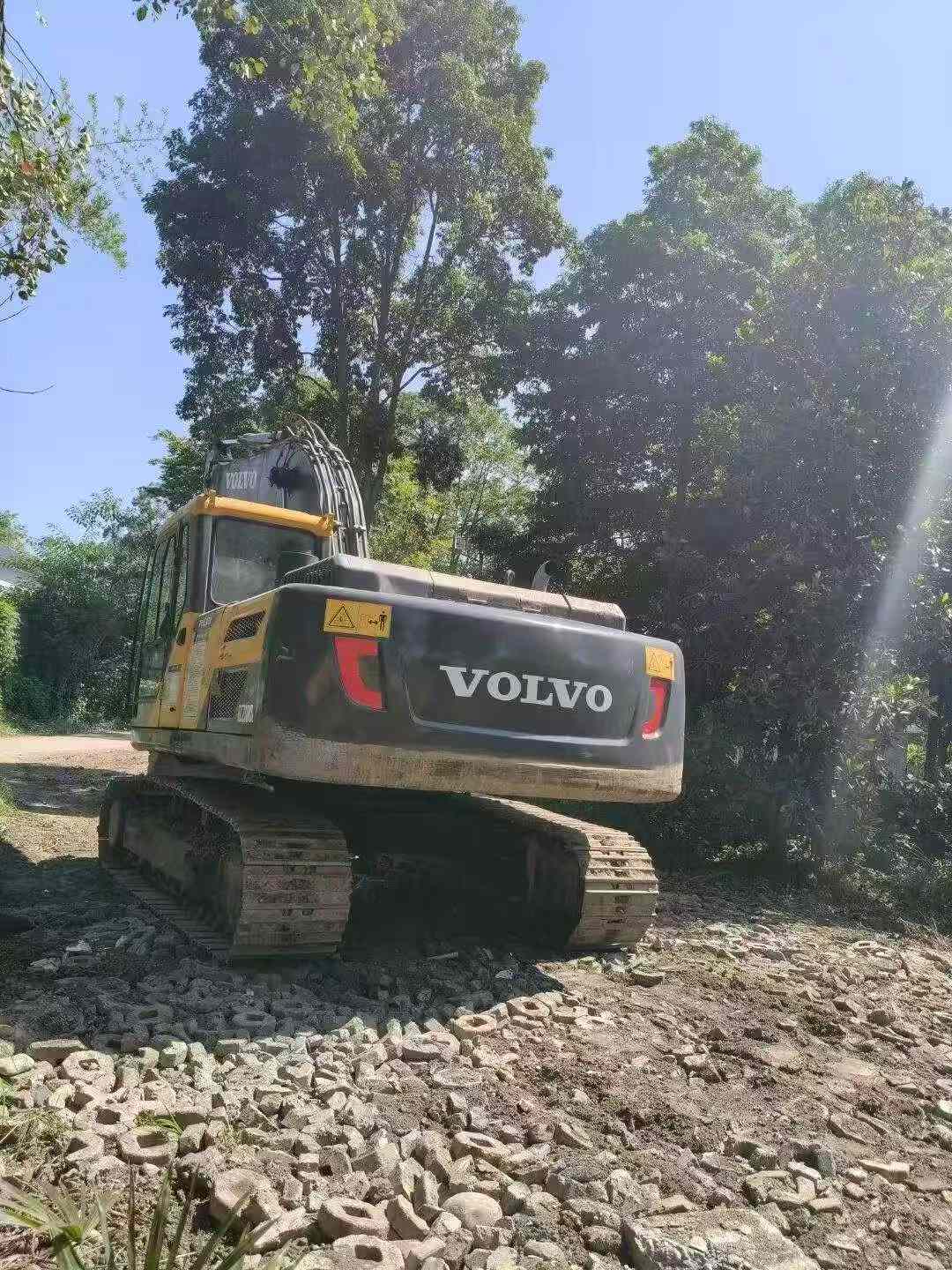

This 2018 Volvo EC210D excavator offers reliable performance for mid-sized earthmoving operations. Sourced from Sichuan, China, this machine represents solid value in the 21-ton class with Volvo's proven hydraulic efficiency and operator comfort features. The EC210D is known for its fuel economy and reduced maintenance requirements compared to earlier generations.

  • Year: 2018
  • Model: Volvo EC210D
  • Operating Weight: Approximately 21,500 kg

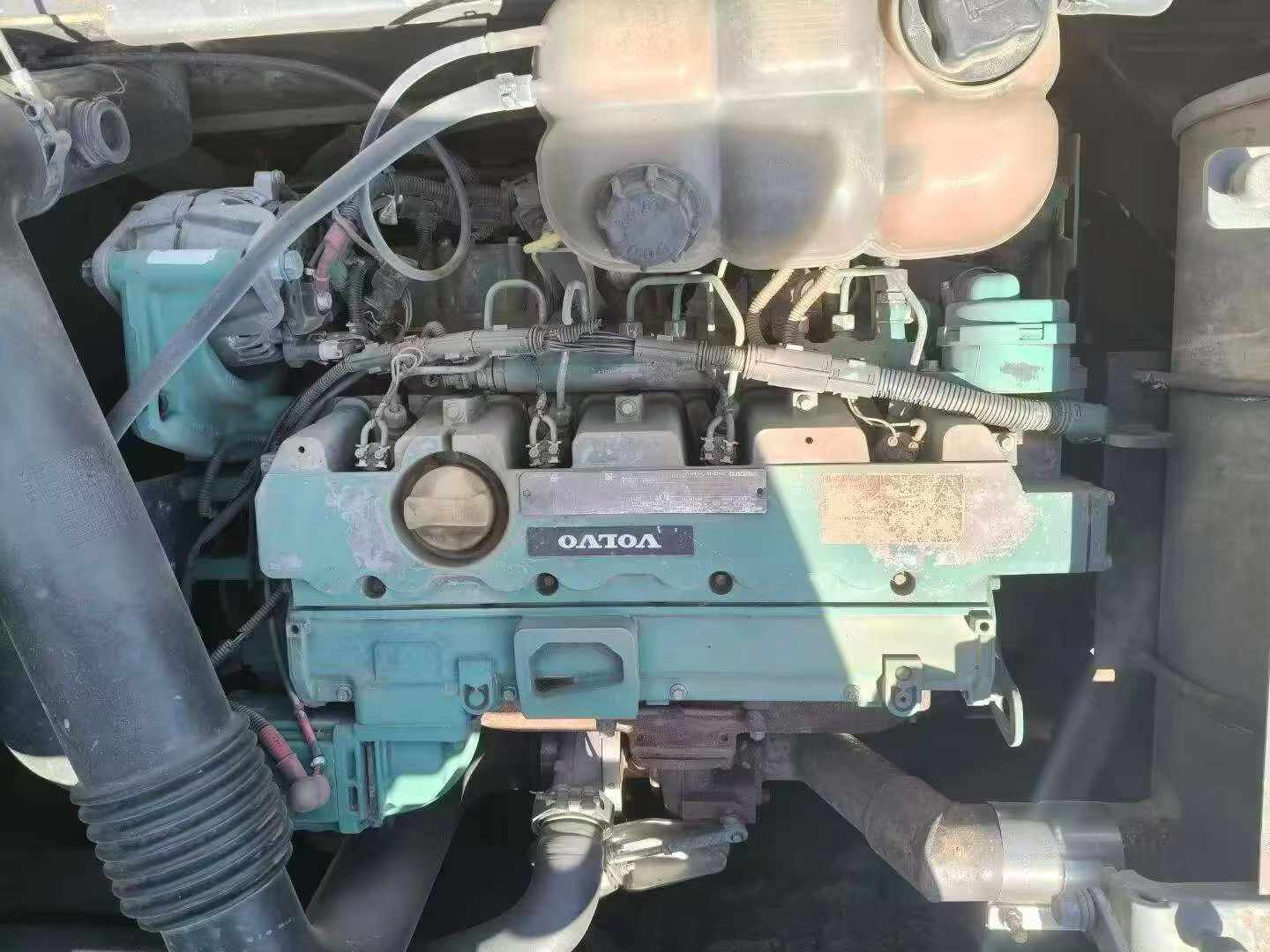

  • Engine: Volvo D6 diesel engine
  • Location: Sichuan, China
  • First-owner machine from verified fleet

Suitable for general construction, site preparation, and infrastructure projects. This unit is part of a larger inventory of first-owner equipment available for inspection. Contact us for detailed condition reports, service history, and shipping arrangements to your location.

SpecificationsValue
No.1174452
Tonnage (tons)21
Working weight (kg)18100 - 22800
Bucket capacity (m³)0.52 - 1.22
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D5E
Rated power (kw/rpm)123/2000
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)670 / 1 600
Number of cylinders (PCS)4
Displacement (L)4.7
Rotation speed (rpm)12.3
Bucket digging force (kN)123
Rod digging force (kN)96
Maximum tractive force (kN)183
Travel speed (km/h)3.5 / 5.8
Turning torque (Nm)76.7
Main overflow set pressure (Mpa)32.4 / 36.3
Maximum flow of main pump (l/min)2 x 212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9

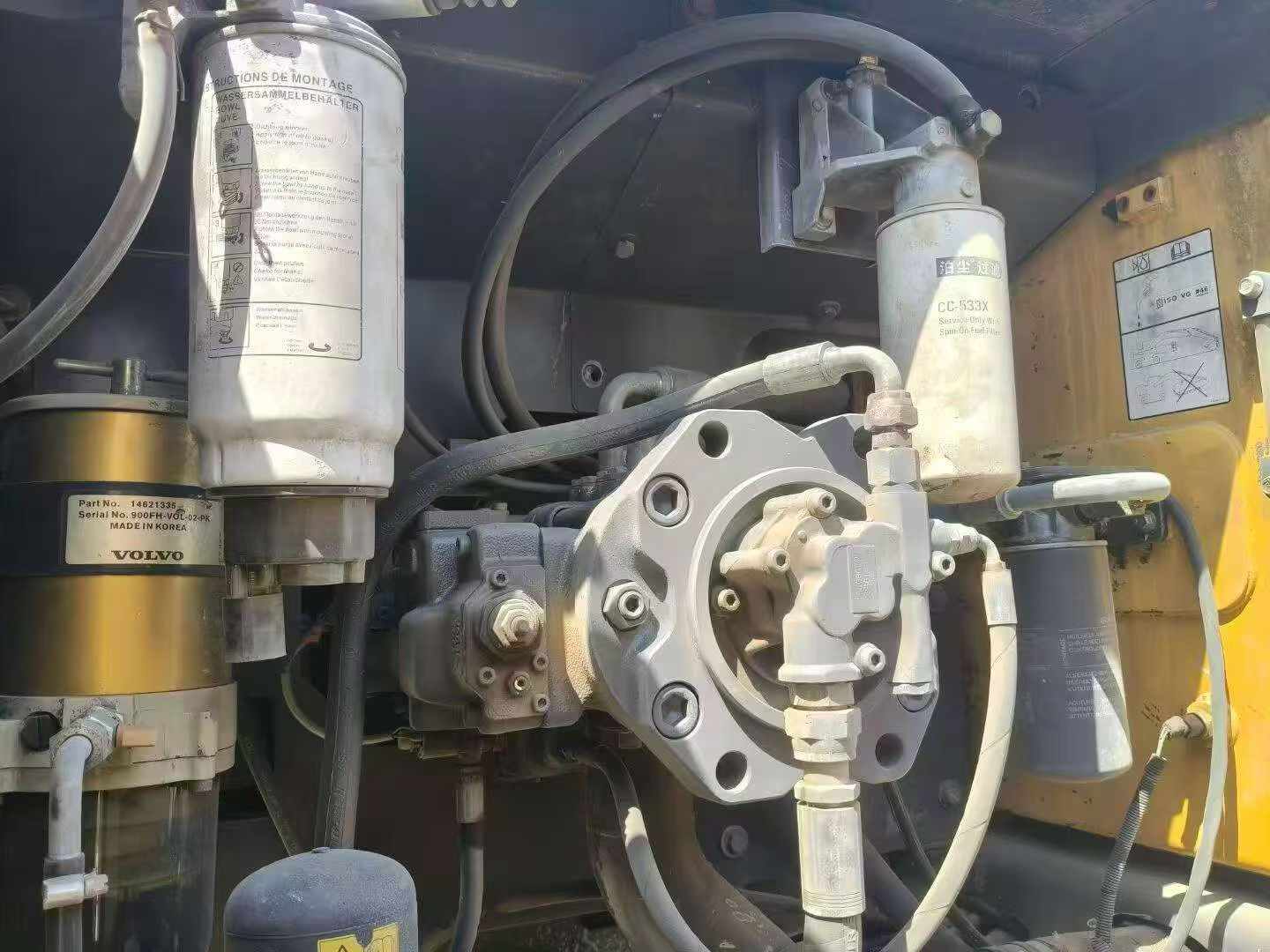

Main pump typeTwo variable displacement axial piston pumps
Working Hydraulic Circuit (Mpa)32.4 / 34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)1 x 18
Bucket cylinders - Number × diameter × stroke (mm)1*120 x 1 065
Bucket rod cylinders - Number × diameter × stroke (mm)1*135 x 1 540
Boom cylinders - Number × diameter × stroke (mm)2*125 x 1 235
Pilot pump typeGear pump
Fuel Tank (L)375
Hydraulic Tank (L)160
Engine Oil changes (L)17
Coolant (L)15
Hydraulic System (L)300
Total transport length (mm)9745
Total transport width (mm)2800
Total transport height (mm)3 080
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Onboard width (mm)2700
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3370
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6730
Maximum excavation height (mm)9220
Maximum unloading height (mm)6430
Maximum vertical digging depth (mm)5620
Maximum excavation radius of stop surface (mm)9380
see more

Overview

No.1174452

Brand Name:

Volvo

Model Number:

EC210D

Year:

2018

Location:

Sichuan China

Pub Date:
