Product Description

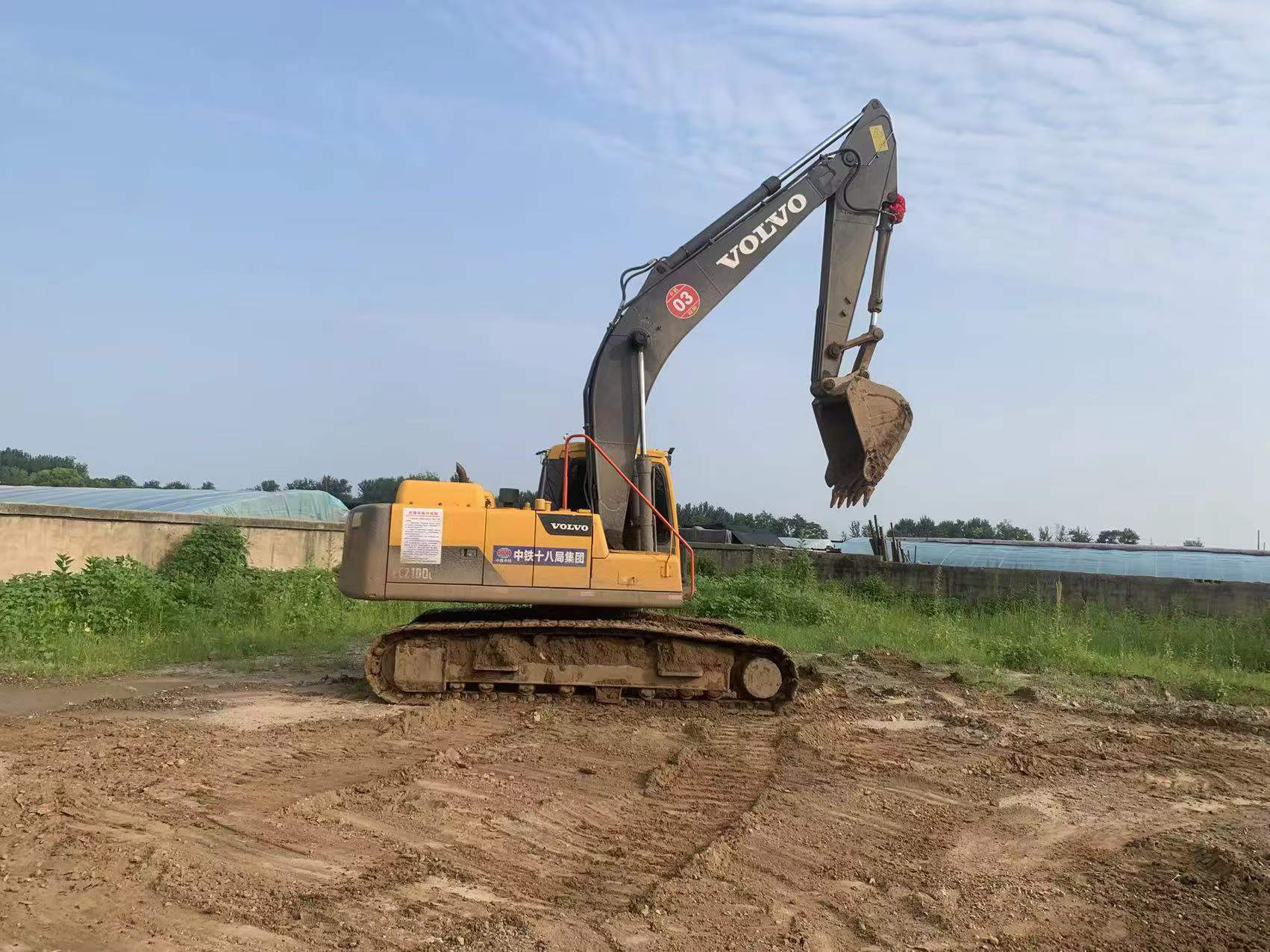

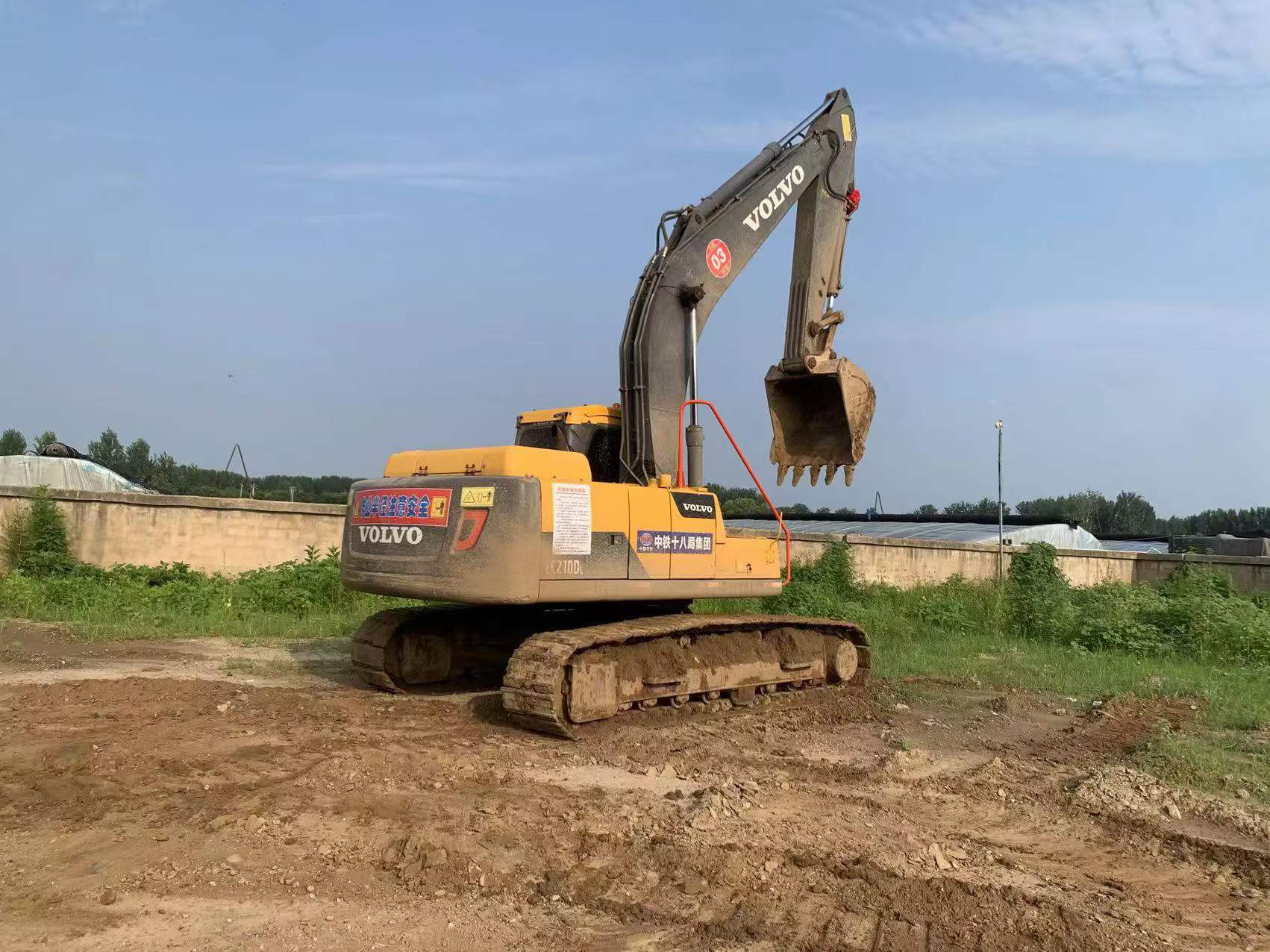

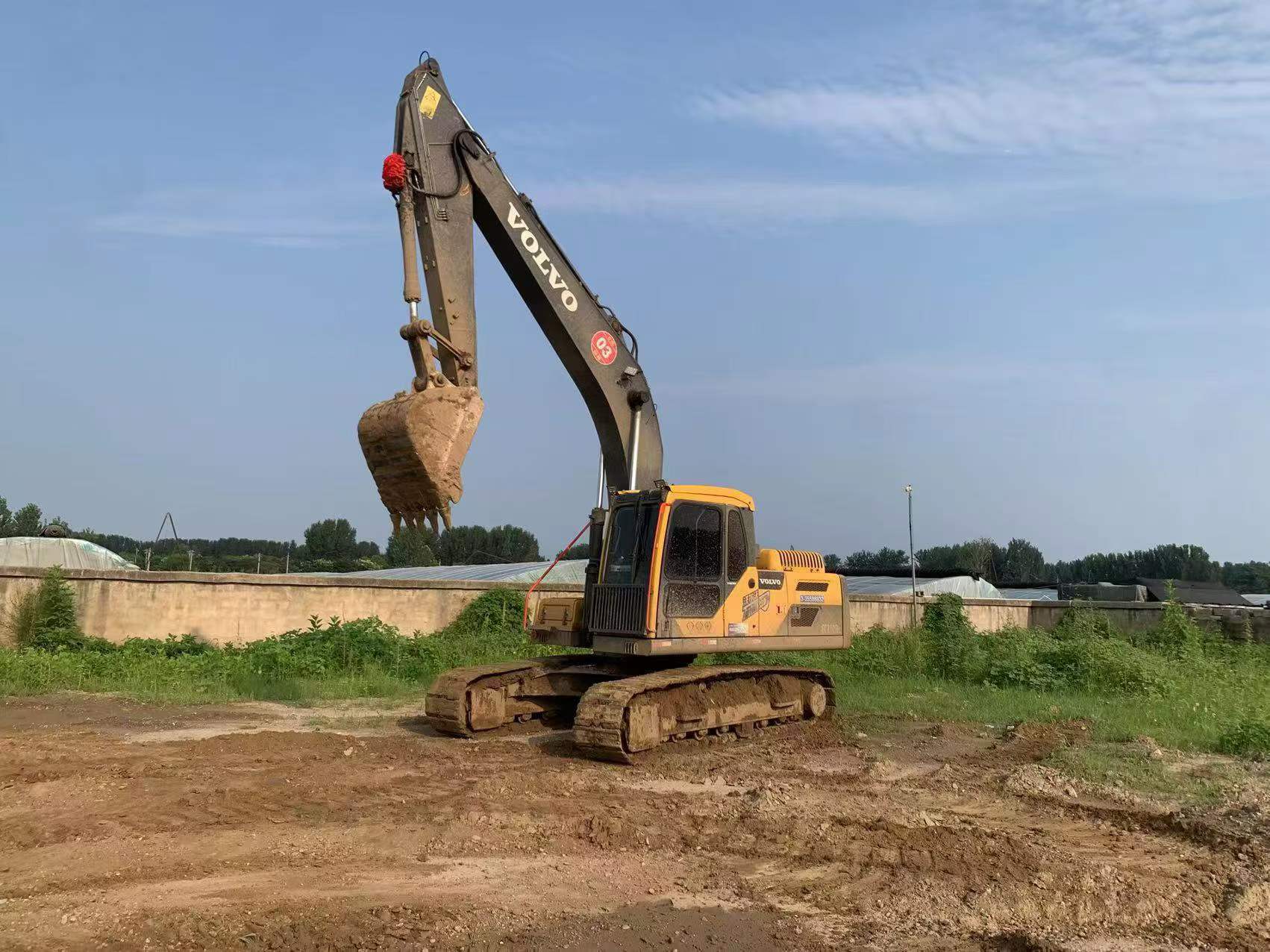

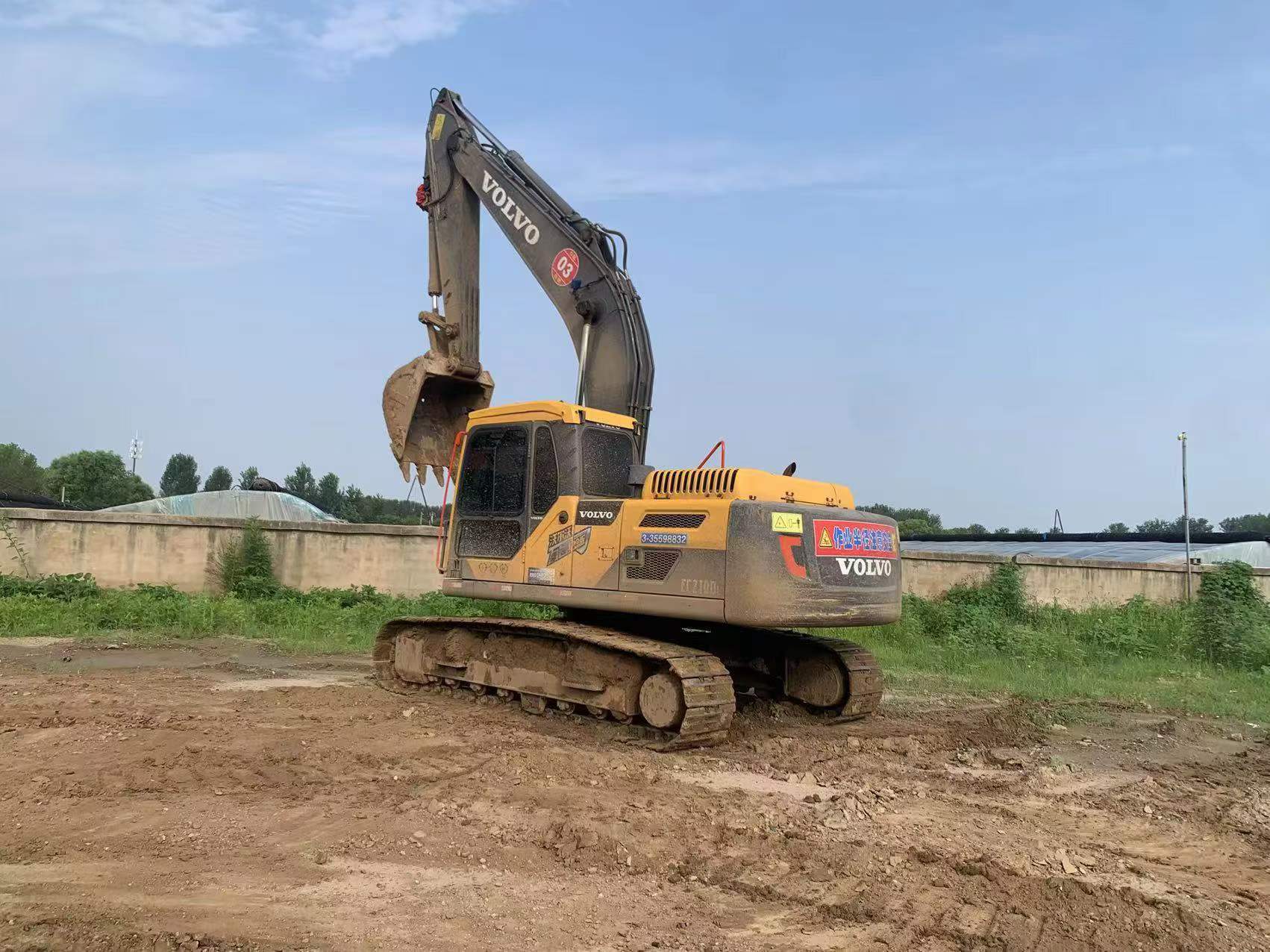

Discover the 2020 Volvo EC210D, a premium excavator available in Hebei, China. This machine is meticulously maintained and features a robust Kawasaki hydraulic system, ensuring reliable performance and efficiency. Equipped with an original large capacity bucket, it is ideal for demanding earthmoving tasks. The chassis is in excellent condition, contributing to its overall stability and durability. Known for its fuel efficiency and speed, this EC210D operates like new, providing you with a cost-effective and powerful solution for your construction needs.
- Year: 2020
- Brand: Volvo
- Model: EC210D
- Location: Hebei, China

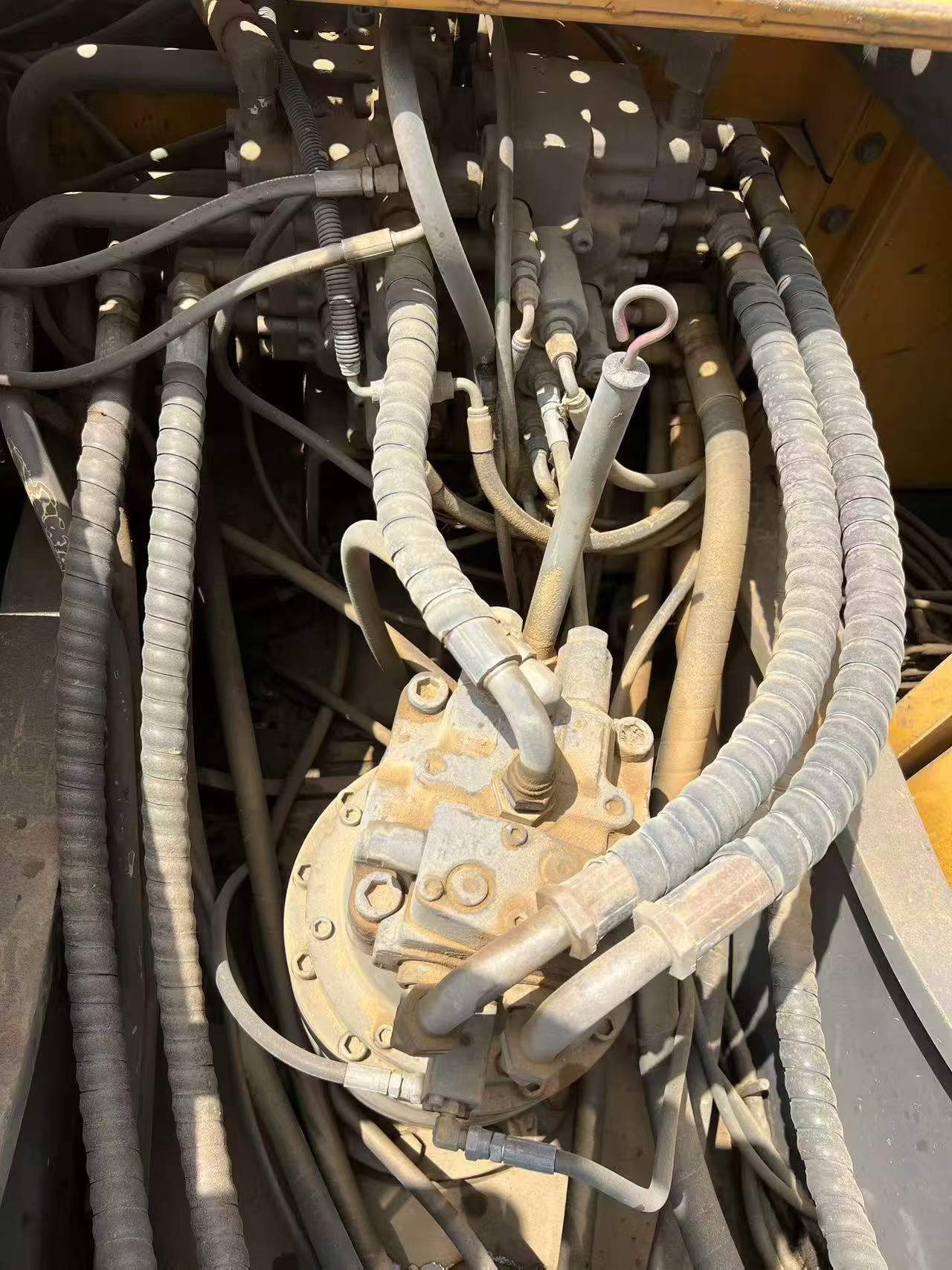

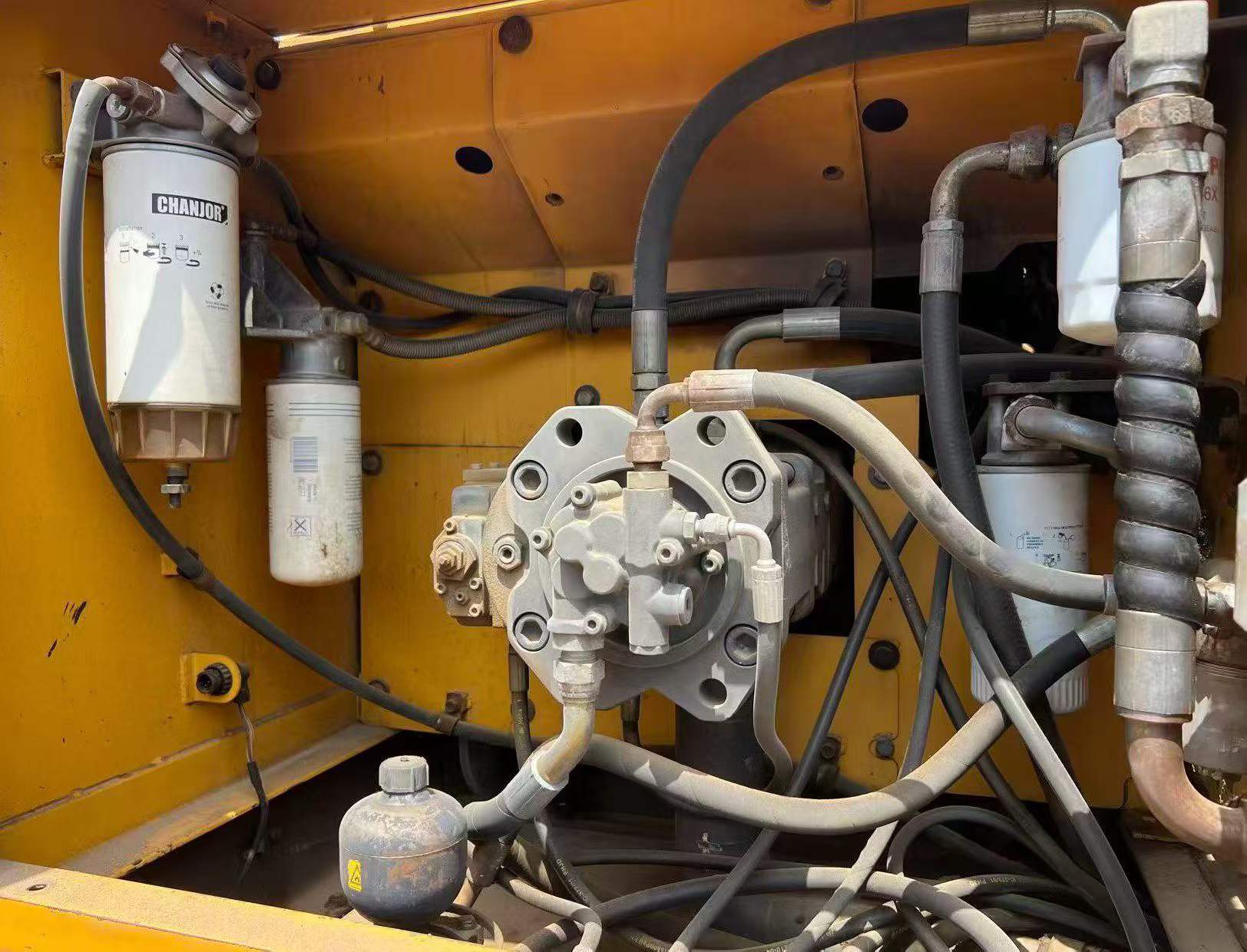

- Kawasaki hydraulic system
- Original large capacity bucket

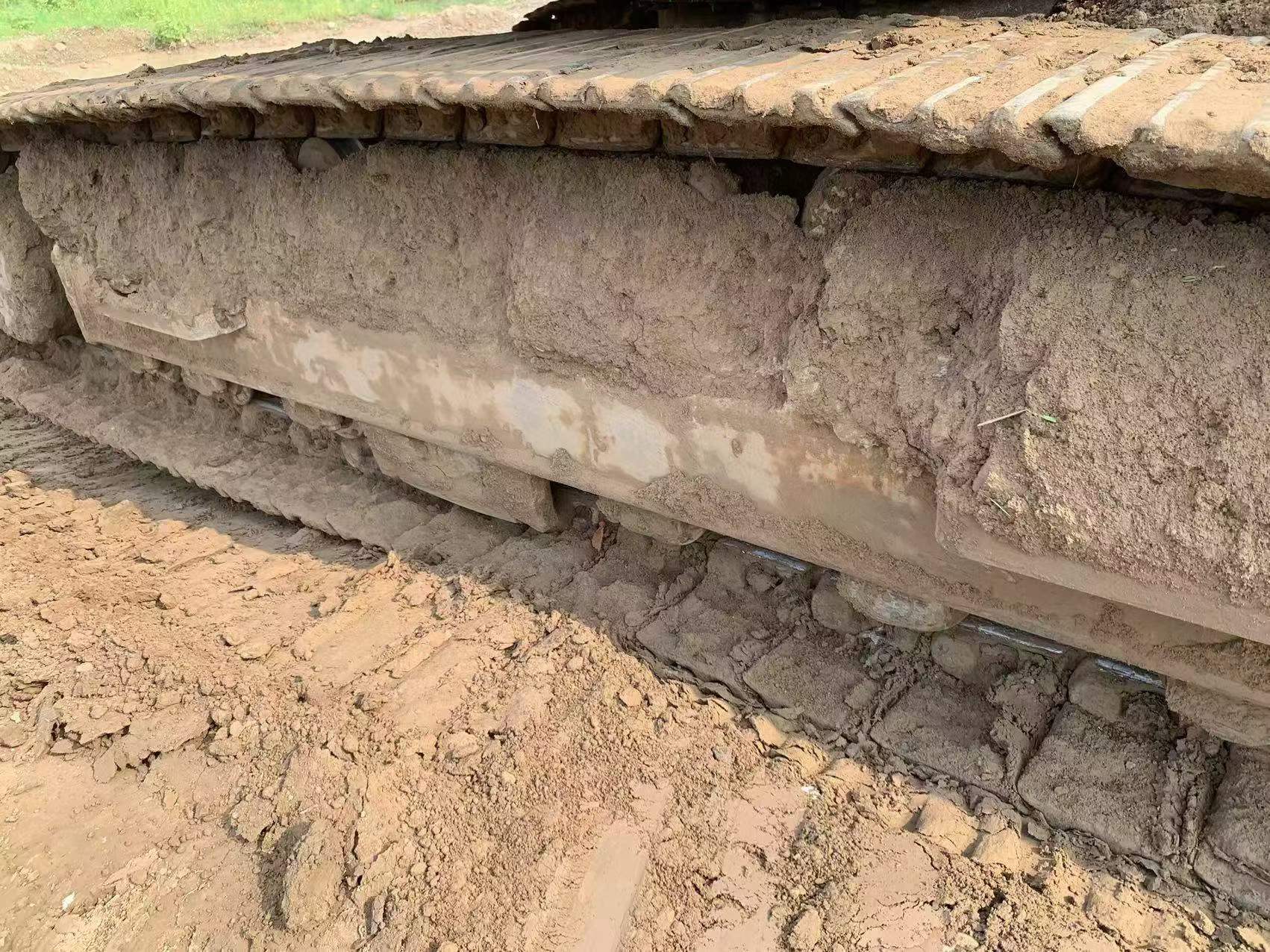

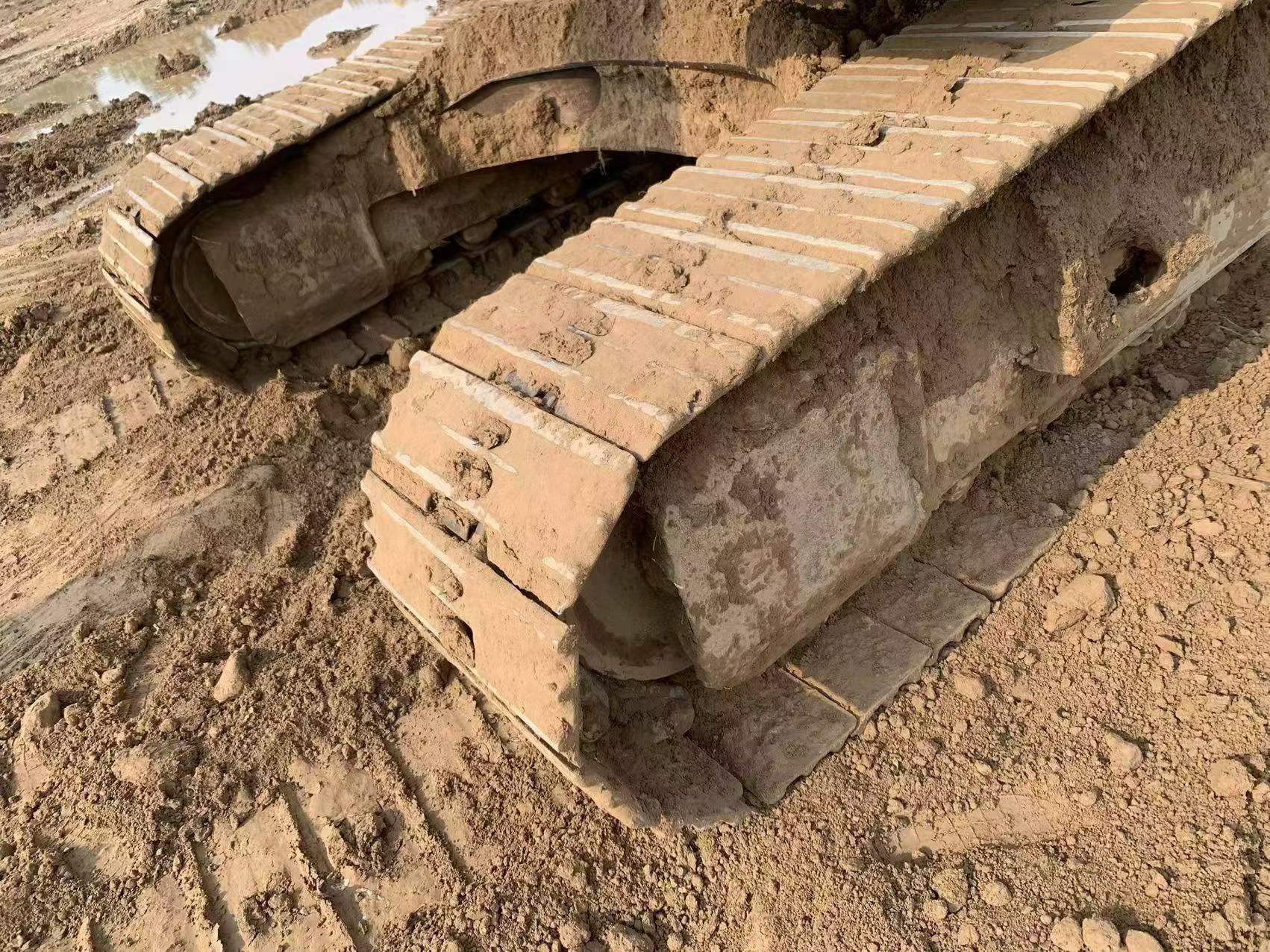

- Excellent chassis condition
| Specifications | Value |
|---|---|
| No. | 1122132 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 18100 - 22800 |
| Bucket capacity (m³) | 0.52 - 1.22 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

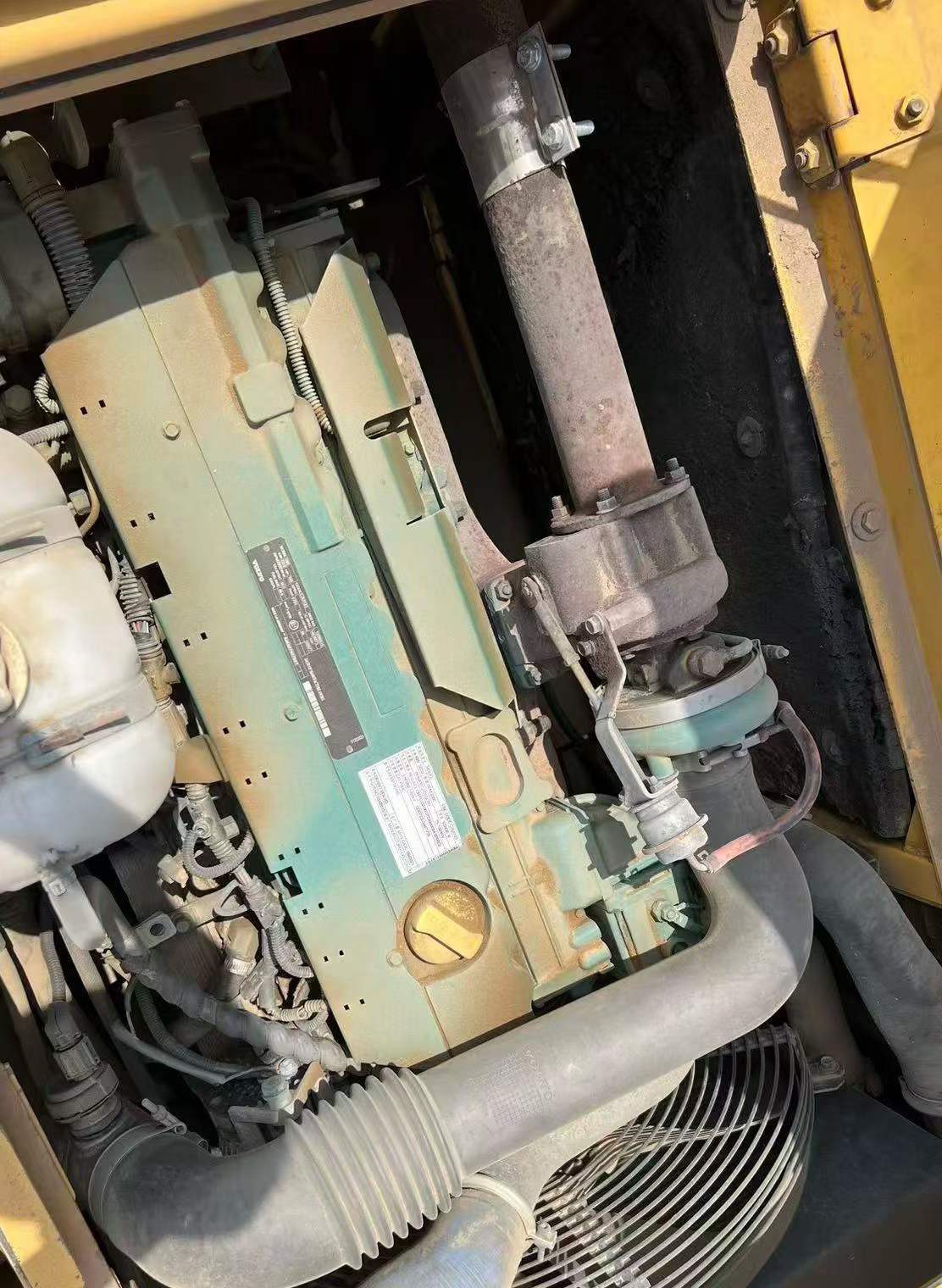

| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670 / 1 600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5 / 5.8 |
| Turning torque (Nm) | 76.7 |
| Main overflow set pressure (Mpa) | 32.4 / 36.3 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 32.4 / 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9745 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3 080 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9220 |
| Maximum unloading height (mm) | 6430 |
| Maximum vertical digging depth (mm) | 5620 |
| Maximum excavation radius of stop surface (mm) | 9380 |
