HOME>>Volvo>>Volvo EC220D

2014 Volvo EC220D

1/8

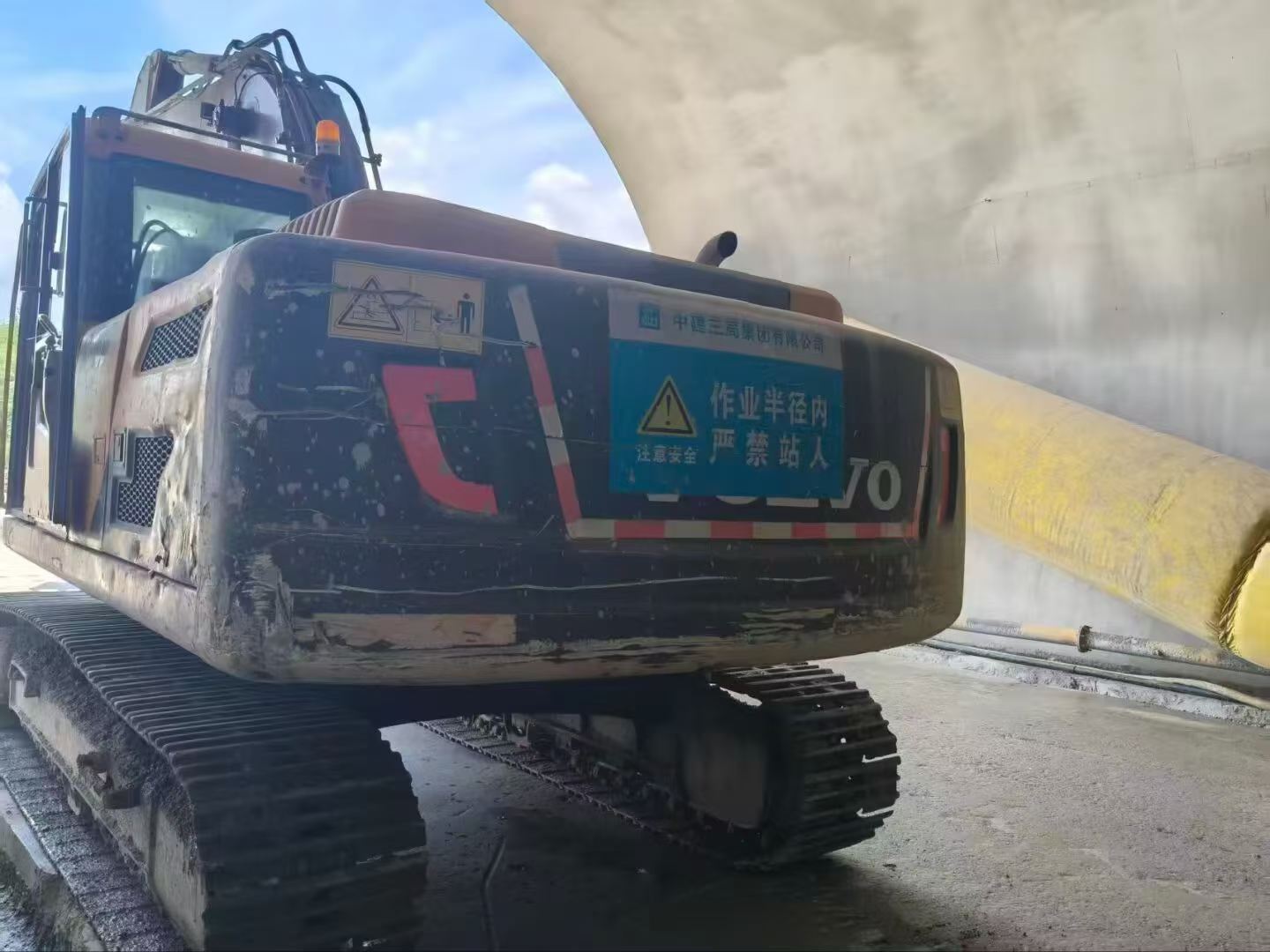

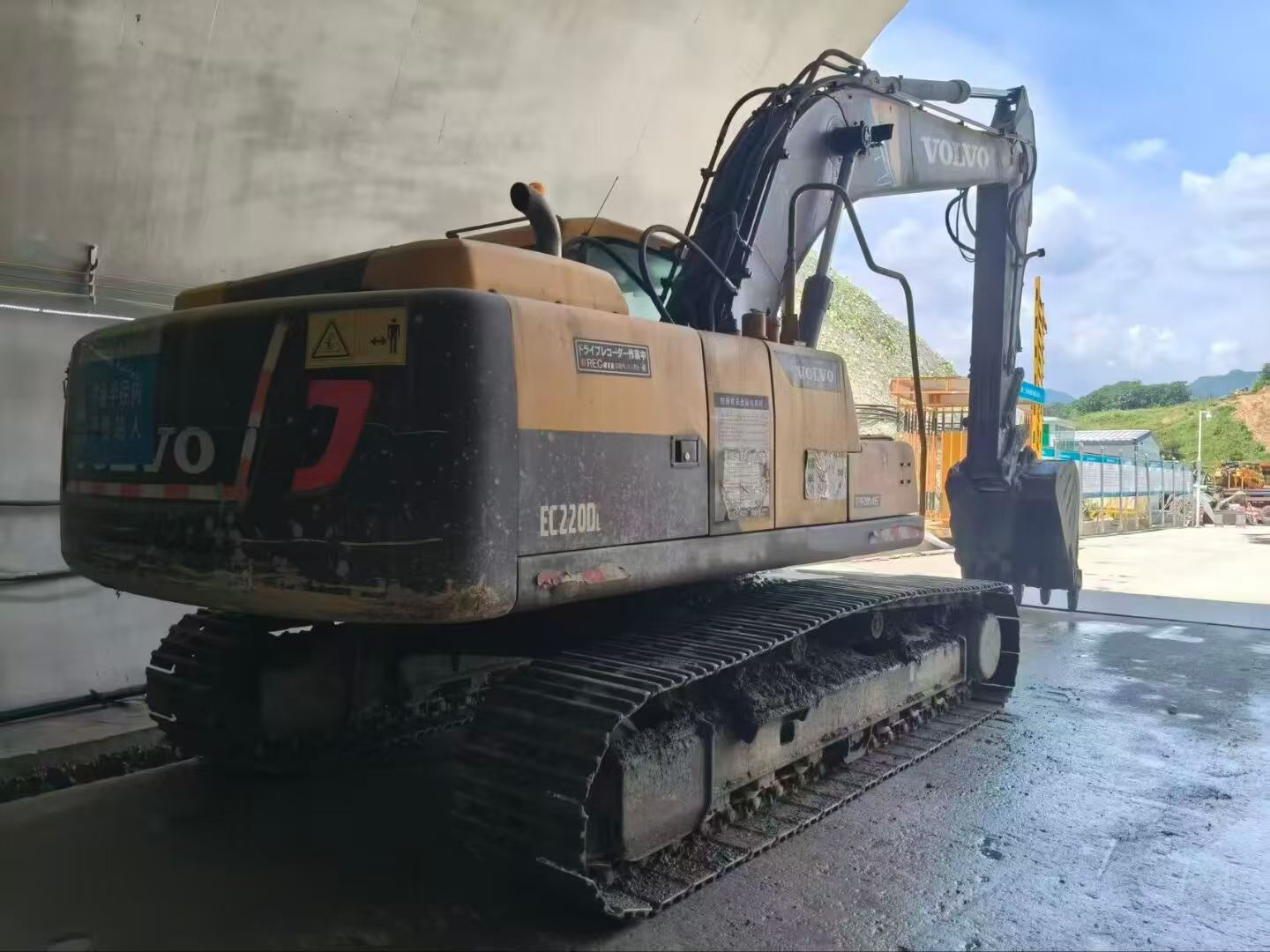

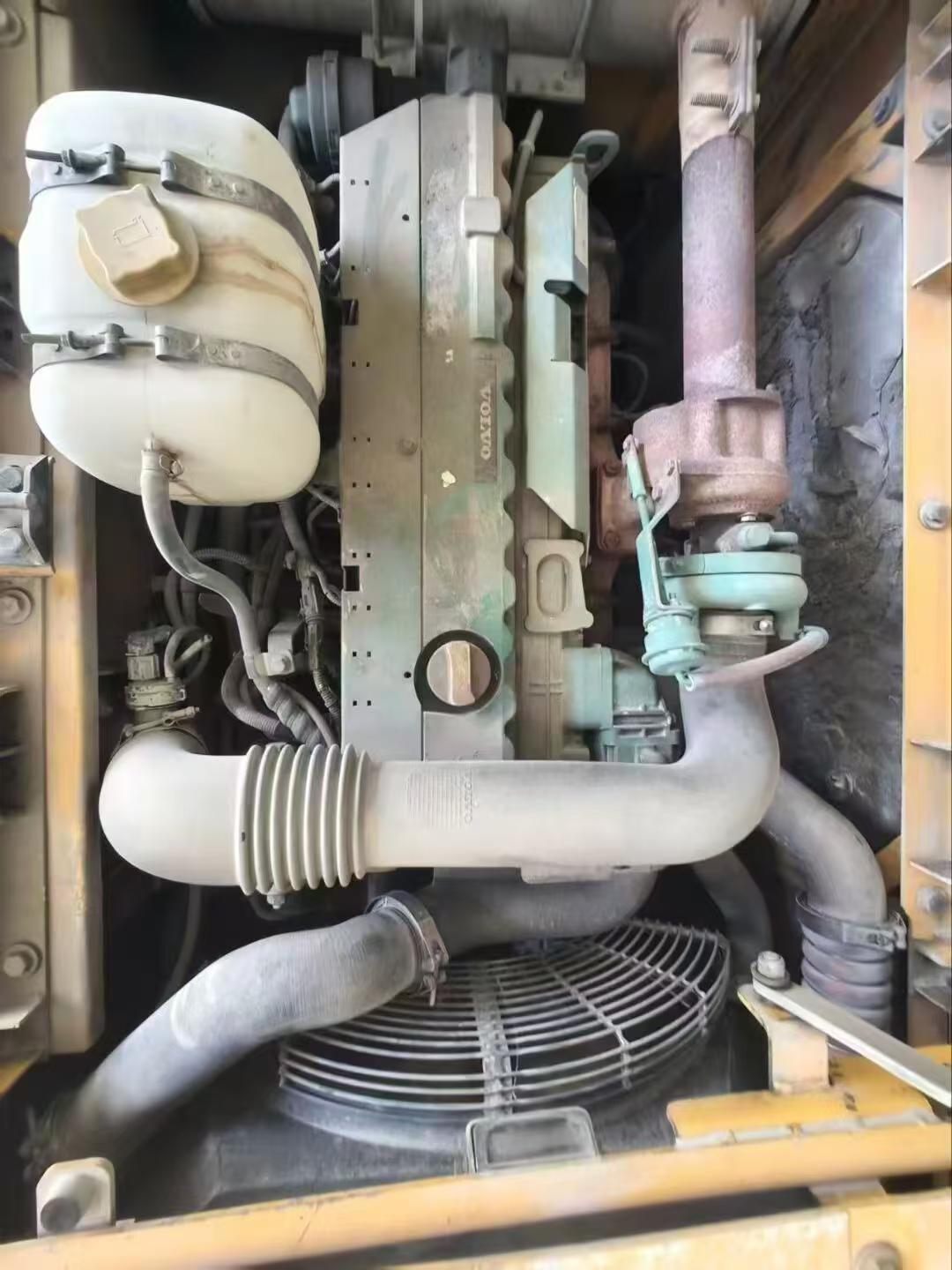

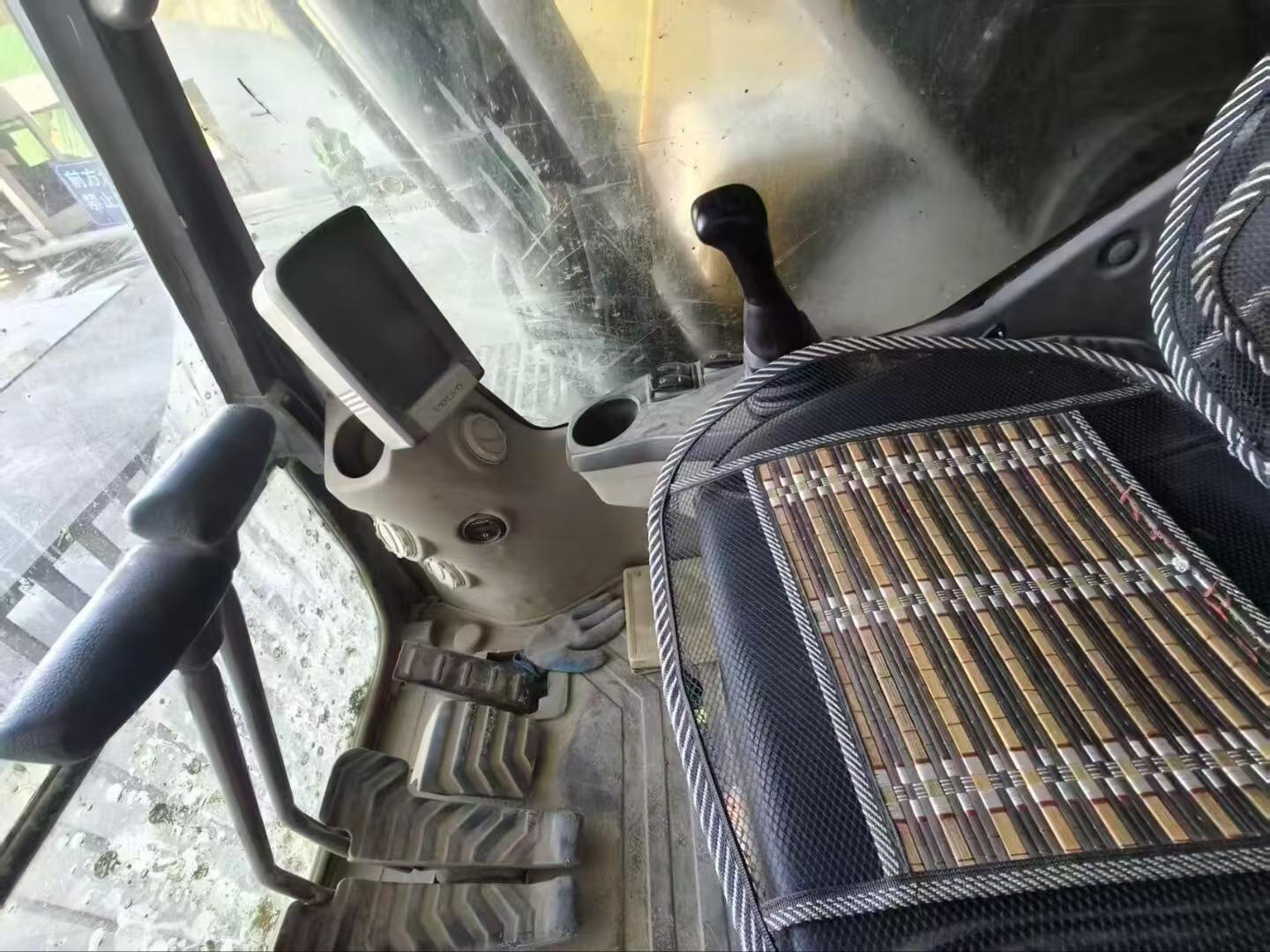

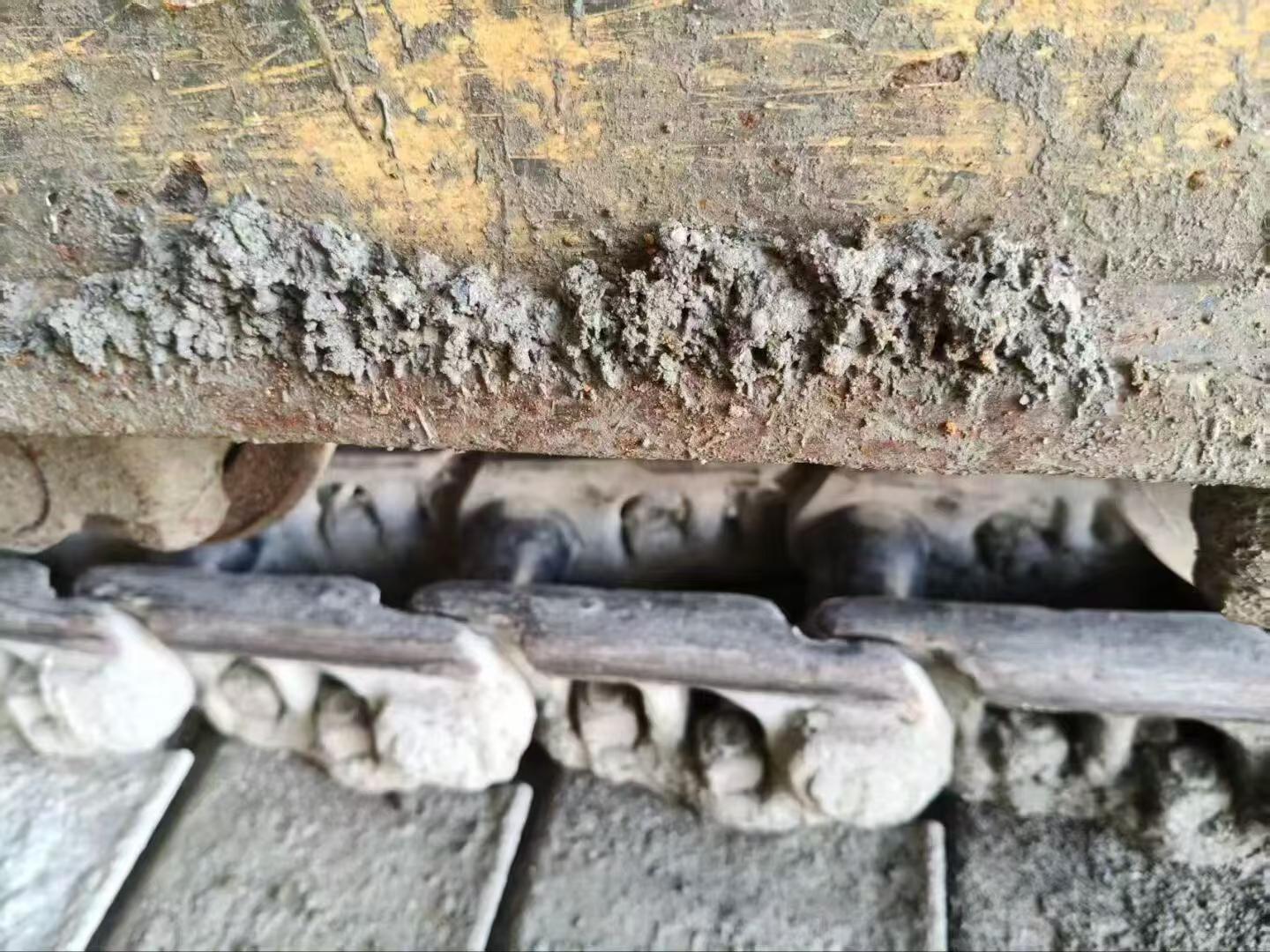

Buy Volvo EC220D Used Excavator / 1
Buy Volvo EC220D Used Excavator / 2
Buy Volvo EC220D Used Excavator / 3
Buy Volvo EC220D Used Excavator / 4
Buy Volvo EC220D Used Excavator / 5
Buy Volvo EC220D Used Excavator / 6
Buy Volvo EC220D Used Excavator / 7
Buy Volvo EC220D Used Excavator / 8

Product Description

Discover the reliability and efficiency of the 2014 Volvo EC220D excavator, now available in Hunan, China. This machine, priced at 88,000, is a robust choice for various construction and excavation projects, offering the durability and performance expected from the Volvo brand. Ideal for businesses looking to enhance their fleet with a dependable, second-hand excavator, the EC220D is known for its powerful operation and fuel efficiency, making it a cost-effective solution for your heavy machinery needs.

  • Year: 2014
  • Brand: Volvo
  • Model: EC220D
  • Location: Hunan, China
  • Price: 88,000
SpecificationsValue
No.1130043
Tonnage (tons)22
Working weight (kg)20900-24400
Bucket capacity (m³)0.48 - 1.44
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolov D6H
Rated power (kw/rpm)123/1800
Cylinder diameter × stroke (mm)98 x 126
Maximum torque (N.m)849/1350
Number of cylinders (PCS)6
Displacement (L)5.7
Rotation speed (rpm)12.1
Bucket digging force (kN)127
Rod digging force (kN)93
Maximum tractive force (kN)183
Travel speed (km/h)3.5/5.7
Turning torque (Nm)76.7
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)34.3/36.2
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)375
Hydraulic Tank (L)140
Coolant (L)32
Hydraulic System (L)295
Total transport length (mm)9795
Total transport width (mm)2700
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Back end turning radius (mm)2750
Onboard width (mm)2700
Total track length (mm)4160
Track plate width (mm)600
Total track width (mm)2200
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9970
Maximum digging depth (mm)6760
Maximum excavation height (mm)9470
Maximum unloading height (mm)6620
see more

Overview

No.1130043

Brand Name:

Volvo

Model Number:

EC220D

Year:

2014

Location:

Hunan China

Pub Date
