2018 Volvo EC250D

1/9

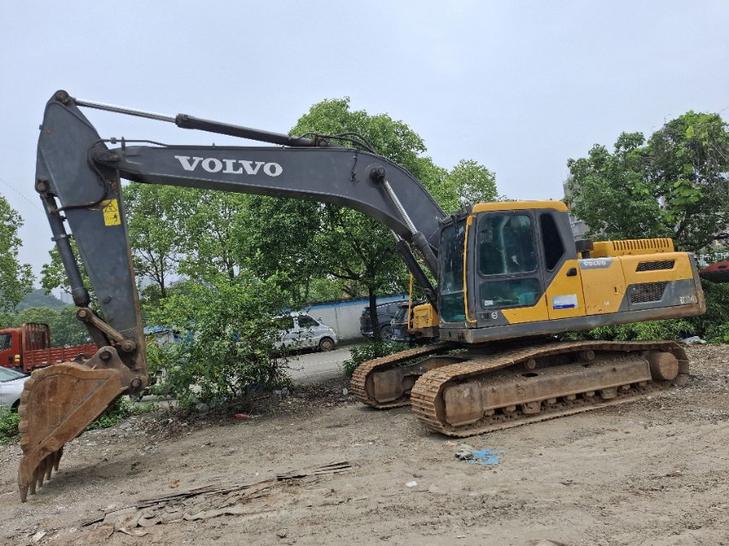

Buy Volvo EC250D Used Excavator / 1
Buy Volvo EC250D Used Excavator / 2
Buy Volvo EC250D Used Excavator / 3
Buy Volvo EC250D Used Excavator / 4
Buy Volvo EC250D Used Excavator / 5
Buy Volvo EC250D Used Excavator / 6
Buy Volvo EC250D Used Excavator / 7
Buy Volvo EC250D Used Excavator / 8
Buy Volvo EC250D Used Excavator / 9

Product Description

This 2018 Volvo EC250D excavator represents a well-maintained unit from a construction site in Zhejiang, China. The machine has been used exclusively for standard excavation work without hammer attachment use, preserving the integrity of the hydraulic system and structural components. Complete documentation is available with this unit.

The EC250D is known for its 25-ton operating weight class and fuel-efficient engine design. Volvo's signature hydraulic system delivers responsive control and productive cycle times across earthmoving applications.

  • All original factory components retained
  • No hydraulic hammer attachment history
  • Full documentation and records included
  • Located in Zhejiang Province, China
  • Suitable for general construction and excavation work

This machine offers reliable performance for contractors seeking proven mid-size excavator capacity with verifiable service history.

SpecificationsValue
No.1144803
Tonnage (tons)25
Working weight (kg)24600 - 28000
Bucket capacity (m³)0.48 - 1.85
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)138/1800
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)870 / 1 350
Number of cylinders (PCS)6
Displacement (L)7.1
Rotation speed (rpm)11.9
Bucket digging force (kN)152
Rod digging force (kN)115
Maximum tractive force (kN)217
Travel speed (km/h)3.5/5.5
Turning torque (Nm)91.6
Maximum flow of main pump (l/min)2 x 240
Traveling Hydraulic Circuit (Mpa)36.3
Control Hydraulic Circuit (Mpa)3.9
Fuel Tank (L)470
Hydraulic Tank (L)195
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10260
Total transport width (mm)2990
Full cab height (mm)3020
Counterweight ground clearance (mm)1080
Minimum ground clearance (mm)470
Back end turning radius (mm)3070
Onboard width (mm)2890
Total track length (mm)4450
Track gauge (mm)2390
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10260
Maximum digging depth (mm)6980
Maximum excavation height (mm)9690
Maximum unloading height (mm)6 800
see more

Overview

No.1144803

Brand Name:

Volvo

Model Number:

EC250D

Year:

2018

Hour:

9600h

Location:

Zhejiang China
