Product Description

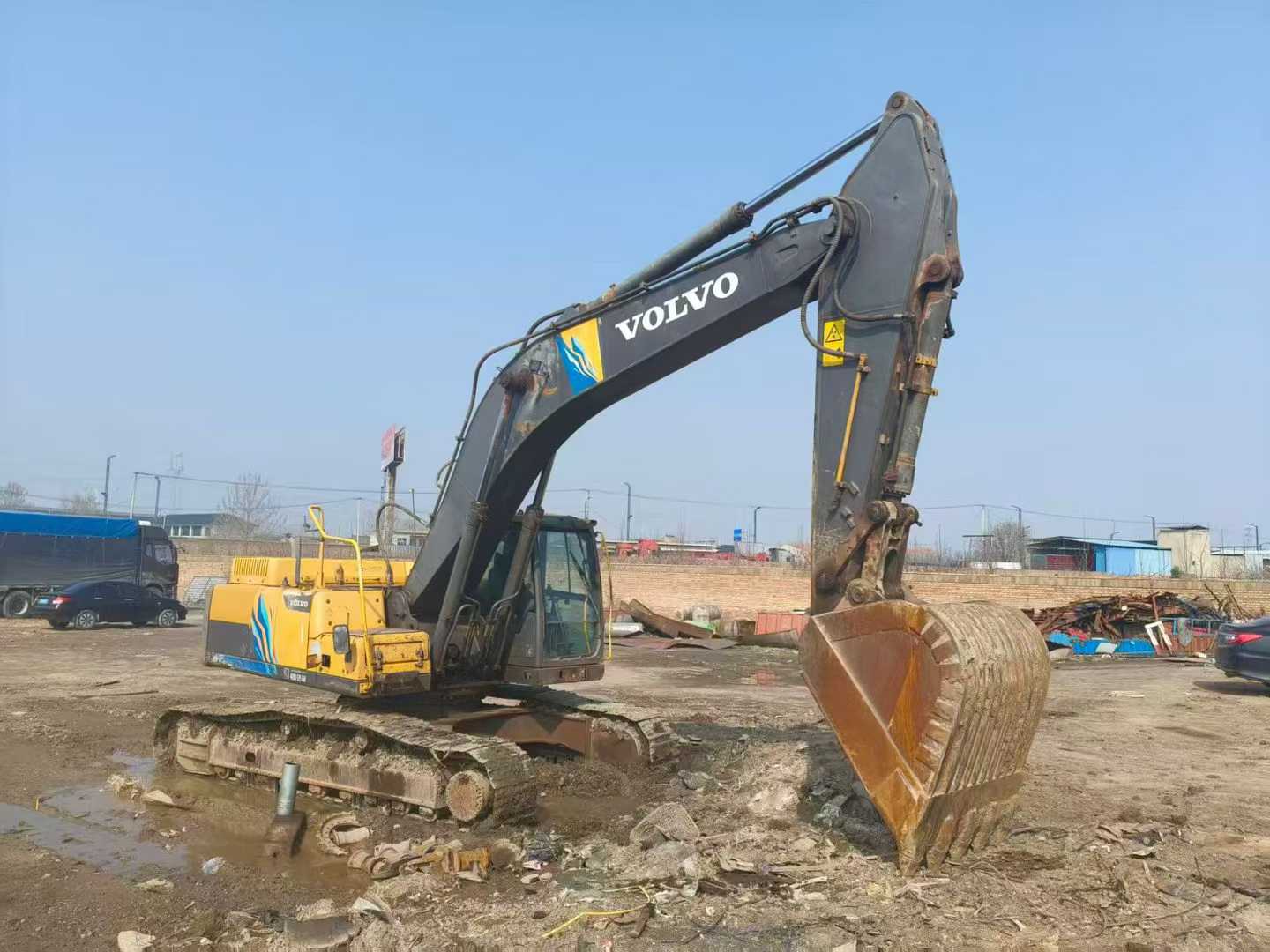

Built for operators who demand precision and control, this 2013 Volvo EC300D delivers exceptional stability across 30 tons of working weight. Powered by a robust D7E engine producing 169 kW at 1800 rpm, this excavator combines turbocharged efficiency with the reliability of joint venture engineering. The spacious cabin offers commanding visibility across a 10,190 mm maximum digging radius, while intuitive hydraulics—backed by dual 263 l/min main pumps—ensure responsive bucket and boom control during every cycle.
- 30-ton operating weight with 1.4 m³ bucket capacity for heavy-duty excavation
- 6,850 mm maximum digging depth and 9,660 mm maximum excavation height
- Advanced D7E turbocharged engine: 1080 N·m torque, 7.1L displacement
- Smooth 10.7 rpm rotation speed with 110.9 Nm turning torque for precise positioning
- 35° climbing ability and 247 kN maximum tractive force on challenging terrain
- Ergonomic cabin design with optimized sightlines to bucket, tracks, and work zone
- Dual-speed travel system (3.4/5.4 km/h) for efficient site navigation
Currently located in Jincheng, Shanxi, this EC300D represents proven Volvo performance for operators prioritizing comfor
| Specifications | Value |
|---|---|
| No. | 1032152 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6430 |
| Rod length (mm) | 3710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 169/1800 |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Turbocharged, 4-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 890 |
| Total track length (mm) | 4870 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
| Maximum effective digging depth (mm) | 6610 |
