Product Description
Discover the reliability and efficiency of the 2013 Volvo EC300D, now available in Zhejiang, China. This excavator is equipped with its original chain, ensuring durability and performance. The machine remains in its original condition, reflecting Volvo's commitment to quality and robust design. Ideal for a range of construction and excavation tasks, the EC300D offers the strength and precision needed to handle tough jobs. Choose this well-maintained model to enhance your fleet's capabilities and productivity.
- Year: 2013
- Brand: Volvo
- Model: EC300D
- Location: Zhejiang, China
- Features: Original chain, fully original condition
| Specifications | Value |
|---|---|
| No. | 1100614 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6430 |
| Rod length (mm) | 3710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

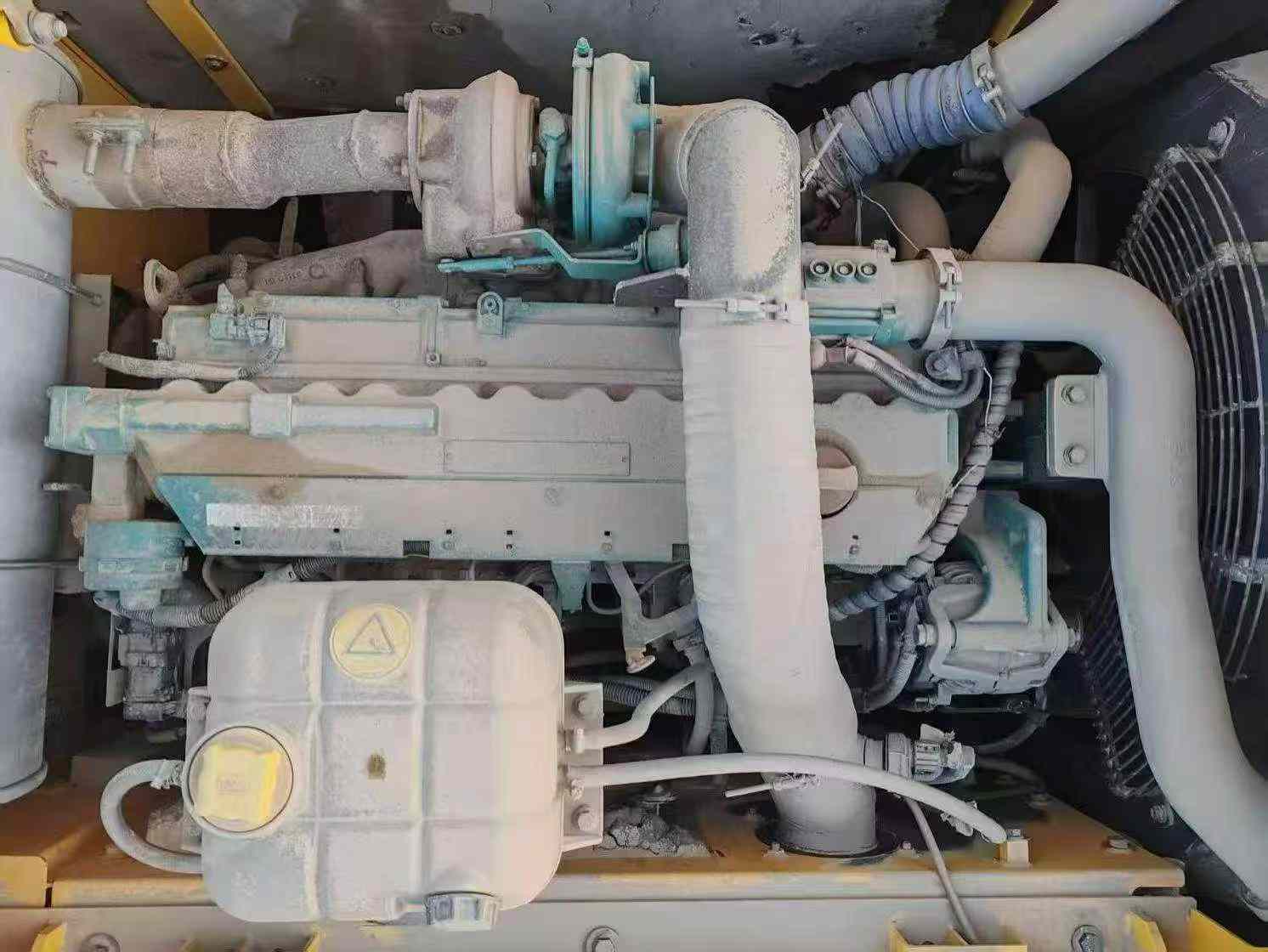

| Engine type | D7E |
| Rated power (kw/rpm) | 169/1800 |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Turbocharged, 4-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 890 |
| Total track length (mm) | 4870 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
| Maximum effective digging depth (mm) | 6610 |
