2017 Volvo EC300D

1/9

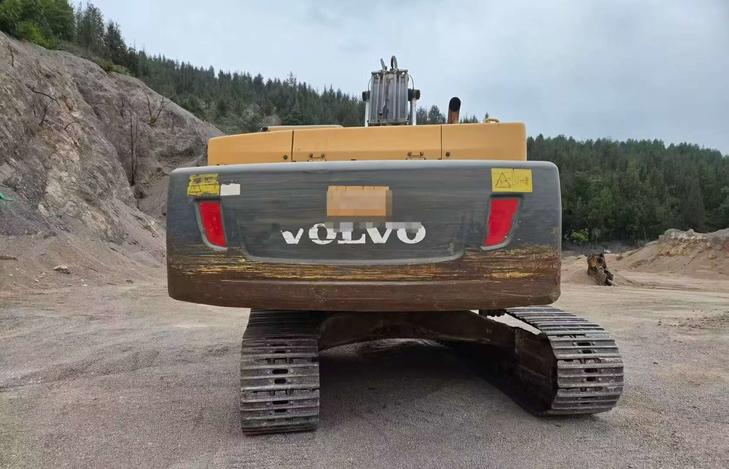

Buy Volvo EC300D Used Excavator / 1
Buy Volvo EC300D Used Excavator / 2
Buy Volvo EC300D Used Excavator / 3
Buy Volvo EC300D Used Excavator / 4
Buy Volvo EC300D Used Excavator / 5
Buy Volvo EC300D Used Excavator / 6
Buy Volvo EC300D Used Excavator / 7
Buy Volvo EC300D Used Excavator / 8
Buy Volvo EC300D Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2017 Volvo EC300D, available now in Fujian, China. This used excavator is a robust choice for any construction or excavation project, offering the durability and performance expected from Volvo machinery. With a proven track record in various applications, the EC300D is designed to handle tough jobs with ease, ensuring maximum productivity on your worksite.

  • Year: 2017
  • Brand: Volvo
  • Model: EC300D
  • Location: Fujian, China
  • Priced at 210,000 RMB
SpecificationsValue
No.1132622
Tonnage (tons)30
Working weight (kg)30040
Bucket capacity (m³)1.4
Boom length (mm)6430
Rod length (mm)3710
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)169/1800
Cylinder diameter × stroke (mm)108 x 130
Maximum torque (N.m)1080/1350
Number of cylinders (PCS)6
Displacement (L)7.1
Working formTurbocharged, 4-stroke, water-cooled, direct injection
Rotation speed (rpm)10.7
Climbing ability (%)35 °
Maximum tractive force (kN)247
Travel speed (km/h)3.4/5.4
Turning torque (Nm)110.9
Maximum flow of main pump (l/min)2 x 263
Traveling Hydraulic Circuit (Mpa)36.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 140 x 1140
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 150 x 1745
Boom cylinders - Number × diameter × stroke (mm)2 x 140 x 1480
Fuel Tank (L)470
Hydraulic Tank (L)195
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10640
Total transport width (mm)3190
Total transport height (mm)3090
Full cab height (mm)3090
Counterweight ground clearance (mm)1135
Minimum ground clearance (mm)480
Onboard width (mm)890
Total track length (mm)4870
Track plate width (mm)600
Maximum digging radius (mm)10190
Maximum digging depth (mm)6850
Maximum excavation height (mm)9660
Maximum unloading height (mm)6670
Maximum vertical digging depth (mm)5730
Maximum excavation radius of stop surface (mm)9980
Maximum effective digging depth (mm)6610
see more

Overview

No.1132622

Brand Name:

Volvo

Model Number:

EC300D

Year:

2017

Location:

Fujian China

Pub Date
