Product Description
Discover the reliability and efficiency of the 2019 Volvo EC300D, a robust excavator designed for demanding industrial applications. Located in Sichuan, China, this used machine is offered at a competitive price, making it an excellent investment for any construction or excavation project. Known for its durability and high performance, the EC300D features advanced technology to enhance productivity and operator comfort. This model is part of a set of three units, originally priced at over 470,000 RMB, providing a cost-effective solution without compromising on quality and functionality.
- Year: 2019
- Brand: Volvo
- Model: EC300D
- Location: Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1165197 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6430 |
| Rod length (mm) | 3710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

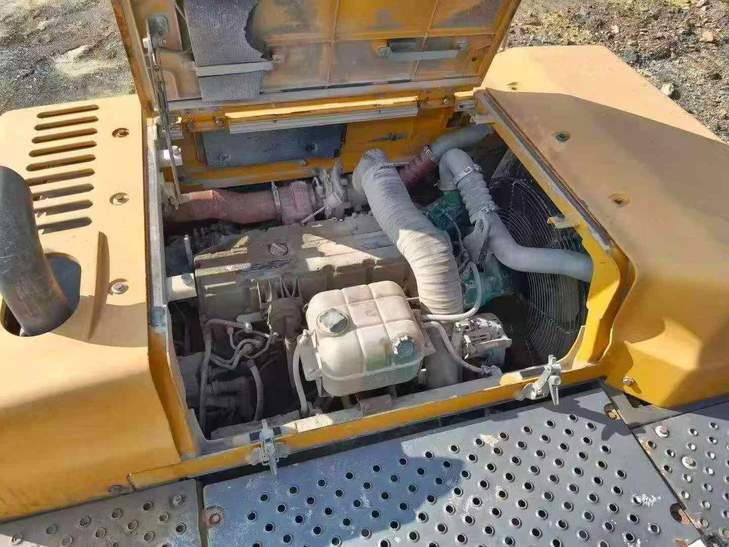

| Engine type | D7E |
| Rated power (kw/rpm) | 169/1800 |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Turbocharged, 4-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 890 |
| Total track length (mm) | 4870 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
| Maximum effective digging depth (mm) | 6610 |
