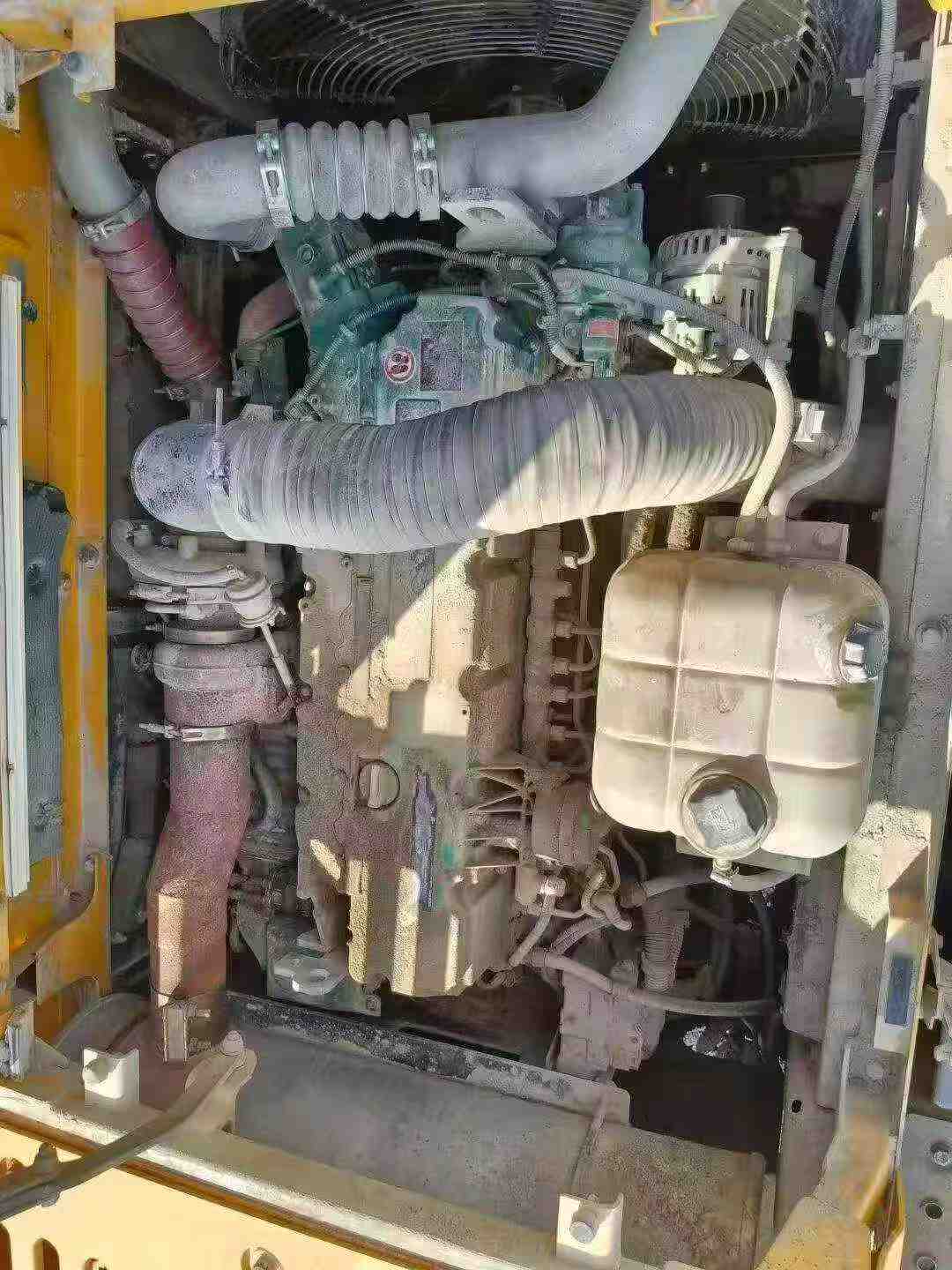

Buy Volvo EC300D Used Excavator / 2

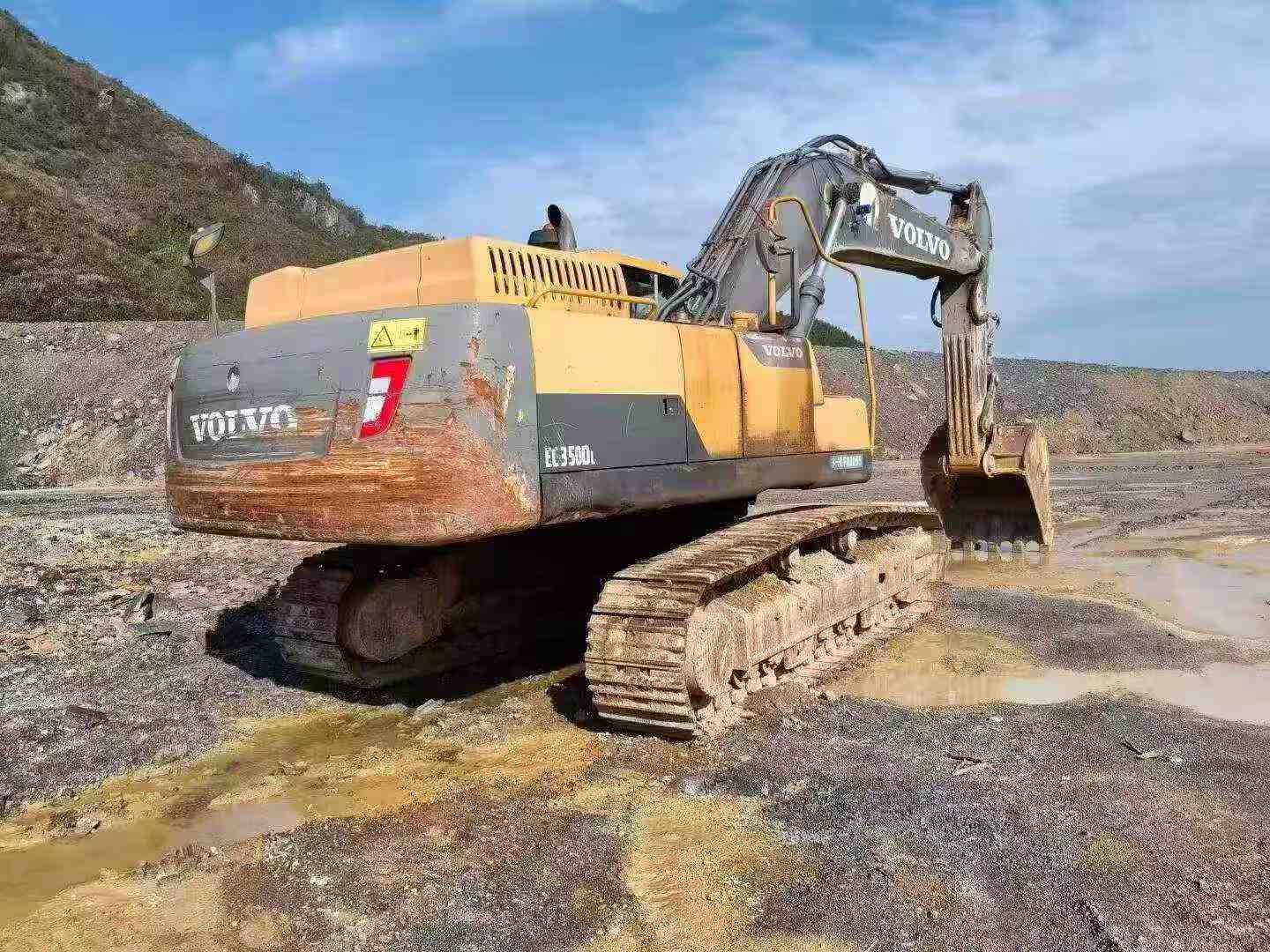

Buy Volvo EC300D Used Excavator / 3

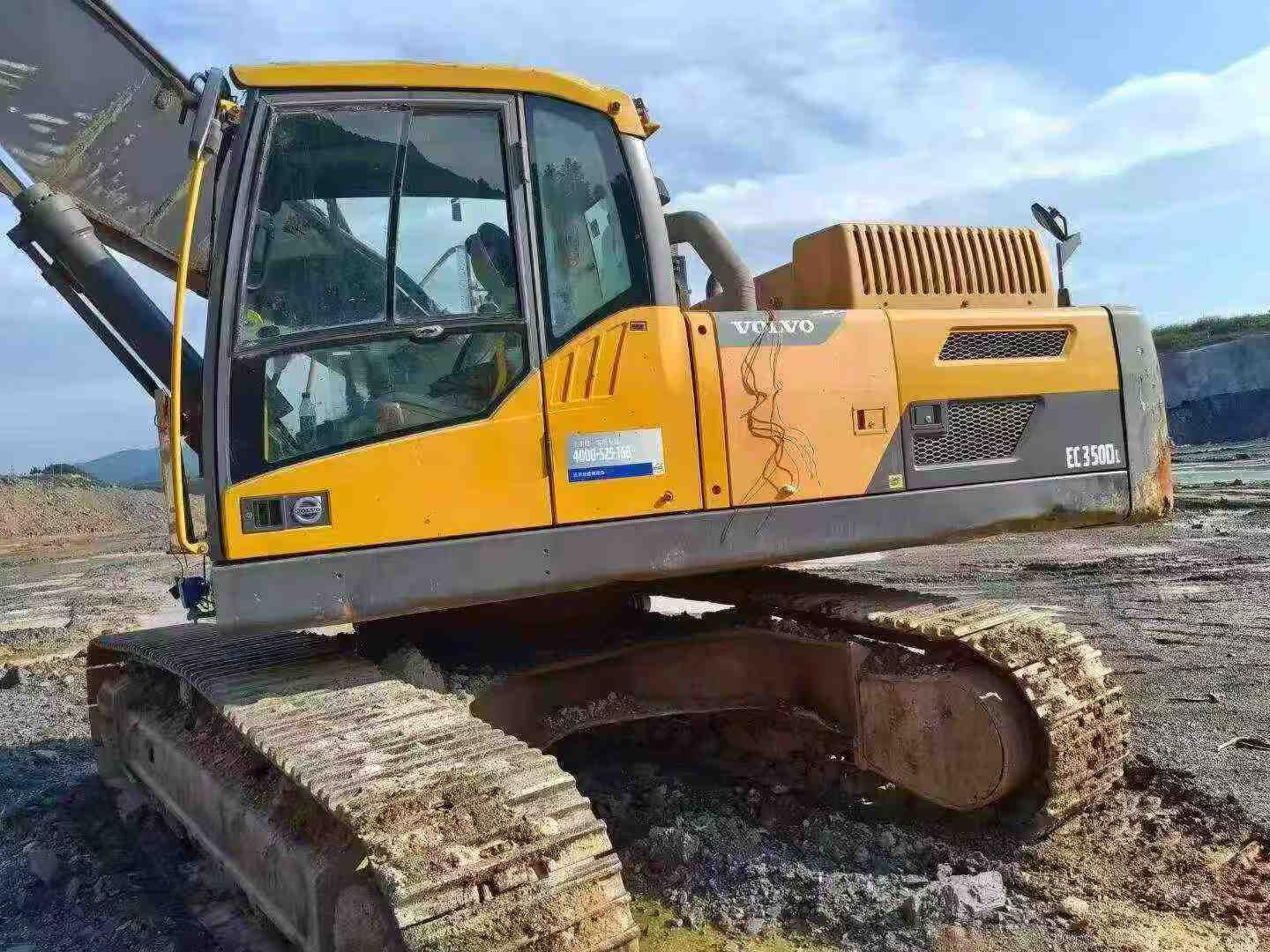

Buy Volvo EC300D Used Excavator / 4

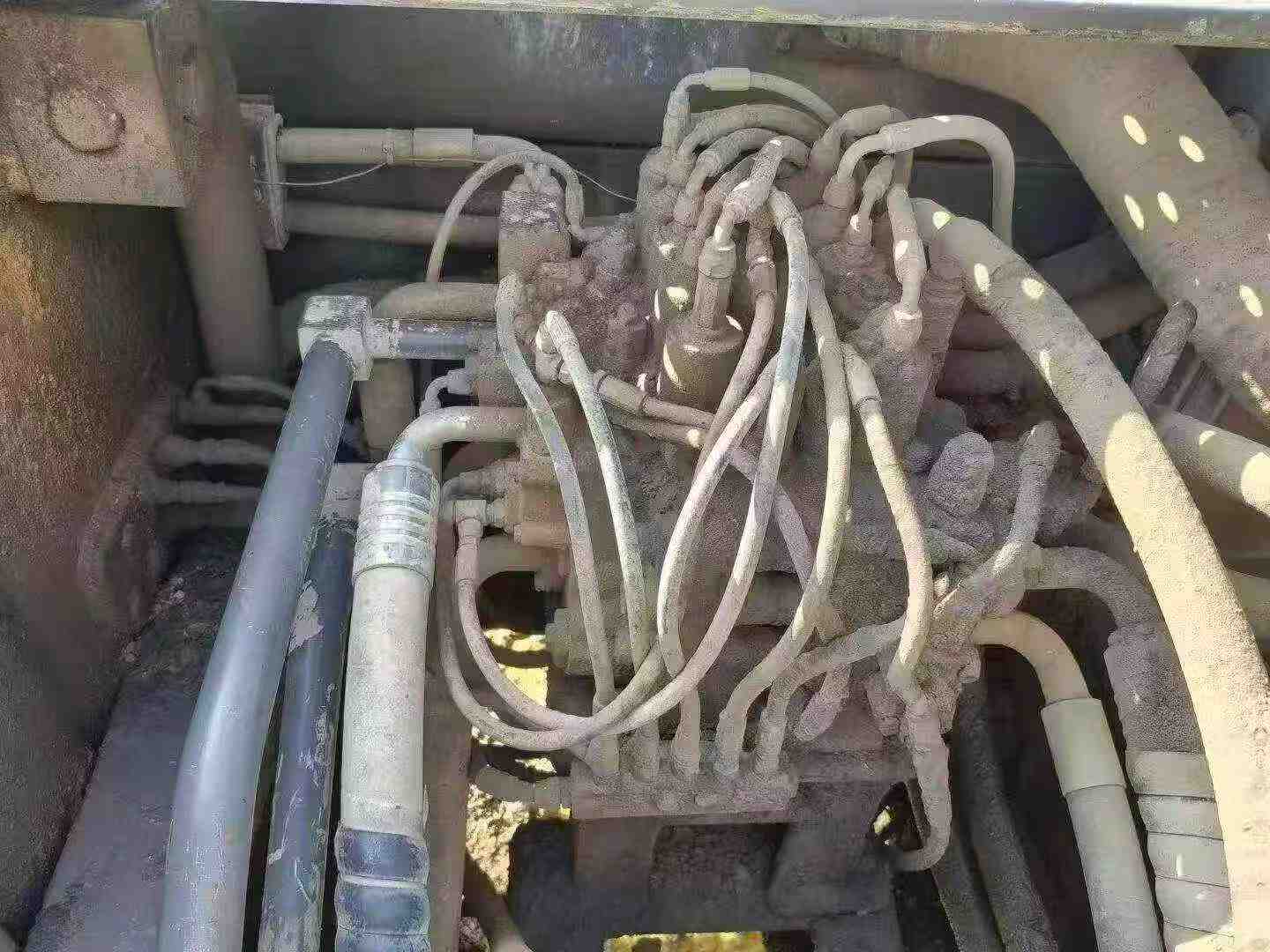

Buy Volvo EC300D Used Excavator / 5

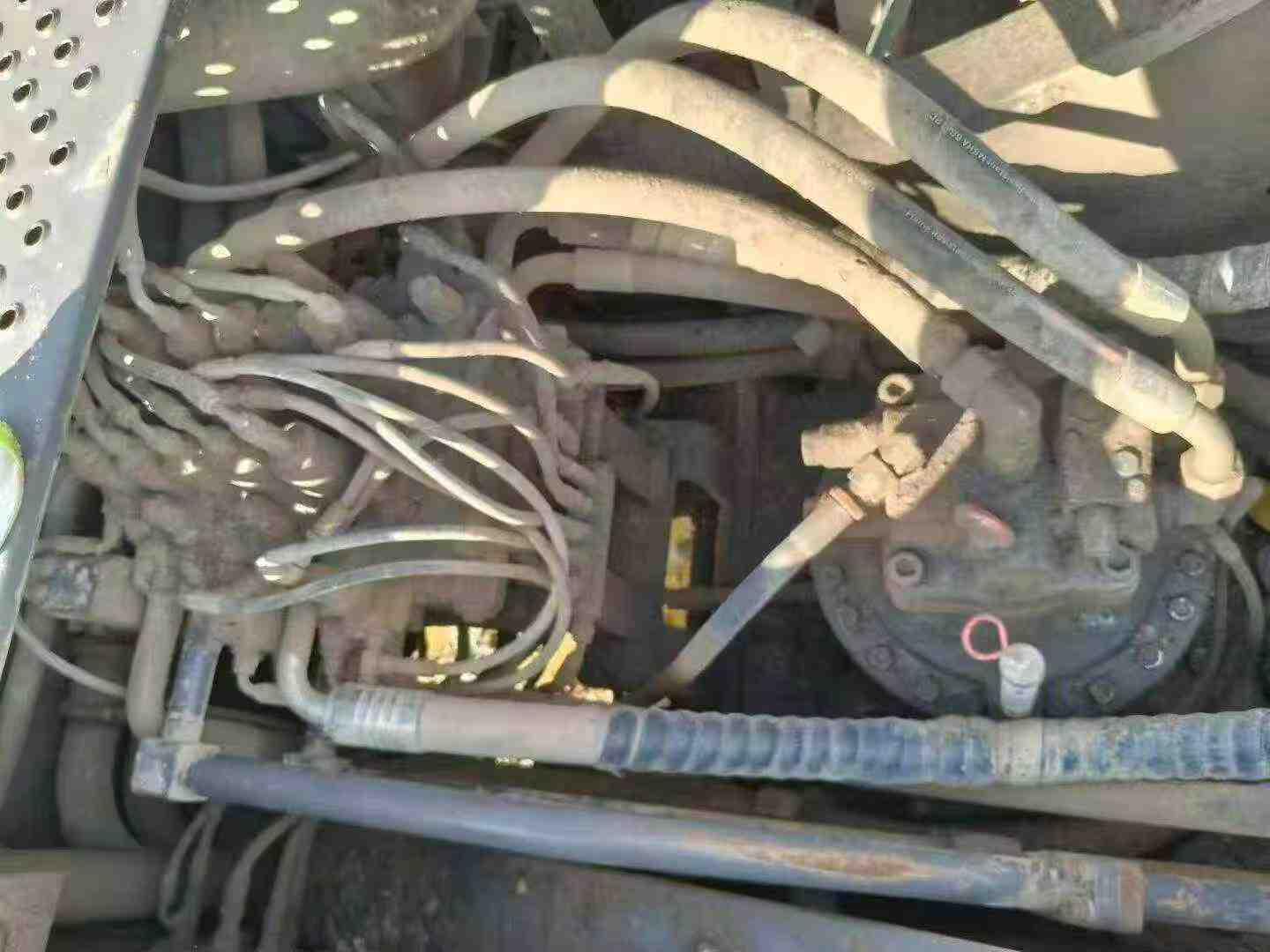

Buy Volvo EC300D Used Excavator / 6

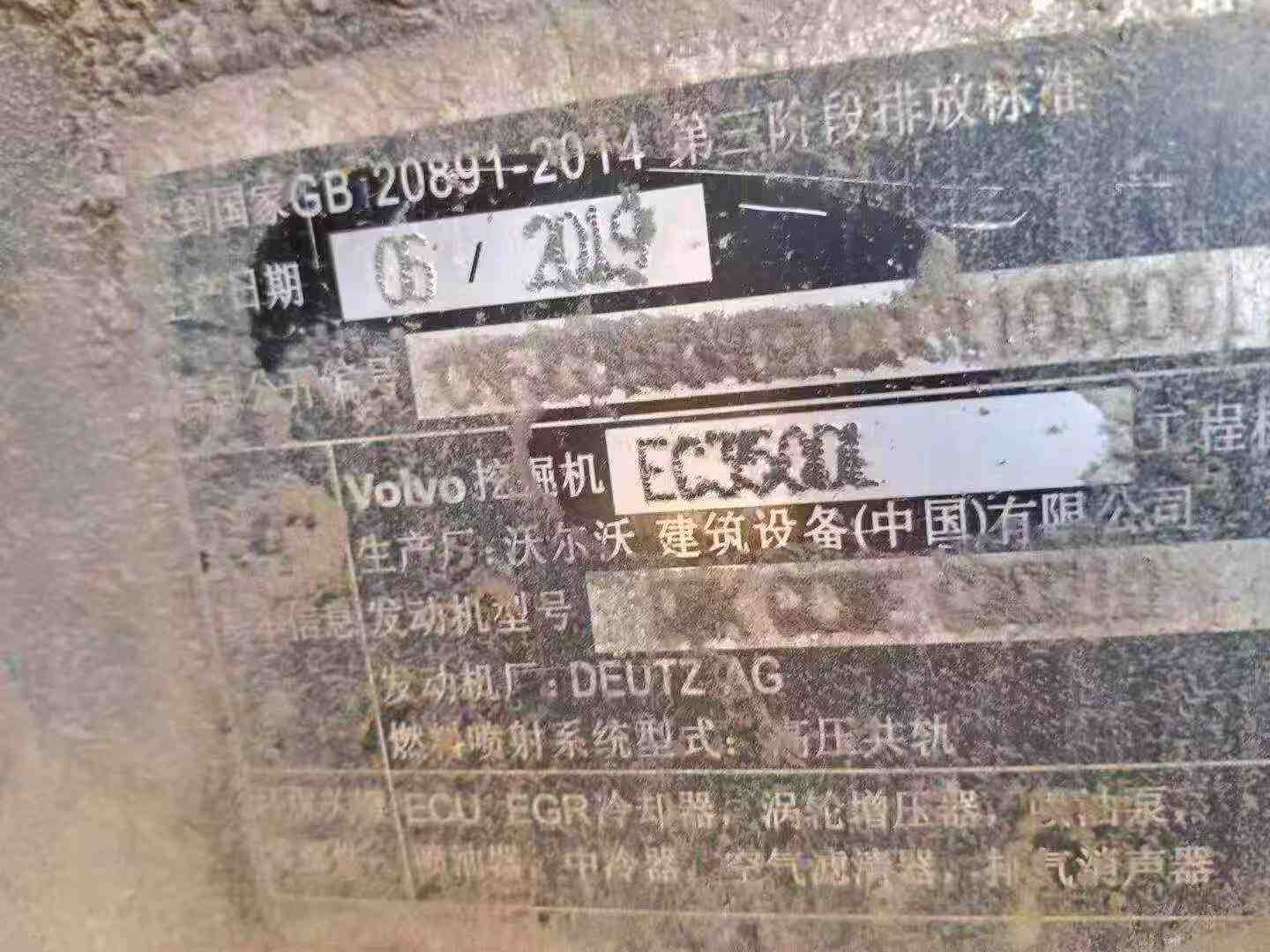

Buy Volvo EC300D Used Excavator / 7

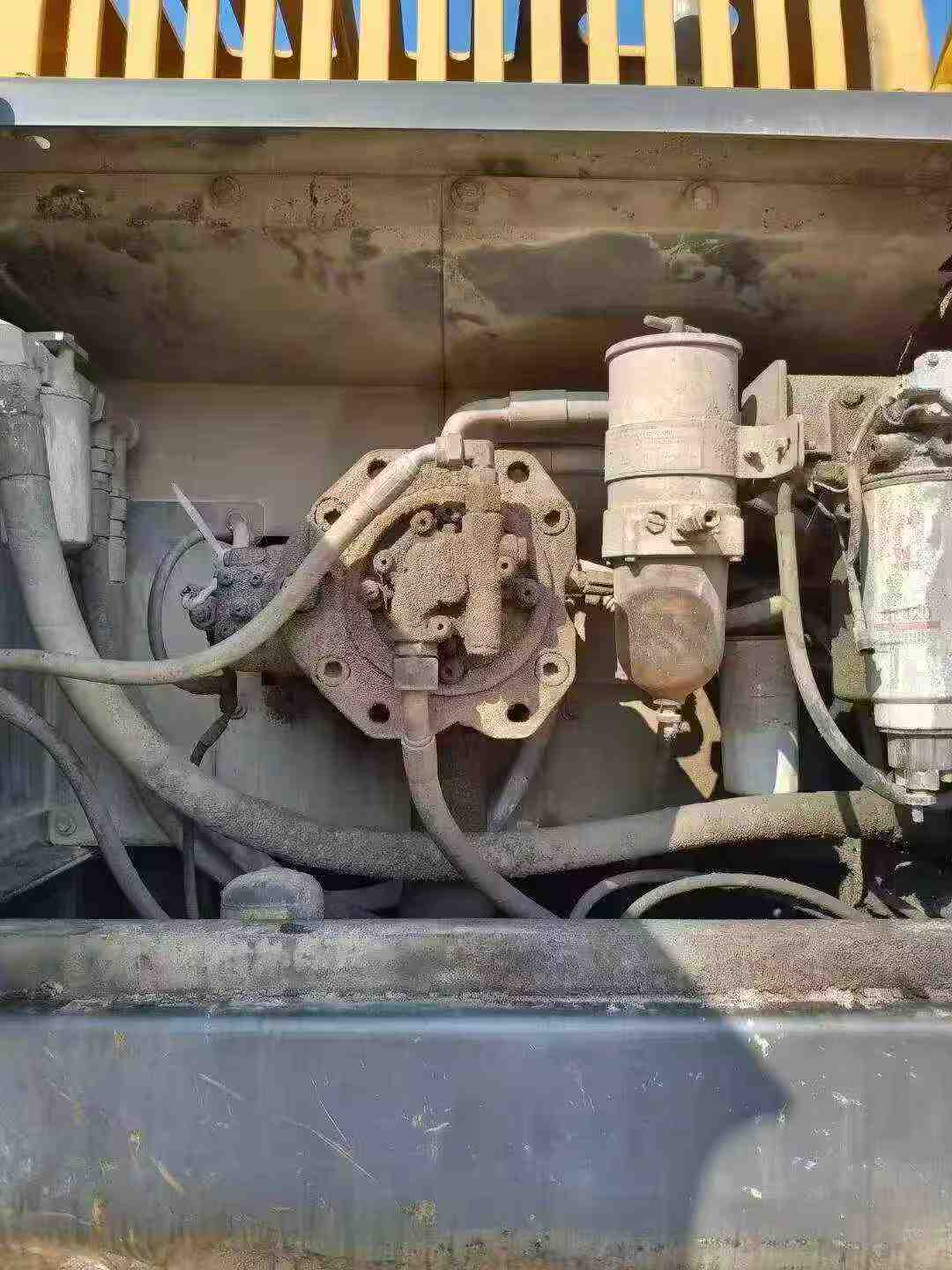

Buy Volvo EC300D Used Excavator / 8

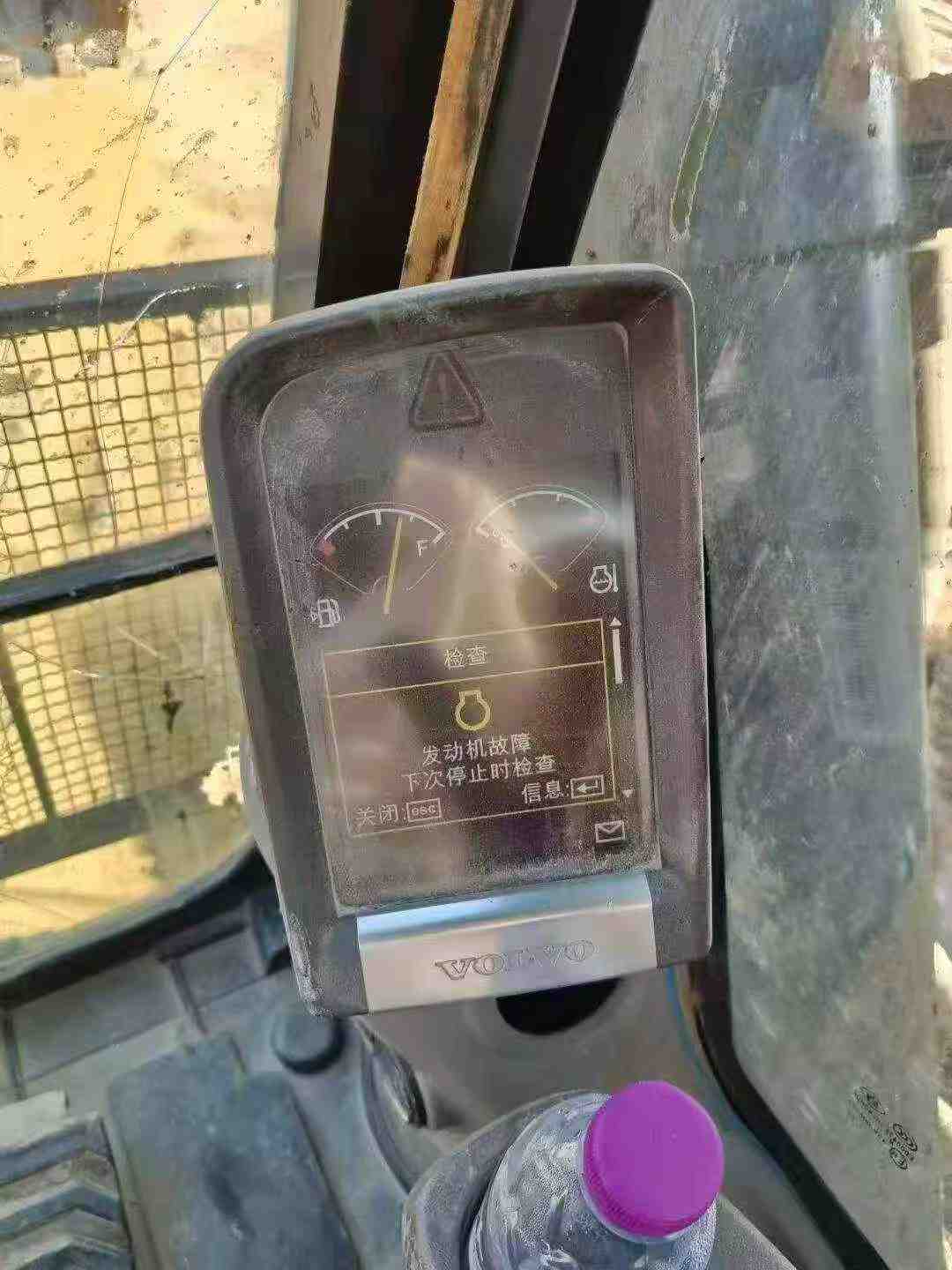

Buy Volvo EC300D Used Excavator / 9

Product Description

Three units of 2019 Volvo EC300D excavators available from Sichuan, China. These mid-sized crawler excavators offer proven reliability for earthmoving, site development, and general construction applications. The EC300D combines fuel efficiency with robust hydraulic performance, making it suitable for contractors seeking dependable used equipment at competitive pricing.

  • Year of Manufacture: 2019
  • Make and Model: Volvo EC300D
  • Quantity Available: Three units
  • Current Location: Sichuan Province, China
  • Operating Weight Class: 30-ton
  • Application: Excavation, grading, material handling

The EC300D features Volvo's established design with operator-focused cab ergonomics and straightforward maintenance access. These machines represent a practical option for buyers requiring medium-duty excavation capacity. Inspection and export assistance available upon request.

SpecificationsValue
No.1167002
Tonnage (tons)30
Working weight (kg)30040
Bucket capacity (m³)1.4
Boom length (mm)6430
Rod length (mm)3710
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)169/1800
Cylinder diameter × stroke (mm)108 x 130
Maximum torque (N.m)1080/1350
Number of cylinders (PCS)6
Displacement (L)7.1
Working formTurbocharged, 4-stroke, water-cooled, direct injection
Rotation speed (rpm)10.7
Climbing ability (%)35 °
Maximum tractive force (kN)247
Travel speed (km/h)3.4/5.4
Turning torque (Nm)110.9
Maximum flow of main pump (l/min)2 x 263
Traveling Hydraulic Circuit (Mpa)36.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 140 x 1140
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 150 x 1745
Boom cylinders - Number × diameter × stroke (mm)2 x 140 x 1480
Fuel Tank (L)470
Hydraulic Tank (L)195
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10640
Total transport width (mm)3190
Total transport height (mm)3090
Full cab height (mm)3090
Counterweight ground clearance (mm)1135
Minimum ground clearance (mm)480
Onboard width (mm)890
Total track length (mm)4870
Track plate width (mm)600
Maximum digging radius (mm)10190
Maximum digging depth (mm)6850
Maximum excavation height (mm)9660
Maximum unloading height (mm)6670
Maximum vertical digging depth (mm)5730
Maximum excavation radius of stop surface (mm)9980
Maximum effective digging depth (mm)6610
