Product Description

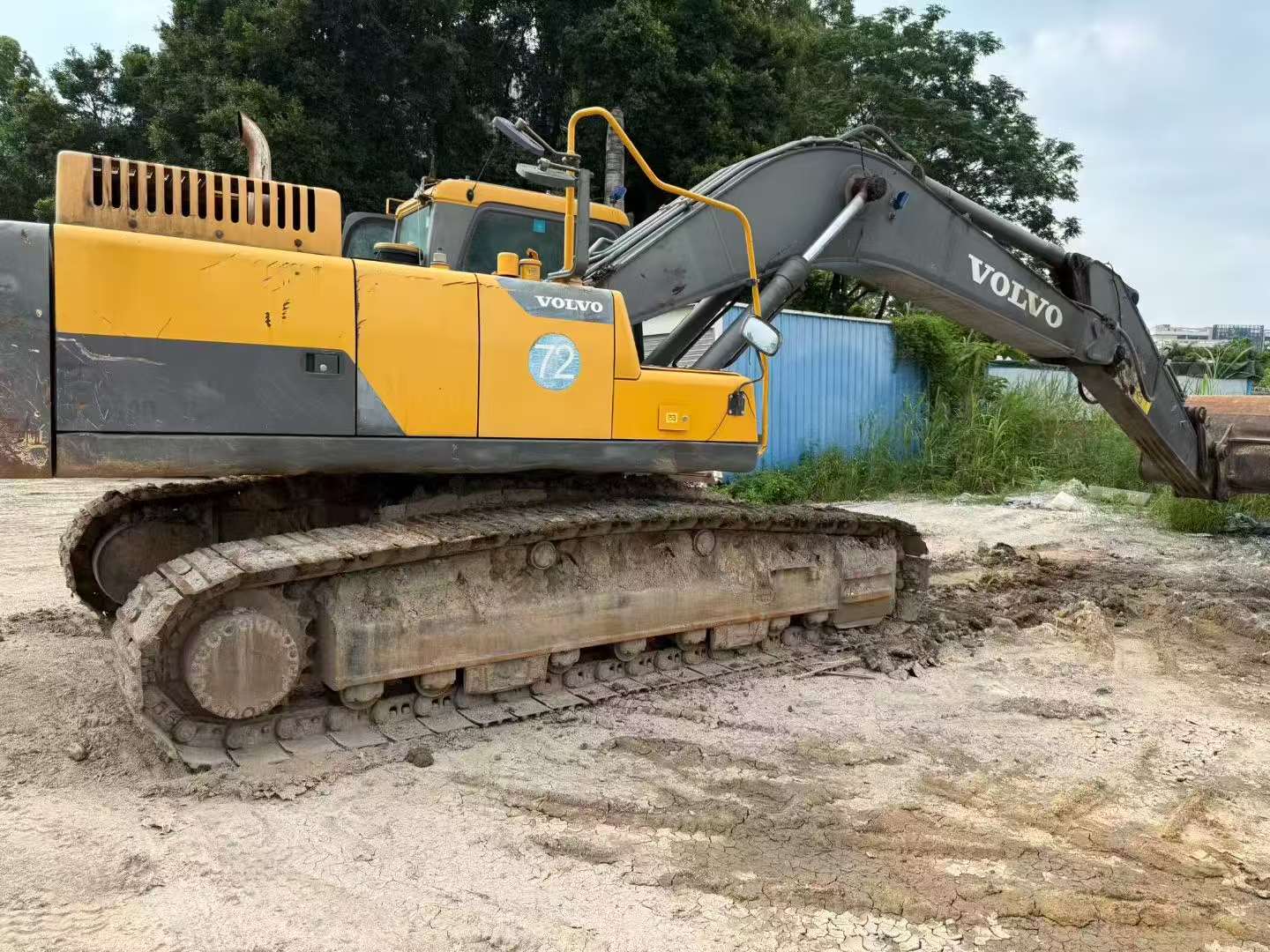

This 2020 Volvo EC300D excavator represents a reliable mid-sized crawler solution for demanding earthmoving applications. Located in Guangxi, China, this machine brings proven Volvo engineering to your fleet with the durability and fuel efficiency the EC300D platform is known for in the construction and mining sectors.
Key highlights include:

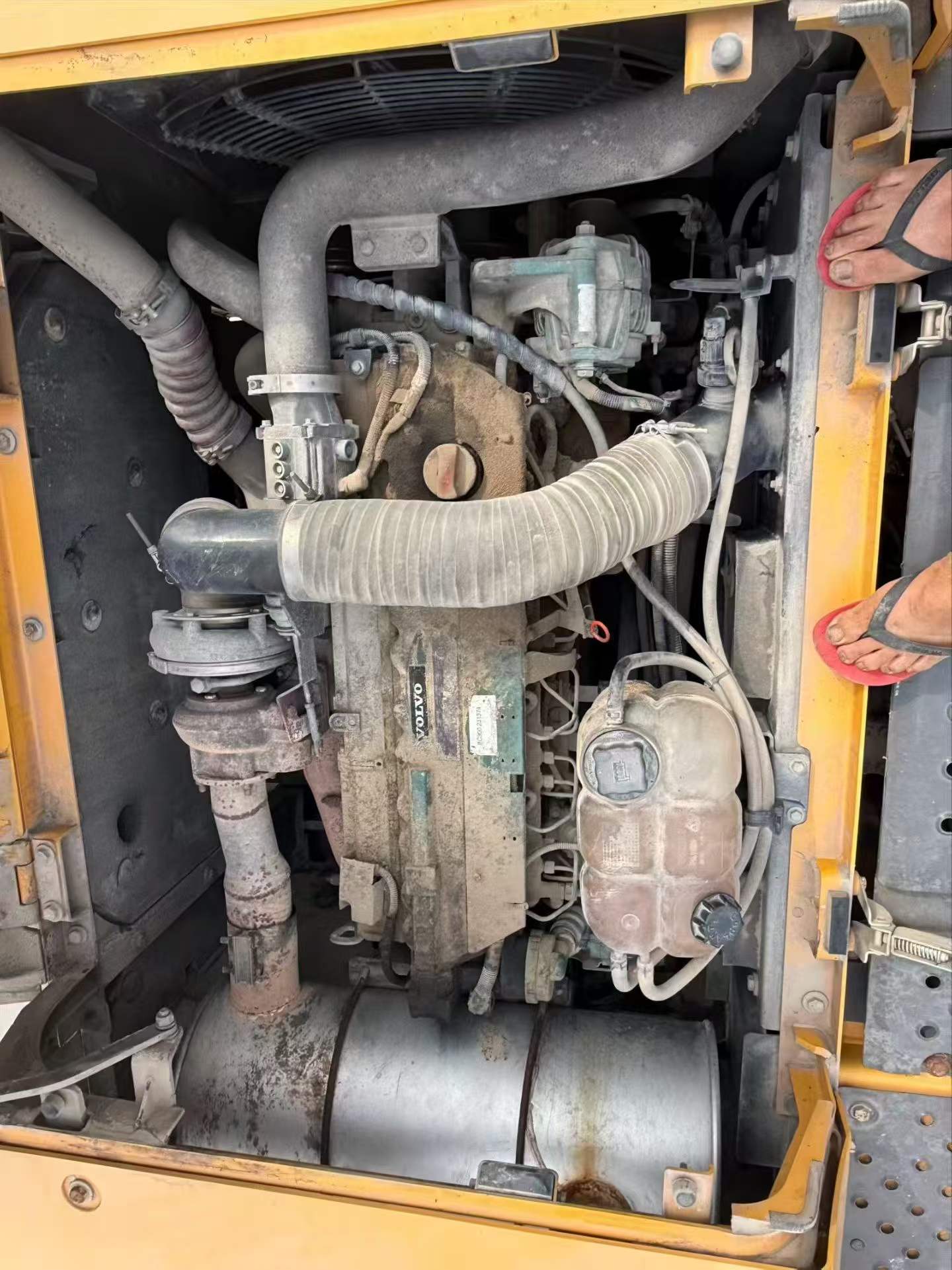

- Volvo D7E engine delivering strong performance and low emissions
- Operating weight class suited for general excavation, trenching, and material handling
- Advanced hydraulic system for smooth, responsive control
- Spacious ROPS/FOPS certified cab with ergonomic operator station
- Well-maintained condition with documented service history
Available for immediate inspection in Guangxi. This EC300D offers an opportunity to acquire proven Volvo quality at competitive used equipment pricing. Contact us for detailed specifications, operating hours, and shipping arrangements to your project site.
| Specifications | Value |
|---|---|
| No. | 1101935 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6430 |
| Rod length (mm) | 3710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 169/1800 |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Turbocharged, 4-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 890 |
| Total track length (mm) | 4870 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
| Maximum effective digging depth (mm) | 6610 |
