Product Description

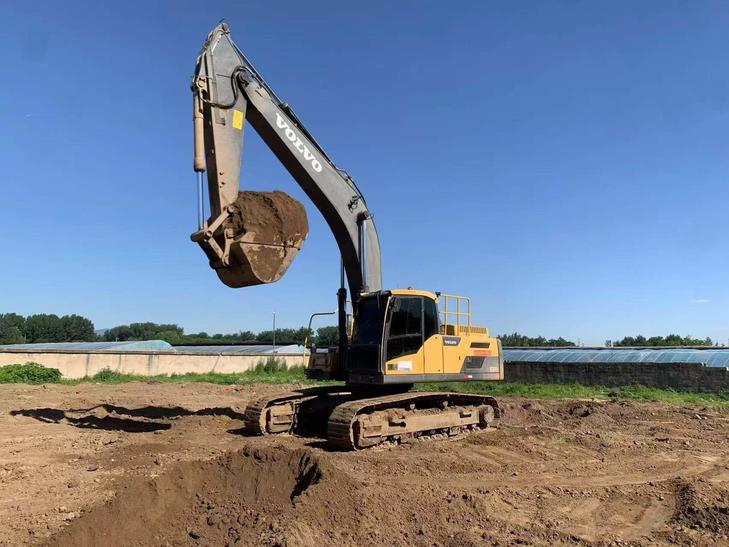

2020 Volvo EC300DL hydraulic excavator available in Beijing, China. This owner-operated machine presents in excellent condition with original factory paint throughout. The powertrain, hydraulic system, and undercarriage remain unmodified and demonstrate smooth, responsive operation during excavation work. All electrical systems function as specified.
Key attributes:
- Single-owner work machine with documented operational history
- Original factory finish with no repainting required
- Core mechanical components in as-delivered configuration
- Controlled digging performance suitable for precision applications
- On-site inspection and demonstration available upon request
This unit suits operators requiring proven Volvo reliability in a well-maintained platform. Photo and video documentation available. Recommended for buyers seeking premium-grade used equipment with verifiable service background.
| Specifications | Value |
|---|---|
| No. | 1142033 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 170/1800 |
| Cylinder diameter × stroke (mm) | 108X130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 10.7 |
| Bucket digging force (kN) | 186 |
| Rod digging force (kN) | 161 |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Pilot pump flow (L/min) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1×140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1×150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2×140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4870 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4015 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
