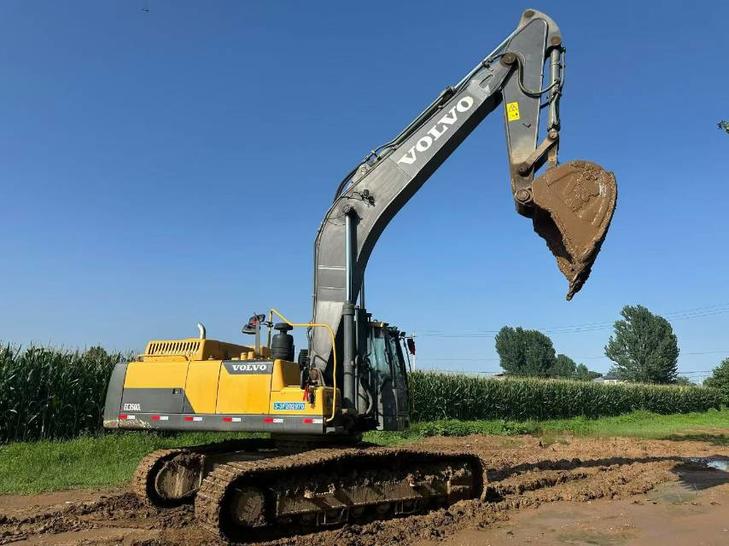

Buy Volvo EC350D Used Excavator / 1
Buy Volvo EC350D Used Excavator / 2
Buy Volvo EC350D Used Excavator / 3
Buy Volvo EC350D Used Excavator / 4
Buy Volvo EC350D Used Excavator / 5
Buy Volvo EC350D Used Excavator / 6
Buy Volvo EC350D Used Excavator / 7
Buy Volvo EC350D Used Excavator / 8
Buy Volvo EC350D Used Excavator / 9

Product Description

This 2017 Volvo EC350D excavator offers reliable performance for earthmoving operations. Built on Volvo's proven 35-ton platform, this machine features an extended undercarriage with eight-roller track configuration for enhanced stability on varied terrain.

The unit has been dedicated to excavation and earthwork applications throughout its service life. Major components—engine, hydraulic pumps, and final drives—retain their original factory installation with no rebuilds or replacements. Regular maintenance protocols have been observed, and the machine presents with no hydraulic leaks or fluid seepage.

  • Year: 2017
  • Model: Volvo EC350D
  • Configuration: Wide undercarriage, eight-roller tracks
  • Primary use: Earthmoving and excavation
  • Location: Hebei Province, China
  • Condition: Well-maintained, no leaks, original major components

Price available upon inquiry. Inspection welcome.

SpecificationsValue
No.1141839
Tonnage (tons)35
Working weight (kg)34300-38700
Bucket capacity (m³)1.0-2.53
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D8K
Rated power (kw/rpm)197/1800
Cylinder diameter × stroke (mm)110 x 138
Maximum torque (N.m)1340
Displacement (L)7.8
Rotation speed (rpm)10.3
Climbing ability (%)35 °
Maximum tractive force (kN)261
Travel speed (km/h)3.3/5.1
Turning torque (Nm)126
Maximum flow of main pump (l/min)2 x 288
Traveling Hydraulic Circuit (Mpa)33.3
Rotary Hydraulic Circuit (Mpa)27.9
Control Hydraulic Circuit (Mpa)3.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 170 x 1700
Boom cylinders - Number × diameter × stroke (mm)2 x 150 x 1530
Fuel Tank (L)580
Hydraulic Tank (L)215
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)465
Total transport length (mm)11190
Total transport width (mm)3190
Total transport height (mm)3230
Full cab height (mm)3030
Counterweight ground clearance (mm)1180
Minimum ground clearance (mm)500
Back end turning radius (mm)4120
Onboard width (mm)2990
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3700
Maximum digging radius (mm)11110
Maximum digging depth (mm)7480
Maximum excavation height (mm)10330
Maximum unloading height (mm)7250
Maximum vertical digging depth (mm)5890
Maximum excavation radius of stop surface (mm)10900
