Product Description

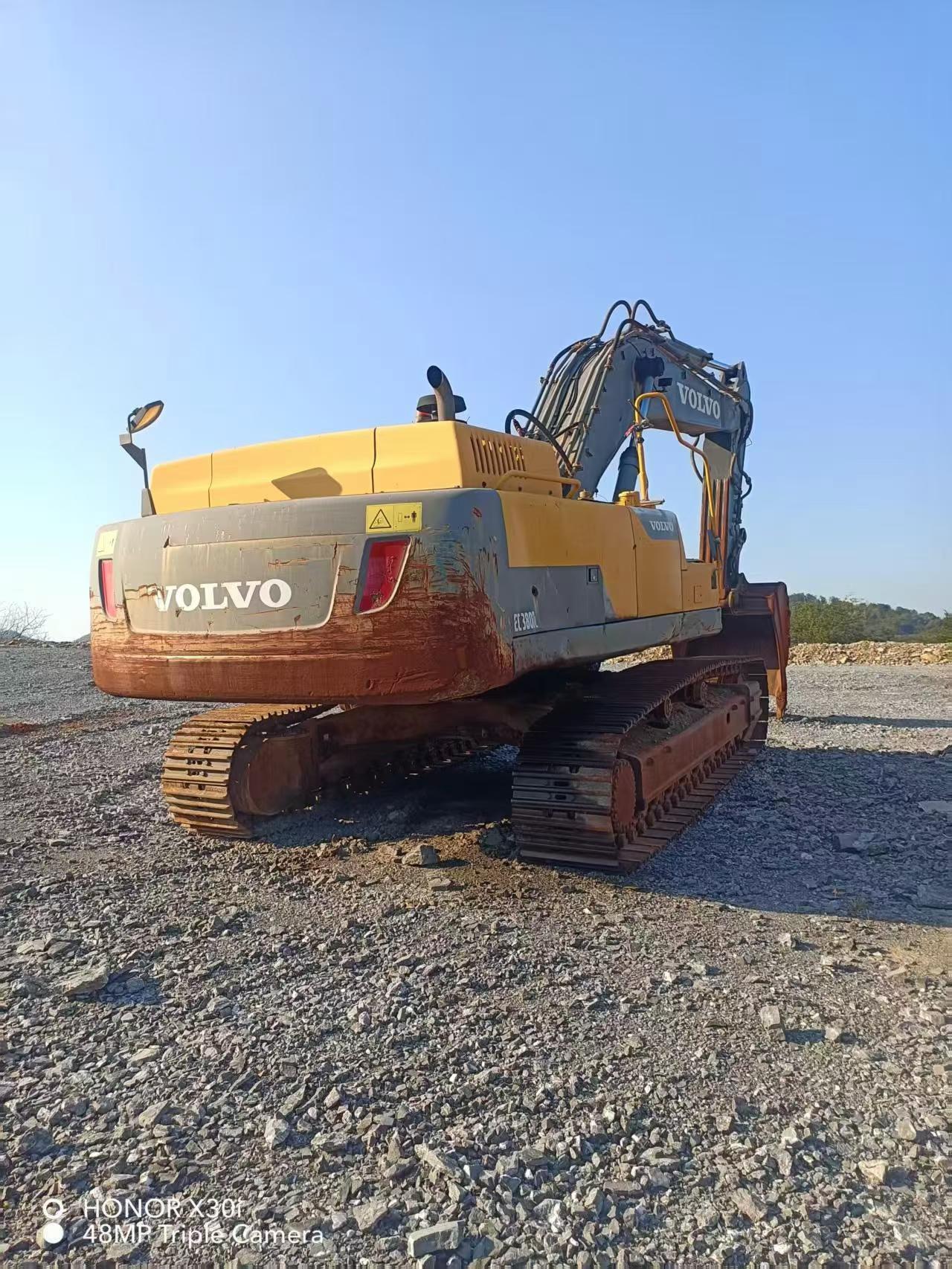

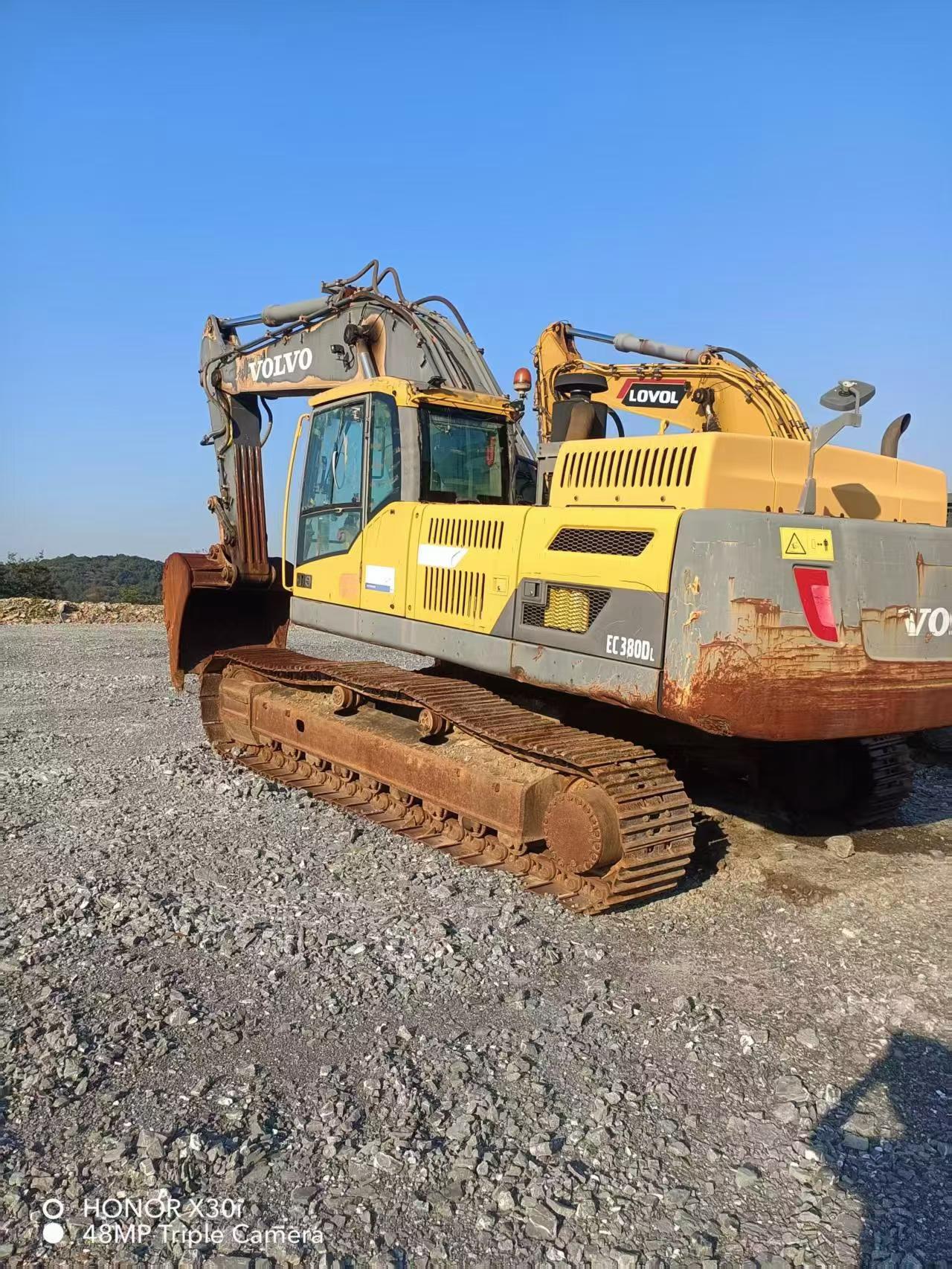

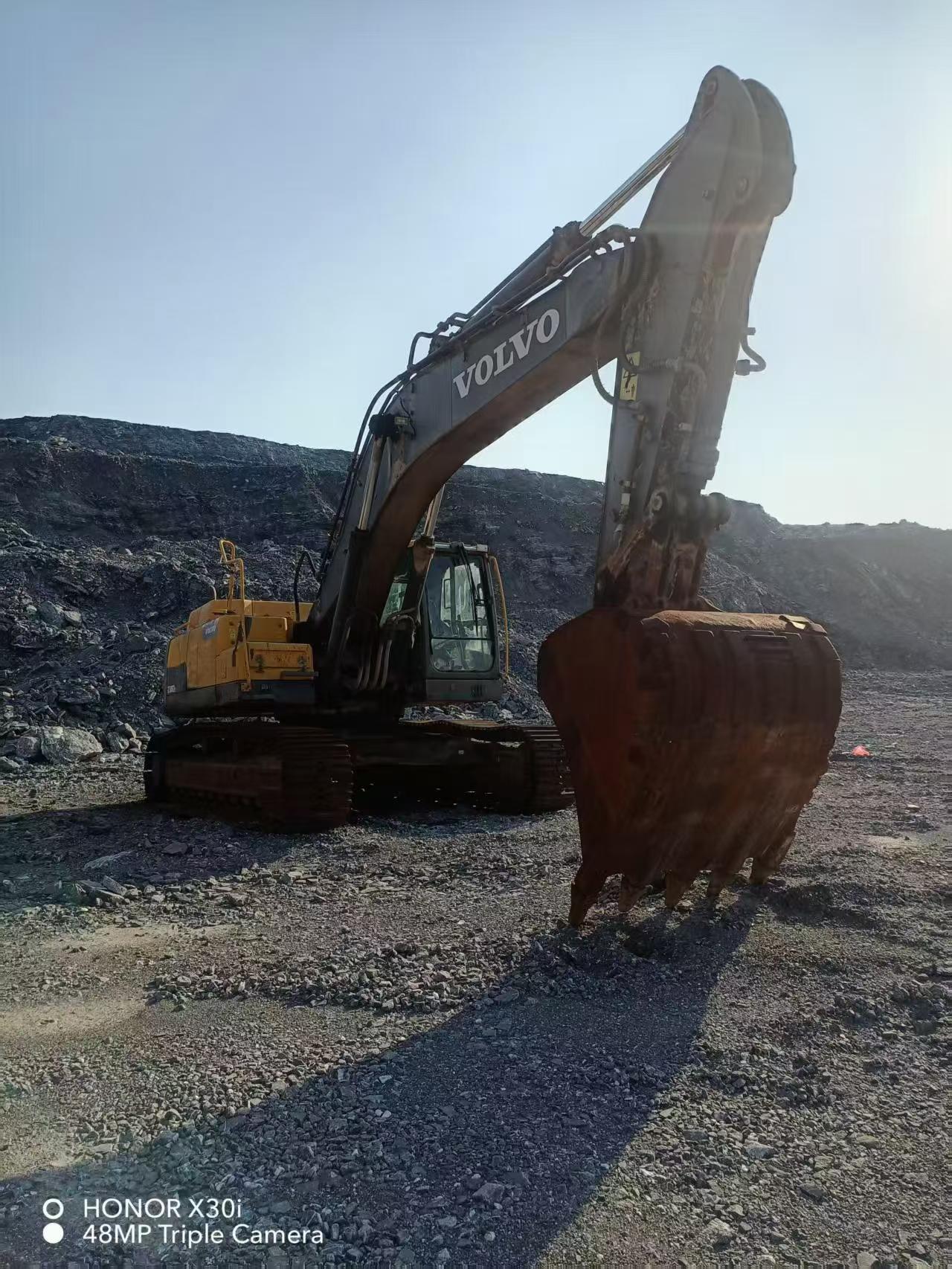

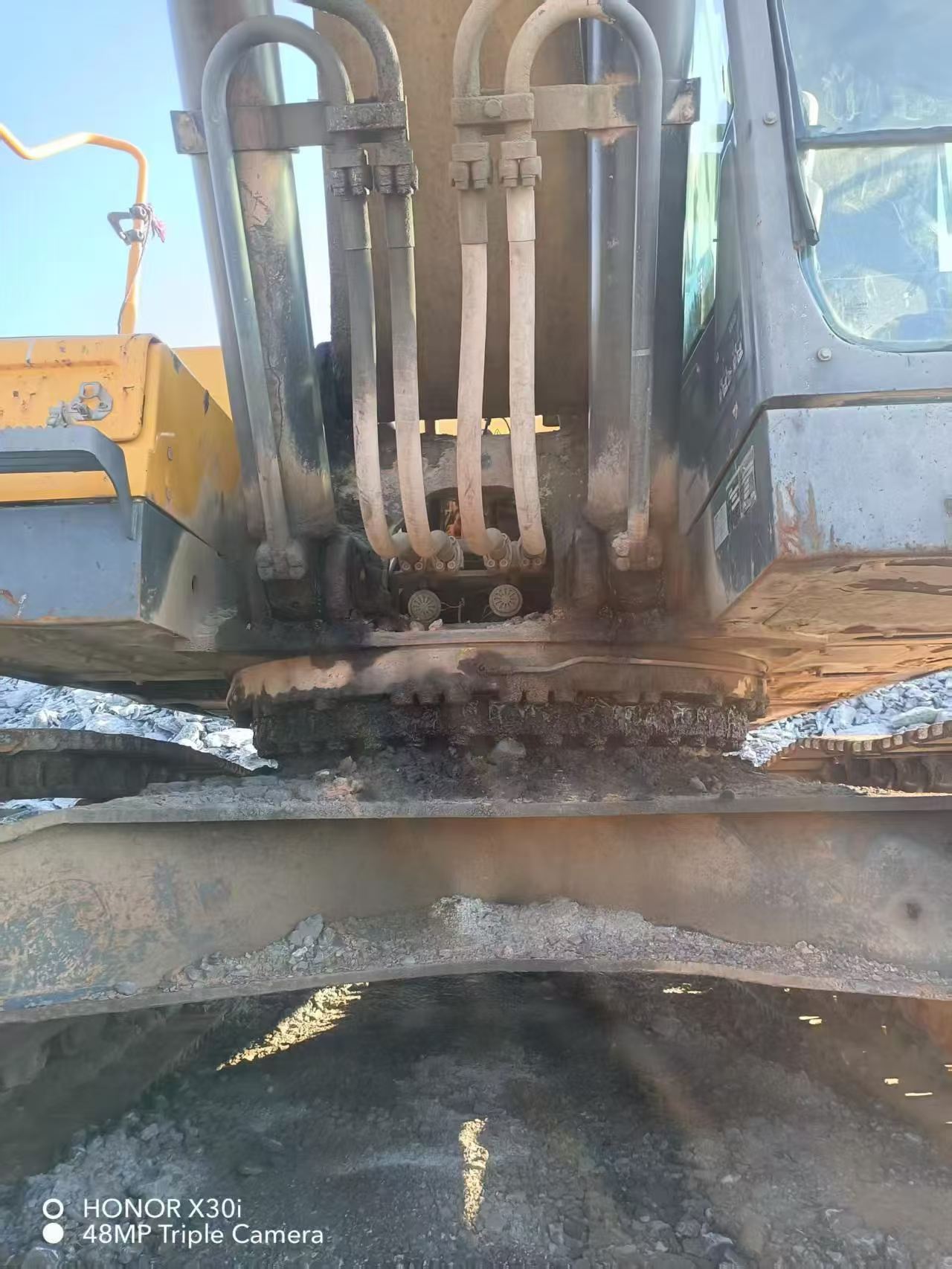

This 2019 Volvo EC380D excavator represents a solid mid-life investment for contractors seeking proven hydraulic performance and operational efficiency. With approximately five years of service, this machine offers substantial remaining value in its heavy-duty undercarriage and Volvo's reliable D8J engine platform. Currently located in Jiangxi, China, the EC380D delivers the robust digging force and fuel economy that have made this model a benchmark in the 36-40 tonne class.
- Model Year: 2019
- Operating Weight Class: ~38 tonnes

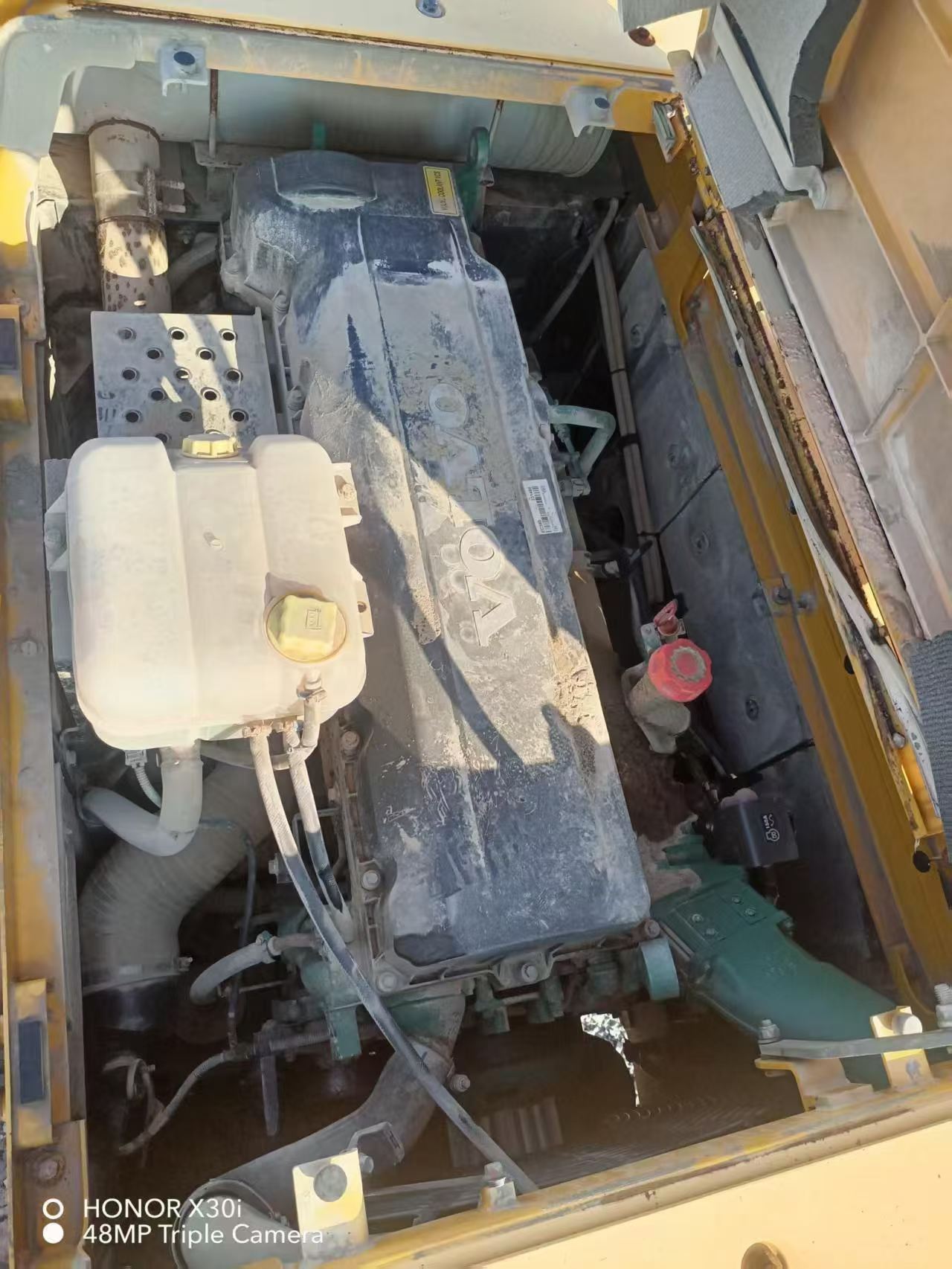

- Engine: Volvo D8J turbocharged diesel

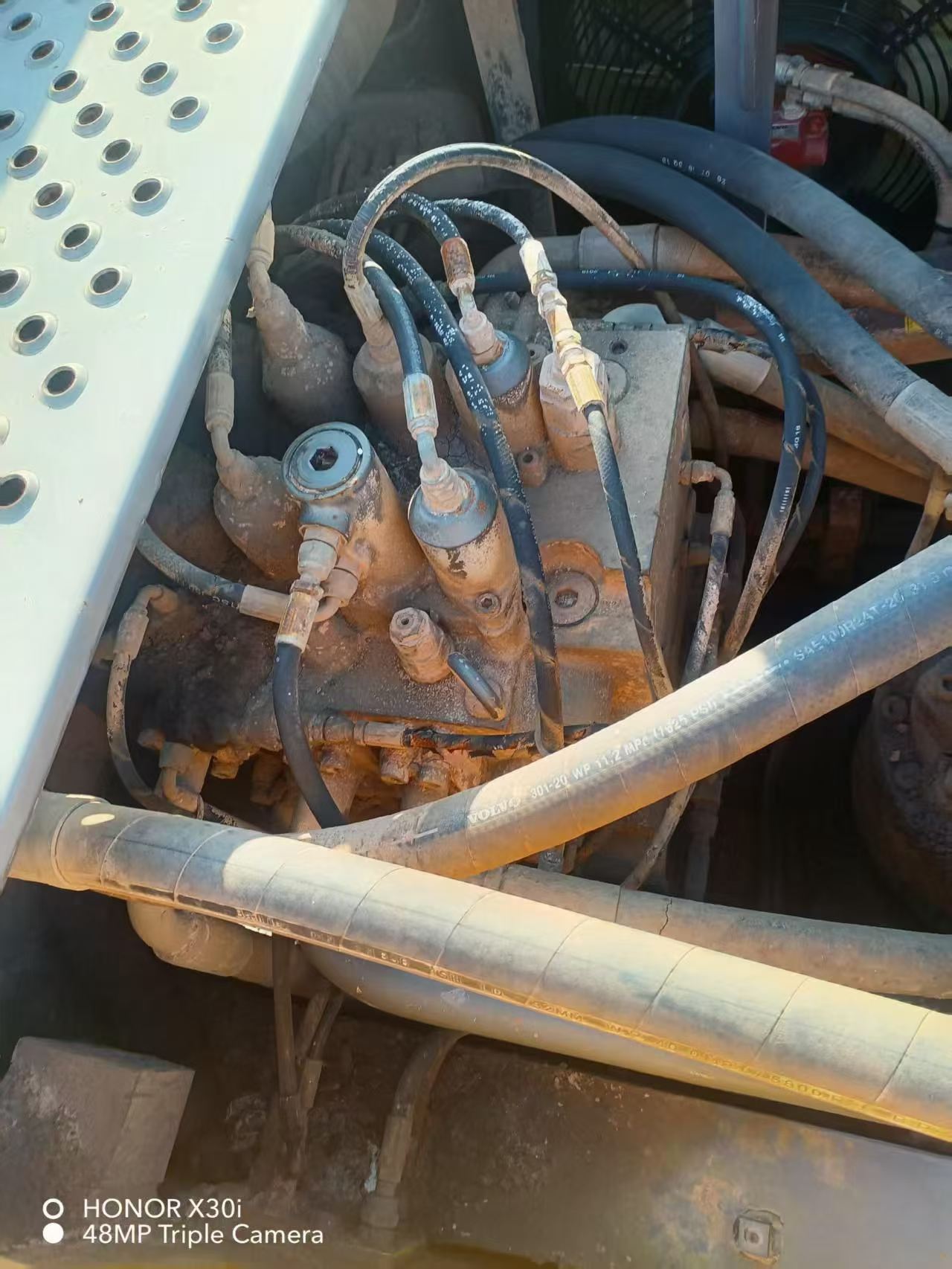

- Hydraulic System: Advanced load-sensing technology
- Location: Jiangxi Province, China
Ideal for earthmoving, site development, and general excavation applications. Inspection reports and service history available upon request. Pricing negotiable based on machine hours and component condition.
| Specifications | Value |
|---|---|
| No. | 1162113 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |

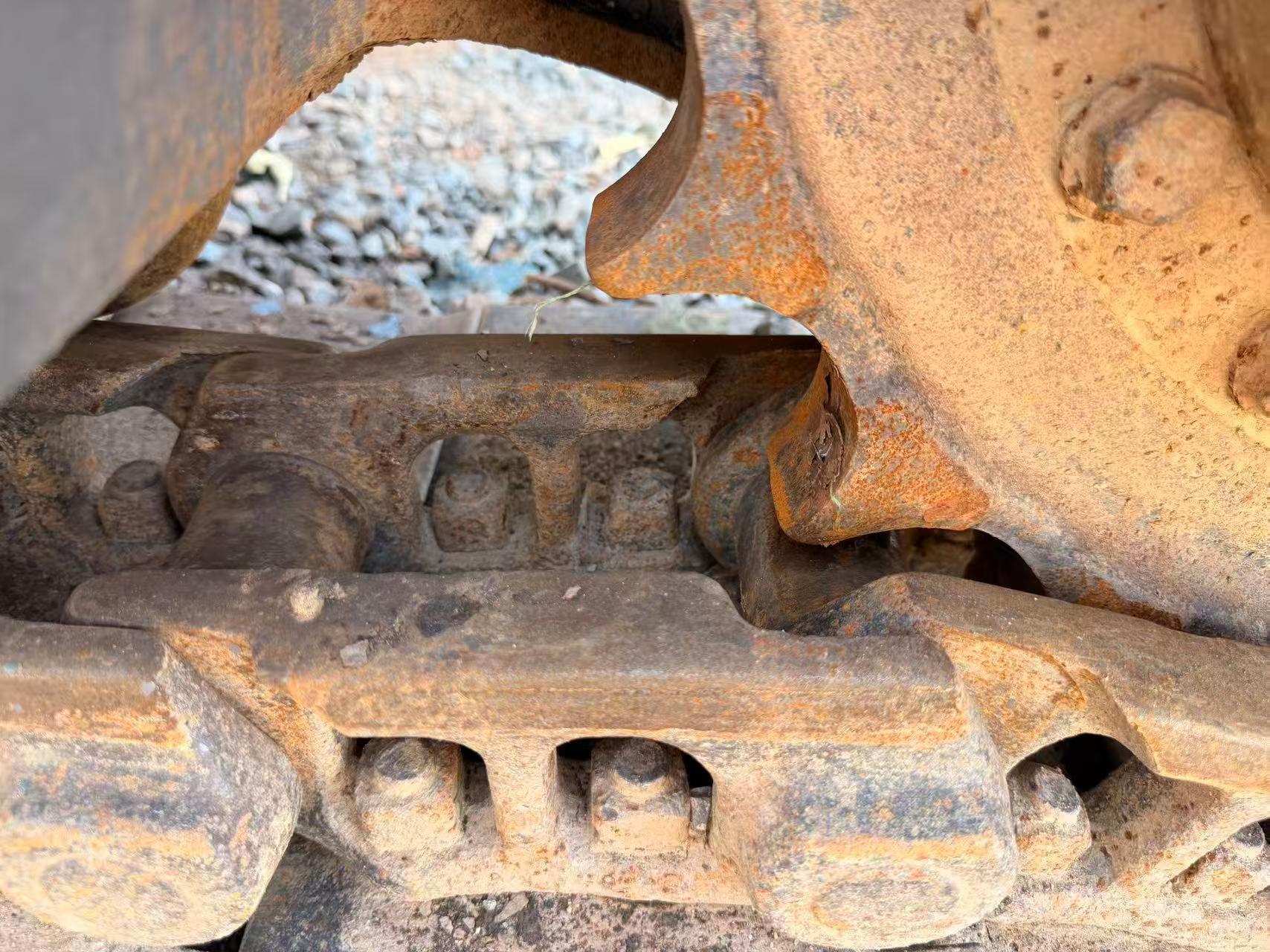

| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
