Product Description

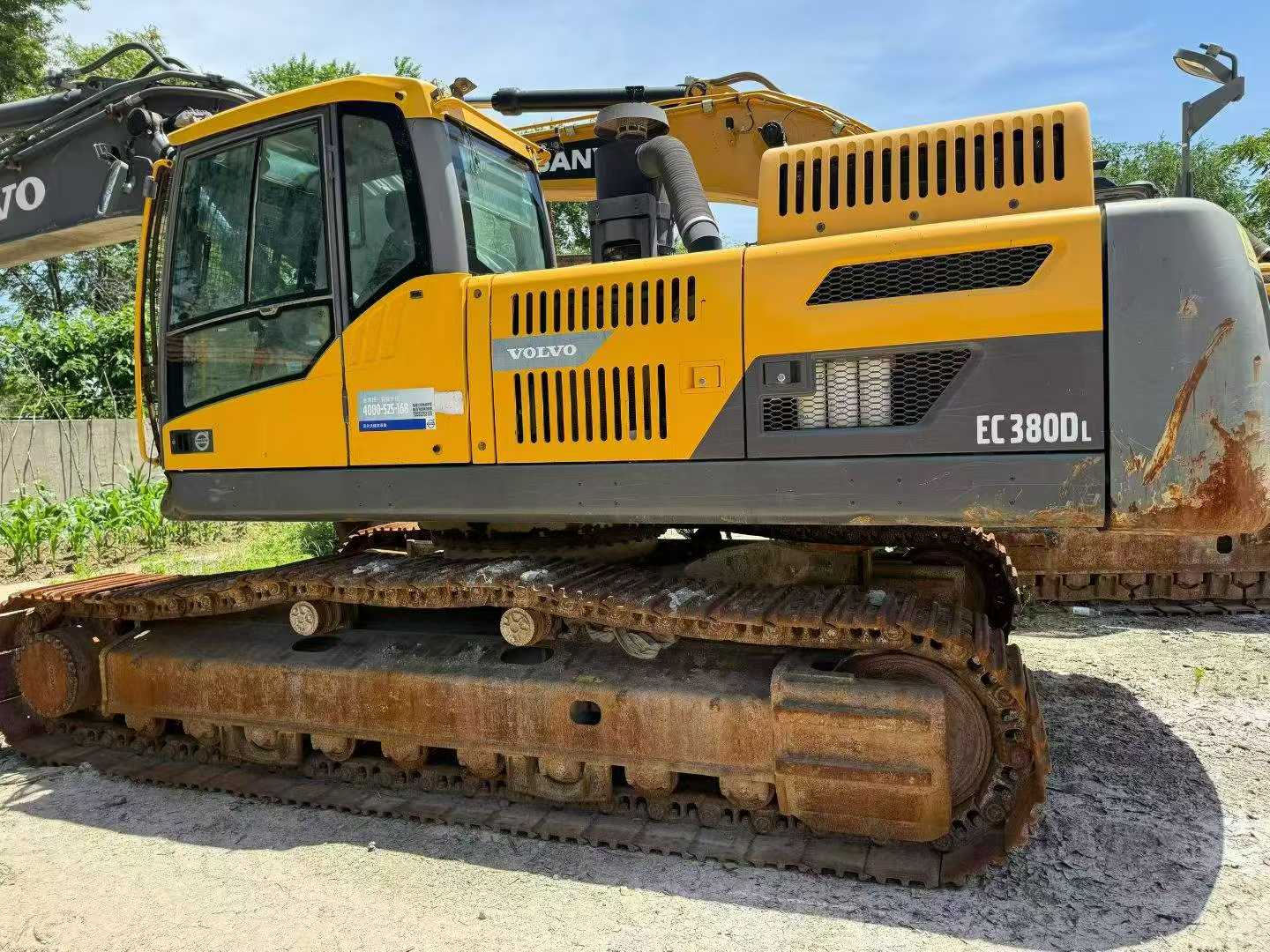

This 2020 Volvo EC380D excavator represents proven reliability in the heavy-duty construction segment. Sourced from Zhejiang, China, this machine was purchased new in 2020 and offers the robust performance expected from Volvo's D-Series lineup. The EC380D is engineered for demanding earthmoving, quarrying, and infrastructure applications where productivity and fuel efficiency are critical.
Key features include:

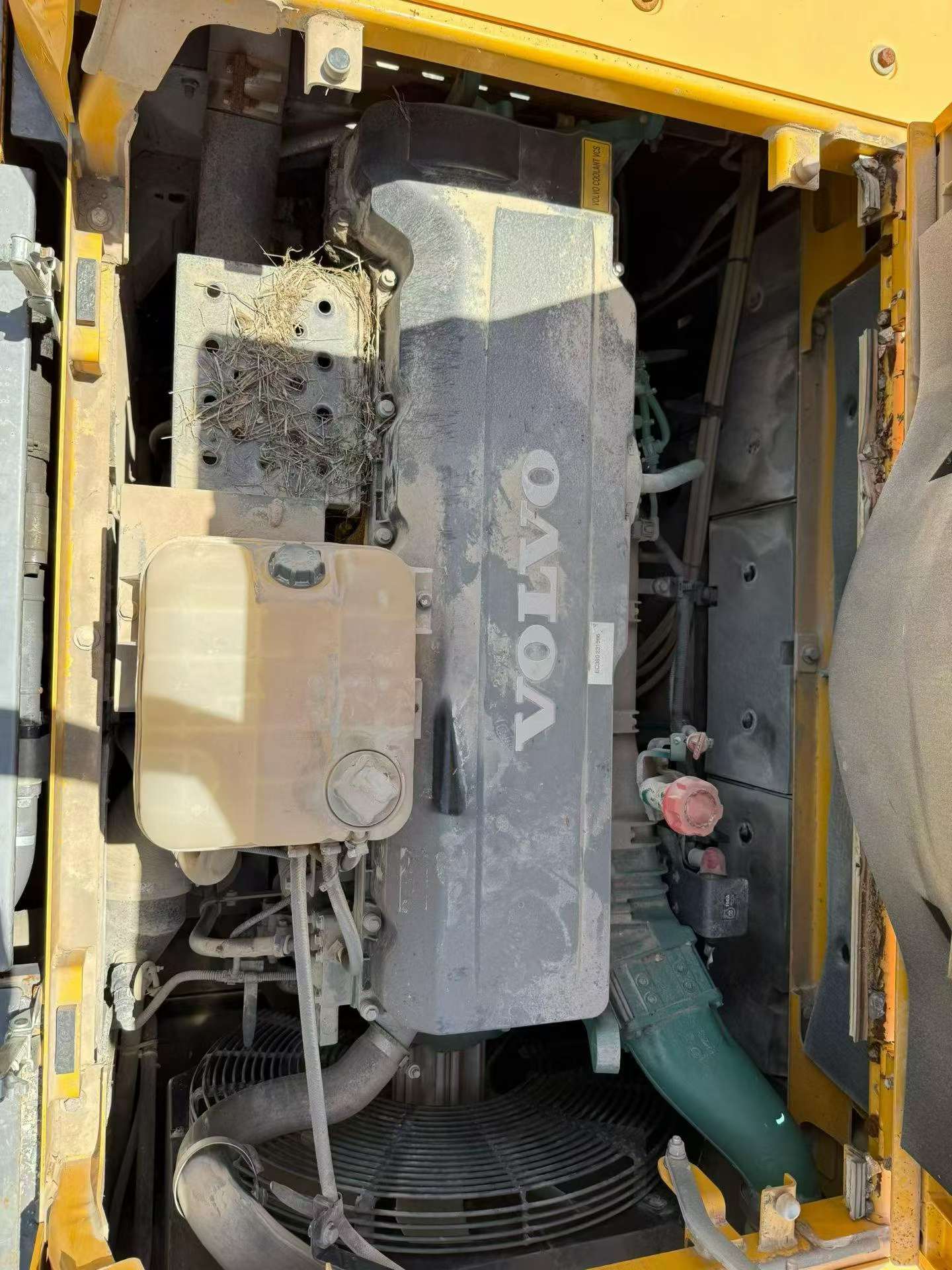

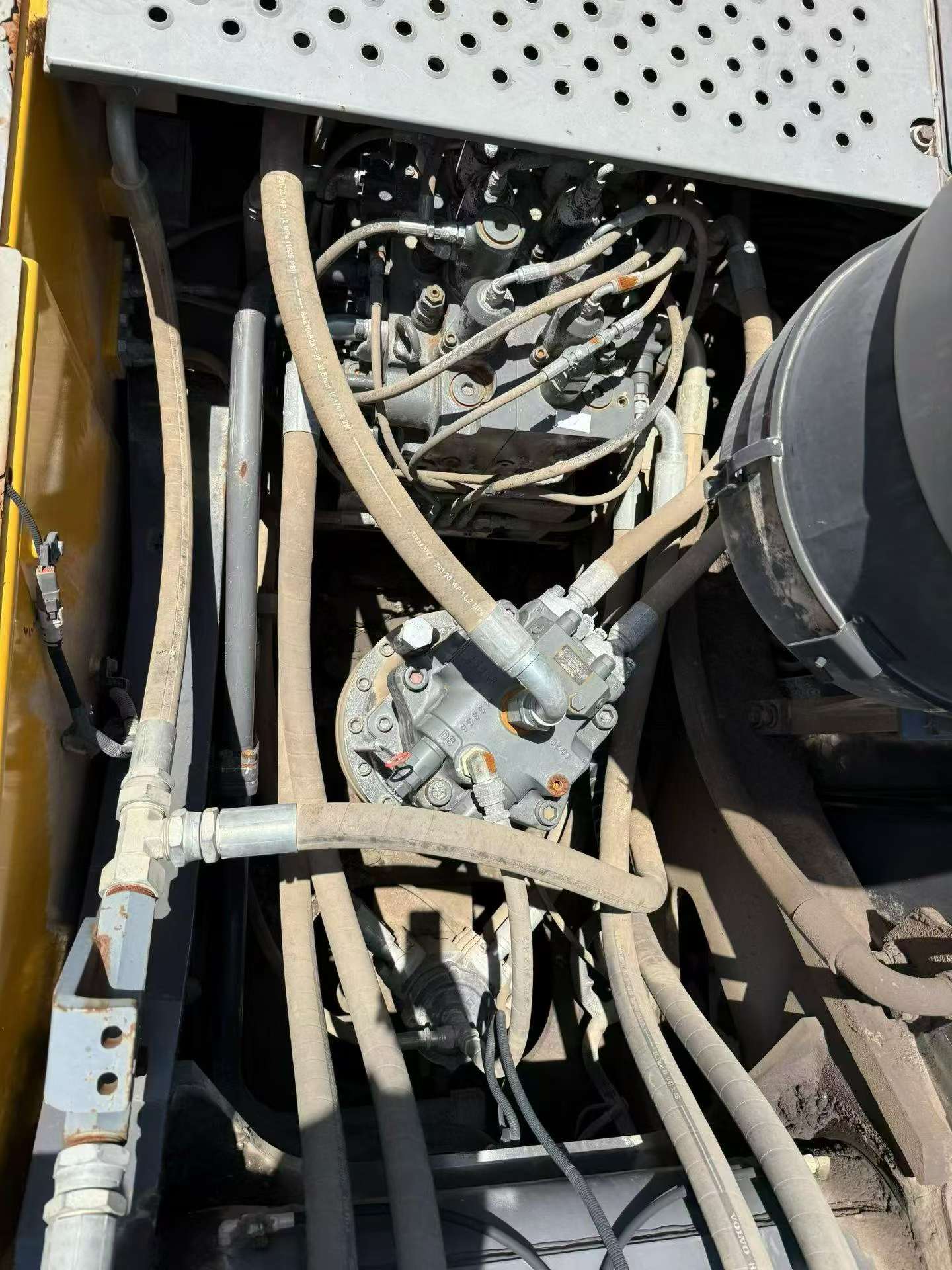

- Volvo's fuel-efficient diesel engine with advanced hydraulics
- Operating weight class suitable for medium to large-scale projects
- Durable undercarriage and reinforced boom structure
- Operator-focused cab design for extended shift comfort
- Comprehensive service history available upon request
This excavator is ready for immediate deployment in mining, road construction, or site development operations. Inspection welcome. Contact us for detailed specifications, operational hours, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1076915 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
