Product Description
This 2020 Volvo EC380D excavator represents a well-maintained asset from Shandong, China. With major components in original condition and an exceptionally clean undercarriage, this machine demonstrates careful operation and regular maintenance throughout its service life.
The EC380D is engineered for demanding applications requiring substantial digging force and reach. Volvo's reputation for durability and operator comfort makes this model a reliable choice for infrastructure projects, earthmoving operations, and heavy construction work.
- Year: 2020
- Model: Volvo EC380D
- Location: Shandong, China

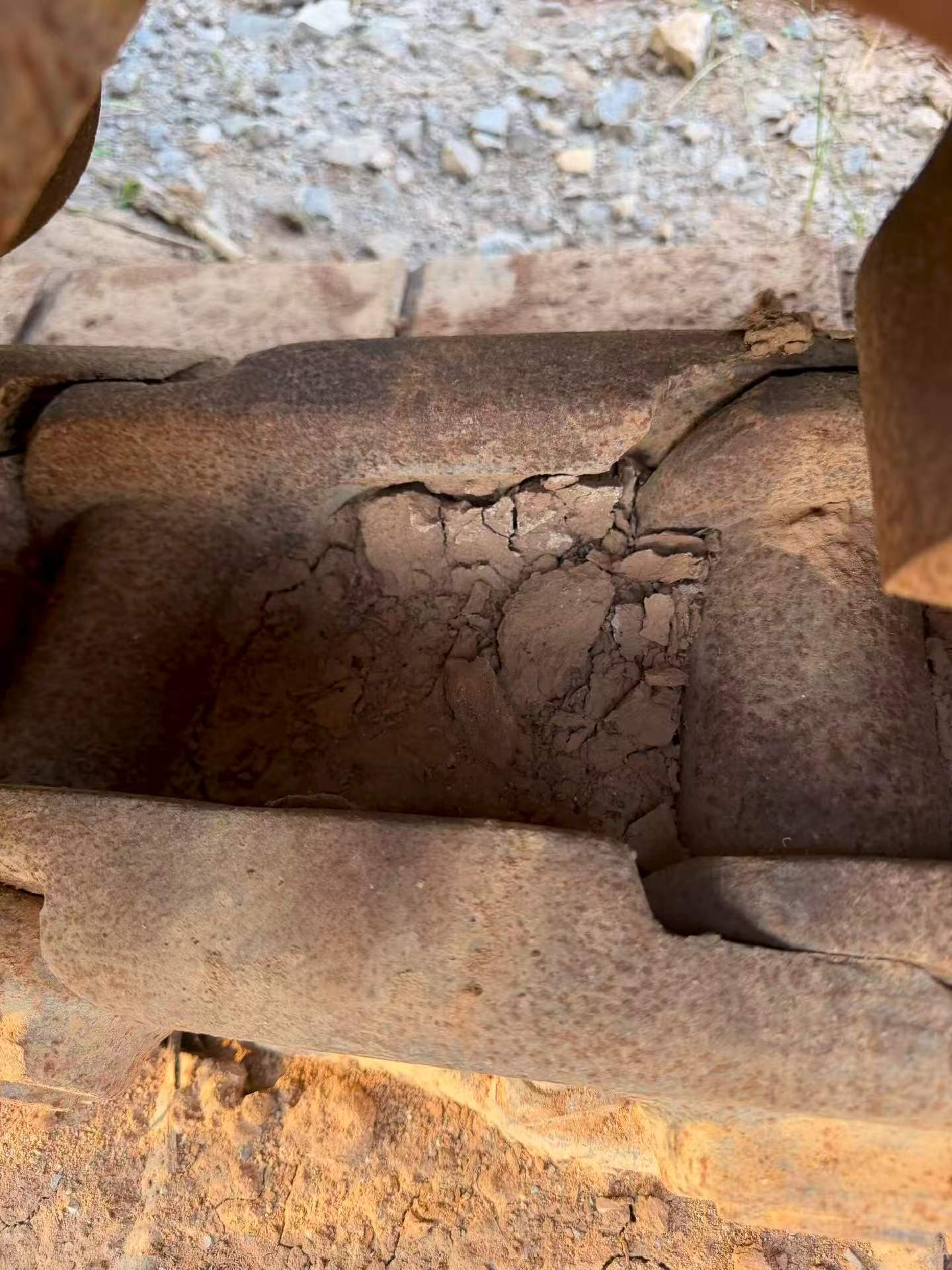

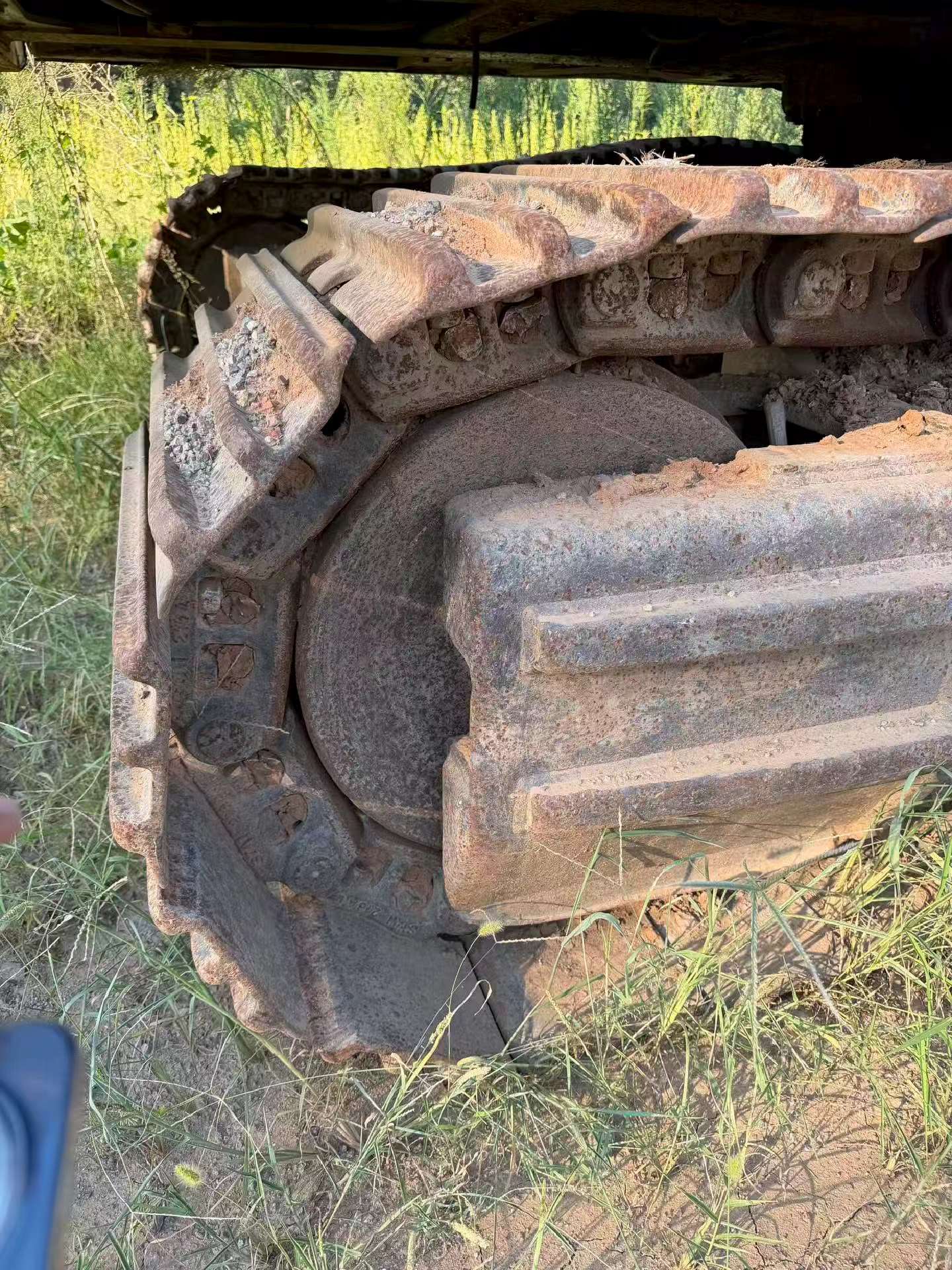

- Condition: Major components unmodified, excellent undercarriage
- Maintenance: Well-documented service history
Ideal for contractors seeking proven hydraulic excavator performance with the backing of Volvo's engineering standards. Available for inspection by appointment.
| Specifications | Value |
|---|---|
| No. | 1136526 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
