Product Description

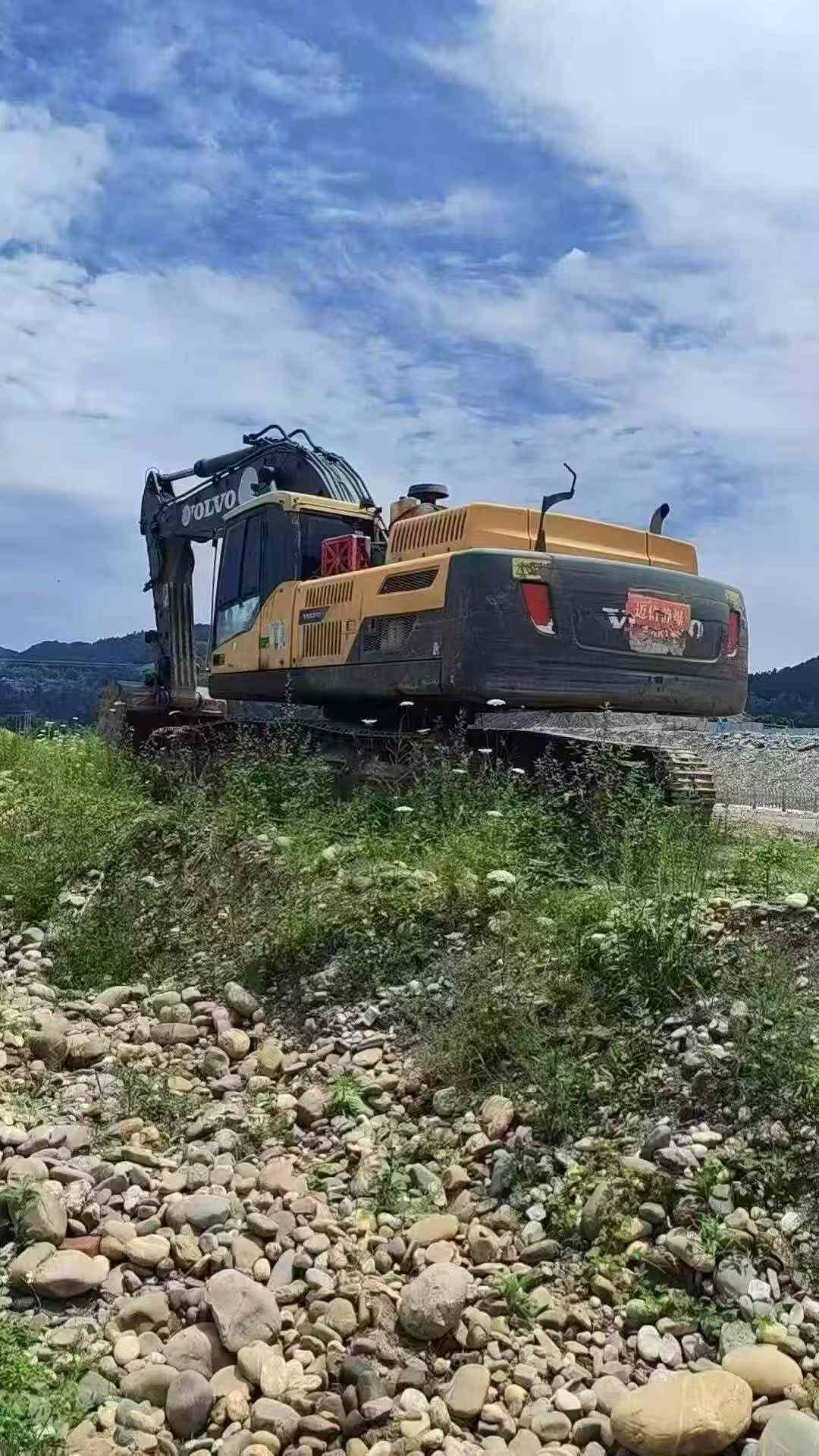

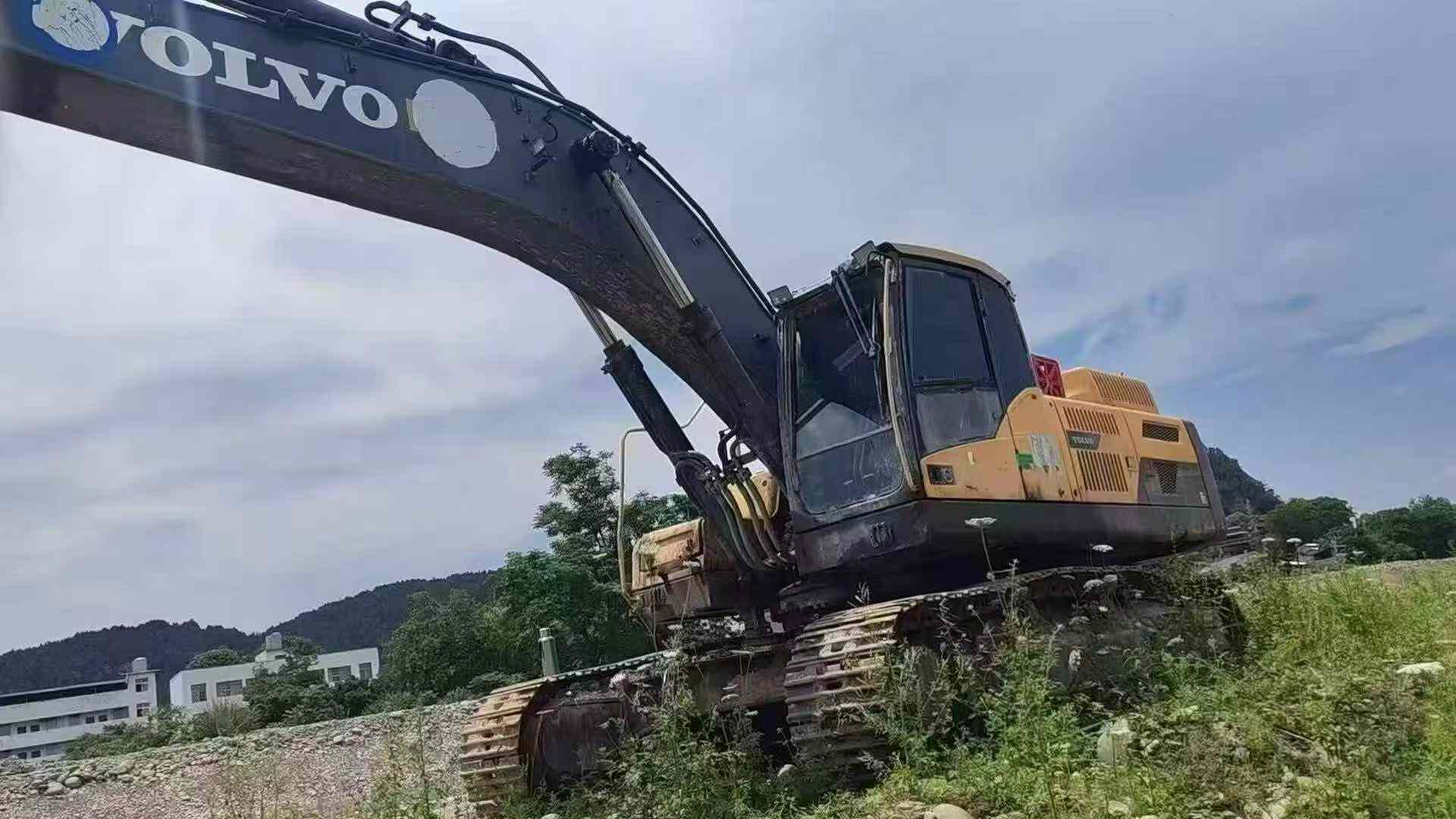

This 2020 Volvo EC380D excavator offers reliable performance for demanding earthmoving and construction applications. With Volvo's proven engineering and durable components, this machine delivers consistent productivity in the field. Currently located in Sichuan, China, it represents an accessible option for contractors seeking quality used equipment from a trusted manufacturer.
- Year: 2020
- Brand: Volvo
- Model: EC380D
- Location: Sichuan, China
- Competitive pricing available
The EC380D combines operational efficiency with Volvo's reputation for durability. Ideal for general excavation, grading, and material handling tasks. Contact us for detailed specifications, current condition assessment, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1169789 |
| Tonnage (tons) | 38 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.53 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
