Product Description
Discover the 2019 Volvo EC380DL, a robust and reliable excavator currently available in Zhejiang, China. This machine has been utilized for regular work, demonstrating its durability and efficiency on various job sites. The EC380DL is known for its powerful performance, ensuring that it can handle demanding tasks with ease. Ideal for construction, mining, and other heavy-duty applications, this excavator combines strength with operational excellence to meet the needs of any professional environment.
- Year: 2019
- Brand: Volvo
- Model: EC380DL
- Location: Zhejiang, China
- Proven track record in regular operations
- Highly capable and efficient for heavy-duty tasks
| Specifications | Value |
|---|---|
| No. | 1118648 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 37800-41100 |
| Bucket capacity (m³) | 1.35-3 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2600 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

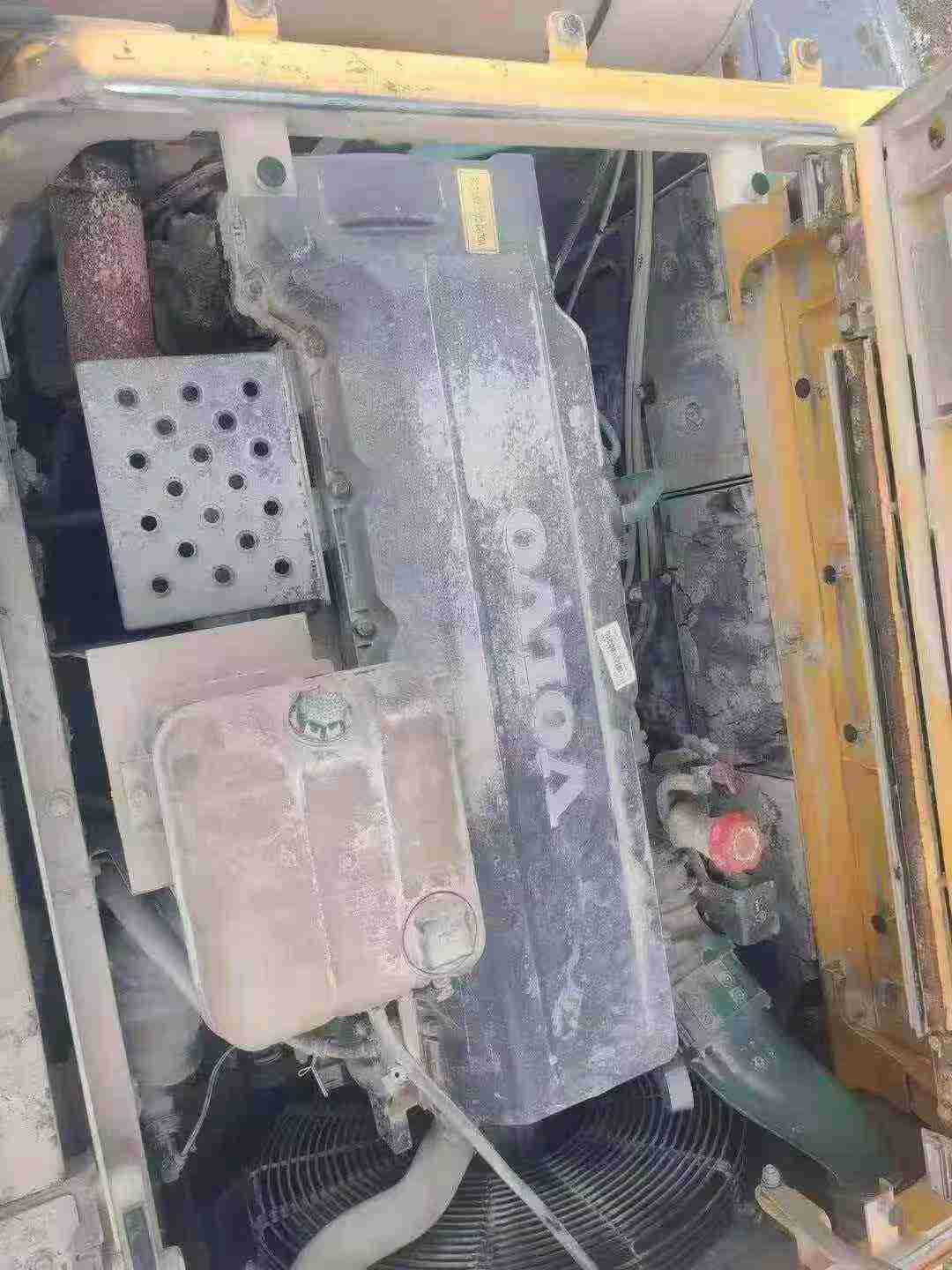

| Engine type | Volvo Volvo D13H-D |
| Rated power (kw/rpm) | 215/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Ground specific pressure (Kpa) | 68.1 (with 600mm track plate) |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 221.7 (Standard) /242.7 (Extra) |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.3 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor (with mechanical brake) |
| Maximum flow of main pump (l/min) | 300 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial piston pump ×2+ pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 227 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11330 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3590 (total height of big arm) |
| Full cab height (mm) | 3197 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3560 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Maximum digging radius (mm) | 10550 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7 090 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
