2022 Volvo EC380E

1/9
Buy Volvo EC380E Used Excavator / 1

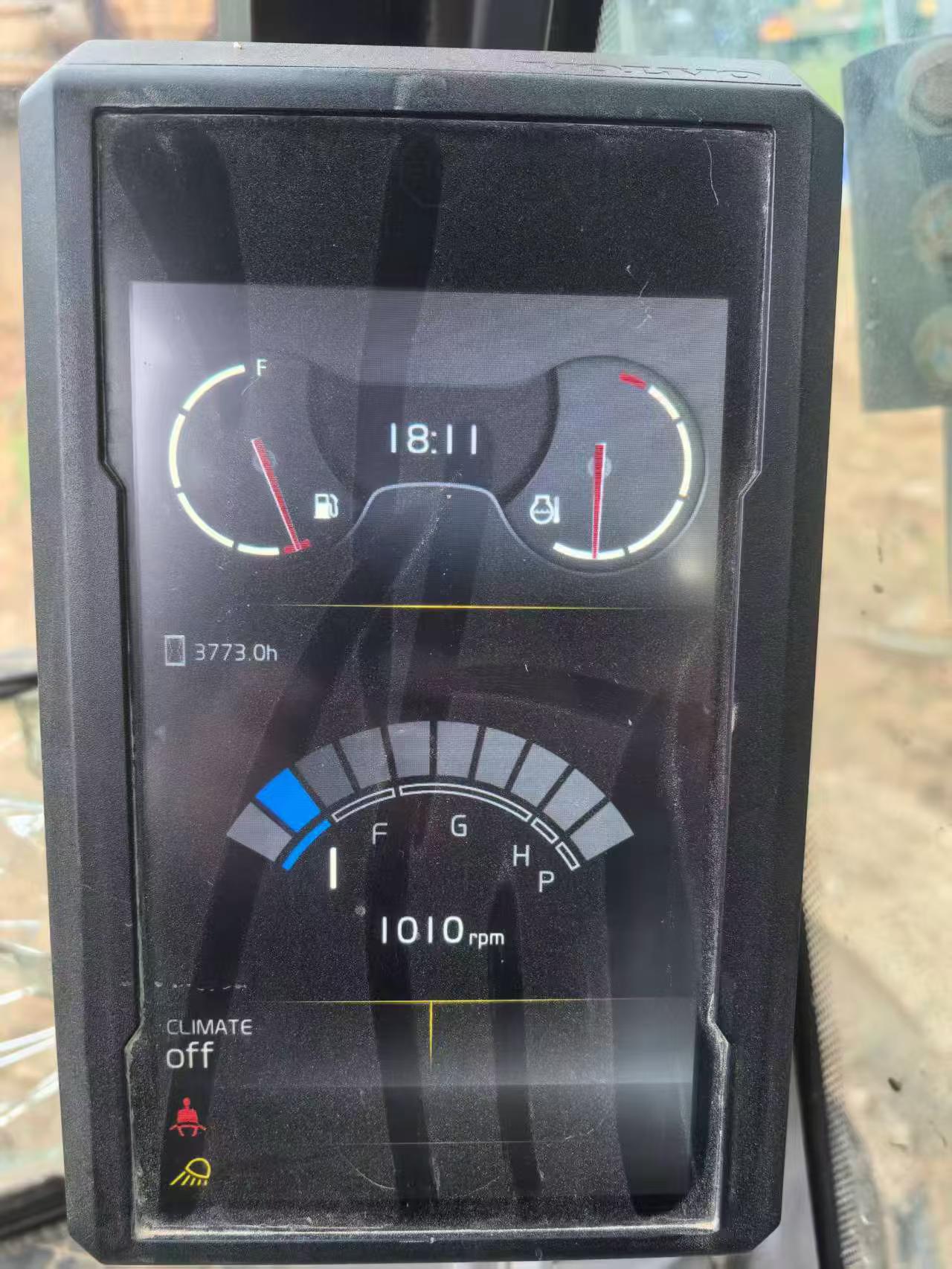

Buy Volvo EC380E Used Excavator / 2

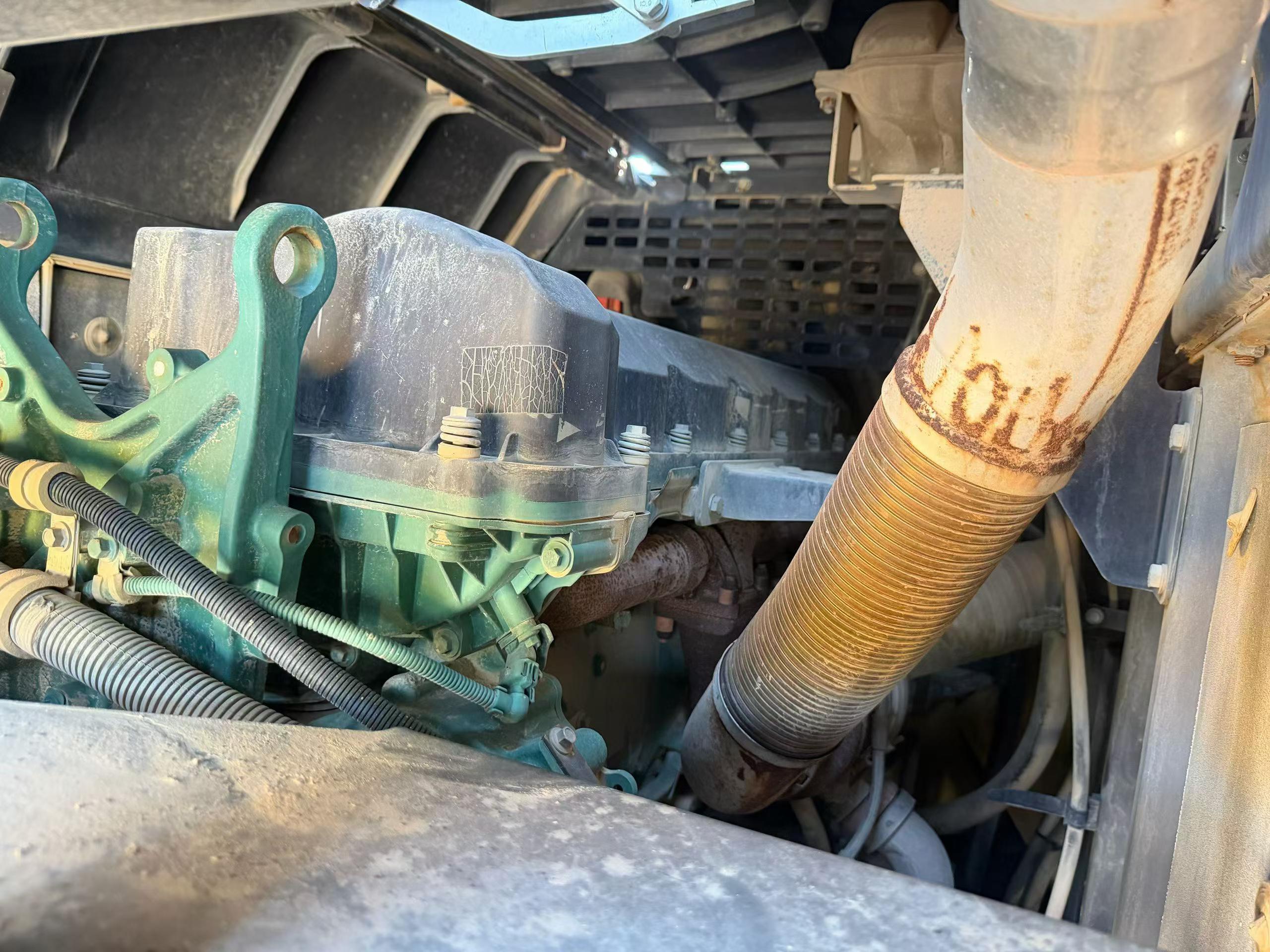

Buy Volvo EC380E Used Excavator / 3

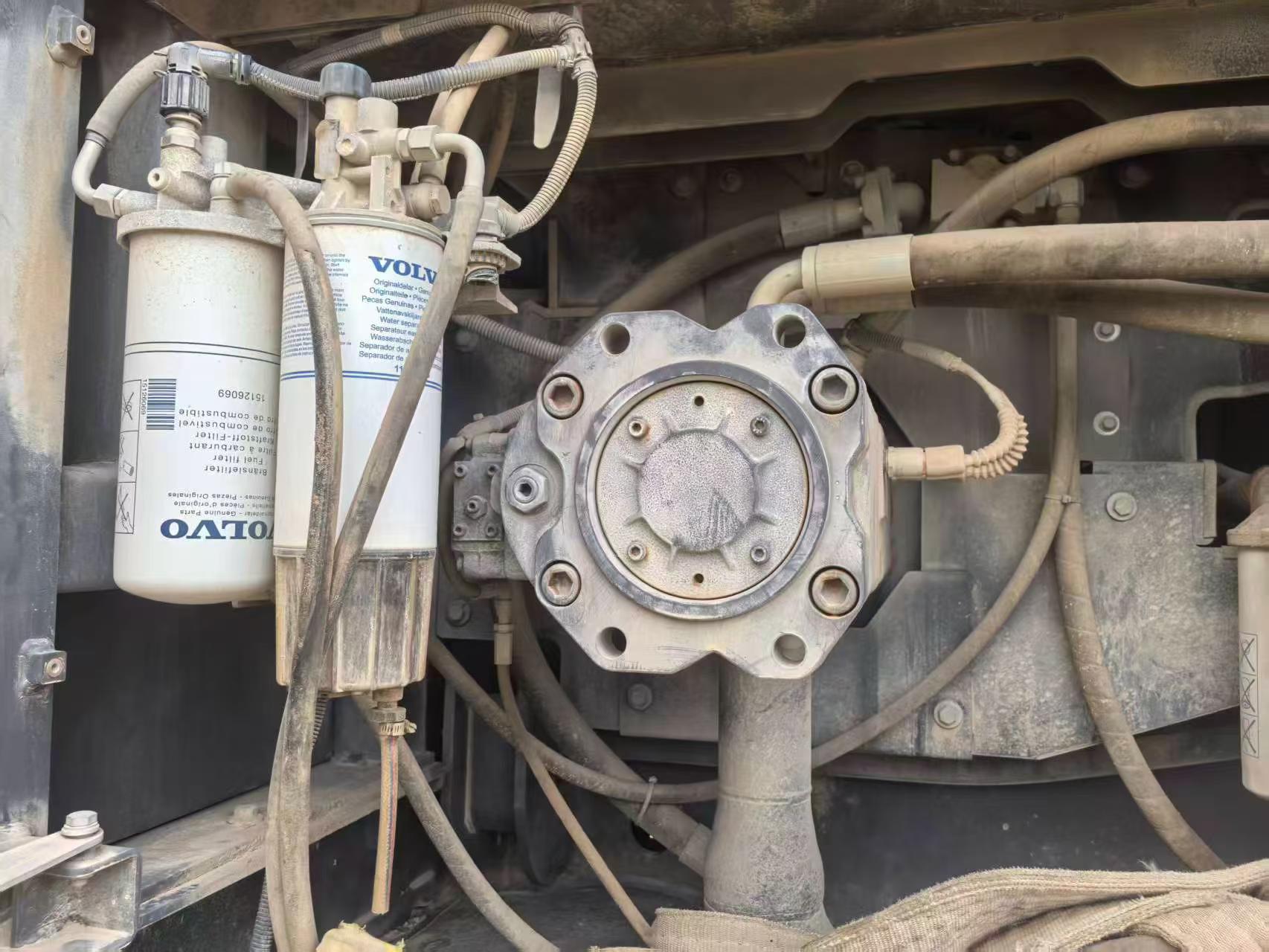

Buy Volvo EC380E Used Excavator / 4

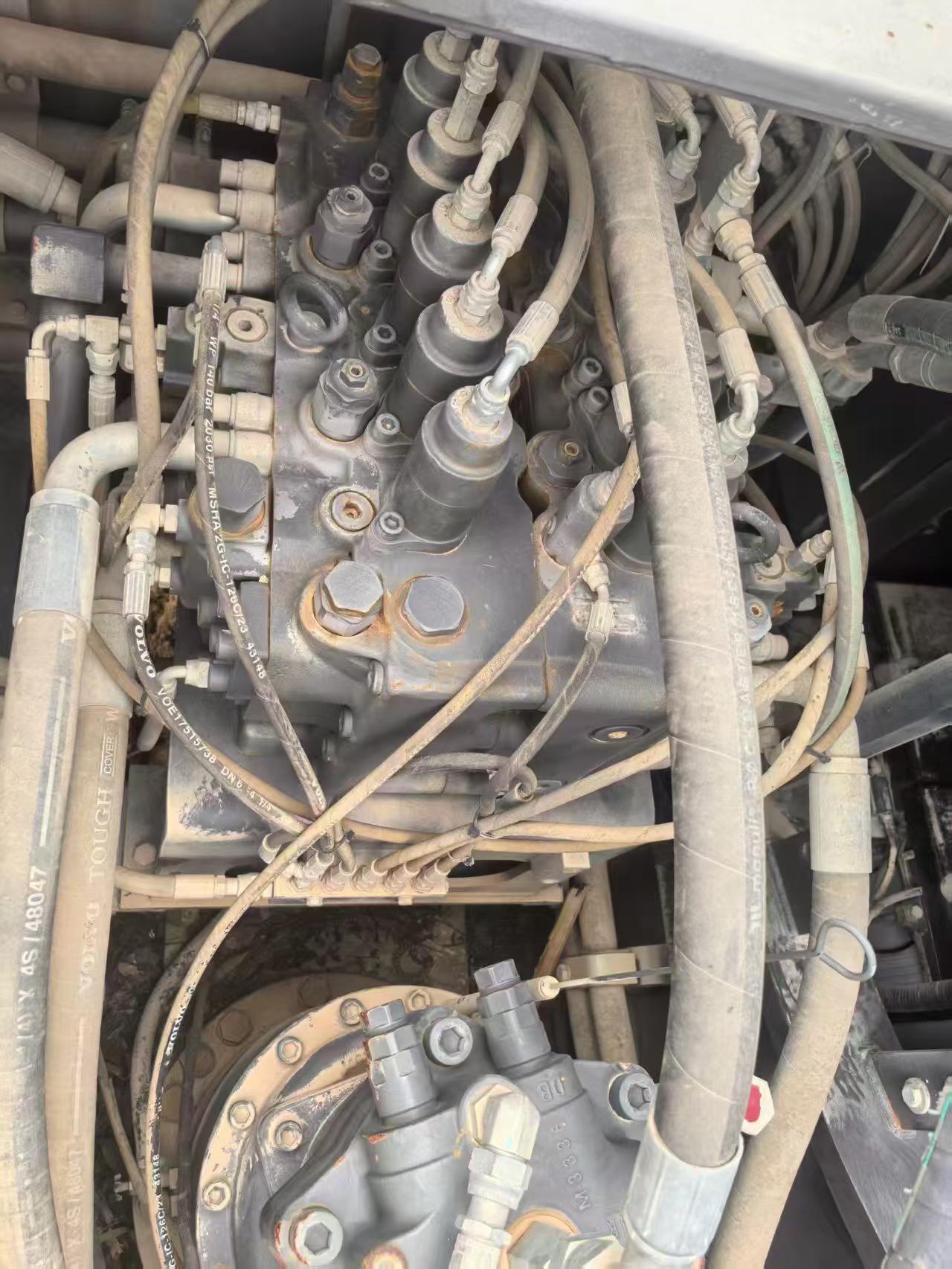

Buy Volvo EC380E Used Excavator / 5
Buy Volvo EC380E Used Excavator / 6

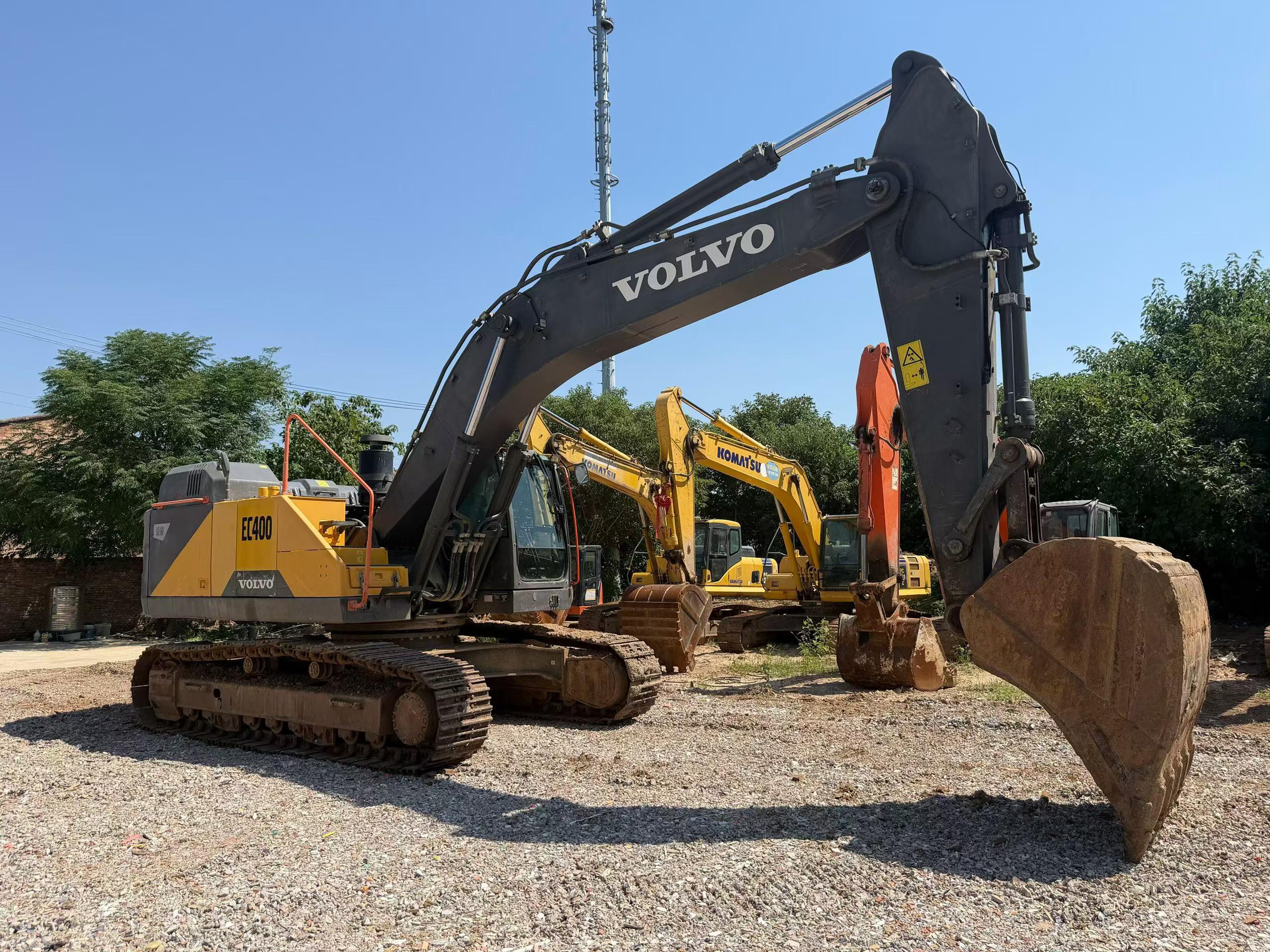

Buy Volvo EC380E Used Excavator / 7

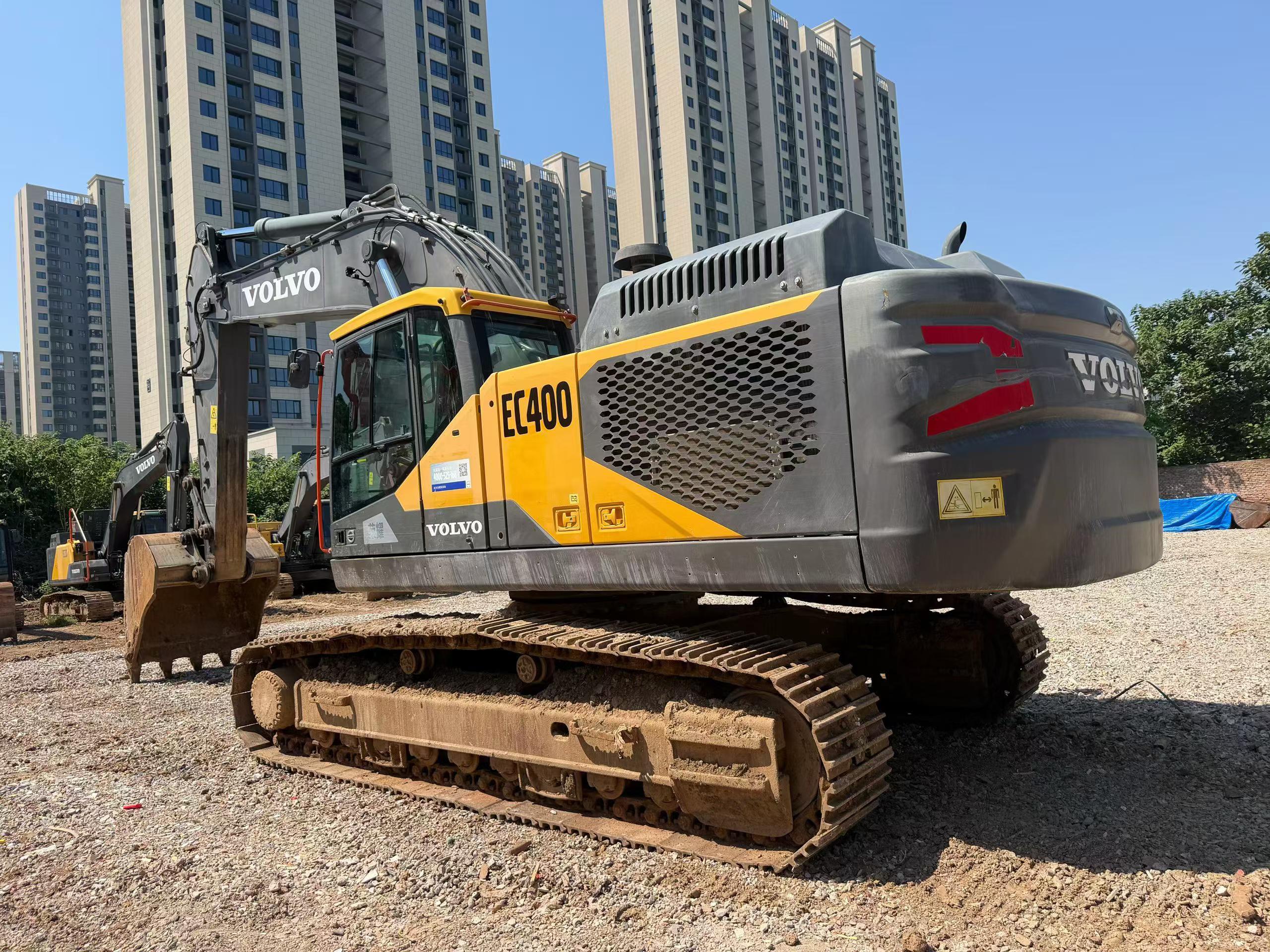

Buy Volvo EC380E Used Excavator / 8

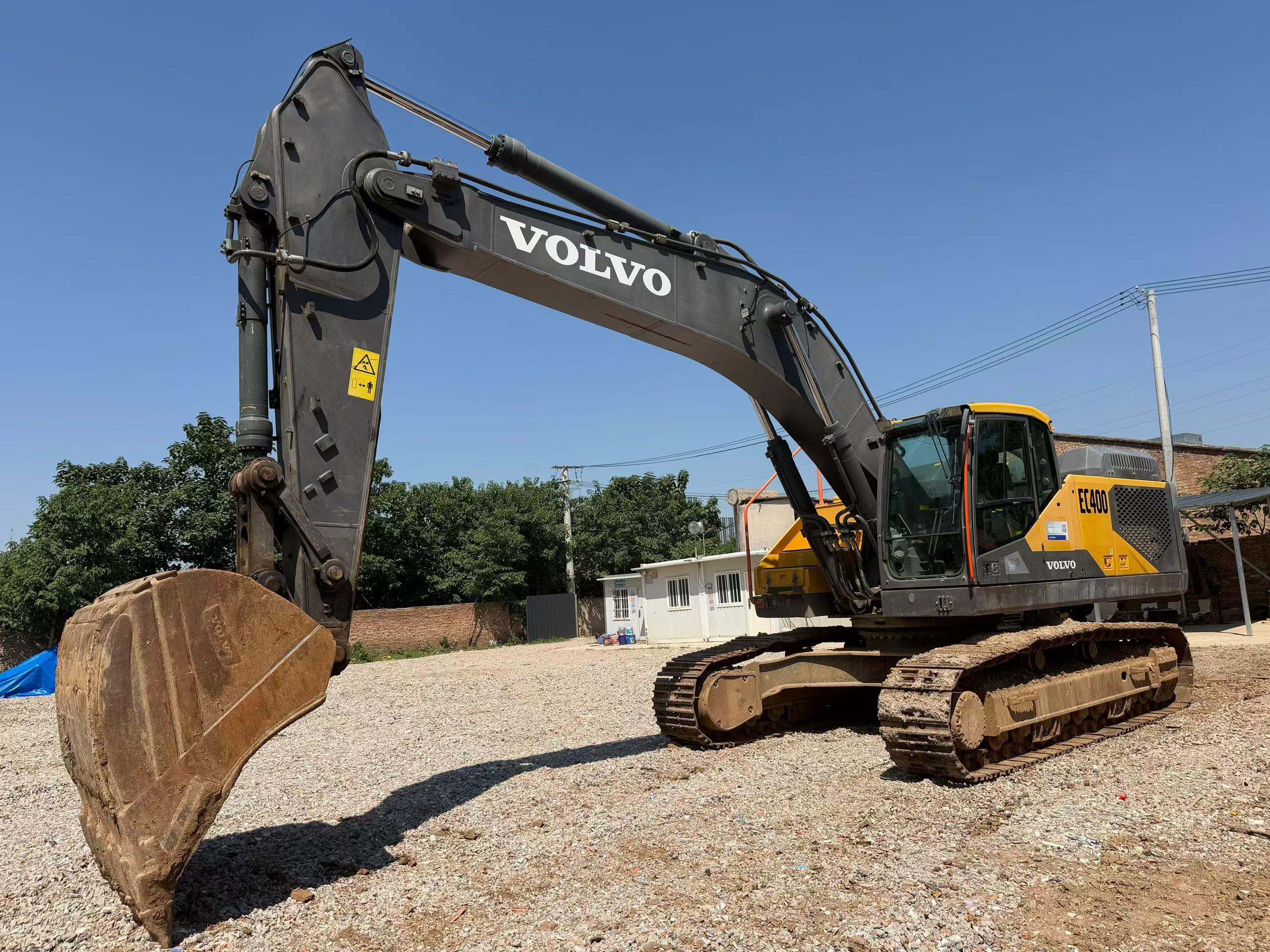

Buy Volvo EC380E Used Excavator / 9

Product Description

This 2022 Volvo EC380E hydraulic excavator offers reliable performance with only 3,700 operating hours. Located in Shaanxi, China, this well-maintained machine represents excellent value in the used heavy equipment market.

The EC380E is known for its fuel efficiency, advanced hydraulic systems, and operator comfort. With Volvo's proven durability and this unit's low hours, it provides years of productive service ahead.

  • Year: 2022
  • Hours: 3,700
  • Model: Volvo EC380E
  • Location: Shaanxi, China
  • Condition: Well-maintained, consignment sale

Ideal for earthmoving, construction, and excavation projects requiring a mid-size excavator with modern features and low wear. This unit is available for serious buyers seeking quality equipment at competitive pricing.

SpecificationsValue
No.1136582
Tonnage (tons)38
Working weight (kg)36000-43000
Bucket capacity (m³)0.83-2.53
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D13J
Rated power (kw/rpm)306/1700
Maximum torque (N.m)1692/1275
Displacement (L)12.8
Rotation speed (rpm)10.2
Climbing ability (%)35° (70%)
Maximum tractive force (kN)276.5
Travel speed (km/h)3.4/5.3
Turning torque (Nm)130.5
Maximum flow of main pump (l/min)32.6
Traveling Hydraulic Circuit (Mpa)35.3
Rotary Hydraulic Circuit (Mpa)27.9
Control Hydraulic Circuit (Mpa)3.9
Working Hydraulic Circuit (Mpa)32.4/35.3
Fuel Tank (L)620
Hydraulic Tank (L)225
Engine Oil changes (L)42
Hydraulic System (L)500
Total transport length (mm)11060
Total transport width (mm)3340
Total transport height (mm)3510
Full cab height (mm)3220
Counterweight ground clearance (mm)1155
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4115
Back end turning radius (mm)3600
Onboard width (mm)2990
Total track length (mm)5180
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4240
Maximum digging radius (mm)10540
Maximum digging depth (mm)7390
Maximum excavation height (mm)10035
Maximum unloading height (mm)6945
Maximum vertical digging depth (mm)5275
Maximum excavation radius of stop surface (mm)10075
Maximum effective digging depth (mm)6180
see more

Overview

No.1136582

Brand Name:

Volvo

Model Number:

EC380E

Year:

2022

Location:

Shaanxi China

Pub Date
