Product Description

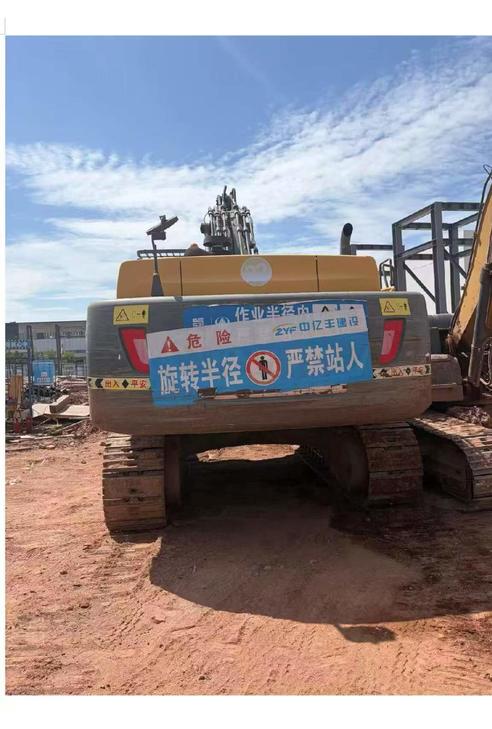

This 2021 Volvo EC480D excavator offers reliable performance with approximately 3,000 operational hours on the meter. Located in Zhejiang, China, this machine represents excellent value for operators seeking proven Volvo engineering in a recent model year.
The EC480D is built for demanding excavation and earthmoving applications, featuring Volvo's renowned hydraulic efficiency and operator comfort. With low hours for its age, this unit has substantial service life remaining. The machine is available for on-site inspection, allowing buyers to verify condition and performance firsthand.
- Year: 2021
- Make: Volvo
- Model: EC480D
- Hours: ~3,000
- Location: Zhejiang Province, China
- Condition: Used, verified hours
Ideal for contractors and fleet operators requiring a dependable crawler excavator with documented low usage. Direct inspection available.
| Specifications | Value |
|---|---|
| No. | 1162712 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,900-50,500 |
| Bucket capacity (m³) | 1.77-3.80 |
| Boom length (mm) | 7 |
| Rod length (mm) | 4.8 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo VOLVO_D13-T4(A) |
| Rated power (kw/rpm) | 245 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131*158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Meets European Stage IIIB emission requirements |
| Ground specific pressure (Kpa) | 73.7(700mm) |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 285/310.6 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 3.1-5.2 |
| Rotary hydraulic motor type | Piston type |
| Type of walking hydraulic motor | Piston type |
| Maximum flow of main pump (l/min) | 2*358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Main pump type | Piston type |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165*1330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165*1590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 525 |
| Total transport length (mm) | 12140 |
| Total transport width (mm) | 3367 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 746 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2890(Extended) |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3590(Extended) |
| Track ground length (mm) | 4370 |
| Maximum digging radius (mm) | 12040 |
| Maximum digging depth (mm) | 7720 |
| Maximum excavation height (mm) | 11010 |
| Maximum unloading height (mm) | 7640 |
| Maximum vertical digging depth (mm) | 7110 |
| Maximum excavation radius of stop surface (mm) | 11810 |
| Boom turning Angle (left/right °) | 183 |
| Maximum effective digging depth (mm) | 7570 |
