Product Description

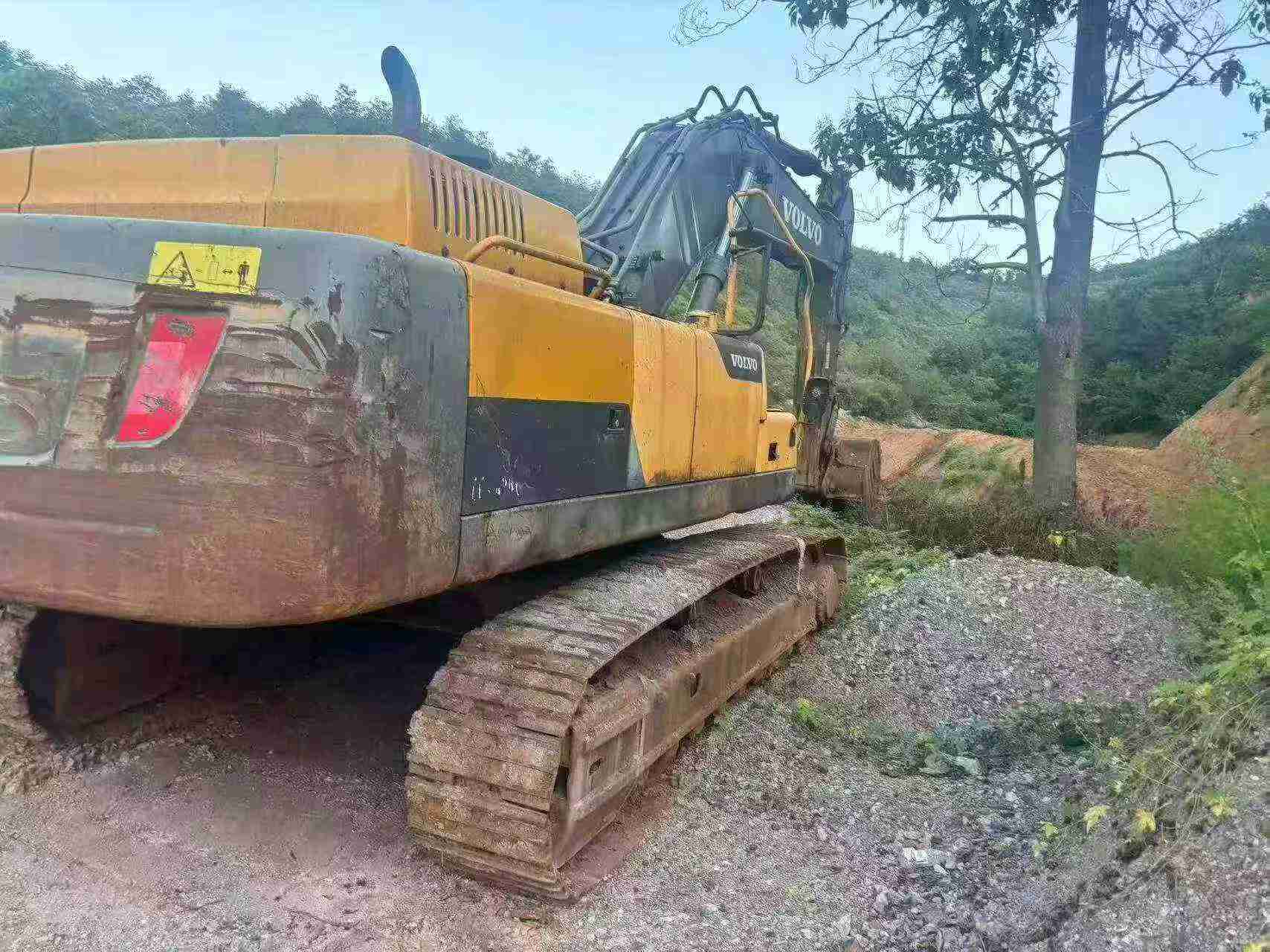

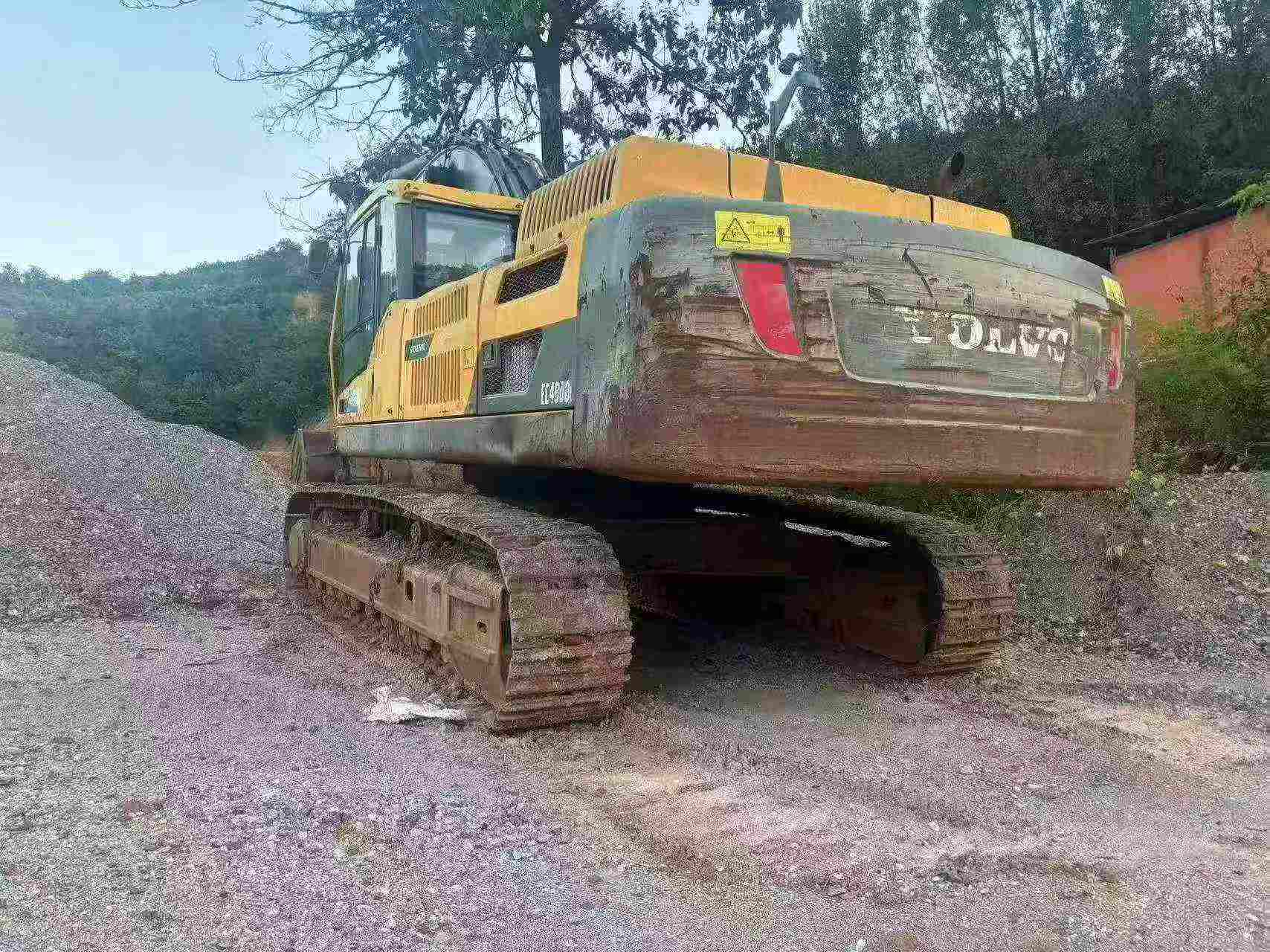

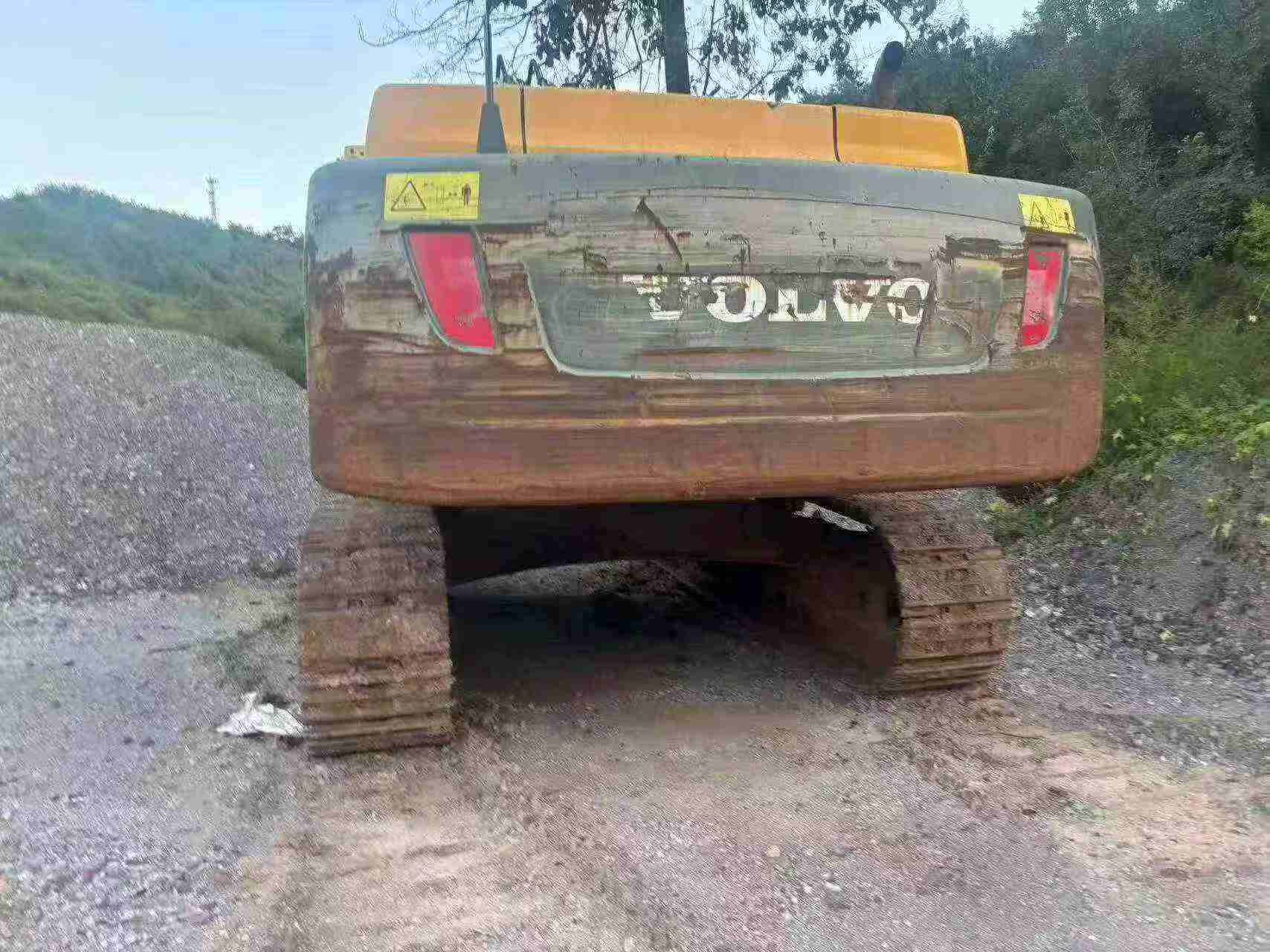

This 2019 Volvo EC480DL excavator represents a reliable solution for heavy-duty operations. Manufactured by Volvo Construction Equipment, this hydraulic excavator is currently located in Zhejiang, China and available for export worldwide.
The machine demonstrates solid overall performance with all major systems functioning properly. The EC480DL series is known for its robust construction and operational efficiency in demanding applications including earthmoving, demolition, and large-scale excavation projects.
- Year of Manufacture: 2019
- Make: Volvo
- Model: EC480DL
- Current Location: Zhejiang Province, China
- Condition: Operational with maintained performance
- Documentation: Detailed imagery available upon request
Suitable for contractors and operators seeking proven excavator technology. Contact FairTradeMachinery for complete specifications, additional photographs, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1138649 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,300~53,100 |
| Bucket capacity (m³) | 1.77 - 3.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

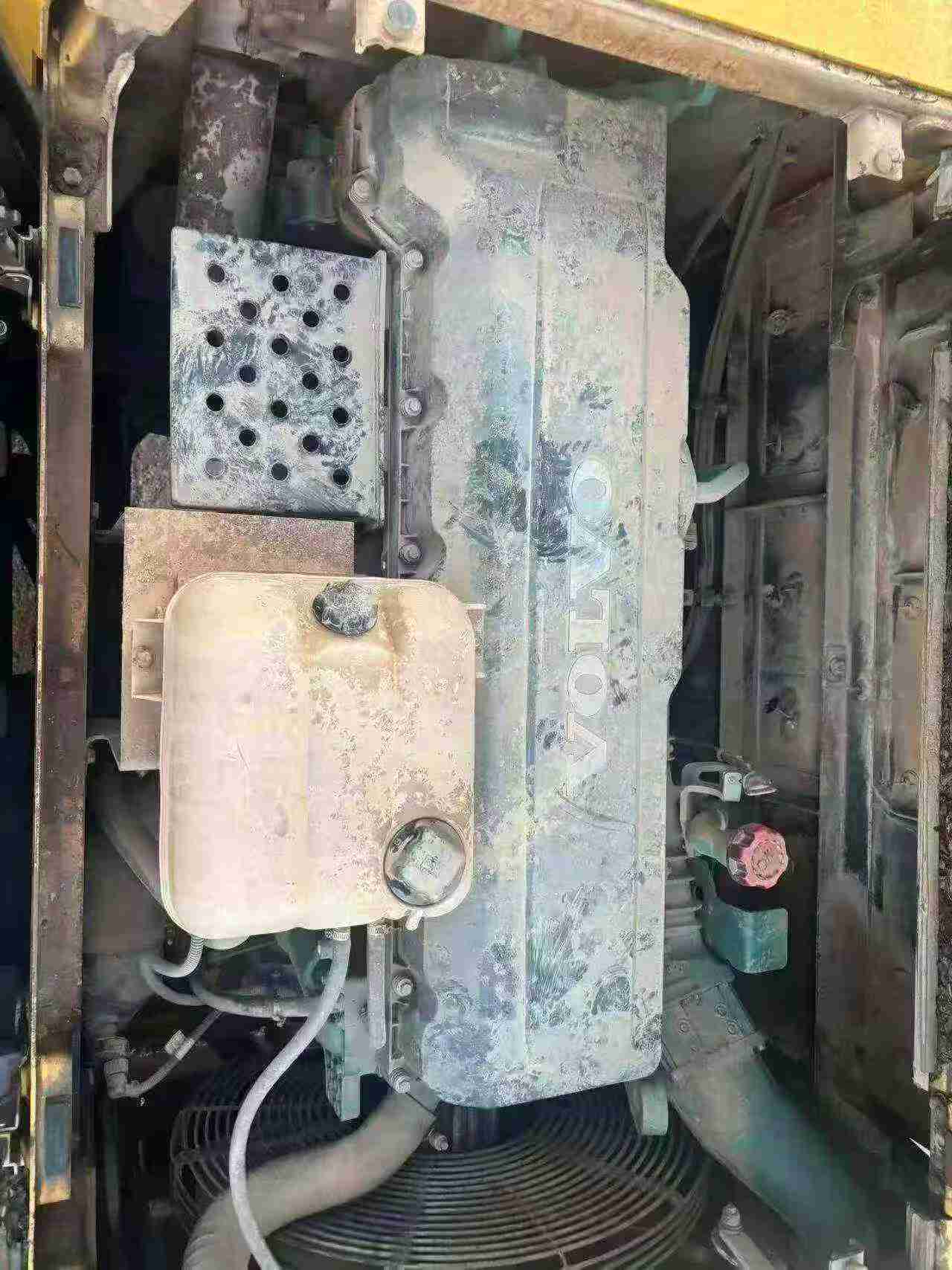

| Engine type | D13F |
| Rated power (kw/rpm) | 270/1800 |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Maximum torque (N.m) | 1800 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 8.8 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.1 / 5.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2 x 358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165 x 1,330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190 x 1,850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165 X 1,590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 520 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3340 |
| Full cab height (mm) | 3257 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 550 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 52 |
| Maximum digging radius (mm) | 10930 |
| Maximum digging depth (mm) | 6580 |
| Maximum excavation height (mm) | 10600 |
| Maximum unloading height (mm) | 6970 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10680 |
