Product Description

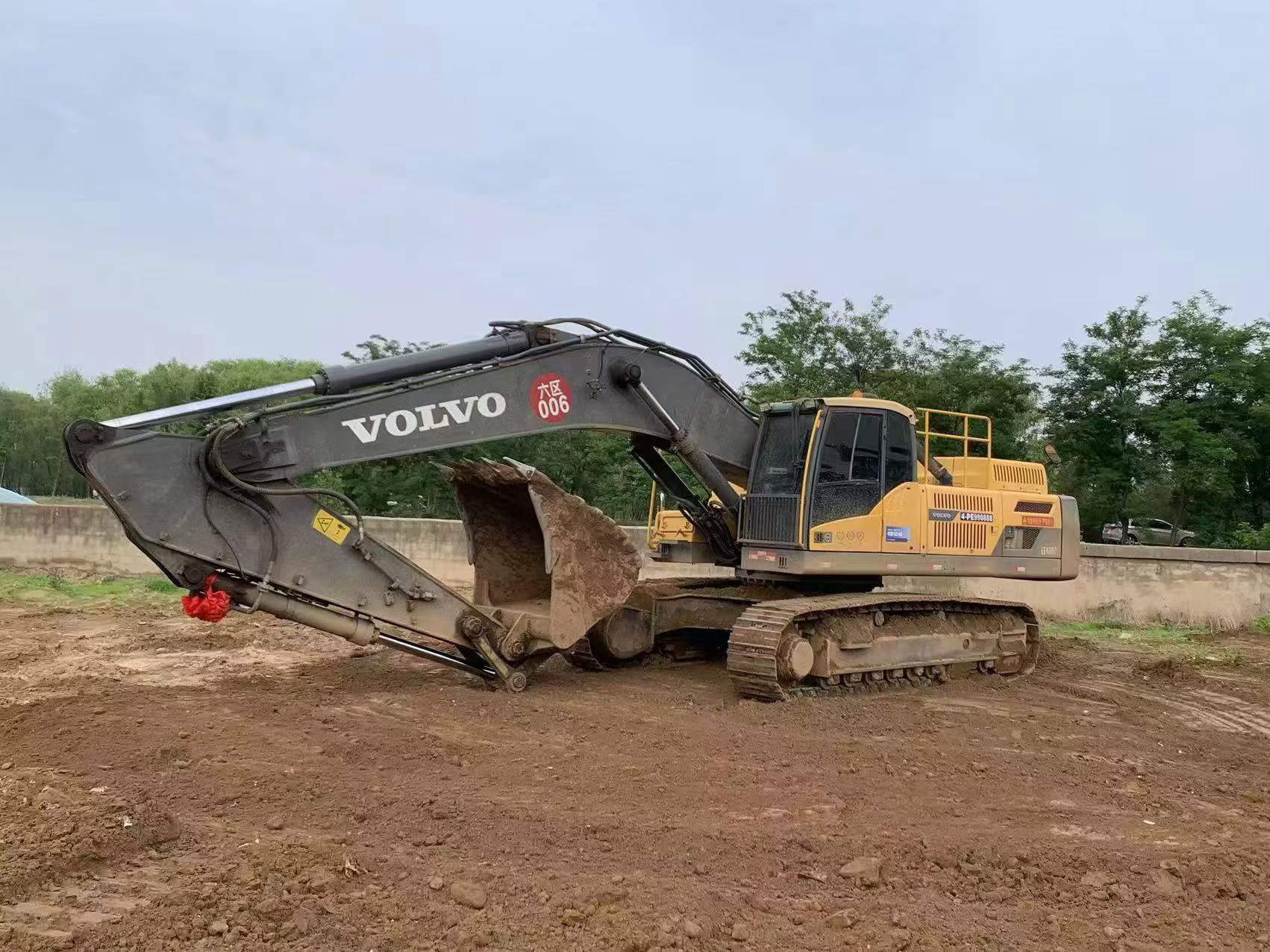

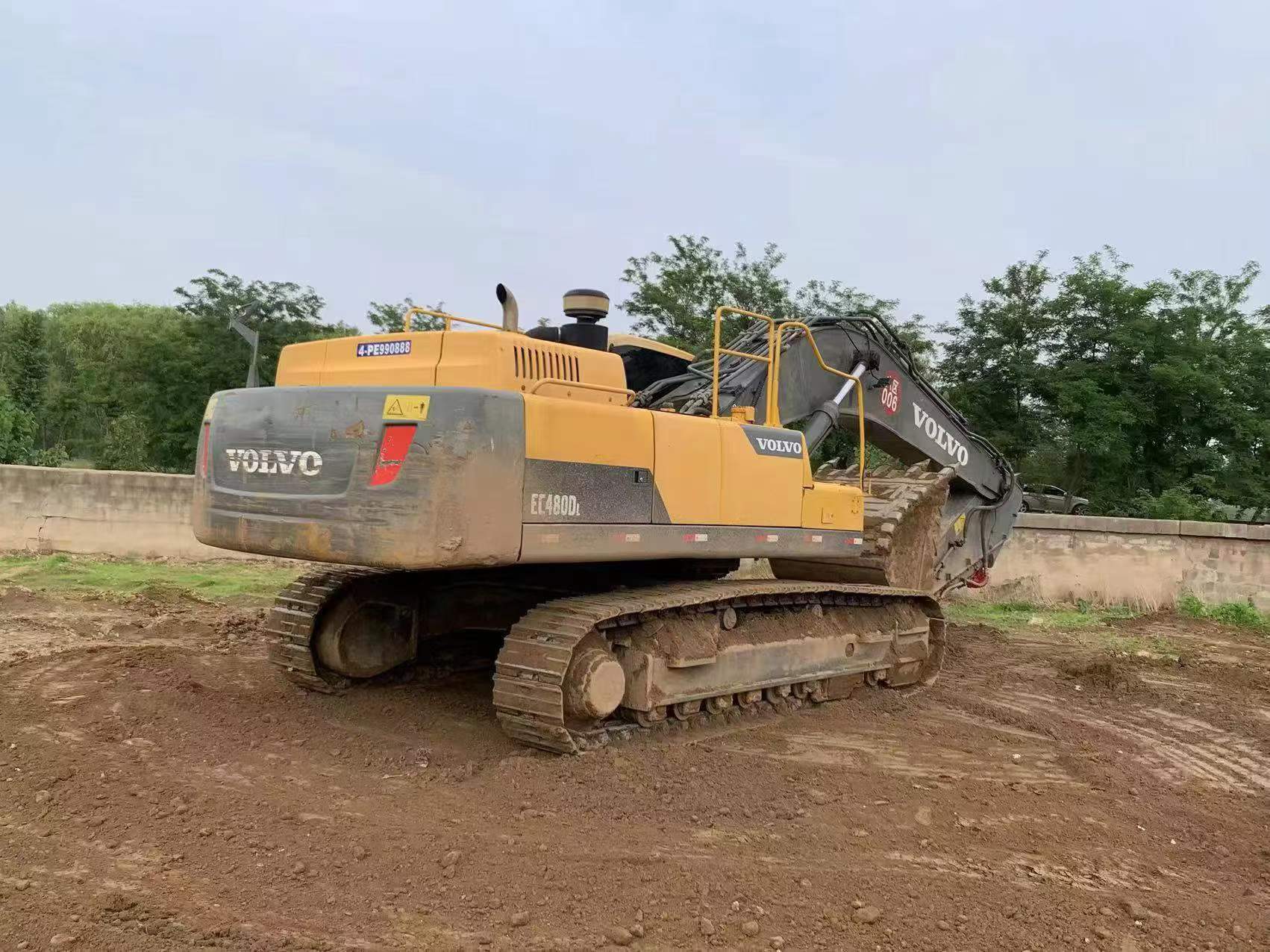

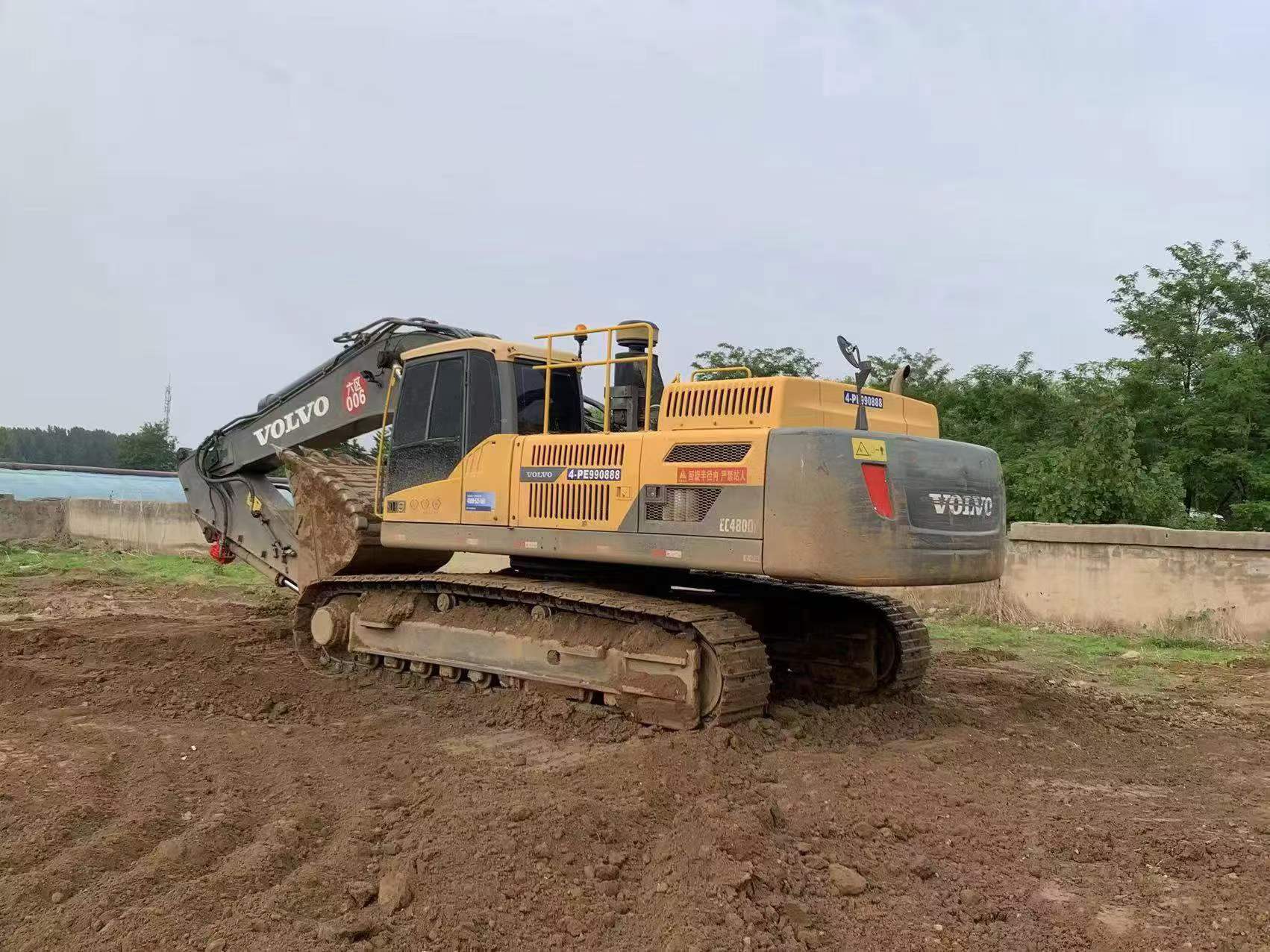

Discover the 2020 Volvo EC480DL, a premium heavy machine currently available in Peking, China. This excavator is in excellent condition and has recently been taken off-site, ensuring its readiness for immediate deployment. The EC480DL is known for its robust performance and reliability, with all major components in top working order and no issues with oil leaks. Equipped with its original bucket, it's perfectly suited for earthmoving tasks. The air conditioning system functions well, providing a comfortable operator environment. Ready to be put to work right away, this machine can be tested on-site to confirm its capabilities.
- Year: 2020
- Brand: Volvo
- Model: EC480DL
- Location: Peking, China
- Condition: Excellent, immediately operational
- Features: Reliable, no major leaks, functional AC, original bucket included
| Specifications | Value |
|---|---|
| No. | 1096969 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,300~53,100 |
| Bucket capacity (m³) | 1.77 - 3.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D13F |
| Rated power (kw/rpm) | 270/1800 |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Maximum torque (N.m) | 1800 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 8.8 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.1 / 5.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2 x 358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165 x 1,330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190 x 1,850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165 X 1,590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 520 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3340 |
| Full cab height (mm) | 3257 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 550 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 52 |
| Maximum digging radius (mm) | 10930 |
| Maximum digging depth (mm) | 6580 |
| Maximum excavation height (mm) | 10600 |
| Maximum unloading height (mm) | 6970 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10680 |
