2012 Volvo EC700C

1/8
Buy Volvo EC700C Used Excavator / 1
Buy Volvo EC700C Used Excavator / 2
Buy Volvo EC700C Used Excavator / 3
Buy Volvo EC700C Used Excavator / 4
Buy Volvo EC700C Used Excavator / 5
Buy Volvo EC700C Used Excavator / 6
Buy Volvo EC700C Used Excavator / 7
Buy Volvo EC700C Used Excavator / 8

Product Description

This 2012 Volvo EC700C excavator is currently located in Shandong, China and available for export. The machine comes equipped with a hydraulic breaker attachment rated at approximately 200-class, making it well-suited for heavy demolition and rock excavation applications.

The EC700C represents Volvo's large excavator category, designed for high-production quarrying, mining, and infrastructure projects. This unit has been maintained in operational condition and offers buyers a cost-effective alternative to new equipment for demanding worksite requirements.

  • Year of Manufacture: 2012
  • Manufacturer: Volvo Construction Equipment
  • Model: EC700C
  • Current Location: Shandong Province, China
  • Configuration: Equipped with hydraulic breaker
  • Application: Heavy-duty excavation and demolition

Inspection reports and additional operational details are available upon request. Suitable for buyers seeking proven heavy excavation capacity in the 70-ton class.

SpecificationsValue
No.1170113
Tonnage (tons)70
Working weight (kg)698000-717000
Bucket capacity (m³)2.48-6.6
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

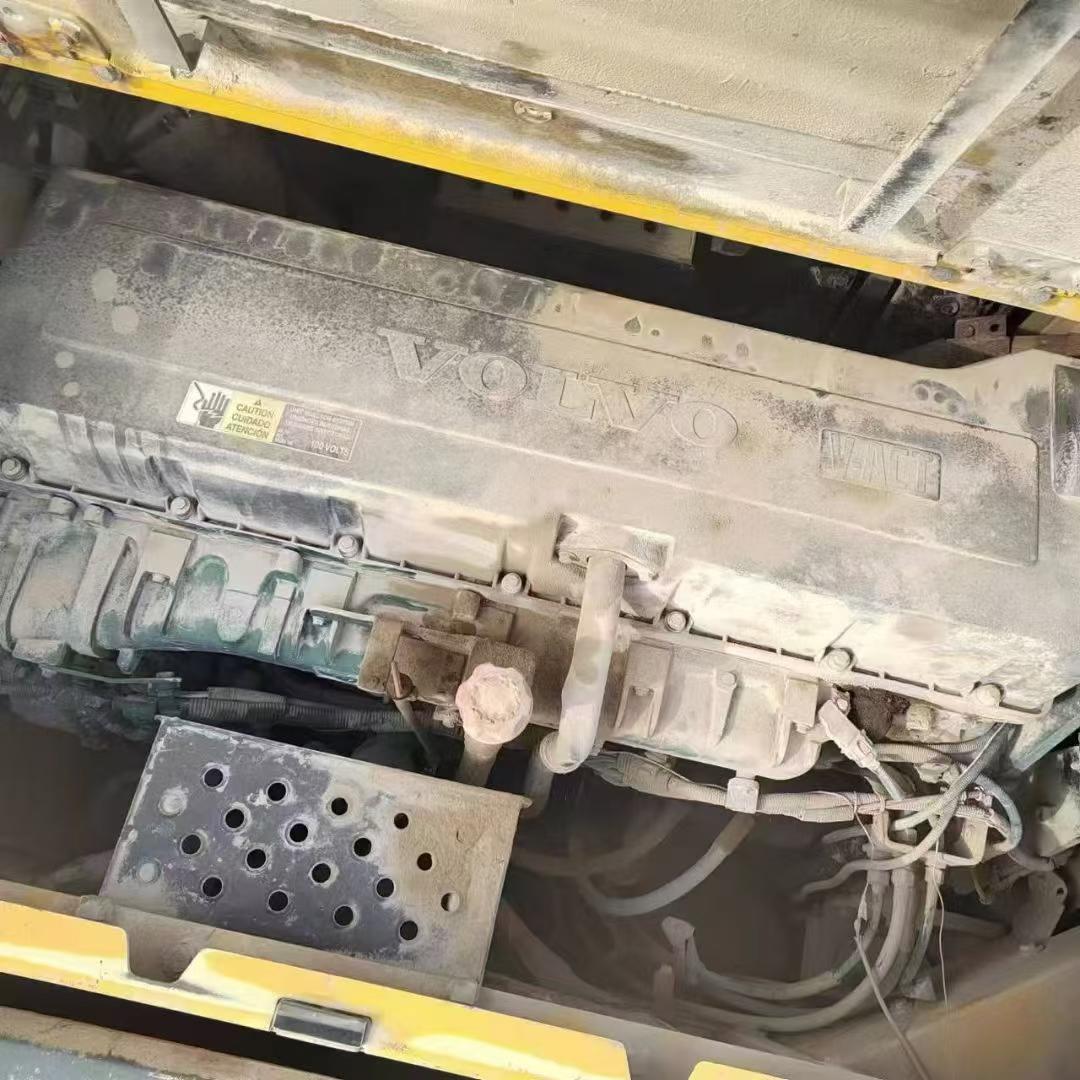

Engine typeVolvo D16E EAE3
Rated power (kw/rpm)336.5/1800
Cylinder diameter × stroke (mm)114 x 165
Maximum torque (N.m)2250/1350
Number of cylinders (PCS)6
Displacement (L)16.1
Ground specific pressure (Kpa)75.5-102
Rotation speed (rpm)6.7
Climbing ability (%)70
Bucket digging force (kN)356
Rod digging force (kN)332
Maximum tractive force (kN)453
Travel speed (km/h)4.6/3
Turning torque (Nm)225.6
Rotary hydraulic motor typeFixed displacement plunger hydraulic motor with mechanical brake
Type of walking hydraulic motorVariable displacement axial piston hydraulic motor with mechanical brake
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9

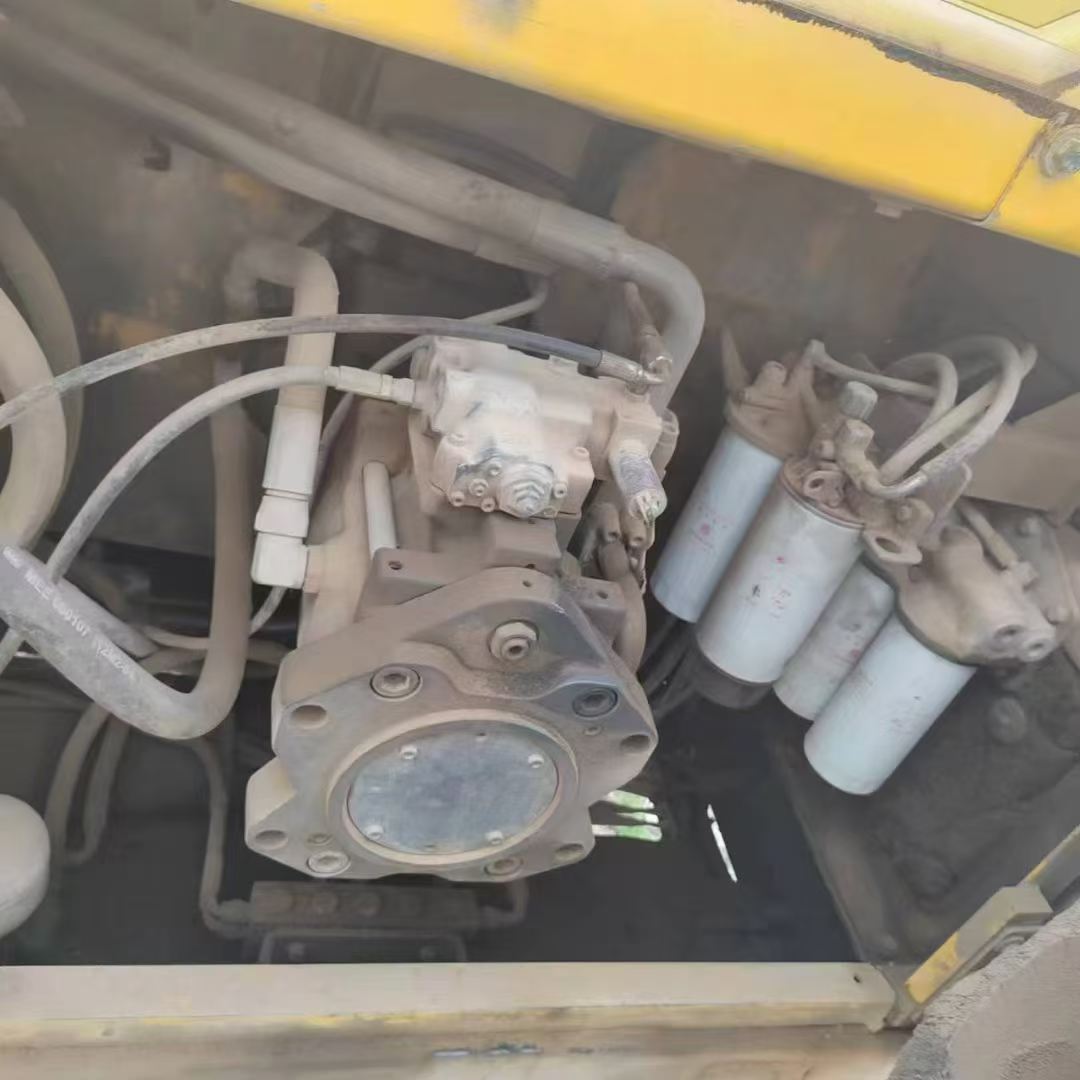

Main pump typeTwo variable displacement axial piston pumps
Working Hydraulic Circuit (Mpa)31.4/34.3
Pilot pump flow (L/min)2 x 436
Bucket cylinders - Number × diameter × stroke (mm)1 x 190 x 1.450
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 215 x 2.070
Boom cylinders - Number × diameter × stroke (mm)2 x 190 x 1.790
Fuel Tank (L)840
Hydraulic Tank (L)350
Engine Oil changes (L)52
Coolant (L)65
Hydraulic System (L)655
Total transport length (mm)12200
Total transport width (mm)4286
Total transport height (mm)4660-4855
Full cab height (mm)3520
Minimum turning radius of front working device (mm)5160-5480
Back end turning radius (mm)4140
Total track length (mm)5990
Track plate width (mm)650/750/900
Maximum digging radius (mm)11500-12600
Maximum digging depth (mm)7100-7605
Maximum excavation height (mm)10980-12490
Maximum unloading height (mm)6960-8410
Maximum vertical digging depth (mm)5065-6780
Maximum excavation radius of stop surface (mm)11200-12335
see more

Overview

No.1170113

Brand Name:

Volvo

Model Number:

EC700C

Year:

2012

Location:

Shandong China

Pub Date:

Are you interested in this machine?

Please contact us
