2012 Volvo EC700C

1/9

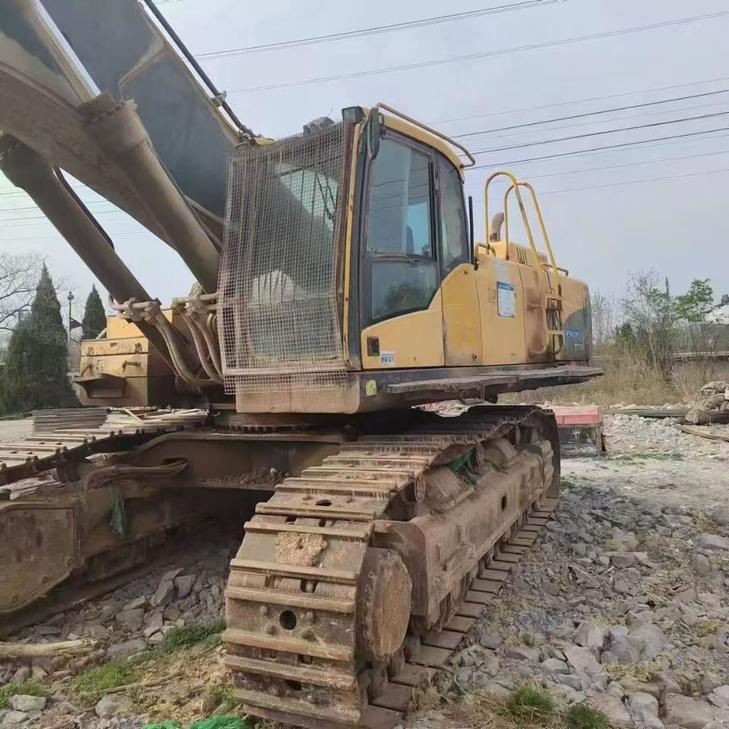

Buy Volvo EC700C Used Excavator / 1
Buy Volvo EC700C Used Excavator / 2
Buy Volvo EC700C Used Excavator / 3
Buy Volvo EC700C Used Excavator / 4
Buy Volvo EC700C Used Excavator / 5
Buy Volvo EC700C Used Excavator / 6
Buy Volvo EC700C Used Excavator / 7
Buy Volvo EC700C Used Excavator / 8
Buy Volvo EC700C Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2012 Volvo EC700C, available for purchase from Shandong, China. This robust excavator is designed to handle the toughest jobs in construction and mining, ensuring high productivity with its powerful performance. The EC700C model is known for its durability and ease of maintenance, making it a cost-effective solution for your heavy machinery needs.

  • Year: 2012
  • Brand: Volvo
  • Model: EC700C
  • Location: Shandong, China
SpecificationsValue
No.1175173
Tonnage (tons)70
Working weight (kg)698000-717000
Bucket capacity (m³)2.48-6.6
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D16E EAE3
Rated power (kw/rpm)336.5/1800
Cylinder diameter × stroke (mm)114 x 165
Maximum torque (N.m)2250/1350
Number of cylinders (PCS)6
Displacement (L)16.1
Ground specific pressure (Kpa)75.5-102
Rotation speed (rpm)6.7
Climbing ability (%)70
Bucket digging force (kN)356
Rod digging force (kN)332
Maximum tractive force (kN)453
Travel speed (km/h)4.6/3
Turning torque (Nm)225.6
Rotary hydraulic motor typeFixed displacement plunger hydraulic motor with mechanical brake
Type of walking hydraulic motorVariable displacement axial piston hydraulic motor with mechanical brake
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Main pump typeTwo variable displacement axial piston pumps
Working Hydraulic Circuit (Mpa)31.4/34.3
Pilot pump flow (L/min)2 x 436
Bucket cylinders - Number × diameter × stroke (mm)1 x 190 x 1.450
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 215 x 2.070
Boom cylinders - Number × diameter × stroke (mm)2 x 190 x 1.790
Fuel Tank (L)840
Hydraulic Tank (L)350
Engine Oil changes (L)52
Coolant (L)65
Hydraulic System (L)655
Total transport length (mm)12200
Total transport width (mm)4286
Total transport height (mm)4660-4855
Full cab height (mm)3520
Minimum turning radius of front working device (mm)5160-5480
Back end turning radius (mm)4140
Total track length (mm)5990
Track plate width (mm)650/750/900
Maximum digging radius (mm)11500-12600
Maximum digging depth (mm)7100-7605
Maximum excavation height (mm)10980-12490
Maximum unloading height (mm)6960-8410
Maximum vertical digging depth (mm)5065-6780
Maximum excavation radius of stop surface (mm)11200-12335
see more

Overview

No.1175173

Brand Name:

Volvo

Model Number:

EC700C

Year:

2012

Location:

Shandong China

Pub Date:
