Product Description

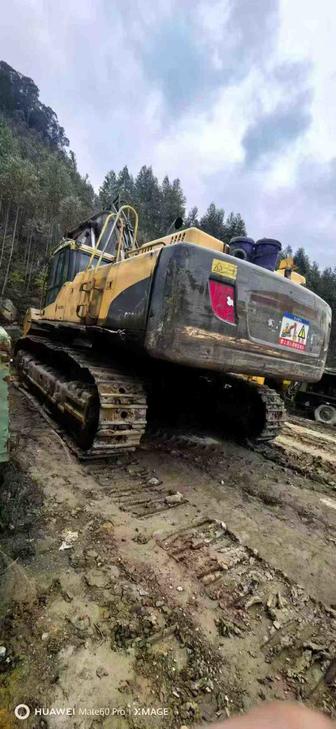

Built for operators who demand precision and endurance, this 2016 Volvo EC700C delivers 70-ton performance with exceptional visibility and control. Powered by the robust Volvo D16E EAE3 engine generating 336.5 kW at 1800 rpm, this excavator combines raw power with refined handling for heavy-duty applications. The spacious cab provides commanding sightlines across the full work envelope, while dual variable displacement axial piston pumps ensure responsive hydraulic performance across all functions.
- Operating weight: 698,000–717,000 kg with superior stability
- Bucket capacity range: 2.48–6.6 m³ for versatile material handling
- Maximum digging reach: 11,500–12,600 mm
- Maximum digging depth: 7,100–7,605 mm
- Bucket digging force: 356 kN for tough ground conditions
- Fixed displacement plunger hydraulic motor with mechanical brake for smooth rotation
- Currently located in Sichuan Luzhou, ready for inspection
Designed with operator comfort and machine stability as priorities, this EC700C reduces fatigue during extended shifts while maintaining precise control in demanding excavation tasks.
| Specifications | Value |
|---|---|
| No. | 1021149 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 698000-717000 |
| Bucket capacity (m³) | 2.48-6.6 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D16E EAE3 |
| Rated power (kw/rpm) | 336.5/1800 |
| Cylinder diameter × stroke (mm) | 114 x 165 |
| Maximum torque (N.m) | 2250/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 16.1 |
| Ground specific pressure (Kpa) | 75.5-102 |
| Rotation speed (rpm) | 6.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 356 |
| Rod digging force (kN) | 332 |
| Maximum tractive force (kN) | 453 |
| Travel speed (km/h) | 4.6/3 |
| Turning torque (Nm) | 225.6 |
| Rotary hydraulic motor type | Fixed displacement plunger hydraulic motor with mechanical brake |
| Type of walking hydraulic motor | Variable displacement axial piston hydraulic motor with mechanical brake |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Pilot pump flow (L/min) | 2 x 436 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 190 x 1.450 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 215 x 2.070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 190 x 1.790 |
| Fuel Tank (L) | 840 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 52 |
| Coolant (L) | 65 |
| Hydraulic System (L) | 655 |
| Total transport length (mm) | 12200 |
| Total transport width (mm) | 4286 |
| Total transport height (mm) | 4660-4855 |
| Full cab height (mm) | 3520 |
| Minimum turning radius of front working device (mm) | 5160-5480 |
| Back end turning radius (mm) | 4140 |
| Total track length (mm) | 5990 |
| Track plate width (mm) | 650/750/900 |
| Maximum digging radius (mm) | 11500-12600 |
| Maximum digging depth (mm) | 7100-7605 |
| Maximum excavation height (mm) | 10980-12490 |
| Maximum unloading height (mm) | 6960-8410 |
| Maximum vertical digging depth (mm) | 5065-6780 |
| Maximum excavation radius of stop surface (mm) | 11200-12335 |
