Product Description

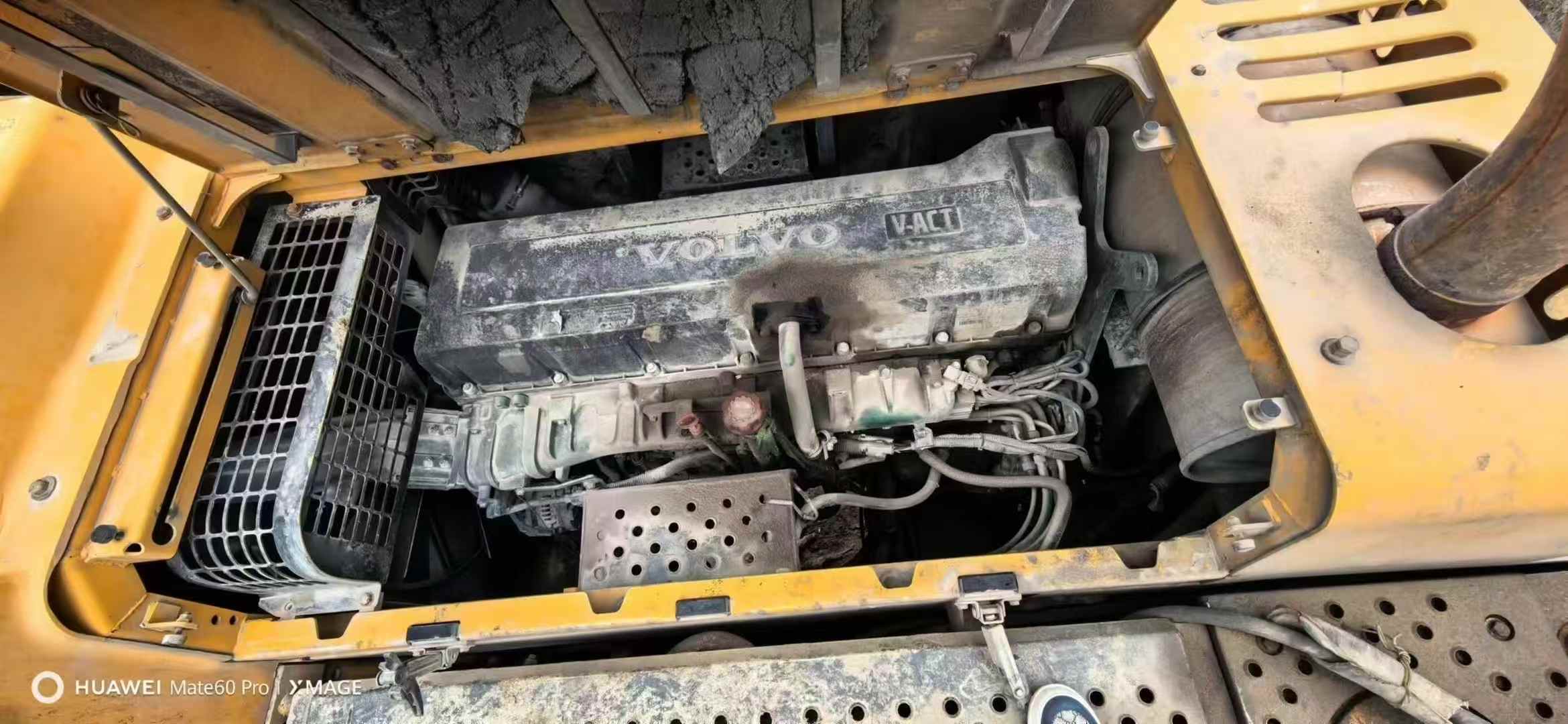

Commanding a 70-ton powerhouse requires precision and confidence. This 2016 Volvo EC700C delivers both through its operator-focused engineering. Powered by a robust Volvo D16E engine generating 336.5 kW at 1800 rpm, this excavator combines raw strength with refined control across demanding jobsites in Guizhou and beyond.
Hydraulic responsiveness defines daily operation. Twin variable displacement axial piston pumps maintain 31.4 MPa working pressure, translating operator input into immediate bucket and boom response. The fixed displacement rotary motor with mechanical brake ensures stable swing control, while variable displacement travel motors provide secure traction on slopes up to 70%.

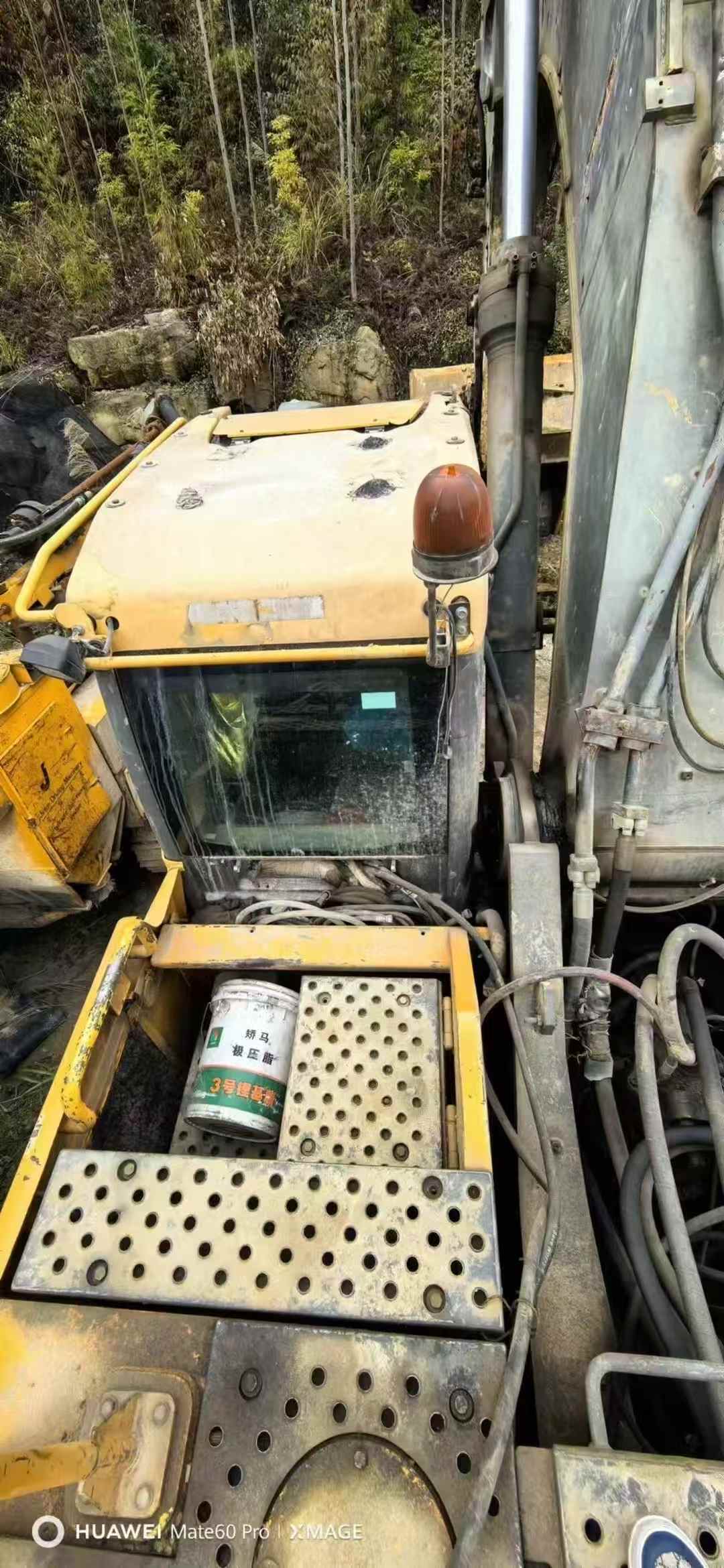

Inside the cab, visibility extends across the 11.5-12.6m maximum digging radius. Ergonomic controls reduce fatigue during extended shifts, supported by intuitive pilot hydraulics operating at 3.9 MPa. Ground-level stability comes from optimized track configuration, maintaining 75.5-102 kPa ground pressure across 650-900mm track plates.
Key Operator Advantages:
- 356 kN bucket digging force with precise metering control
- 4140mm rear swing radius for confined-space maneuverability
- L
| Specifications | Value |
|---|---|
| No. | 1024244 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 698000-717000 |
| Bucket capacity (m³) | 2.48-6.6 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D16E EAE3 |
| Rated power (kw/rpm) | 336.5/1800 |
| Cylinder diameter × stroke (mm) | 114 x 165 |
| Maximum torque (N.m) | 2250/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 16.1 |
| Ground specific pressure (Kpa) | 75.5-102 |
| Rotation speed (rpm) | 6.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 356 |
| Rod digging force (kN) | 332 |
| Maximum tractive force (kN) | 453 |
| Travel speed (km/h) | 4.6/3 |
| Turning torque (Nm) | 225.6 |
| Rotary hydraulic motor type | Fixed displacement plunger hydraulic motor with mechanical brake |
| Type of walking hydraulic motor | Variable displacement axial piston hydraulic motor with mechanical brake |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Pilot pump flow (L/min) | 2 x 436 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 190 x 1.450 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 215 x 2.070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 190 x 1.790 |
| Fuel Tank (L) | 840 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 52 |
| Coolant (L) | 65 |
| Hydraulic System (L) | 655 |
| Total transport length (mm) | 12200 |
| Total transport width (mm) | 4286 |
| Total transport height (mm) | 4660-4855 |
| Full cab height (mm) | 3520 |
| Minimum turning radius of front working device (mm) | 5160-5480 |
| Back end turning radius (mm) | 4140 |
| Total track length (mm) | 5990 |
| Track plate width (mm) | 650/750/900 |
| Maximum digging radius (mm) | 11500-12600 |
| Maximum digging depth (mm) | 7100-7605 |
| Maximum excavation height (mm) | 10980-12490 |
| Maximum unloading height (mm) | 6960-8410 |
| Maximum vertical digging depth (mm) | 5065-6780 |
| Maximum excavation radius of stop surface (mm) | 11200-12335 |
