Product Description

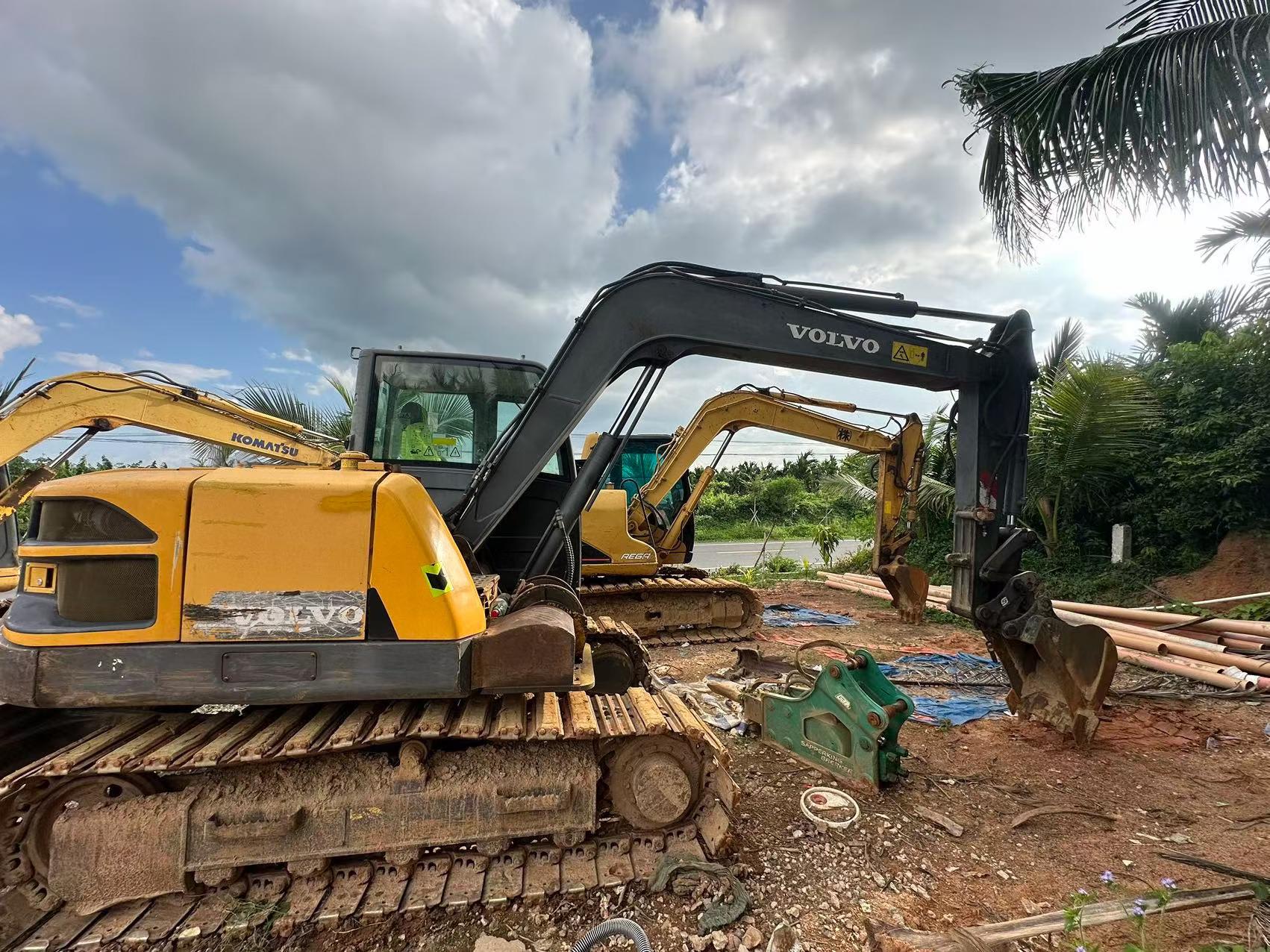

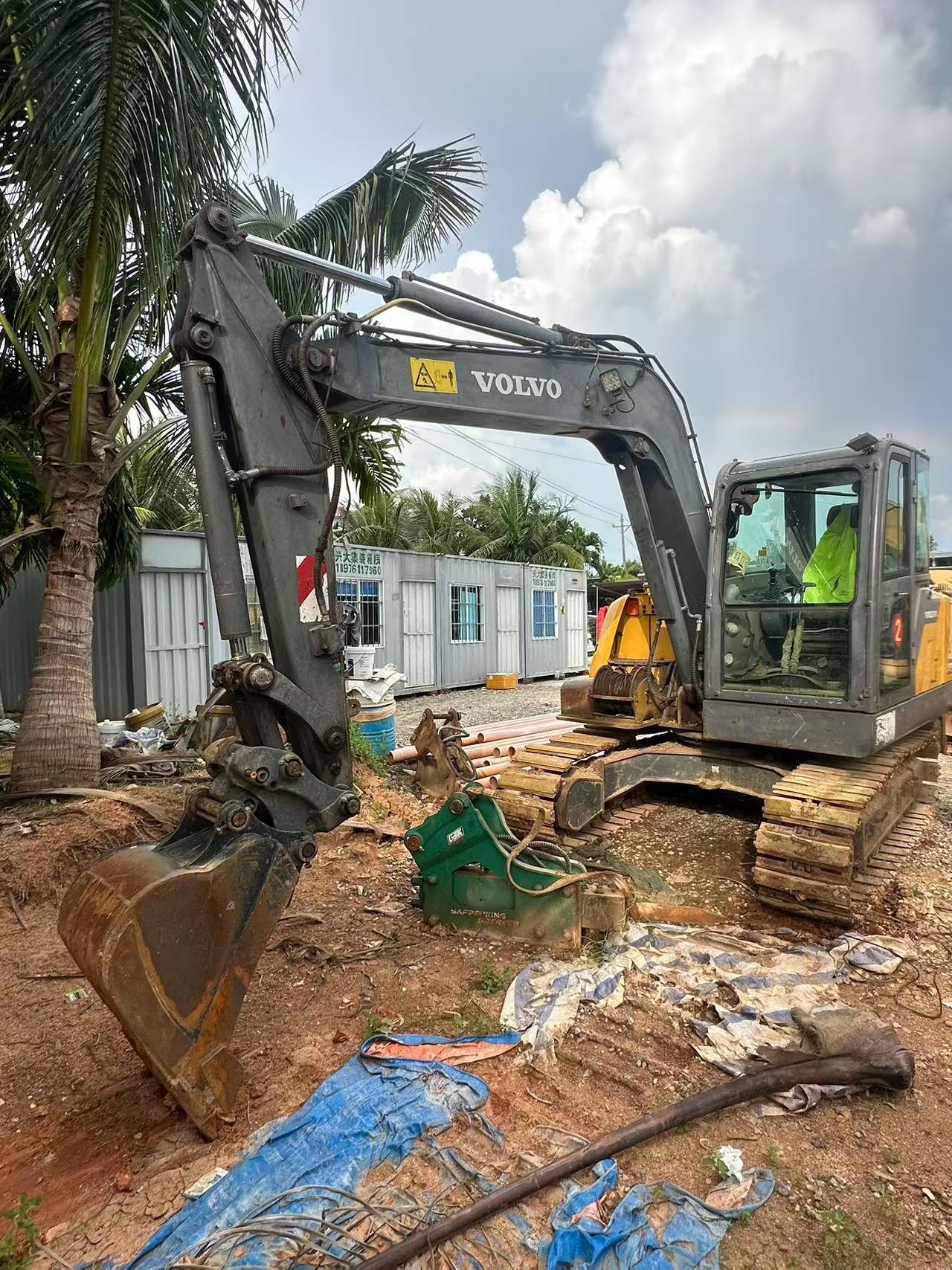

The 2019 Volvo EC75D is a 7.5-tonne class compact excavator, a size widely used for trenching, foundation work, landscaping and municipal maintenance. This unit is currently located in Guangxi, China, and is offered for sale as a used machine. Full working condition checks and a walkaround inspection are welcome by appointment.
-
Year of manufacture: 2019
Brand and model: Volvo EC75D
Machine type: compact hydraulic excavator, 7.5-tonne class
Location: Guangxi, China
Condition: used, previously in service; hour meter and maintenance records to be verified on site
Price guide: the seller is asking in the tens of thousands of RMB, negotiable
Details on the undercarriage, hydraulic pump, engine and any included attachments are available on request. Buyers are encouraged to arrange an independent inspection and to confirm transport arrangements out of Guangxi before committing.
The machine is sold as seen, with no warranty implied, and all specifications should be confirmed against the machine nameplate and the inspection report.
| Specifications | Value |
|---|---|
| No. | 1156526 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

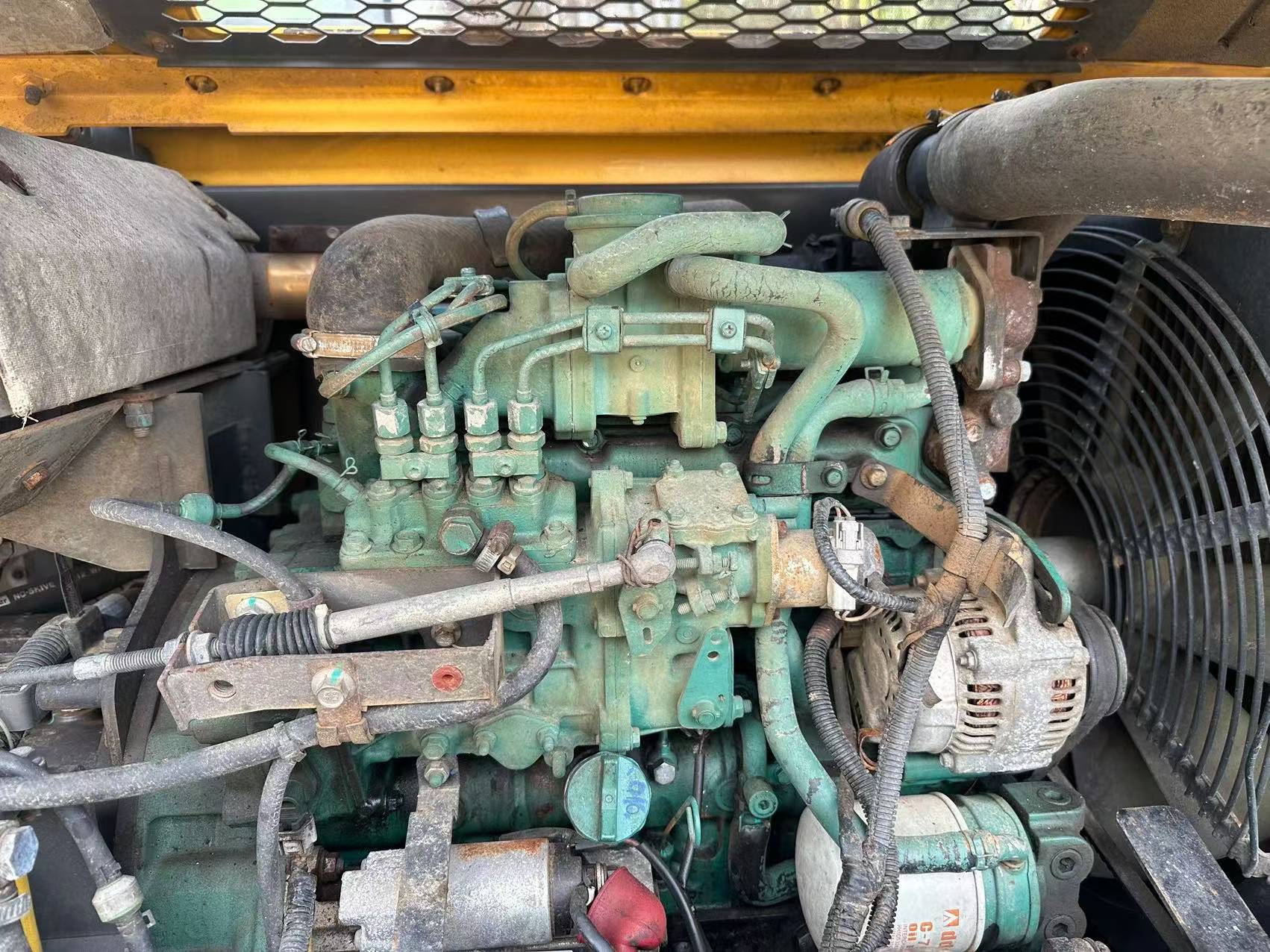

| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
