Product Description
With a working weight of 7400-7800 kg and a bucket capacity of 0.34 m³, the Volvo EC75D excavator stands as a testament to reliability and performance. Located in 浙江绍兴, this 2020 model is powered by a Volvo D2.6D engine, delivering 43 kW at 2000 rpm. Renowned for their durability and efficiency, Volvo machines are a preferred choice in the used market. Parts availability is extensive, ensuring minimal downtime and cost-effective maintenance. The EC75D's robust design and strong resale value make it a smart investment. Equipped with a backhoe bucket, it offers impressive digging forces and travel speeds, making it ideal for a variety of construction and excavation tasks.

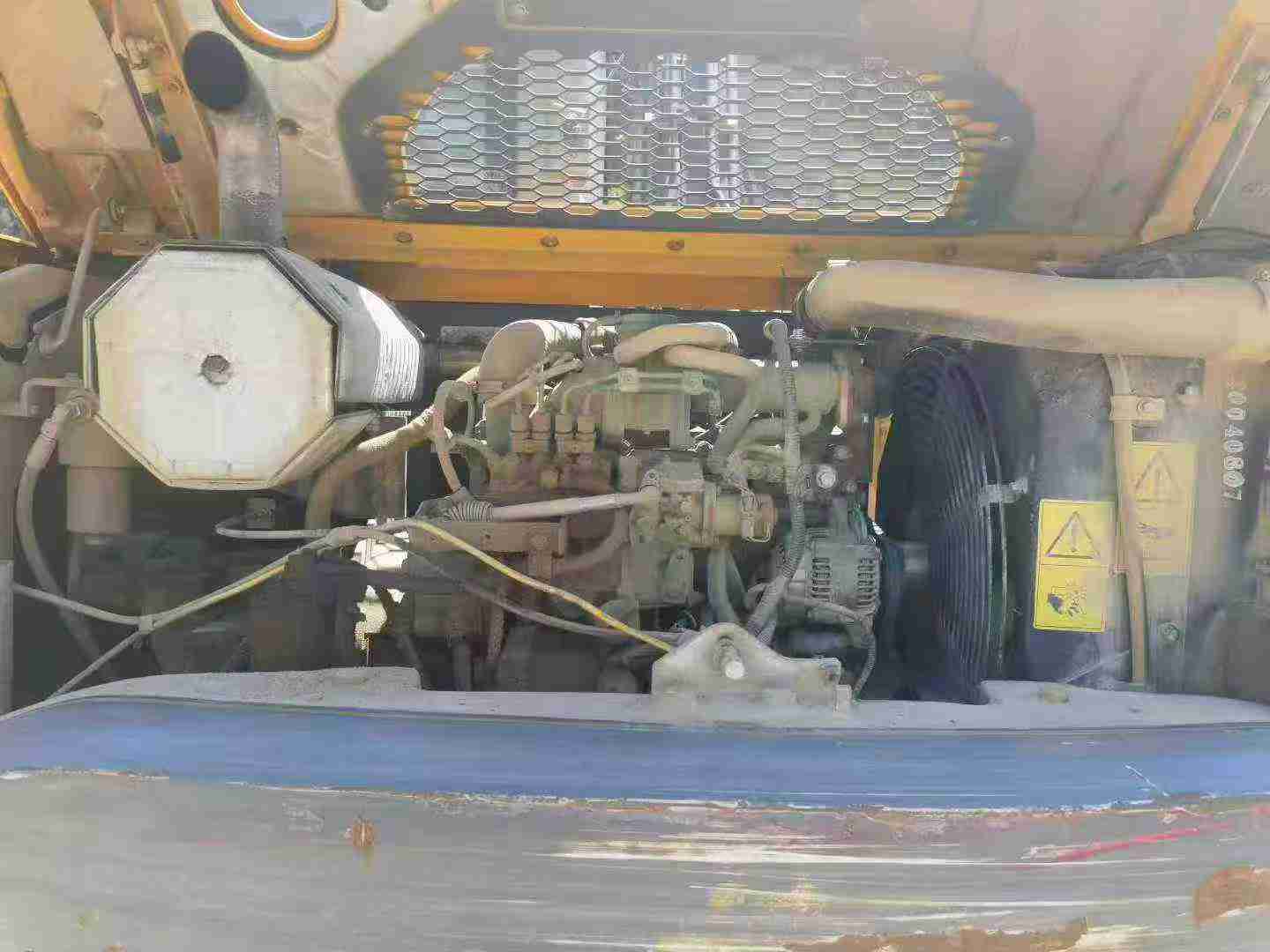

- Engine: Volvo D2.6D, 43 kW at 2000 rpm
- Bucket Capacity: 0.34 m³
- Working Weight: 7400-7800 kg
- Maximum Digging Depth: 4150 mm
- Travel Speed: 2.86/5 km/h
| Specifications | Value |
|---|---|
| No. | 1020367 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |

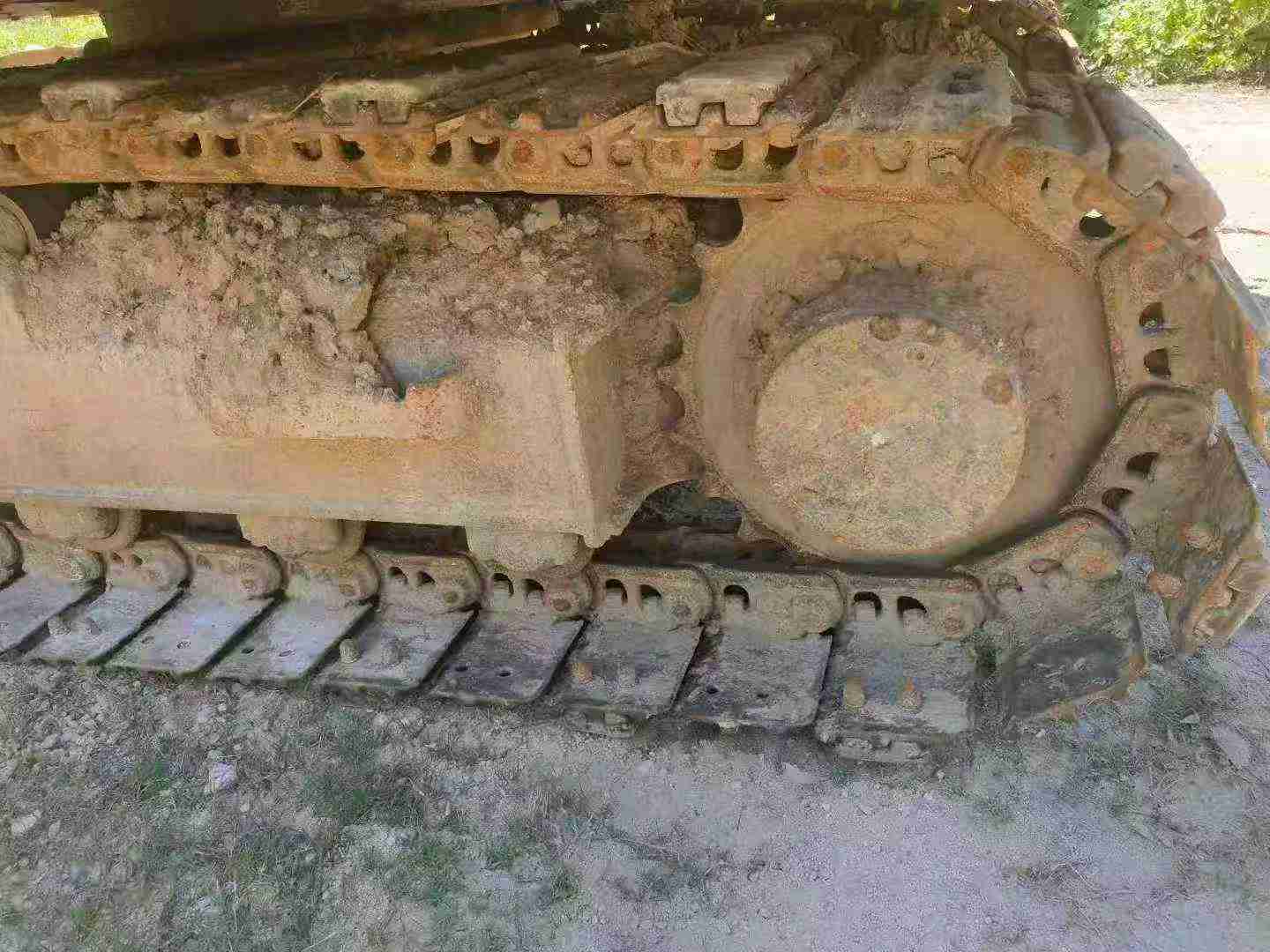

| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
