Product Description

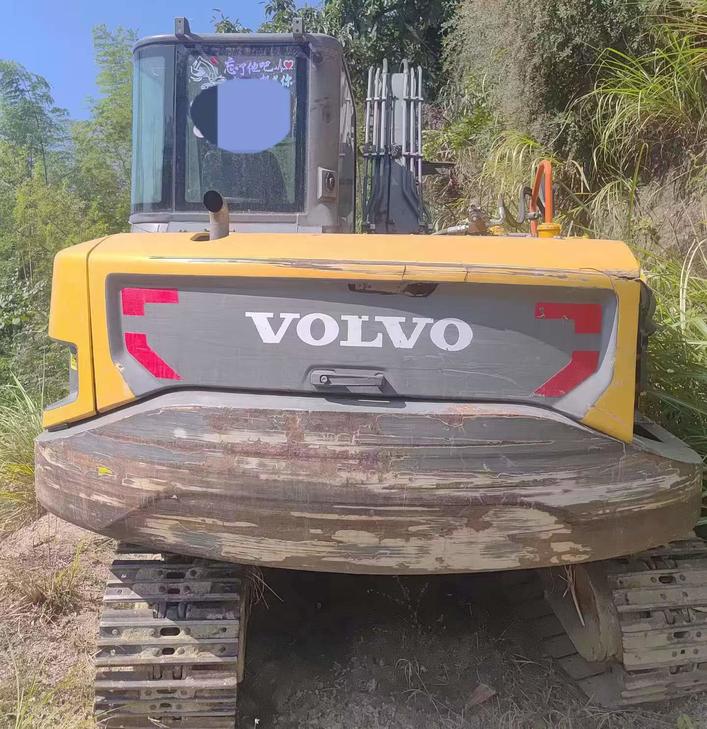

This 2020 Volvo EC75D excavator represents a reliable mid-size solution for construction and earthmoving operations. Manufactured by Volvo Construction Equipment, the EC75D is known for its 7.5-ton operating weight class, delivering efficient performance in confined spaces while maintaining robust digging capabilities.
Currently located in Zhejiang, China, this machine comes with complete documentation and proper registration. The EC75D features Volvo's proven hydraulic system, reduced fuel consumption, and operator-focused cab design that enhances productivity on demanding job sites.
Key features of the Volvo EC75D include:
- Compact dimensions for urban construction projects
- Reliable Volvo engine technology
- Advanced hydraulic efficiency
- Low-hour operation since 2020
- Complete documentation available
Ideal for contractors seeking dependable excavation equipment with the backing of Volvo's engineering standards. Contact us for detailed specifications, current machine condition, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1143269 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
