2020 Volvo EC75D

1/4

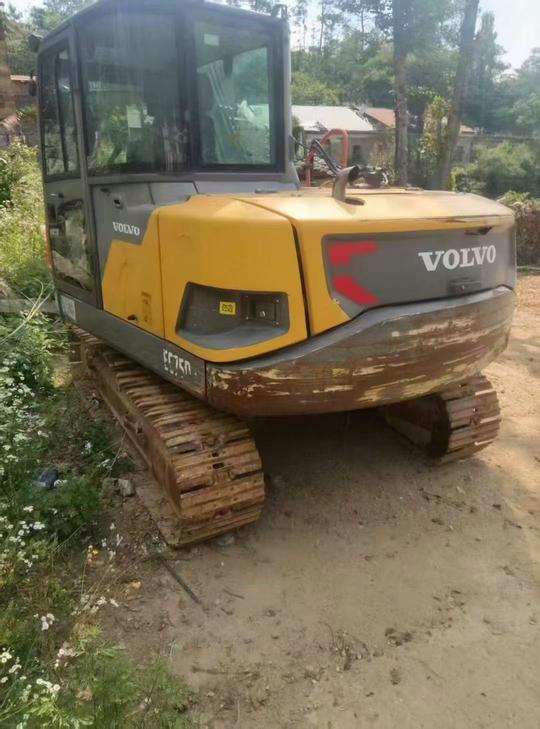

Buy Volvo EC75D Used Excavator / 1
Buy Volvo EC75D Used Excavator / 2
Buy Volvo EC75D Used Excavator / 3
Buy Volvo EC75D Used Excavator / 4

Product Description

This 2020 Volvo EC75D compact excavator offers reliable performance for your construction or utility operations. Located in Hunan, China, this machine has accumulated approximately 3,000+ operating hours since late 2020, indicating moderate use with substantial service life remaining. The unit comes equipped with a winch system, expanding its versatility for material handling and specialized lifting tasks on site.

Key specifications:

  • Year: 2020
  • Model: Volvo EC75D
  • Hours: 3,000+
  • Special equipment: Winch system
  • Location: Hunan, China
  • Availability: Ready for immediate inspection

The Volvo EC75D is recognized for its compact footprint and fuel efficiency, making it suitable for urban construction, landscaping, and confined work areas. Machine is available for on-site inspection at buyer's convenience. Pricing set at RMB 112,000.

SpecificationsValue
No.1144657
Tonnage (tons)7
Working weight (kg)7400 - 7800
Bucket capacity (m³)0.34
Bucket width (mm)860
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D2.6D
Rated power (kw/rpm)43/2000
Cylinder diameter × stroke (mm)87*110
Maximum torque (N.m)225.8/1600
Number of cylinders (PCS)4
Displacement (L)2.62
Ground specific pressure (Kpa)30.4
Rotation speed (rpm)10.5
Bucket digging force (kN)56
Rod digging force (kN)38
Maximum tractive force (kN)65
Travel speed (km/h)2.86/5
Turning torque (Nm)22.9
Maximum flow of main pump (l/min)160
Fuel Tank (L)145
Hydraulic Tank (L)80
Engine Oil changes (L)10
Coolant (L)10.4
Hydraulic System (L)140
Total transport length (mm)6290
Total transport width (mm)2230
Track plate width (mm)450
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6340
Maximum digging depth (mm)4150
Maximum excavation height (mm)7200
Maximum unloading height (mm)5070
Maximum vertical digging depth (mm)3750
Maximum excavation radius of stop surface (mm)6190
see more

Overview

No.1144657

Brand Name:

Volvo

Model Number:

EC75D

Year:

2020

Location:

Hunan China

Pub Date
