Product Description

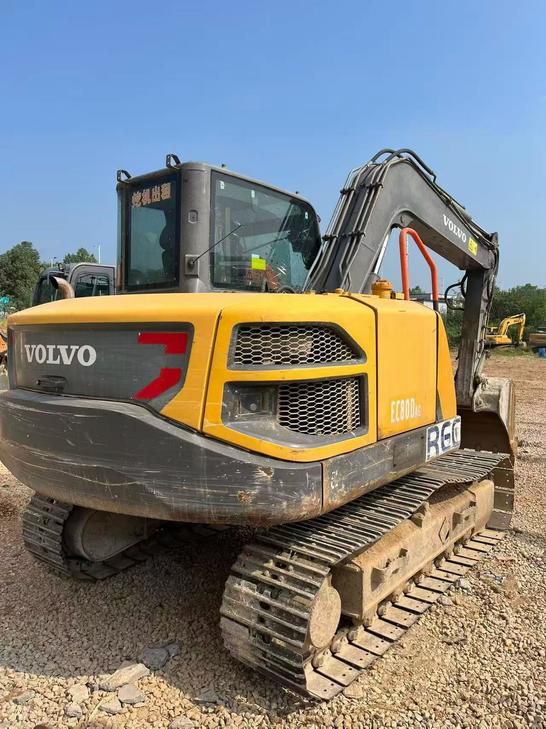

This 2020 Volvo EC75D compact tracked excavator is offered for sale out of Hunan, China. The EC75D belongs to Volvo's compact class and is a practical working unit for trenching, utility installation, foundation and landscape work, where a narrow footprint and easy road transport matter more than high digging output. Volvo's compact range is known for straightforward hydraulics, operator comfort and parts availability through a broad dealer network.
- Year: 2020
- Brand and model: Volvo EC75D
- Machine type: compact tracked excavator, diesel
- Location: Hunan, China
- Condition: used, in working order; inspection or live video walkaround available
- Documentation: photos, hour meter reading and service history provided on request
- Pricing: listed in the higher tens of thousands RMB; contact us for the current figure

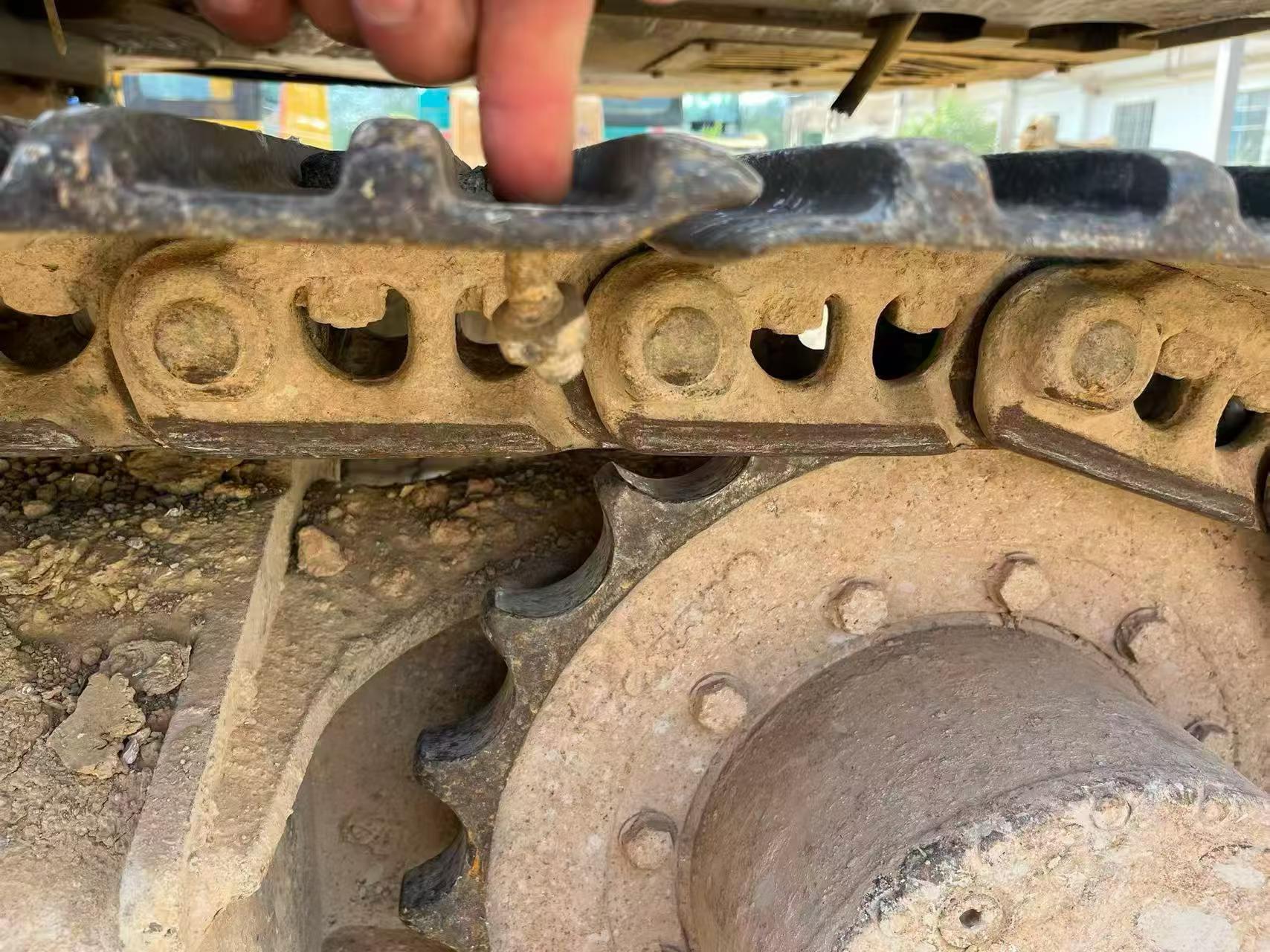

Undercarriage wear, attachment package and hydraulic performance can all be verified before purchase. Buyers are welcome to inspect on site in Hunan or request additional detail. Serious enquiries only, please include intended use and destination so we can quote accurately.
| Specifications | Value |
|---|---|
| No. | 1156958 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7400 - 7800 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 860 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D2.6D |
| Rated power (kw/rpm) | 43/2000 |
| Cylinder diameter × stroke (mm) | 87*110 |
| Maximum torque (N.m) | 225.8/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 10.5 |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.86/5 |
| Turning torque (Nm) | 22.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 10.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6290 |
| Total transport width (mm) | 2230 |
| Track plate width (mm) | 450 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6340 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7200 |
| Maximum unloading height (mm) | 5070 |
| Maximum vertical digging depth (mm) | 3750 |
| Maximum excavation radius of stop surface (mm) | 6190 |
