Product Description

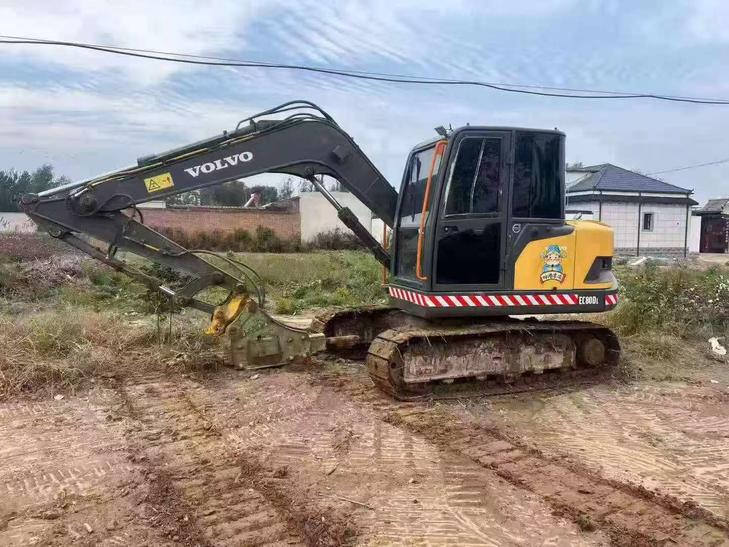

This 2020 Volvo EC80D compact excavator offers reliable performance for contractors and agricultural operations. Originally operated by a private owner in rural China, this machine demonstrates smooth, coordinated hydraulic action and strong travel performance at idle speed. The unit comes equipped with a new quick coupler and includes a 75mm hydraulic breaker in approximately 90% condition, expanding versatility for demolition and breaking applications.
Key features include:
- Volvo EC80D 8-ton class excavator
- 2020 model year with well-maintained operational history
- New quick coupler system for efficient attachment changes
- Included 75mm hydraulic hammer in excellent working condition
- Smooth hydraulic operation and responsive controls
- Currently located in Beijing, China
This machine is suitable for construction, landscaping, utility work, and light demolition projects. The included quick coupler and breaker attachment provide immediate operational capability for demanding jobsite conditions.
| Specifications | Value |
|---|---|
| No. | 1173440 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.34 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.4A |
| Rated power (kw/rpm) | 42/2100 |
| Maximum torque (N.m) | 243 |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 39 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2655 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2200 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3740 |
