HOME>>XCMG>>XCMG 150D

2014 XCMG 150D

1/9
Buy XCMG 150D Used Excavator / 1
Buy XCMG 150D Used Excavator / 2
Buy XCMG 150D Used Excavator / 3
Buy XCMG 150D Used Excavator / 4
Buy XCMG 150D Used Excavator / 5
Buy XCMG 150D Used Excavator / 6
Buy XCMG 150D Used Excavator / 7
Buy XCMG 150D Used Excavator / 8
Buy XCMG 150D Used Excavator / 9

Product Description

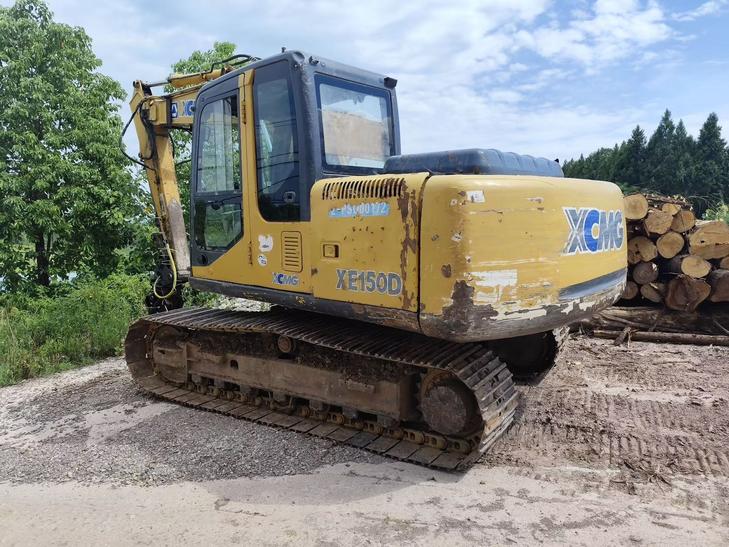

This 2020 XCMG 150D excavator is currently located in Guizhou, China and available for immediate acquisition. The machine comes factory-equipped with a wood grapple attachment and integrated winch system, making it particularly suited for forestry operations, timber handling, and material recovery applications where lifting and gripping capabilities are essential.

XCMG's 150D series delivers reliable performance in the 15-ton class, combining operational efficiency with the durability required for demanding work environments. The inclusion of specialized attachments enhances versatility across multiple job site scenarios.

  • Year of Manufacture: 2020
  • Manufacturer: XCMG
  • Model: 150D
  • Included Equipment: Wood grapple, winch system
  • Current Location: Guizhou Province, China
  • Condition: Used

Ideal for contractors seeking a multi-functional excavator with material handling capabilities. Inspection welcome by appointment.

SpecificationsValue
No.1167464
Tonnage (tons)15
Working weight (kg)14600
Bucket capacity (m³)0.32-0.71
Boom length (mm)4600
Rod length (mm)2520
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSF3.8
Rated power (kw/rpm)93/2200
Cooling modewater-cooling
Maximum torque (N.m)500/1300
Number of cylinders (PCS)4
Displacement (L)3.8
Working formTurbocharged/air-to-air cooling
Ground specific pressure (Kpa)37
Rotation speed (rpm)11.7
Climbing ability (%)35
Bucket digging force (kN)106.9
Rod digging force (kN)73.4
Maximum tractive force (kN)134
Travel speed (km/h)5.3/3.2
Main overflow set pressure (Mpa)31.4/34.3
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)2 x 123.5
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)25
Main pump typeVariable piston pump ×2+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)260
Hydraulic Tank (L)105
Engine Oil changes (L)11
Total transport length (mm)7795
Total transport width (mm)2590
Total transport height (mm)2900
Counterweight ground clearance (mm)948
Minimum ground clearance (mm)477
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2325
Total track length (mm)3658
Track gauge (mm)1990
Track plate width (mm)600
Track ground length (mm)2910
Maximum digging radius (mm)8304
Maximum digging depth (mm)5535
Maximum excavation height (mm)8649
Maximum unloading height (mm)6185
Maximum vertical digging depth (mm)4697
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.1167464

Brand Name:

XCMG

Model Number:

150D

Year:

2014

Location:

Guizhou China

Pub Date:
