Product Description

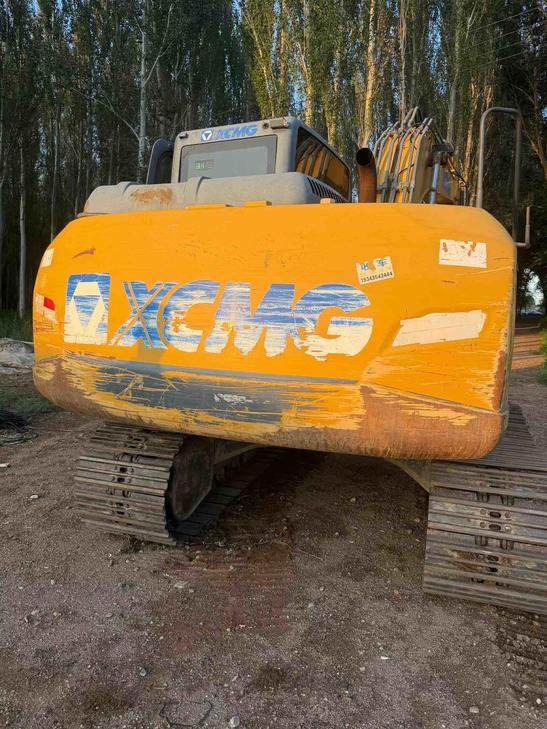

Discover the 2017 XCMG 150D, a robust and reliable heavy machine, available for purchase from InnerMongolia, China. This unit has been primarily used for earthmoving tasks and has not been subjected to hammering, ensuring its structural integrity and operational efficiency. Ideal for construction, mining, and infrastructure projects, this XCMG model is known for its durability and performance. Priced competitively, it offers an excellent cost-to-benefit ratio for businesses looking to enhance their fleet without compromising on quality. Contact us today to discuss how this 150D can meet your project needs.
- Year: 2017
- Brand: XCMG
- Model: 150D
- Primary Use: Earthmoving
- Location: InnerMongolia, China
| Specifications | Value |
|---|---|
| No. | 1145081 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.3/3.2 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 123.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
