Product Description

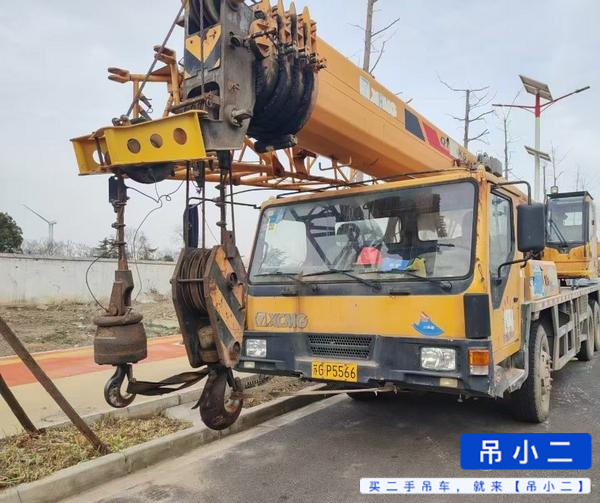

Built to endure the toughest job sites, this 2015 XCMG 20k5 stands as a proven workhorse with years of reliable performance behind it. Currently located in Lianyungang, Jiangsu, this machine demonstrates the exceptional build quality that XCMG is renowned for across industrial sectors. With nearly a decade of operational history, it exemplifies durability that goes beyond manufacturer promises—this is real-world validation of engineering excellence.
- Manufactured in 2015, offering proven longevity and dependable performance
- XCMG 20k5 model engineered for demanding construction and industrial applications
- Located in Lianyungang, Jiangsu for convenient inspection and acquisition
- Demonstrates robust construction quality through years of continuous service
- Represents exceptional value with established track record of reliability
For operations requiring equipment with documented staying power, this XCMG unit delivers confidence backed by years of field-tested performance. Its sustained operational capability confirms the superior materials and manufacturing standards that define lasting industrial machinery.
| Specifications | Value |
|---|---|
| No. | 1009904 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
