2011 XCMG 8B

1/2

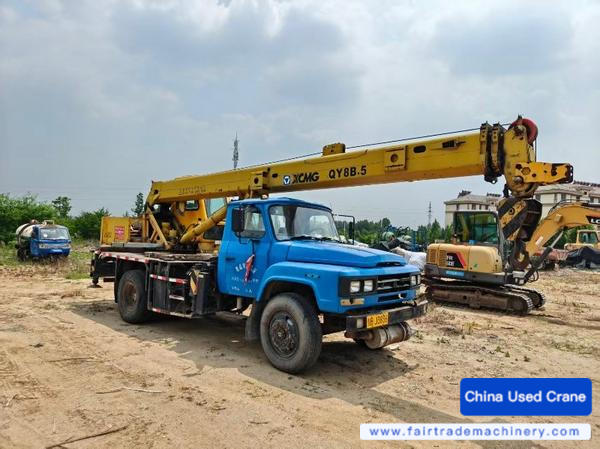

Buy XCMG 8B Used Crane / 1
Buy XCMG 8B Used Crane / 2

Product Description

For sale is a 2011 XCMG 8B, available in Shandong, China. This machine has been well-maintained and is in excellent condition. The vehicle inspection is valid for one full year, and the insurance coverage extends until the end of June. Known for its reliability and durability, this model is an ideal choice for various industrial applications. Priced competitively, it offers a cost-effective solution for your machinery needs without compromising on quality or performance.

  • Year: 2011
  • Brand: XCMG
  • Model: 8B
  • Location: Shandong, China
  • Inspection Valid: One year
  • Insurance Coverage: Until end of June
SpecificationsValue
No.1088186
Tonnage (tons)2
Working weight (kg)1780
Bucket capacity (m³)0.044
Boom length (mm)1690
Rod length (mm)1100
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar Yanmar 3TNV82A
Rated power (kw/rpm)16.5/2200
Cooling modewater-cooling
Number of cylinders (PCS)3
Displacement (L)1.33
Ground specific pressure (Kpa)25.3
Rotation speed (rpm)11
Climbing ability (%)30 °
Bucket digging force (kN)13.9
Rod digging force (kN)8.8
Travel speed (km/h)4.4/2.4
Main overflow set pressure (Mpa)24
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)2*19.8+14.1
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)18
Hydraulic crushing pipeline is standardis
Main pump typeJapan non Fukoshi variable pump ×2+ gear pump ×1
Pilot Oil Circuit (MPa)3.3
Fuel Tank (L)20
Hydraulic Tank (L)29
Engine Oil changes (L)5.5
Total transport length (mm)3760
Total transport width (mm)1300
Total transport height (mm)2405
Counterweight ground clearance (mm)509
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1675
Back end turning radius (mm)1190
Track gauge (mm)1070
Track plate width (mm)230
Track ground length (mm)1217
Maximum digging radius (mm)3915
Maximum digging depth (mm)2285
Maximum excavation height (mm)2655
Maximum unloading height (mm)2515
Maximum vertical digging depth (mm)1485
Dodging plate width × height (mm)1300 x 235
see more

Overview

No.1088186

Brand Name:

XCMG

Model Number:

8B

Year:

2011

Location:

Shandong China

Pub Date
