2014 XCMG 8b5

1/5

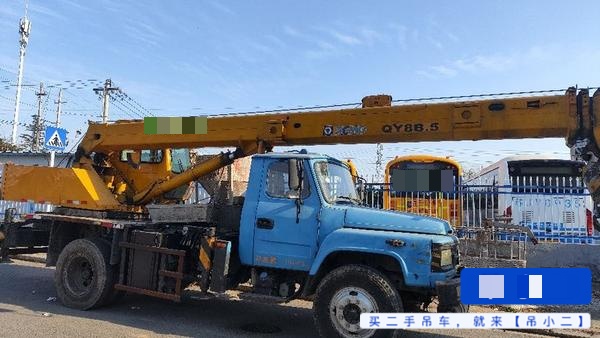

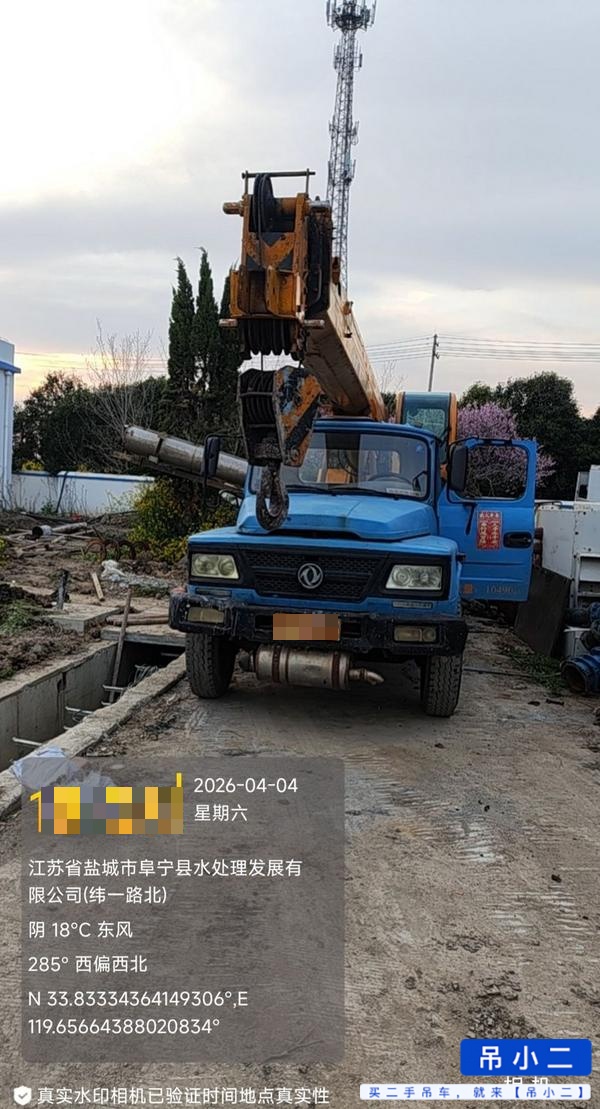

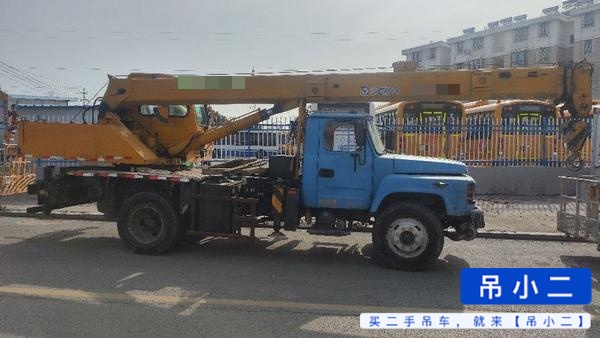

Buy XCMG 8b5 Used Crane / 1
Buy XCMG 8b5 Used Crane / 2
Buy XCMG 8b5 Used Crane / 3
Buy XCMG 8b5 Used Crane / 4
Buy XCMG 8b5 Used Crane / 5

Product Description

Discover the reliability and performance of the 2014 XCMG 8b5, a robust 8-ton machine designed for demanding industrial applications. This used model, compliant with China National Stage IV emission standards, is currently located in Jiangsu, China. Originally registered in Shanghai, this vehicle has been well-maintained and is situated in Yancheng, ready for inspection and immediate deployment. Ideal for construction, mining, and heavy-duty tasks, the XCMG 8b5 offers a blend of efficiency and durability, making it a valuable addition to any fleet.

  • Year: 2014
  • Brand: XCMG
  • Model: 8b5
  • Location: Yancheng, Jiangsu, China
  • Compliance: China National Stage IV Emission Standards
  • Original Registration: Shanghai
SpecificationsValue
No.1129510
Tonnage (tons)8
Working weight (kg)7700/8100 (with dozer)
Bucket capacity (m³)0.34
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4JG1TPC
Rated power (kw/rpm)53.8/2150
Maximum torque (N.m/rpm)255/1800
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)34.6/36.4 (with dozer)
Rotation speed (rpm)11
Climbing ability (%)35 °
Bucket digging force (kN)51.2
Rod digging force (kN)34.2
Maximum tractive force (kN)34.2
Travel speed (km/h)4.9/2.6
Maximum flow of main pump (l/min)198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)9.7
Total transport length (mm)6144
Total transport width (mm)2332
Total transport height (mm)2712
Counterweight ground clearance (mm)827
Minimum ground clearance (mm)428
Back end turning radius (mm)1805
Track gauge (mm)1870
Total track width (mm)450
Maximum digging radius (mm)6295
Maximum digging depth (mm)4130
Maximum excavation height (mm)7165
Maximum unloading height (mm)5060
Maximum vertical digging depth (mm)3500
Bulldozer lift or depth (mm)409/438
Dodging plate width × height (mm)2320 x 416
see more

Overview

No.1129510

Brand Name:

XCMG

Model Number:

8b5

Year:

2014

Location:

Jiangsu China

Pub Date
