Product Description

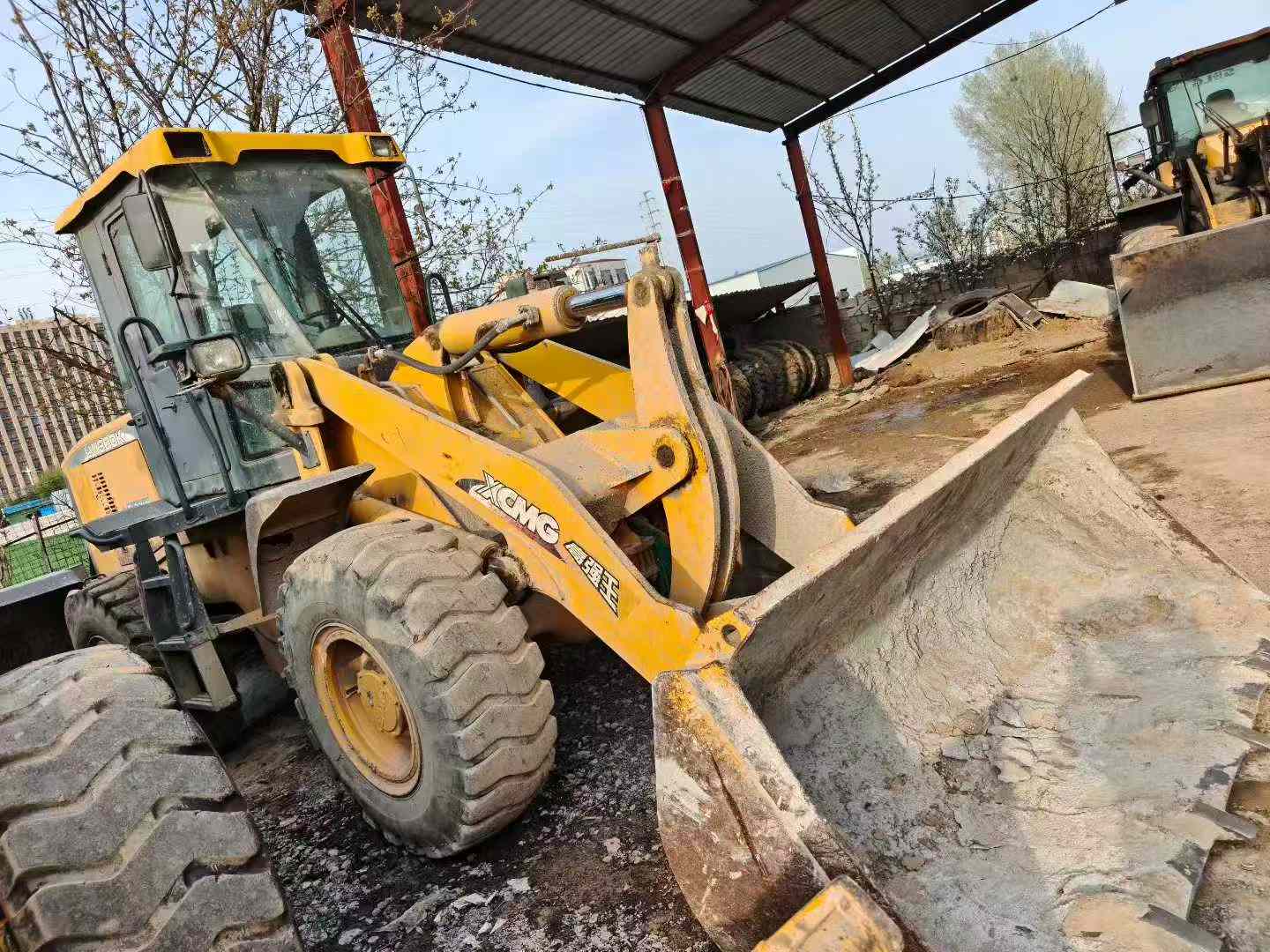

Built for demanding jobsites, this 2011 XCMG LW300K wheel loader delivers reliable performance with a 92kW engine and 3,000kg rated load capacity. Operators benefit from exceptional stability during material handling, supported by a 10,600kg operating weight and 2,900mm wheelbase that ensures balanced load distribution across varied terrain. Visibility from the cabin remains unobstructed during lifting and dumping operations, with a maximum unloading height of 2,930mm at 45° and a reach of 1,000mm.
With 120kN digging force and a 1.8m³ bucket capacity, this loader handles aggregate, soil, and demolition materials efficiently. Fast cycle times—5.68 seconds lift and 10.3 seconds total—maximize productivity on loading and stockpiling tasks. Three forward speeds reaching 35-37km/h enable quick repositioning between work areas. Currently located in Baoding, Hebei, this machine suits construction contractors, quarry operators, and material yards requiring proven Chinese engineering at competitive value.
- Rated Load: 3,000kg | Bucket Capacity: 1.8m³
- Engine Power: 92kW @ 2,300rpm
- Operating Weight: 10,600kg | Wheelbase: 2,900mm
- Digging Force: 120kN | Max Tractive Force: 90kN
- Compact Tur
| Specifications | Value |
|---|---|
| No. | 1044385 |
| Engine type | |
| Rated power (kw/rpm) | 92/2300 |
| Working form | |
| Bucket capacity (m³) | 1.8 |
| Rated load (tons) | |
| Rated load (kg) | 3000 |
| Digging force (lifting force) (kN) | 120 |
| Machine operating weight (kg) | 10600 |
| Unloading height - Unloading Angle 45°(mm) | 2930 |
| Unloading distance - Unloading Angle 45°(mm) | 1000 |
| Maximum tractive force (kN) | 90 |
| Distance from rear axle to hinge point (mm) | 1550 |
| Loading position height (mm) | 3839 |
| Wheelbase (mm) | 2900 |
| Minimum ground clearance (mm) | 370 |
| Machine length (mm) | 7250 |
| Machine width (mm) | 2580 |
| Machine height (mm) | 3290 |
| Bucket width (mm) | 25800 |
| Steering Angle | 30 |
| Minimum turning radius of outer wheel center line | 5170 |
| Turning radius - Outside of bucket (mm) | 6067 |
| Lift (s) | 5.68 |
| Ternary sum (s) | 10.3 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | 14/16 |
| Speed 3 (km/h) | 35/37 |
