Product Description

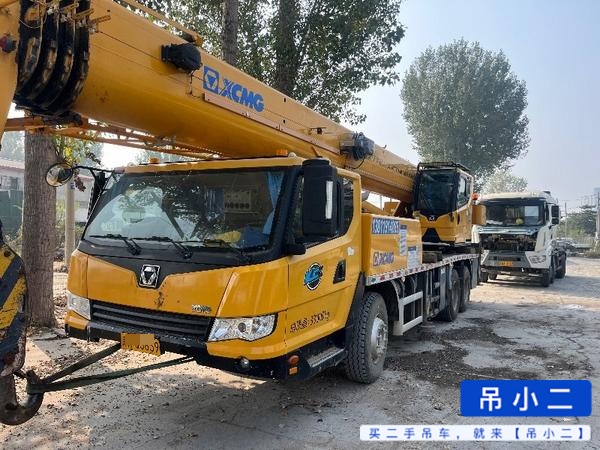

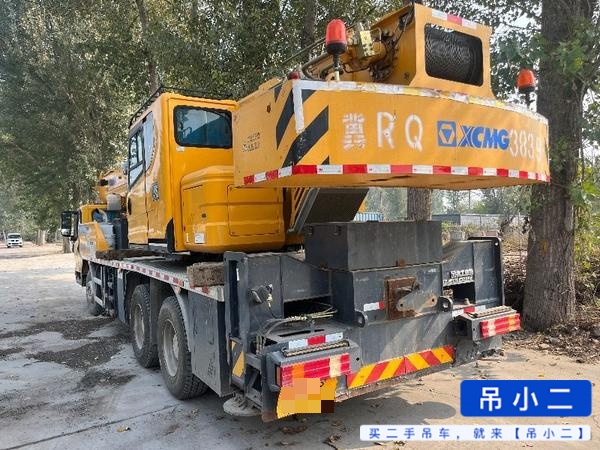

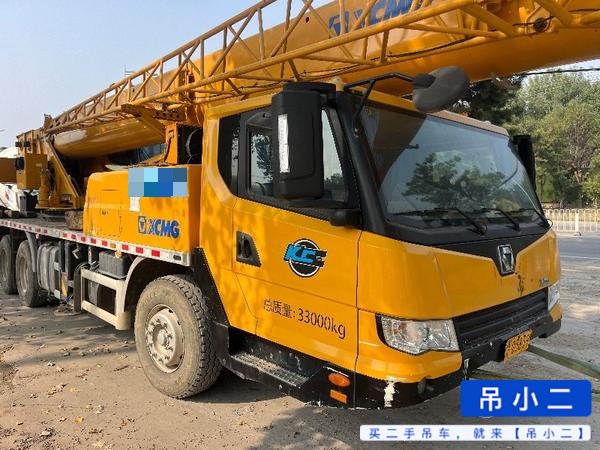

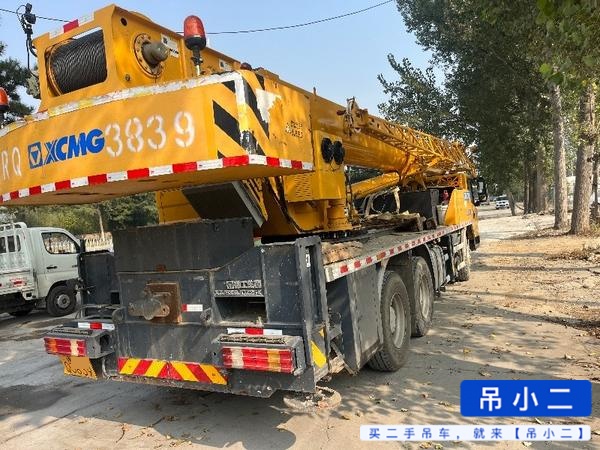

Rated at 25 tonnes over a 33.5 m telescopic boom, the QY25KC runs load-sensing, variable-displacement hydraulics mated to a Weichai six-cylinder turbo diesel developing roughly 199 kW. A single telescoping cylinder with automatic pinning sequences the boom under load, while proportional joystick valves meter swing, hoist and boom functions in precise, repeatable increments.
- Maximum rated lifting capacity: 25 t
- Main boom 33.5 m; 8.5 m lattice jib extends tip height to about 42 m
- Powerplant: Weichai turbocharged, intercooled diesel, approximately 199 kW, peak torque low in the rev range
- Hydraulics: load-sensing dual pumps, proportional control, four-point hydraulic outriggers

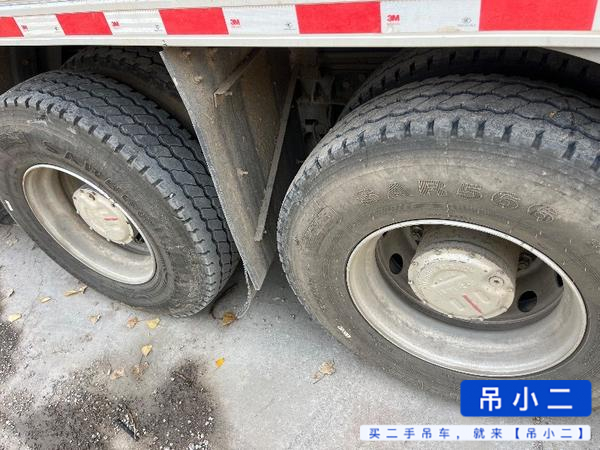

- Carrier: XCMG 6x4 chassis, hub-reduction axles, planetary final drives
Boom sections are formed from high-tensile U-profile plate on automated welding lines to the same standard as XCMG's heavier truck cranes, so pumps, valves and wear parts interchange across the series — a genuine advantage for operators stocking spares. This 2020 unit is located in Hebei, China, open to inspection, with export shipping arranged worldwide by Fair Trade Machinery.
| Specifications | Value |
|---|---|
| No. | 1163420 |
| Tonnage (tons) | 125 |
| Working weight (kg) | 115000 |
| Bucket capacity (m³) | 5.2-8.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 567/1800 |
| Rotation speed (rpm) | 5.2 |
| Bucket digging force (kN) | 597 |
| Rod digging force (kN) | 470 |
| Travel speed (km/h) | 2.4-3.5 |
| Maximum digging radius (mm) | 13860 |
| Maximum digging depth (mm) | 8110 |
| Maximum unloading height (mm) | 7990 |
